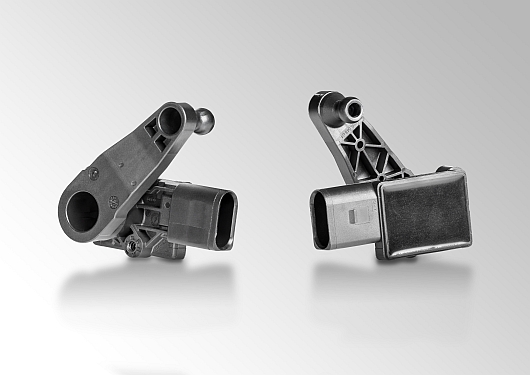

Vehicle level sensor (VLS)

Vehicle level sensor (VLS)

The Vehicle level sensor is a compact angle sensor solution assembled at the vehicle chassis in order to support automatic headlamp leveling or active suspension control. This sensor can also be linked to a brake pedal, clutch pedal or any other application that can be coupled by a linkage.



  • Over ten years’ experience in manufacturing vehicle level sensors
  • Modular design
  • Robust sensor with optimized dimensions
  • Simple and cost-optimized design
  • Water tightness (IP6K9K)




Vehicle level sensor

Temperature range                             -40°C to +125°C (130°C for brief periods)
Interfaces Analog, PWM, SENT, PSI 5 (available in 2016)
Accuracy ≤ +/-1% of full measuring range over lifetime and temperature
Resolution 12 bit
Size 68 x 54 x 47 mm³ (sensor housing)
