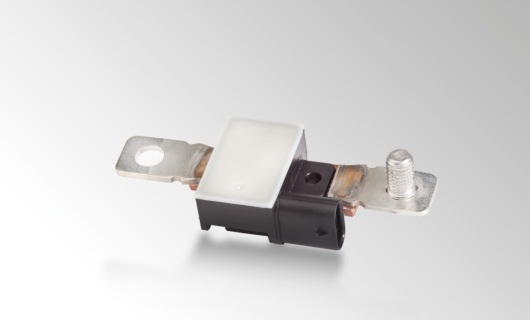

High voltage current sensor (galvanic isolation)
High voltage current sensor (galvanic isolation)

High voltage current sensor (galvanic isolation)

HELLA has also designed a shunt-based high voltage current sensor galvanically isolated that it can be used as a standalone component in full hybrid and EV applications.

ADVANTAGES
  • Precise shunt-based measurement of current within high voltage applications and batteries with insulation
  • Galvanic isolated LIN communication and supply interface
  • Greater accuracy compared to today’s Hall sensors (< 1%)
  • Precise calculation of ampere-hour balance
  • Current consumption < 85 mA
  • High voltage insulation strength class B
  • Insulation resistance > 5 MΩ

TECHNICAL DATA

11/05/2015

 High voltage current sensor
Permanent load current +/- 155A, Ta. 105°C, Ub=14V
Maximum peak current +/- 1500A, allowed for 500ms
Current consumption Max.85mA operating mode
Operating temperature -40°C .. +85°C
High voltage insulation strength Class B
Insulation resistance > 5 M Ohm
Sealing class IP6K9K (IEC 60529)
Weight ~ 100g
L x W x H  100 x 35 x 20 mm
