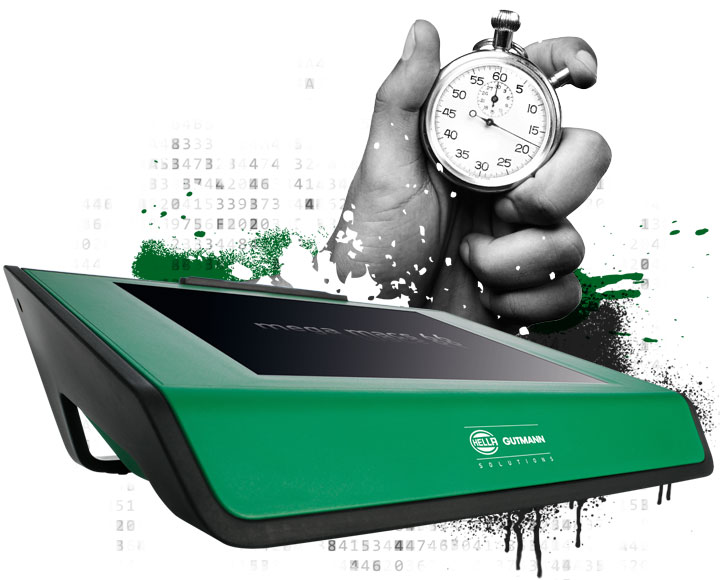

mega macs 66
Like having an extra colleague on hand
The champion of all classes
Isn't it nice when you can place blind trust in a competent colleague? The mega macs 66 is exactly that: A reliable, additional colleague in the workshop that will never let you down, even in complex situations. Thousands of workshops rely on the first diagnostics system with a real-time repair concept – which means quicker repairs and higher earnings.
✓ Control unit communication with all relevant vehicle systems
✓ Real-time repair concept with direct connection to Hella Gutmann
✓ Maximum vehicle coverage and depth of diagnosis
The system that does it all
Anyone working in a workshop with an ever-increasing number of different brands, vehicle models, and technical innovations needs a diagnostics system that helps them to keep an eye on everything and remain calm. Since Hella Gutmann launched the world's first real-time repair concept with the mega macs 66, many workshops have been able to get to grips with the ever-growing number of electronic components and control units in vehicles. Mega macs 66 reads and interprets fault codes in seconds, provides all the key vehicle parameters at a glance and accurately records all measurement data.
| GENERAL DATA | |
|---|---|
| Supply voltage | 10–15 V |
| Battery charging voltage | 12.5–18 V |
| Current consumption | Max. 4 A, average 2 A |
| Power supply | Li-polymer battery, 3.3 Ah |
| Display | Design: TFT Resolution: SVGA Size: 12.1" |
| Input | Touchscreen |
| Range of operation | 0 – 45 °C |
| Compatibility | asanetwork |
| Weight | 3,800 g including battery/250 g (module) |
| Dimensions | 135 mm x 362 mm x 302 mm (H x W x D) |
| Protection class | IP20 |
| Interfaces | WLAN and Bluetooth® |
| Range | 3–10 m (indoors)/max. 50 m (outdoors) |
| DT 66 (DIAGNOSTICS MODULE) | |
|---|---|
| Battery charging voltage | 10–15 V |
| Current consumption | Max. 600 mA, typically 150 mA |
| Module weight | 250 g |
| Battery | Li-polymer battery, at least 790 mAh |
| Dimensions | 37 x 82 x 160 mm (H x W x D) |
| Interfaces | 1 x ST2, 1 x module interface, Bluetooth® Class 1 |
| Data transfer rate | Max. 3 Mbit/s |
| Frequency range | 2.4 GHz |
| OPTIONAL ACCESSORIES | |
|---|---|
| MT 66 (measurement technology module) | |
| Current consumption | Max. 500 mA, average 400 mA |
| Module weight | 250 g |
| Dimensions | 37 mm x 82 mm x 160 mm (H x W x D) |
| Bandwidth | Max. 10 MHz |
| Sampling rate | 64 MSa/s |
| Memory capacity | 64 kB |
| Amplitude resolution | 12 bit |
| Overload protection | Max. 200 V |
| Measurement channels | 2 (galvanically separated) |
| Measured values | Voltage, current, resistance |
| Interfaces | 4 x safety socket 4 mm, (2 per measurement channel), 1 x ST3 (12-pin) |
| UMTS 66 (UMTS module) | |
| UMTS broadband | HSDPA 7.2 Mbps (WCDMA) |
| Quad-band EGSM | (850, 900, 1800, 1900 Mhz) |
| Dimensions | 37 mm x 82 mm x 160 mm (H x W x D) |
| Module weight | 150 g |
| Other accessories | |
| LPD kit (for pressure measurements from –1 to 60 bar) | |
| Vehicle adapter | |
| Motorcycle adapter | |
| Ampere pliers, blue, 0-700 A | |
| Ampere pliers, green, 40 A | |
| Device case | |
| Device station | |
