Rotaflash Compact LED Efficient Design
The RotaFlash Compact LED is the next generation of the original Rota Compact, now with LED technology. With its iconic dome shape, this beacon retains the striking design while offering advanced functions.
- Choice of preferred function: rotating or flashing
- CISPR 25 Class 3 interference protection and ADR certification for safe operation in hazardous goods vehicles
- Perfect solution for upgrading or retrofitting vehicles with a design that corresponds to the old halogen beacon

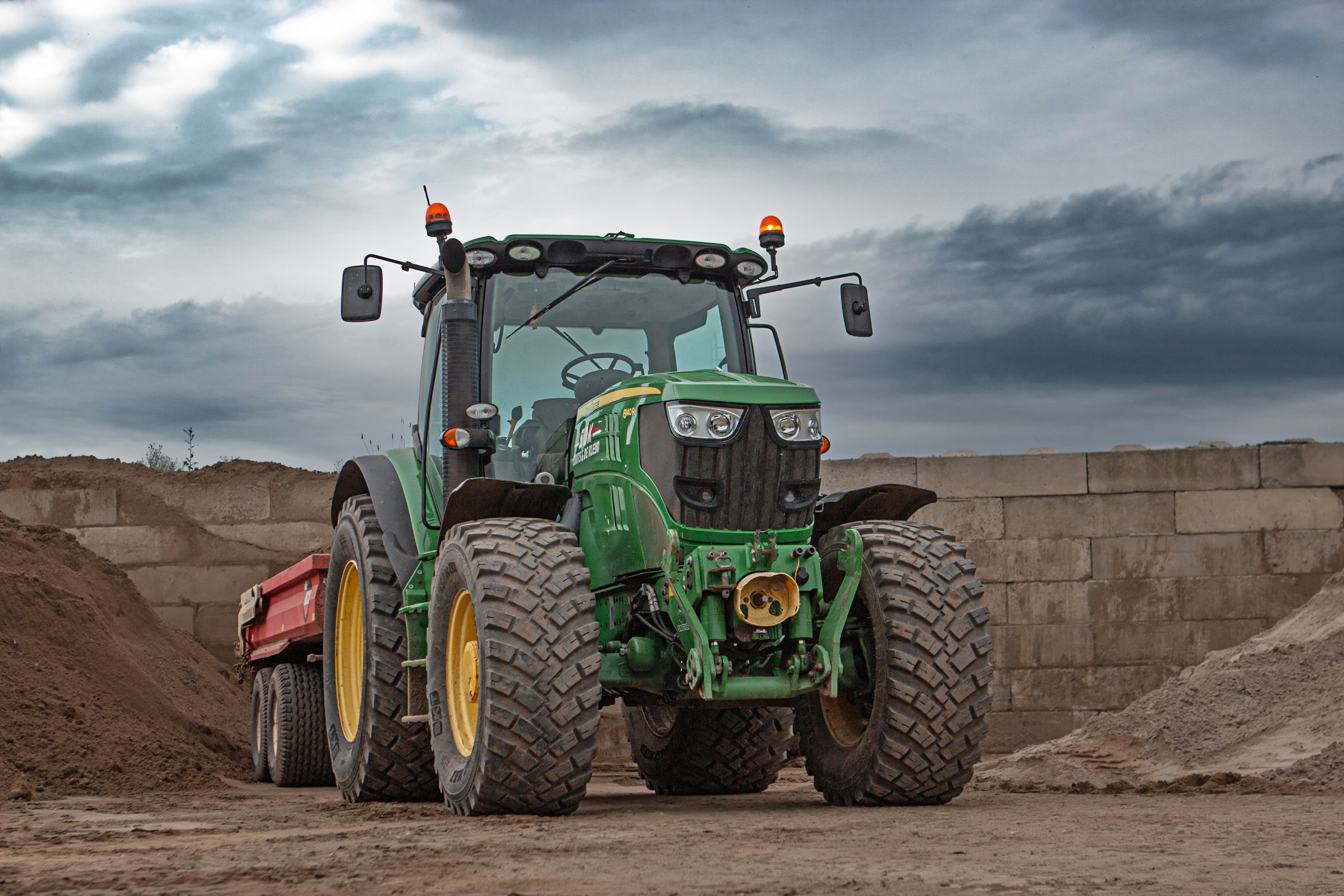

Rotaflash Compact LED in application
Compact warning lamp with flexible functions
RotaFlash Compact LED combines flashing and rotating warning functions in one device – for flexible signalling patterns to suit your demands. Its compact design makes it easy to switch from halogen to LED. The lamp is protected against water and dust, EMC-optimised and complies with relevant standards such as ECE-R65, SAE and ADR. Ideal for professional applications with the most stringent requirements.
Technical Sheet
RotaFlash Compact LED Fixed
- 2XD 013 878-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 3
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal , with rotating warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IPX9K , IP67
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Plug Type
Blade Terminal
Lamp Type
LED
Height
157 mm
Housing Colour
black
Housing material
PC (Polycarbonate)
LED colour
white
Lens Colour
yellow (amber)
Light colour
yellow (amber)
Number of LEDs
8
Temperature range from
-40 °C
Temperature range to
+60 °C
Outer Diameter
141 mm
Power consumption
11 W
Quantity
1
fulfils test standard
UKCA , RCM
Weight
575 g
Diffusing Lens Material
PC (Polycarbonate)
Cable Length
150 mm
RotaFlash Compact LED Flexible
- 2XD 013 878-011
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 3
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal , with rotating warning signal
- Mounting Type Pipe-neck
- Prot.type (IP Code) IPX9K , IP67
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Plug Type
Blade Terminal
Lamp Type
LED
Height
204 mm
Housing Colour
black
Housing material
PC (Polycarbonate)
LED colour
white
Lens Colour
yellow (amber)
Light colour
yellow (amber)
Number of LEDs
8
Temperature range from
-40 °C
Temperature range to
+60 °C
Outer Diameter
141 mm
Power consumption
11 W
Quantity
1
fulfils test standard
UKCA , RCM
Weight
795 g
Diffusing Lens Material
PC (Polycarbonate)
Cable Length
150 mm
|
RotaFlash Compact LED Fixed
|
RotaFlash Compact LED Flexible
|
|
|---|---|---|
| 2XD 013 878-001 | 2XD 013 878-011 | |
| fulfils SAE standard | J845 Class 1 | J845 Class 1 |
| fulfils EMC/CISPR standard | Class 3 | Class 3 |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Registration Type | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved |
| Light Function | with flashing warning signal , with rotating warning signal | with flashing warning signal , with rotating warning signal |
| Mounting Type | Bolted | Pipe-neck |
| Prot.type (IP Code) | IPX9K , IP67 | IPX9K , IP67 |
| fulfils ECE standard | R10 , R65 , TA1 | R10 , R65 , TA1 |
| Light Design | LED | LED |
| Plug Type | Blade Terminal | Blade Terminal |
| Lamp Type | LED | LED |
| Height | 157 mm | 204 mm |
| Housing Colour | black | black |
| Housing material | PC (Polycarbonate) | PC (Polycarbonate) |
| LED colour | white | white |
| Lens Colour | yellow (amber) | yellow (amber) |
| Light colour | yellow (amber) | yellow (amber) |
| Number of LEDs | 8 | 8 |
| Temperature range from | -40 °C | -40 °C |
| Temperature range to | +60 °C | +60 °C |
| Outer Diameter | 141 mm | 141 mm |
| Power consumption | 11 W | 11 W |
| Quantity | 1 | 1 |
| fulfils test standard | UKCA , RCM | UKCA , RCM |
| Weight | 575 g | 795 g |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) |
| Cable Length | 150 mm | 150 mm |
