K-LED Nano
Compact, powerful, uncompromising: The K-LED Nano range impresses with powerful light output in a very small space. Extremely rugged thanks to its vibration-resistant design and complete sealing – ideal for use in extreme conditions.
- Very compact design with high light intensity in 3 sizes (K-LED Nano 50, 80 and 120)
- Rotating and flashing versions suitable for fixed installation or installation on a pipe socket
- Vibration and impact-resistant
- High degree of tightness thanks to complete sealing
- Also available as an airport version (ICAO)
The new K-LED Nano range
Compact and powerful. K-LED Nano 50, 80 and 120
Experience the new HELLA K-LED Nano range in action in the video – in 3 sizes and 4 colours, flashing or rotating. For maximum safety, visibility and flexibility in any application. Whether as a fixed attachment or on a pipe socket: These beacons can tackle any challenge.
Discover now!
Technical Sheet
K-LED Nano 50 amber, rotating, fixed mounting
- 2RL 099 147-001
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 72 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
146 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
229 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 50 amber, flashing, fixed mounting
- 2XD 066 147-001
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 72 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
146 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
229 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

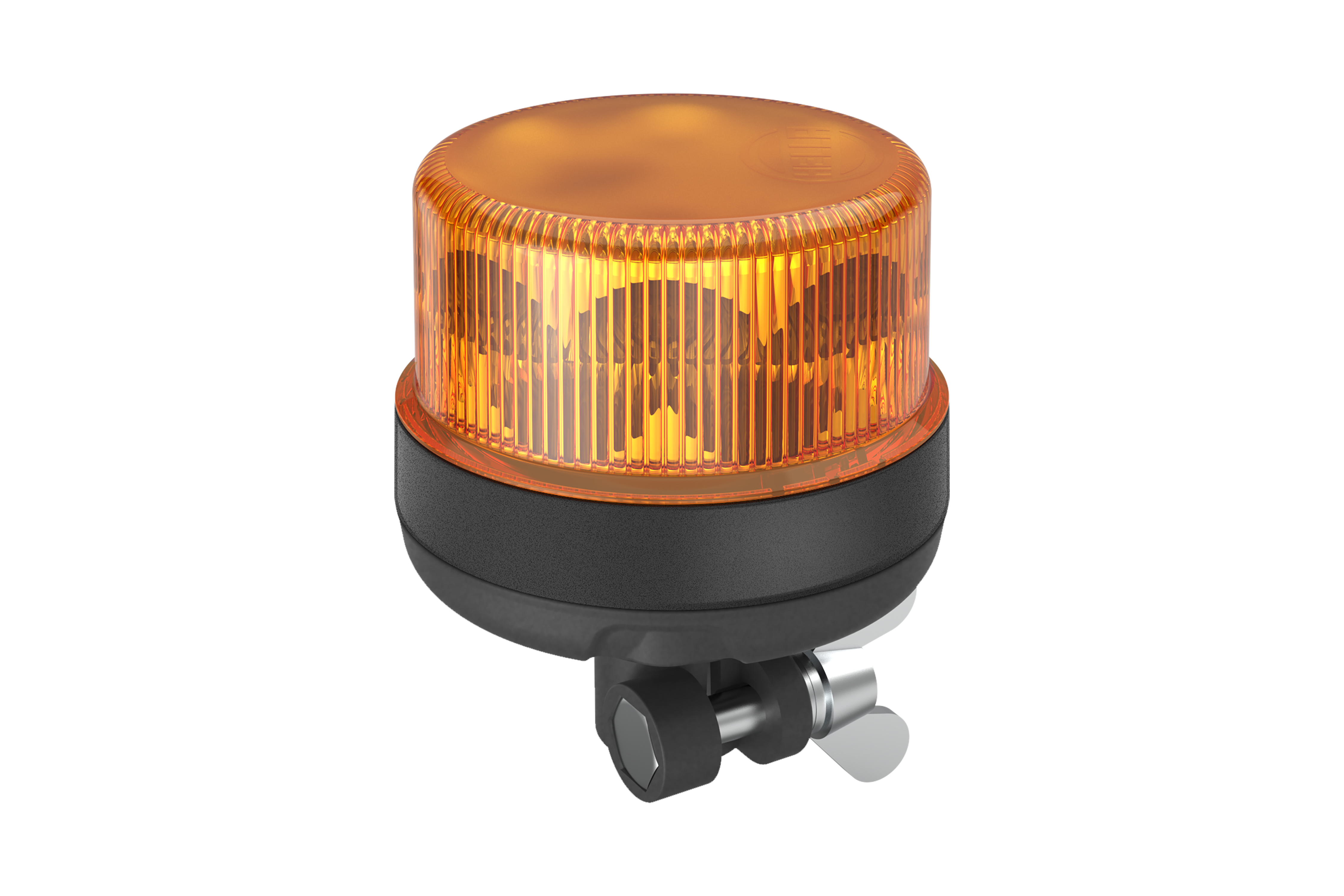

K-LED Nano 50 amber, flashing, pipe socket
- 2XD 066 147-011
- Mounting Type Pipe-neck
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 124 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
109 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
438 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

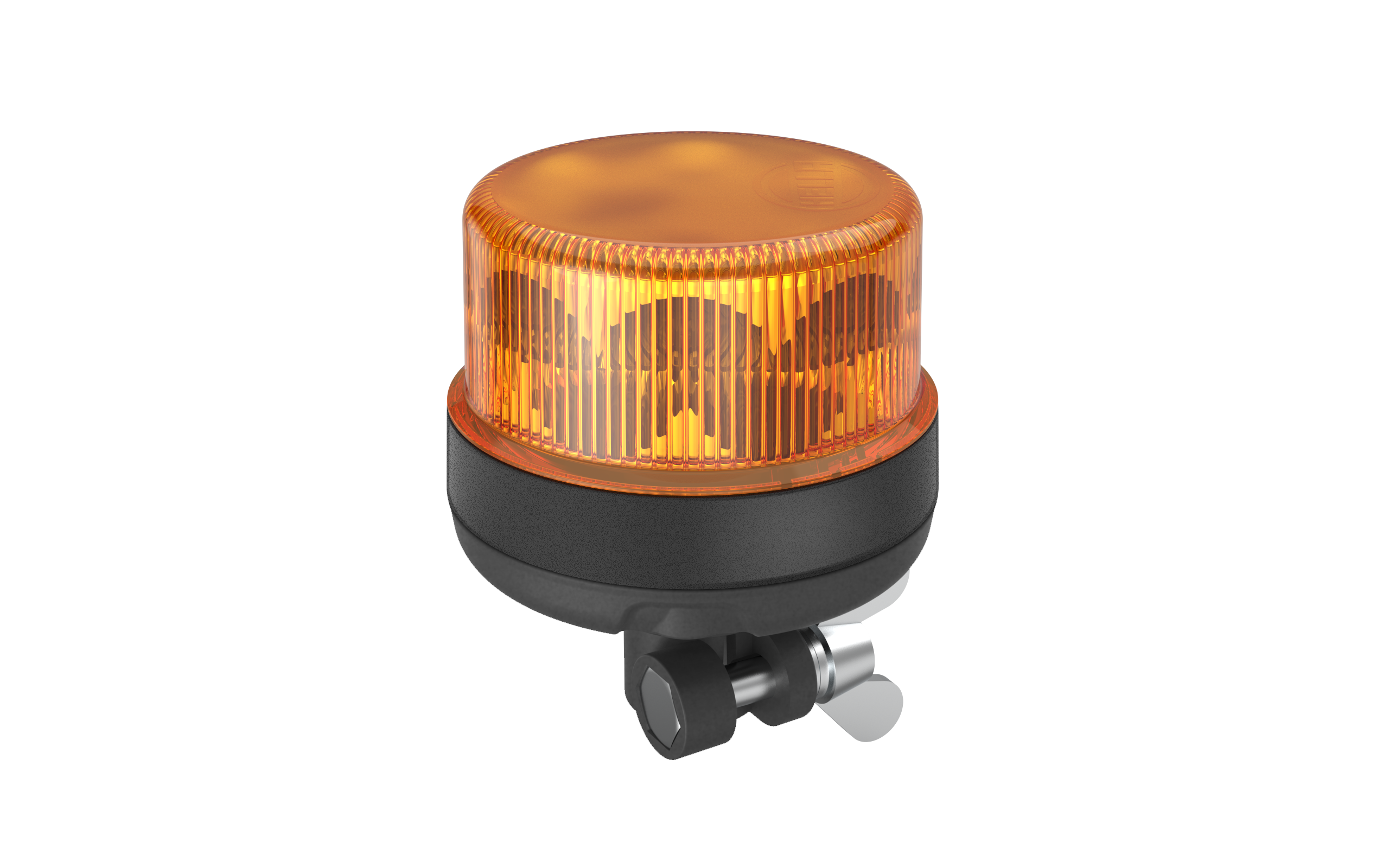

K-LED Nano 50 amber, rotating, pipe socket
- 2RL 099 147-011
- Mounting Type Pipe-neck
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 124 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
109 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
438 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 80 amber,flashing, fixed mounting
- 2XD 066 979-001
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 111 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
143 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
397 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

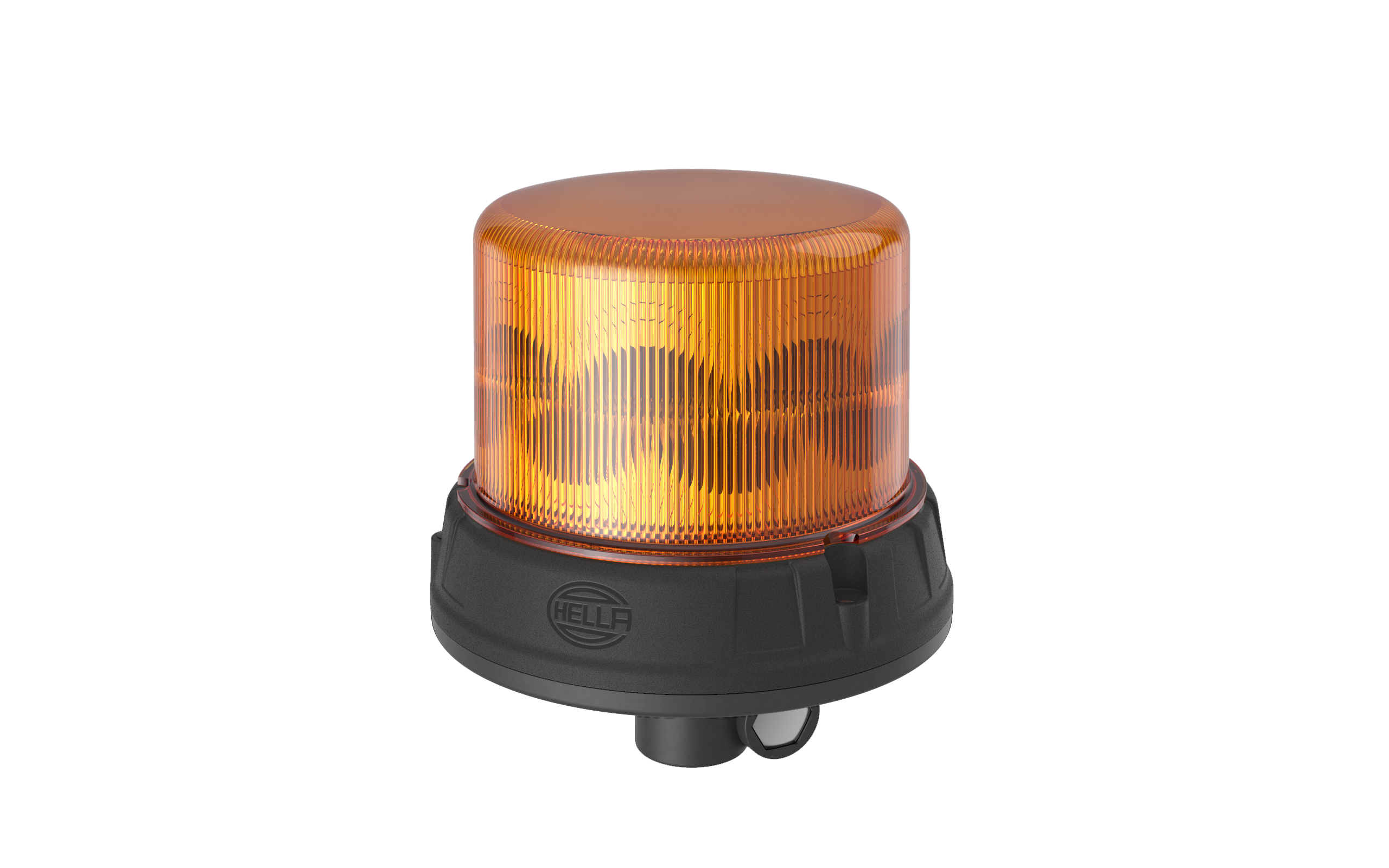

K-LED Nano 80 amber, rotating, pipe socket
- 2RL 099 979-011
- Mounting Type Pipe-neck
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 111 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
143 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
611 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 80 amber, flashing, pipe socket
- 2XD 066 979-011
- Mounting Type Pipe-neck
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 111 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
143 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
611 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

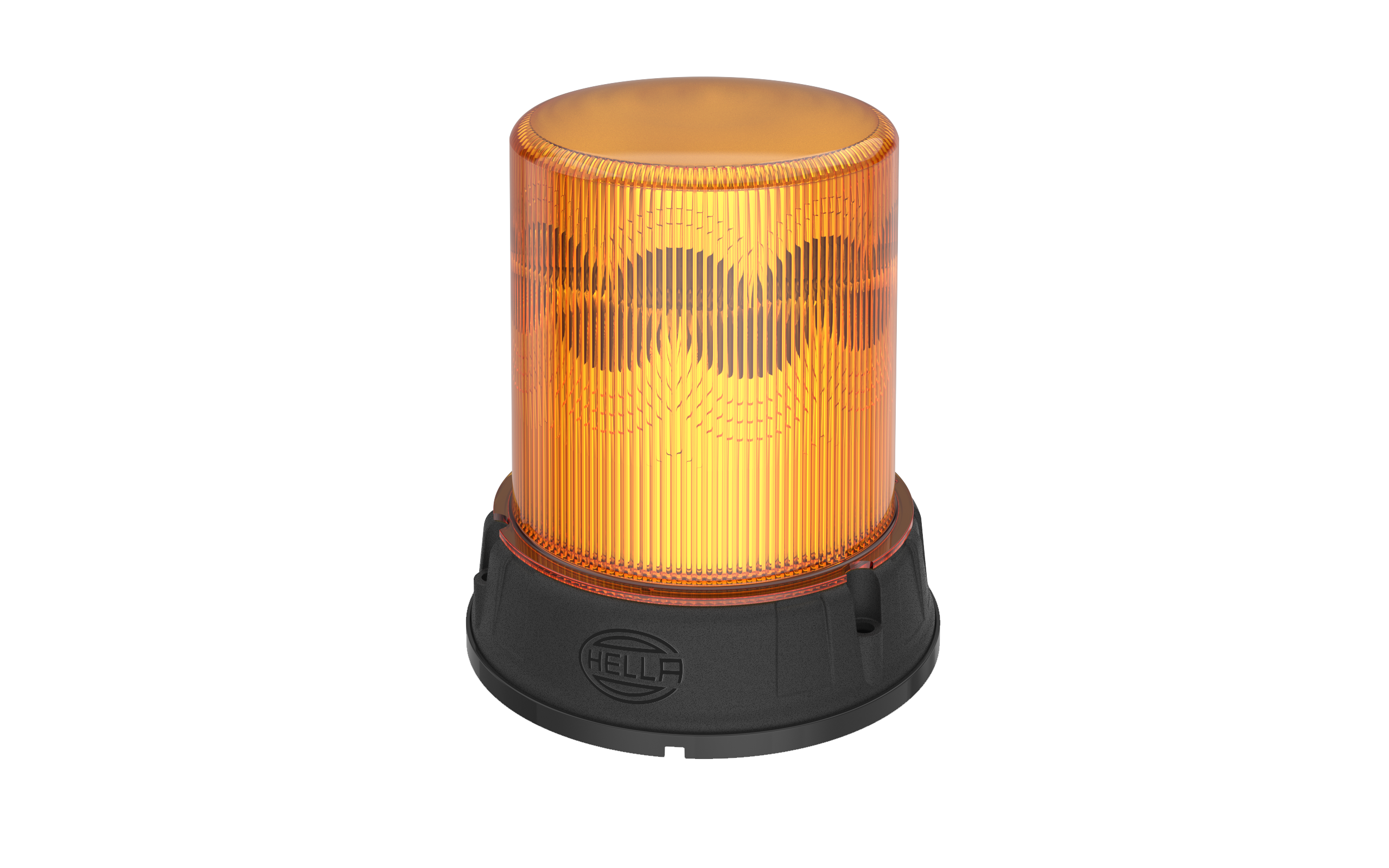

K-LED Nano 120, amber, rotating, fixed mounting
- 2RL 099 484-001
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 165 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
147 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
471 g
Plug Type
AMP
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 120, amber, flashing, fixed mounting
- 2XD 066 484-001
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 165 mm
- Light Function with flashing warning signal
- Housing Colour black
- Lens Colour yellow (amber)
- Temperature range from -40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Registration Type
SAE approved , ECE approved , ADR/GGVS approved
Outer Diameter
147 mm
fulfils ECE standard
R10 , R65 , TA1
Quantity
1
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9
Housing material
PC (Polycarbonate)
Weight
486 g
Plug Type
AMP
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

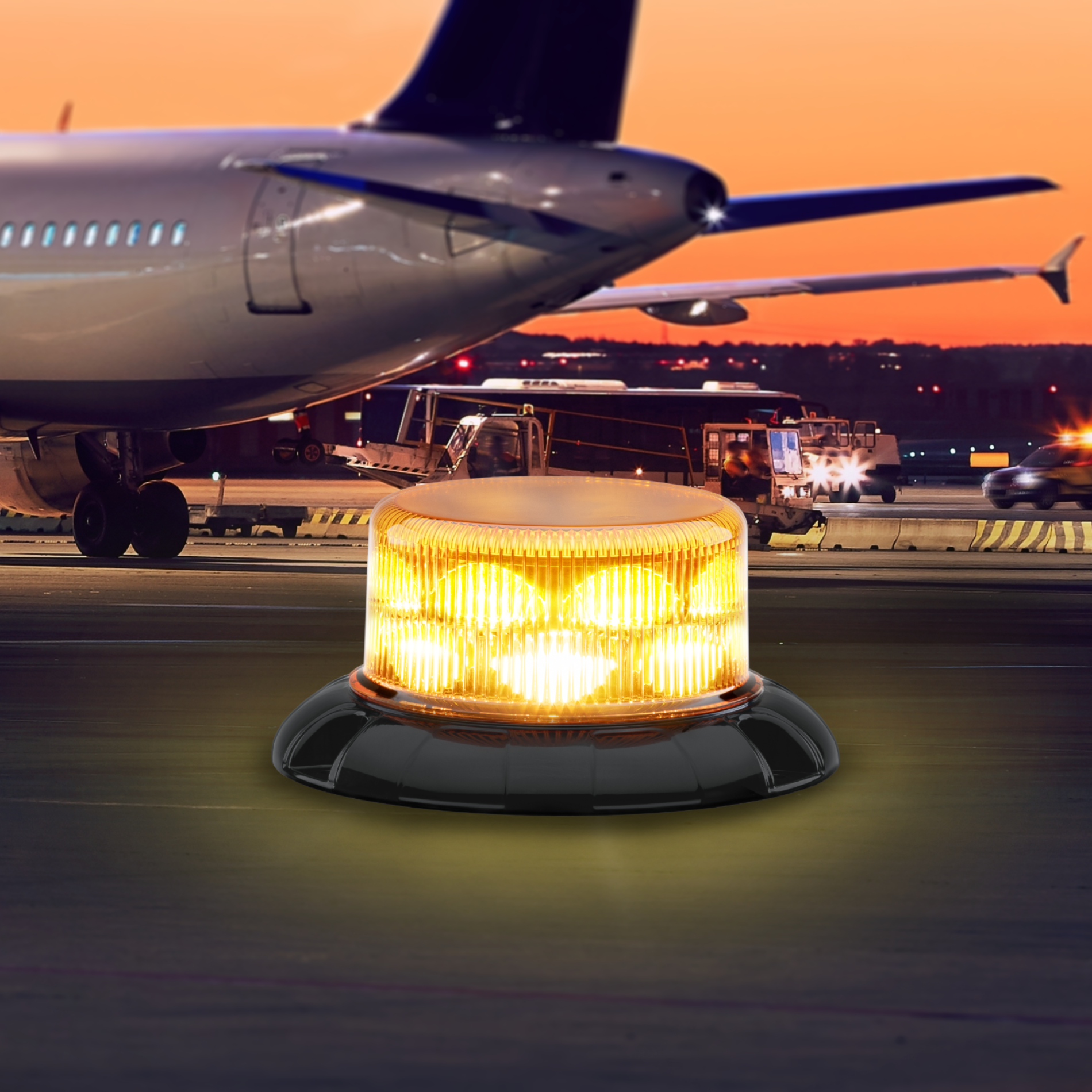

K-LED Nano Airport
- 2XD 066 146-041
- Mounting Type Bolted
- Voltage 12 V, 24 V
- Lamp Type LED
- Light Design LED
- Height 68 mm
- Light Function with flashing warning signal
- Flash rate per minute 126
- Housing Colour black
- Lens Colour yellow (amber)
Outer Diameter 1
146 mm
Light colour
yellow (amber)
Registration Type
ICAO-tested
fulfils ECE standard
R10
fulfils SAE standard
J845 Class 1
fulfils EMC/CISPR standard
Class 5
Prot.type (IP Code)
IP6K7 , IP6K9K
Housing material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Weight
256 g
Timing Chain Size
150
Plug Type
Blade Terminal
Number of LEDs
16
Operating temperature from
-40 °C
Operating temperature to
+60 °C
Power consumption
19 W
Diffusing Lens Material
PC (Polycarbonate)
|
K-LED Nano 50 amber, rotating, fixed mounting
|
K-LED Nano 50 amber, flashing, fixed mounting
|
K-LED Nano 50 amber, flashing, pipe socket
|
K-LED Nano 50 amber, rotating, pipe socket
|
K-LED Nano 80 amber,flashing, fixed mounting
|
K-LED Nano 80 amber, rotating, pipe socket
|
K-LED Nano 80 amber, flashing, pipe socket
|
K-LED Nano 120, amber, rotating, fixed mounting
|
K-LED Nano 120, amber, flashing, fixed mounting
|
K-LED Nano Airport
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2RL 099 147-001 | 2XD 066 147-001 | 2XD 066 147-011 | 2RL 099 147-011 | 2XD 066 979-001 | 2RL 099 979-011 | 2XD 066 979-011 | 2RL 099 484-001 | 2XD 066 484-001 | 2XD 066 146-041 | |
| Mounting Type | Bolted | Bolted | Pipe-neck | Pipe-neck | Bolted | Pipe-neck | Pipe-neck | Bolted | Bolted | Bolted |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Lamp Type | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Light Design | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Height | 72 mm | 72 mm | 124 mm | 124 mm | 111 mm | 111 mm | 111 mm | 165 mm | 165 mm | 68 mm |
| Light Function | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal |
| Flash rate per minute | 126 | |||||||||
| Housing Colour | black | black | black | black | black | black | black | black | black | black |
| Lens Colour | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) |
| Outer Diameter 1 | 146 mm | |||||||||
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | |
| Temperature range to | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | |
| Light colour | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) |
| Registration Type | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | ICAO-tested |
| Outer Diameter | 146 mm | 146 mm | 109 mm | 109 mm | 143 mm | 143 mm | 143 mm | 147 mm | 147 mm | |
| fulfils ECE standard | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| fulfils SAE standard | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 |
| fulfils EMC/CISPR standard | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 |
| Prot.type (IP Code) | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9K |
| Housing material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) |
| Weight | 229 g | 229 g | 438 g | 438 g | 397 g | 611 g | 611 g | 471 g | 486 g | 256 g |
| Timing Chain Size | 150 | |||||||||
| Plug Type | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | AMP | AMP | Blade Terminal |
| Number of LEDs | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Operating temperature from | -40 °C | |||||||||
| Operating temperature to | +60 °C | |||||||||
| Power consumption | 4 W | 19 W | 19 W | 4 W | 19 W | 4 W | 4 W | 4 W | 19 W | 19 W |
| fulfils test standard | RCM | RCM | RCM | RCM | RCM | RCM | RCM | RCM | RCM | |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
|
|
|
|
|
|
Downloads
Image flyer K-LED Nano 50, 80 and 120
0.61 MB |
Downloads
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperOur complete range in the HELLA online catalogue!
Can't find what you're looking for? Here's an online overview of all our universal products.
View online catalogueThis could also be of interest to you
Truck
Farmer
Construction machinery
RotaFlash Compact LED
RotaFlash Compact LED: ADR-certified beacon with rotation and flash function – compact, rugged and ideal for retrofitting.
Truck
Farmer
Construction machinery
HELLA VALUEFIT Slim – compact beacon | HELLA
Compact LED warning lamp with high protection class, flexible installation option and contemporary design at an attractive price.
Truck
Farmer
Construction machinery
K-LED Blizzard - maintenance-free, rugged beacon
Rugged LED beacon with double-flash signal, cutting-edge design and up to 4 units suitable for synchronisation.
Truck
Farmer
Construction machinery
VF 700 LED
Rugged LED warning lamp offering high levels of visibility, double flash and red light, ideal for commercial vehicles and retrofits.
Keen to see more? Our stories for you
Motorcycle LCV Construction machinery Truck Bus Farmer Car Offroad
HELLA GALLERY - Highlights, Products, Photos
Image gallery of the Lightstyle website with vehicle photos
Cookie consent
You accept the necessary cookies by using the website and its functions and by continuing to navigate on it. You can manage the cookie categories and accept additional categories under Cookie consent options . By clicking on the "Accept all" button, all categories of cookies are accepted. You can revoke your consent at any time with effect for the future. Further information can be found in our Privacy policy and our Cookie policy .
