VF 700 LED

Truck Farmer Construction machinery

VF 700 LED

HELLA VALUEFIT VF 700 LED impresses with its proven design and cutting-edge technology. Its high design, potent all-round visibility and rugged housing ensure an effective warning effect – even behind auxiliary lamps or in challenging lighting conditions.

LED beacon in traditional, trapezoidal design with amber or clear dome
Generates a strong warning effect thanks to its high design and visibility in all directions
Amber signal: rotating or double flash

To the downloads Technical details

Select variant

Sound test

Ambient noise On Off

Search the web

Traditional design meets modern LED performance

HELLA VALUEFIT VF 700 LED combines familiar trapezoidal optics with cutting-edge lighting technology. Thanks to rotating and double-flash signal modes, it generates a warning signal that is visible from afar. The rugged aluminium housing and impact-resistant dome guarantee a long lifetime – even in tough operating conditions.

Technical Sheet

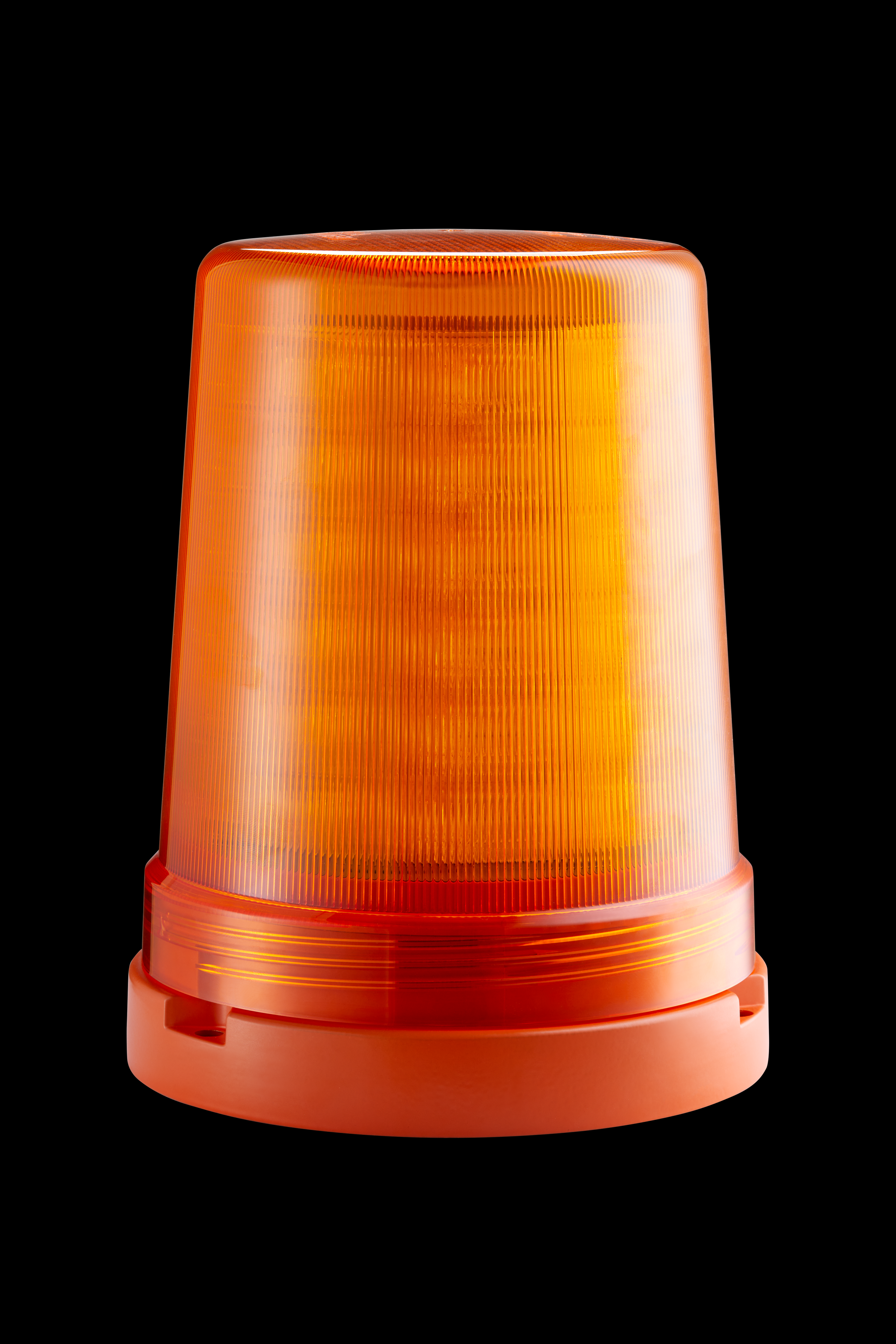

VF 700 LED Amber

2XD 357 958-111
Mounting Type mounting
Voltage 12 V, 24 V
Power consumption 25 W
Lamp Type LED
Light Design LED
Width 128 mm
Height 210 mm
Light Function with rotating warning signal , with flashing warning signal , Double flasher
Prot.type (IP Code) IP56

Housing material Aluminium

fulfils ECE standard TA1 , R10

Registration Type ECE approved , SAE approved , RCM approved

fulfils SAE standard J845 Class 1

Diffusing Lens Material PC (Polycarbonate)

Cable Length 300 mm

Plug Type open cable ends

Number of LEDs 36

fulfils EMC/CISPR standard Class 3

Temperature range from -40 °C

Temperature range to +60 °C

Weight 1155 g

Outer Diameter 1 165 mm

Search the web

VF 700 LED Clear

2XD 357 958-121
Mounting Type Bolted
Voltage 12 V, 24 V
Power consumption 25 W
Lamp Type LED
Light Design LED
Width 165 mm
Height 210 mm
Light Function with rotating warning signal , with flashing warning signal , Double flasher
Number of light functions 2

Prot.type (IP Code) IP56

fulfils ECE standard R10 , TA1

Registration Type ECE approved , SAE approved , CISPR 25-tested

fulfils SAE standard J845 Class 1

Lens Colour Crystal clear

Diffusing Lens Material PC (Polycarbonate)

Housing Type Aluminium Housing

Cable Length 300 mm

Plug Type open cable ends

Number of LEDs 36

Temperature range from -40 °C

Temperature range to +60 °C

Weight 1155 g

Outer Diameter 1 165 mm

Search the web

	VF 700 LED Amber	VF 700 LED Clear
	2XD 357 958-111	2XD 357 958-121
Mounting Type	mounting	Bolted
Voltage	12 V, 24 V	12 V, 24 V
Power consumption	25 W	25 W
Lamp Type	LED	LED
Light Design	LED	LED
Width	128 mm	165 mm
Height	210 mm	210 mm
Light Function	with rotating warning signal , with flashing warning signal , Double flasher	with rotating warning signal , with flashing warning signal , Double flasher
Number of light functions		2

Prot.type (IP Code)	IP56	IP56
Housing material	Aluminium
fulfils ECE standard	TA1 , R10	R10 , TA1
Registration Type	ECE approved , SAE approved , RCM approved	ECE approved , SAE approved , CISPR 25-tested
fulfils SAE standard	J845 Class 1	J845 Class 1
Lens Colour		Crystal clear
Diffusing Lens Material	PC (Polycarbonate)	PC (Polycarbonate)
Housing Type		Aluminium Housing
Cable Length	300 mm	300 mm
Plug Type	open cable ends	open cable ends
Number of LEDs	36	36
fulfils EMC/CISPR standard	Class 3
Temperature range from	-40 °C	-40 °C
Temperature range to	+60 °C	+60 °C
Weight	1155 g	1155 g
Outer Diameter 1	165 mm	165 mm
