K-LED 2.0

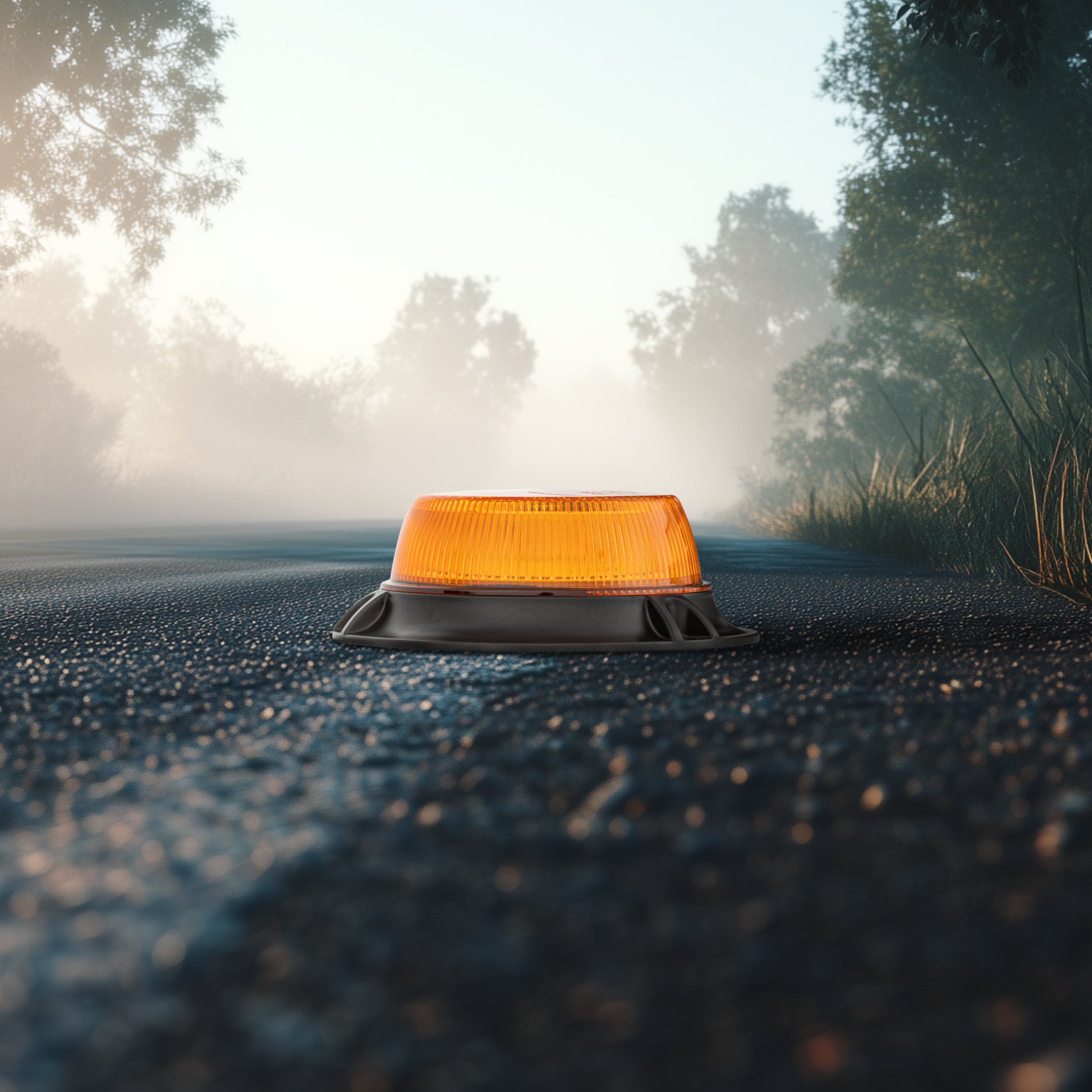

Safe, smart, slim: HELLA K-LED 2.0 combines state-of-the-art signal technology with maximum ruggedness. Its intelligent electronics automatically adapt to the lighting conditions – for optimum warning effect at all times.
- Compact and rugged design
- Flashing and rotating signal in a single product
- Automatic day/night-time level

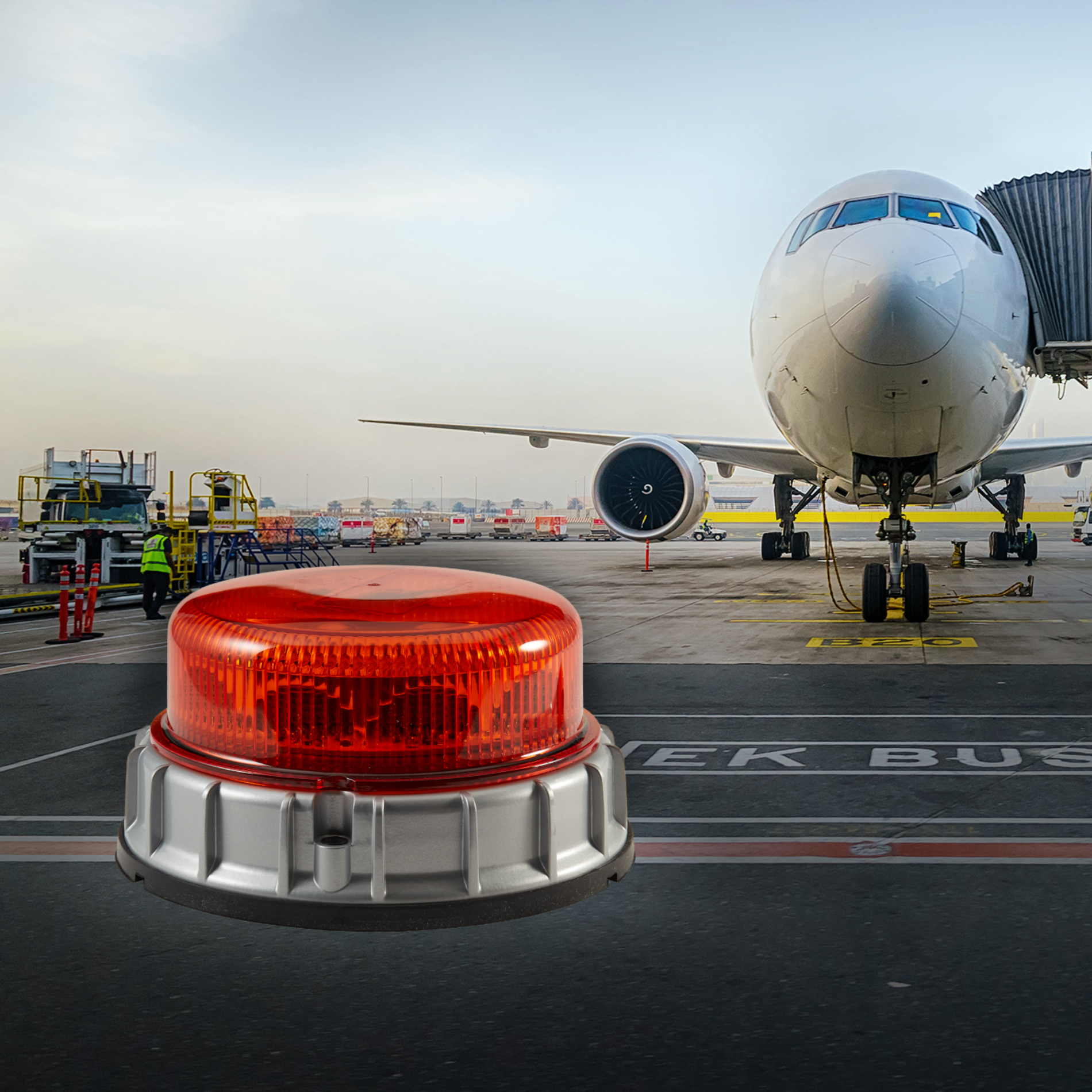

Perfect signalling effect, also for use at airports
Optimised for air-side use: The K-LED 2.0 airport version offers a reliable warning effect in any weather conditions. Their automatically adjusted brightness prevents glare at night and ensures maximum visibility during the day. Thanks to its vibration-resistant design and ICAO approval, it is ideal for demanding airport applications.
Technical Sheet

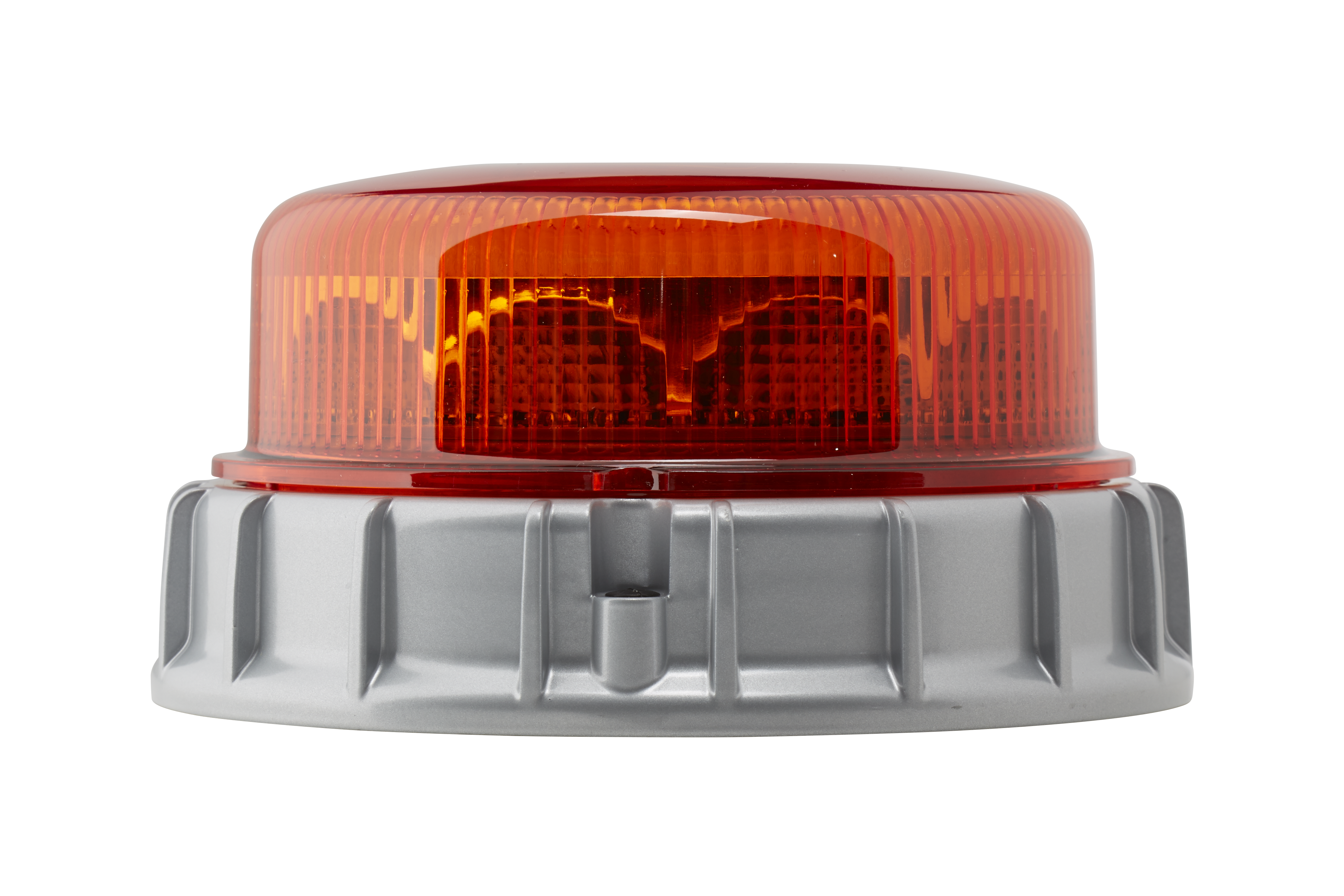

K-LED 2.0
- 2XD 011 557-101
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard CISPR 25 Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal , with rotating warning signal
- Mounting Type Screw Connection , mounting
- Prot.type (IP Code) IP6K7 , IP6K9K
- fulfils ECE standard R65 , R10 , TA2
- Light Design LED
Lamp Type
LED
Outer Diameter 1
169 mm
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Height
88 mm
Light colour
yellow (amber)
Number of LEDs
20
Plug Type
open cable ends
Lens Colour
yellow (amber)
Housing Colour
silver
Flash rate per minute
122
Power consumption
30 W
Housing material
Aluminium
Temperature range from
-40 °C
Temperature range to
+60 °C
Weight
843 g
Cable Length
1450 mm
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
Quantity
1

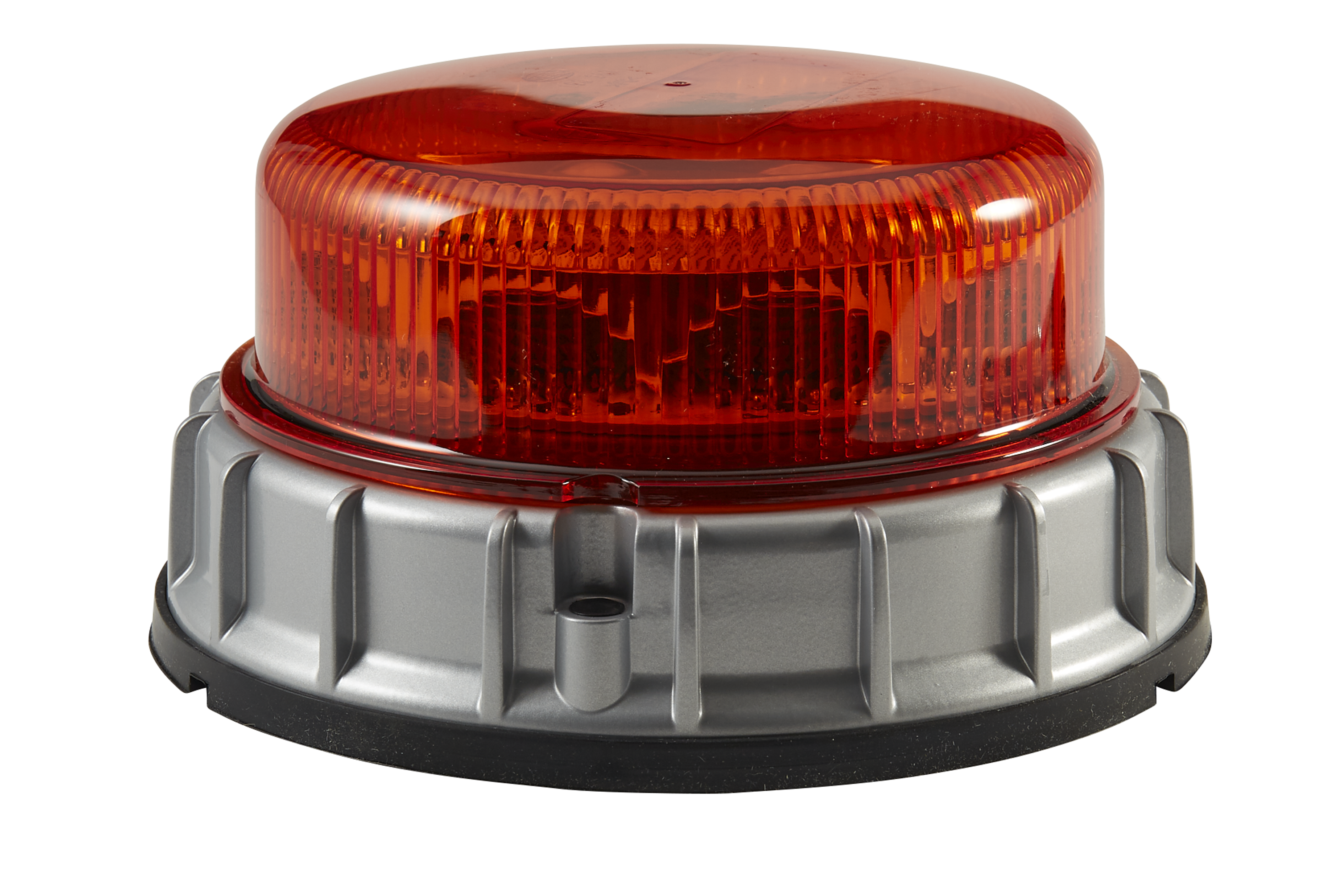

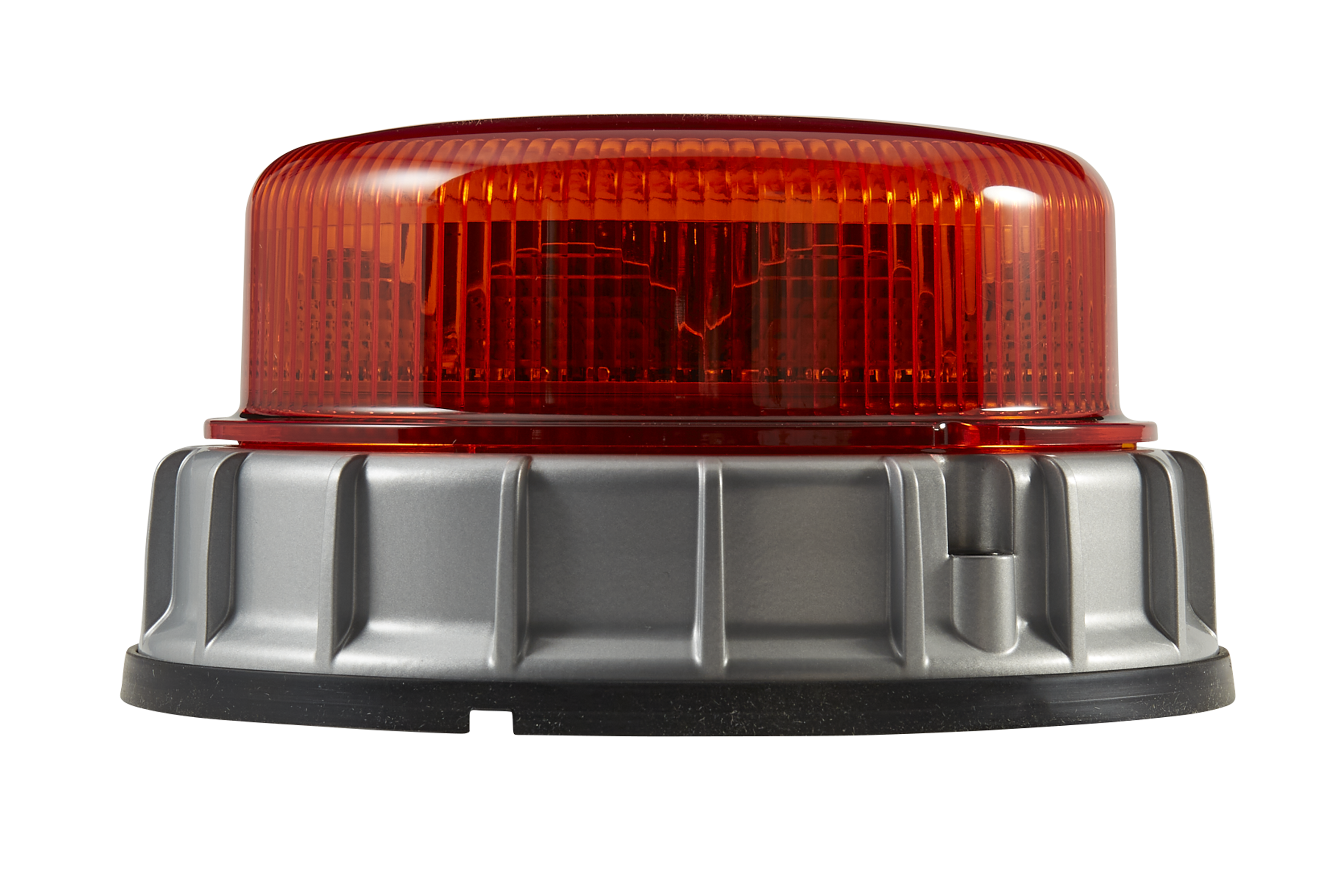

K-LED 2.0 Airport
- 2XD 011 557-701
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type ECE approved , ICAO-tested , SAE approved
- Light Function with flashing warning signal , with rotating warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9K
- fulfils ECE standard R10
- Light Design LED
Lamp Type
LED
Version
Airport Beacon
Outer Diameter 1
169 mm
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Height
88 mm
Light colour
yellow (amber)
Number of LEDs
20
Plug Type
Blade Terminal
LED colour
white
Lens Colour
yellow (amber)
Housing Colour
silver
Rotating beacon RPM
75 1/min
Flash rate per minute
75
Power consumption
30 W
Housing material
Aluminium
Temperature range from
-40 °C
Temperature range to
+60 °C
Weight
885 g
Cable Length
200 mm
Diffusing Lens Material
PC (Polycarbonate)
Quantity
1
|
K-LED 2.0
|
K-LED 2.0 Airport
|
|
|---|---|---|
| 2XD 011 557-101 | 2XD 011 557-701 | |
| fulfils SAE standard | J845 Class 1 | J845 Class 1 |
| fulfils EMC/CISPR standard | CISPR 25 Class 5 | Class 5 |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Registration Type | SAE approved , ECE approved , ADR/GGVS approved | ECE approved , ICAO-tested , SAE approved |
| Light Function | with flashing warning signal , with rotating warning signal | with flashing warning signal , with rotating warning signal |
| Mounting Type | Screw Connection , mounting | Bolted |
| Prot.type (IP Code) | IP6K7 , IP6K9K | IP6K7 , IP6K9K |
| fulfils ECE standard | R65 , R10 , TA2 | R10 |
| Light Design | LED | LED |
| Lamp Type | LED | LED |
| Version | Airport Beacon | |
| Outer Diameter 1 | 169 mm | 169 mm |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) | Electromagnetic Compatibility (EMC) |
| Height | 88 mm | 88 mm |
| Light colour | yellow (amber) | yellow (amber) |
| Number of LEDs | 20 | 20 |
| Plug Type | open cable ends | Blade Terminal |
| LED colour | white | |
| Lens Colour | yellow (amber) | yellow (amber) |
| Housing Colour | silver | silver |
| Rotating beacon RPM | 75 1/min | |
| Flash rate per minute | 122 | 75 |
| Power consumption | 30 W | 30 W |
| Housing material | Aluminium | Aluminium |
| Temperature range from | -40 °C | -40 °C |
| Temperature range to | +60 °C | +60 °C |
| Weight | 843 g | 885 g |
| Cable Length | 1450 mm | 200 mm |
| fulfils test standard | RCM | |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) |
| Quantity | 1 | 1 |
