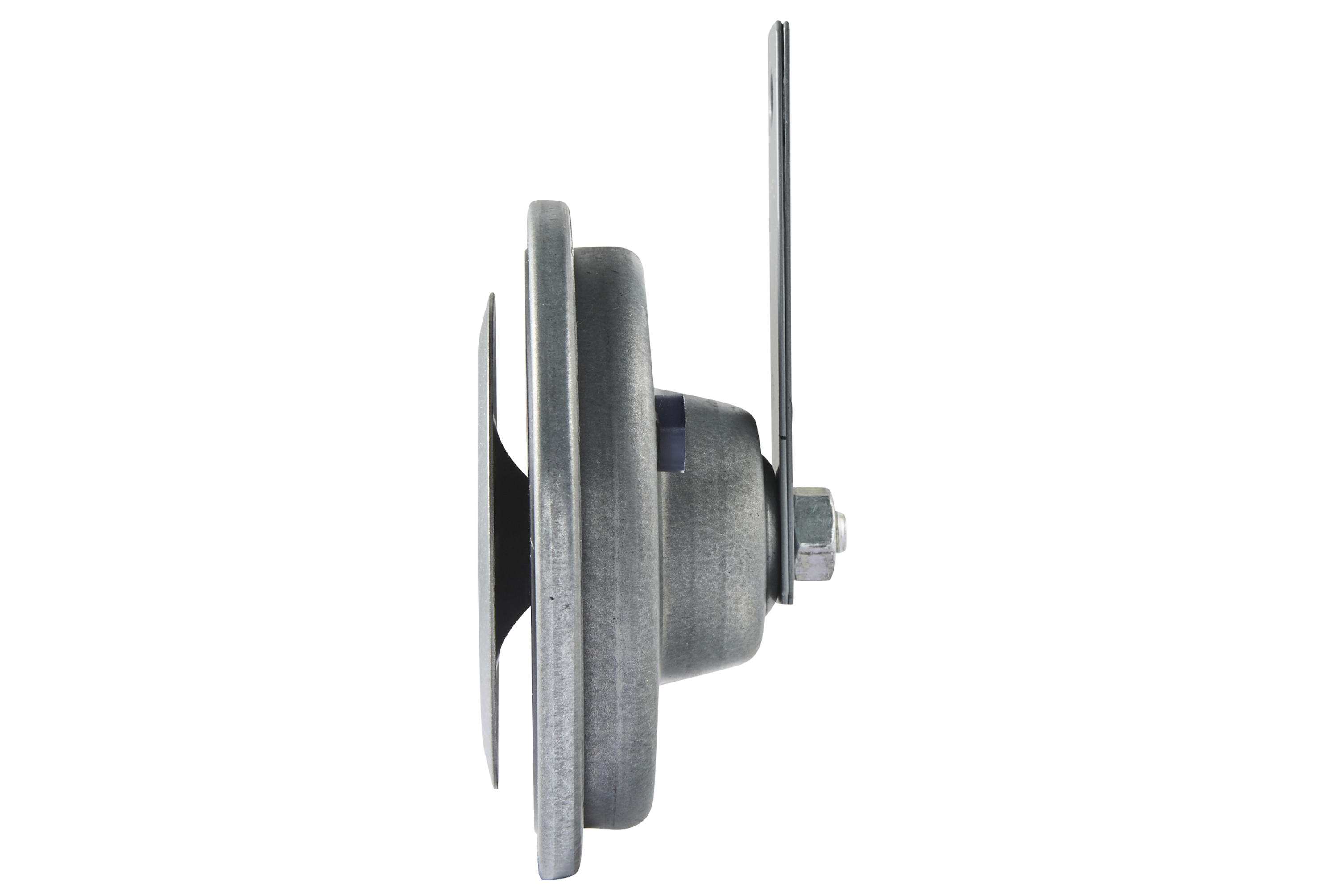

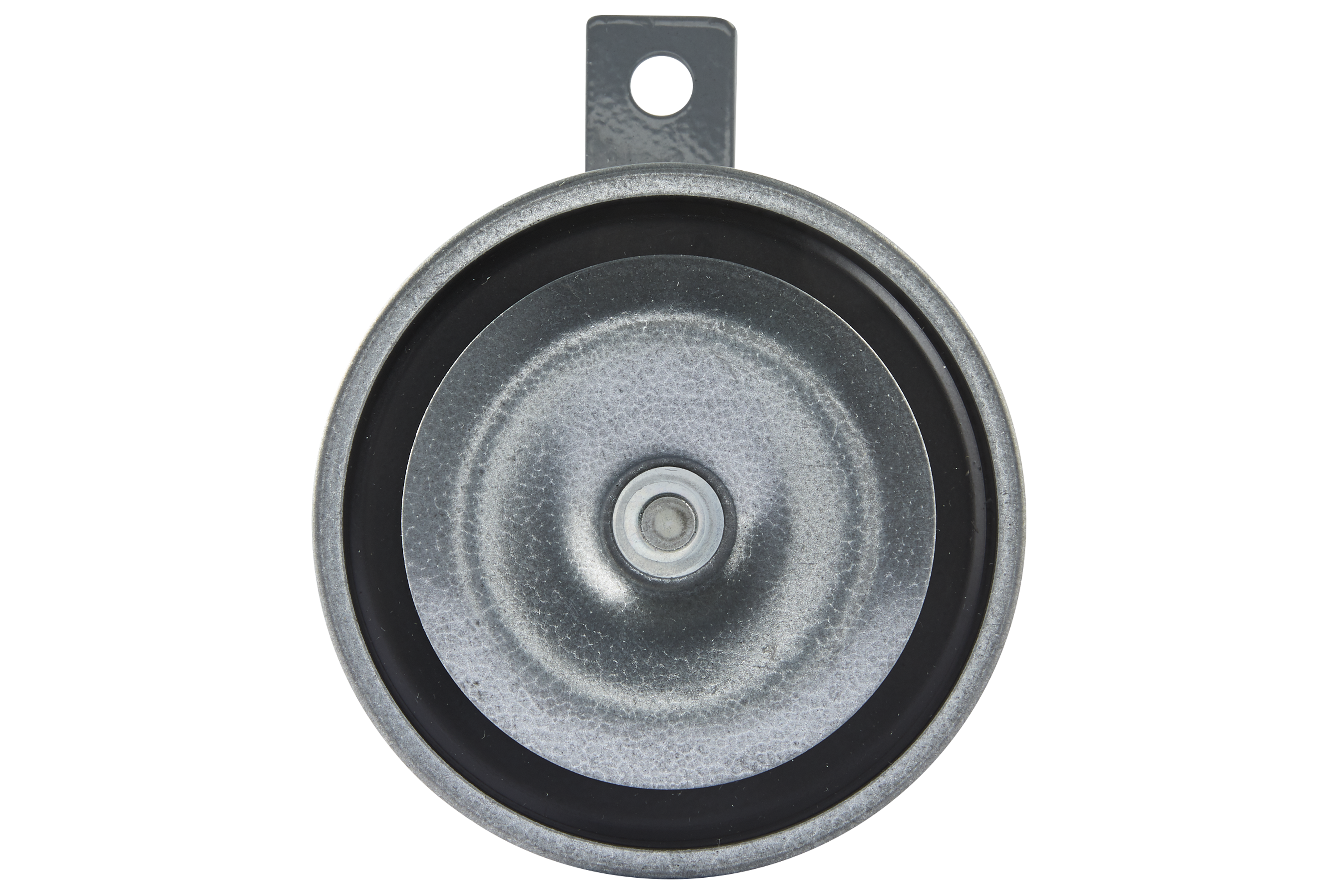

M26 – disc horn | Rich sound
M26 – disc horn | Rich sound
This high-quality horn combines rugged technology with a powerful sound – for safe and reliable communication in traffic.
- High quality and rich tone
- Penetrating, far-reaching sound for extra road safety
- Improved quality and durability
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet
M26 Single
- 3AL 002 952-811
- Voltage 12 V
- Power consumption 66 W
- Sound Level 105 dB(A)
- Frequency Range 400 Hz
- Charging Rate 5,5 A
- Prot.type (IP Code) IPX9K
- fulfils ECE standard R28
- Registration Type ECE approved
- Housing Colour grey/black
|
M26 Single
|
|
|---|---|
| 3AL 002 952-811 | |
| Voltage | 12 V |
| Power consumption | 66 W |
| Sound Level | 105 dB(A) |
| Frequency Range | 400 Hz |
| Charging Rate | 5,5 A |
| Prot.type (IP Code) | IPX9K |
| fulfils ECE standard | R28 |
| Registration Type | ECE approved |
| Housing Colour | grey/black |
| Quantity | 1 |
| Signal | High Tone |
| Operating Mode | Electric |
| Overall Height | 122 mm |
| Depth | 54 mm |
| Ø | 97 mm |
| Temperature range from | -40 °C |
| Temperature range to | +60 °C |
| Mounting Type | Flat Plug-in Connector |
| Supplementary Article/Supplementary Info 2 | with E quality seal |
