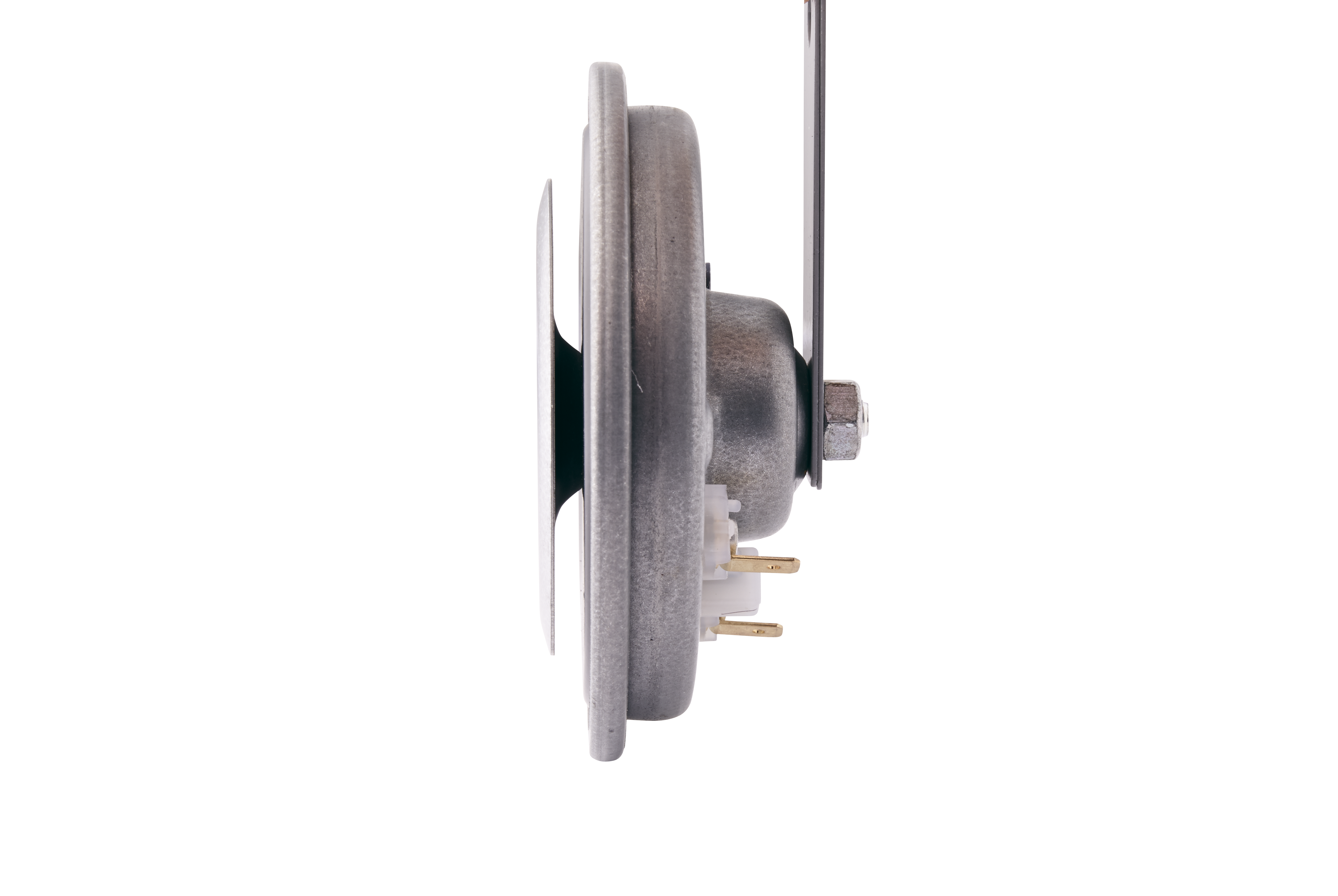

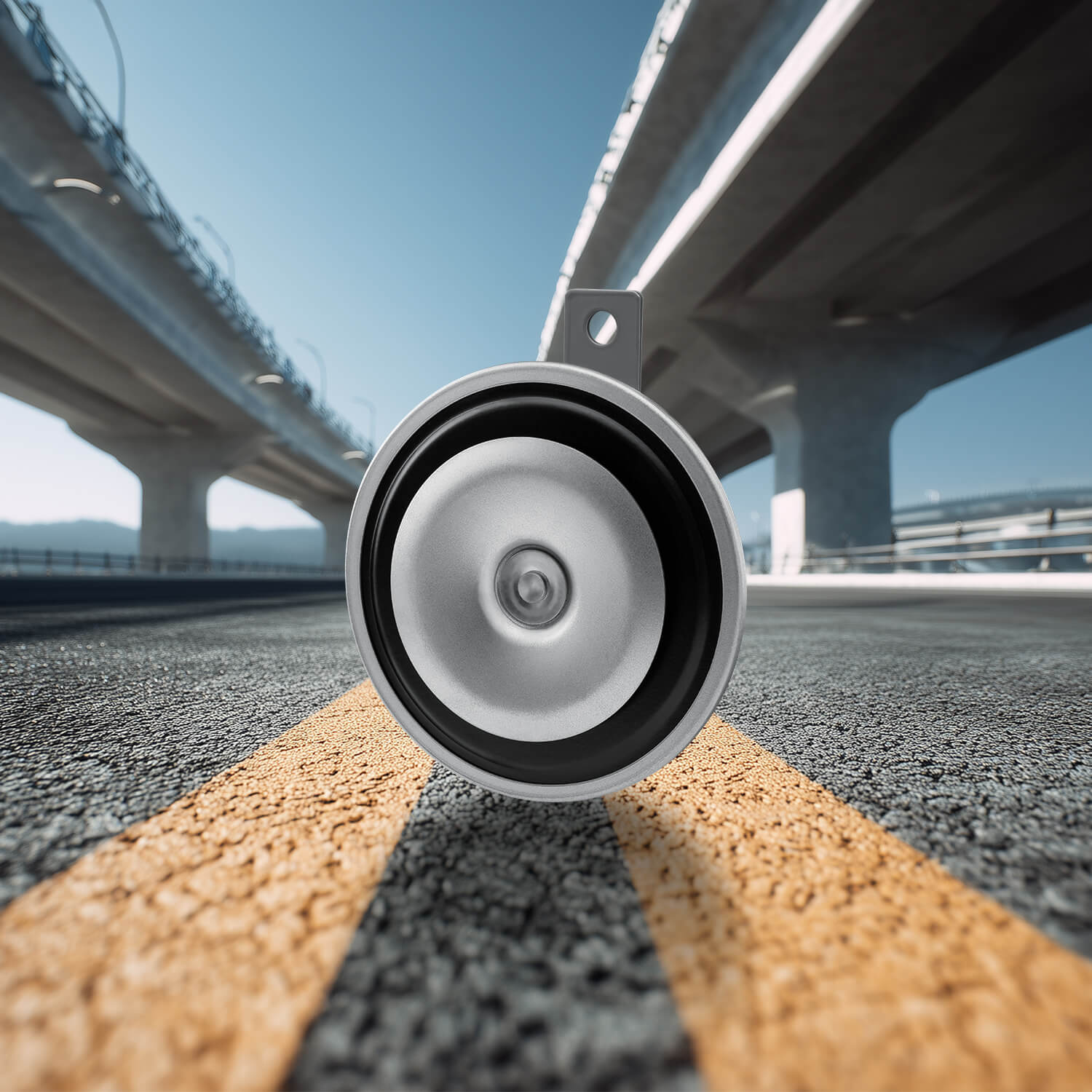

B36 – disc horn | Rich sound
B36 – disc horn | Rich sound
Safe, powerful, unmistakable: This horn delivers a clear, rich sound – ideal for demanding driving situations in traffic.
- High quality and rich tone
- Penetrating, far-reaching sound for extra road safety
- Improved quality and durability
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet
B36 Single, 335 Hz
- 3BA 002 768-082
- Voltage 12 V
- Power consumption 72 W
- Sound Level 116 dB(A)
- Frequency Range 335 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Housing Colour grey/black
|
B36 Single, 335 Hz
|
|
|---|---|
| 3BA 002 768-082 | |
| Voltage | 12 V |
| Power consumption | 72 W |
| Sound Level | 116 dB(A) |
| Frequency Range | 335 Hz |
| Charging Rate | 6 A |
| Prot.type (IP Code) | IP54 |
| fulfils ECE standard | R28 |
| Registration Type | ECE approved |
| Housing Colour | grey/black |
| Quantity | 1 |
| Signal | High Tone |
| Operating Mode | Electric |
| Overall Height | 129 mm |
| Ø | 112 mm |
| Depth | 53 mm |
| Temperature range from | -40 °C |
| Temperature range to | +60 °C |
| Mounting Type | Flat Plug-in Connector |
| Supplementary Article/Supplementary Info 2 | with E quality seal |
| Search the web | |
|
|
Downloads
2248-Product Info Sheet Horns Europe-B36-EN
This could also be of interest to you
Changing the low beam: Here's how it’s done
Your low beam has dropped out? Don't worry! With the help of our instructions, you will be able to change the bulb in no time at all – whether halogen or xenon.
Comparison between H4 and H7: Differences between headlamp bulbs
Discover the advantages and disadvantages of H4 and H7 lamps.
Halogen, xenon or LED: Which light suits your car?
Choosing the right headlamps is crucial for your safety and driving comfort.
Discover more HELLA products

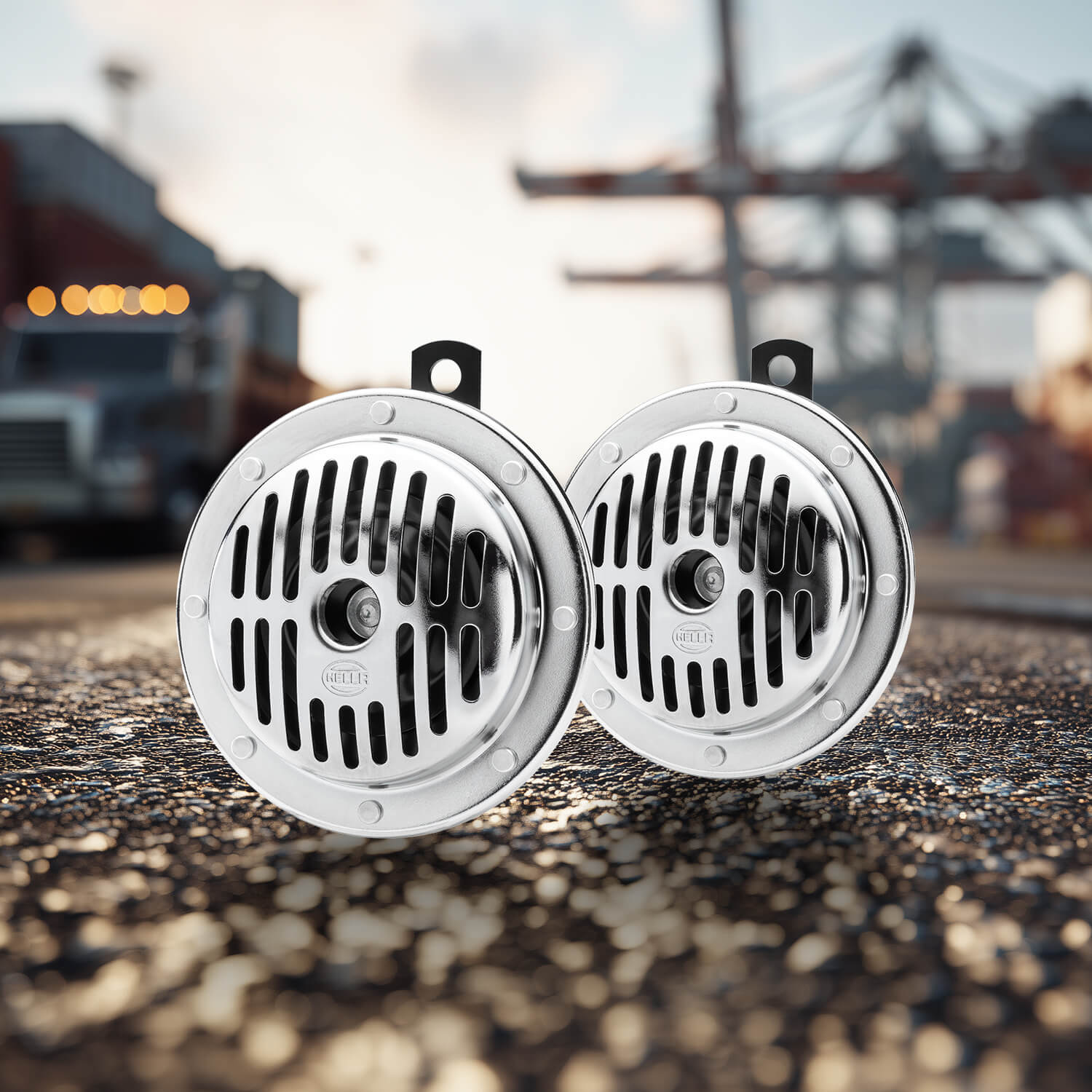

S130 – 24 V disc horn | Avant-garde sound in chrome
Powerful 24V disc horn in chrome design, low sound and strong performance – ideal for on and off-road use
S92 – disc horn | Strong sound
Powerful disc horn with bundled sound radiation and optimum oscillator for clear warning signals – Original equipment quality

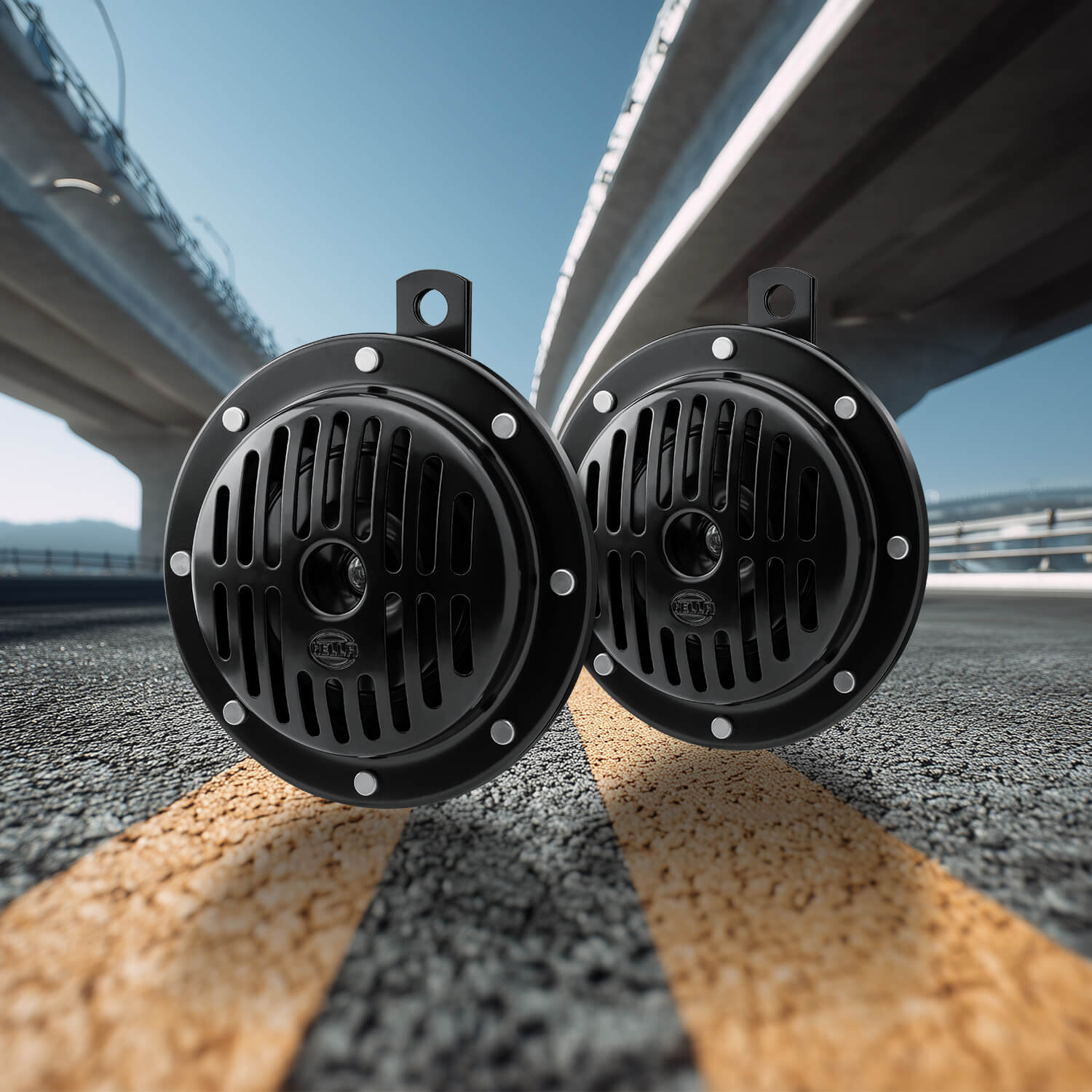

DL50 – Plate horn | Powerful sound
Powerful sound for commercial vehicles: Riveted disc horn with strong warning tone and long lifetime.

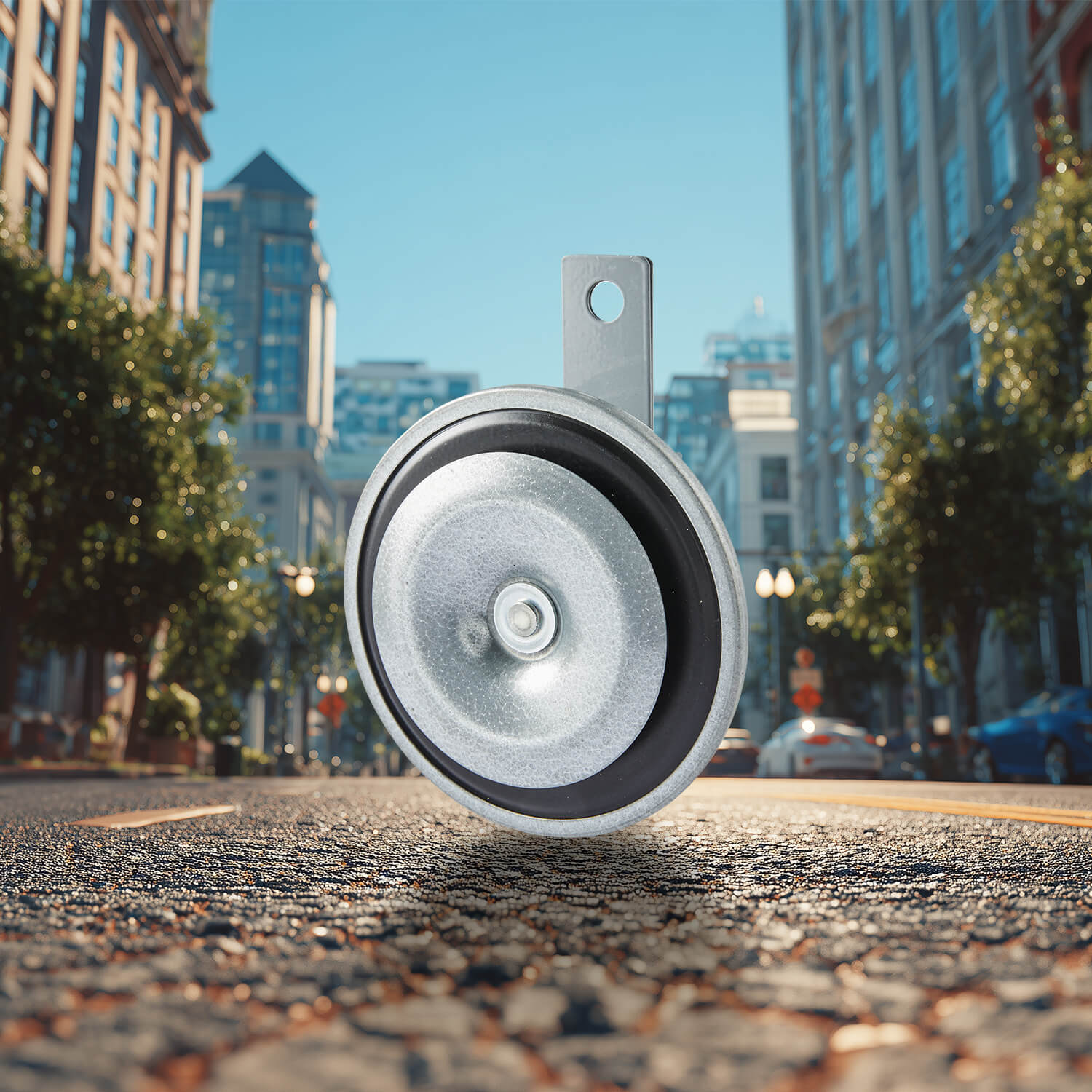

M26 – disc horn | Rich sound
