DL50 – Plate horn | Powerful sound
DL50 – Plate horn | Powerful sound
Powerful, rugged and reliable: This rivet-design horn delivers a distinctive, low warning tone for maximum safety on deployments.
- Low and penetrating warning sound
- No screws: riveted assembly increases quality and resistance
- Ideal for commercial vehicles
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet

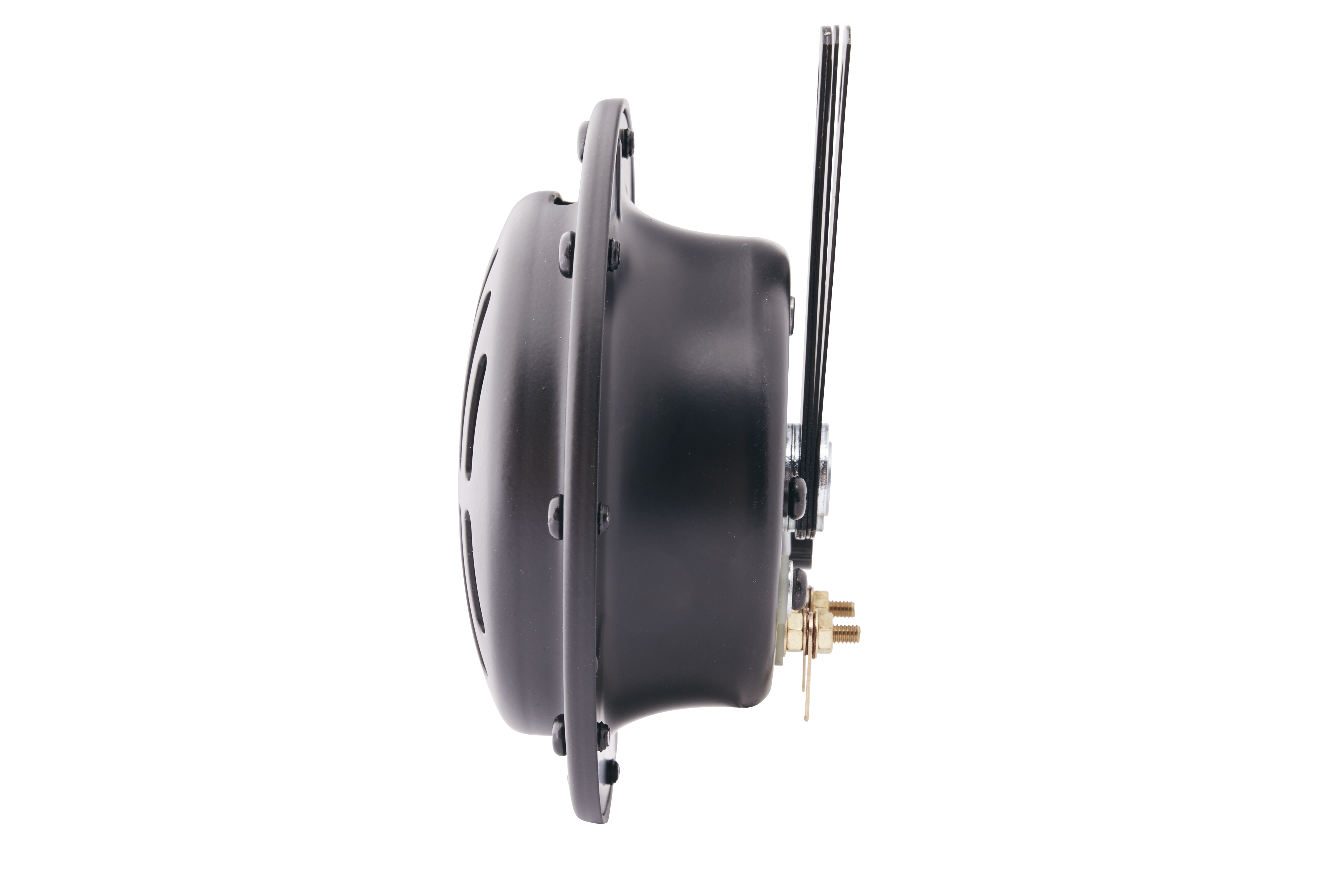

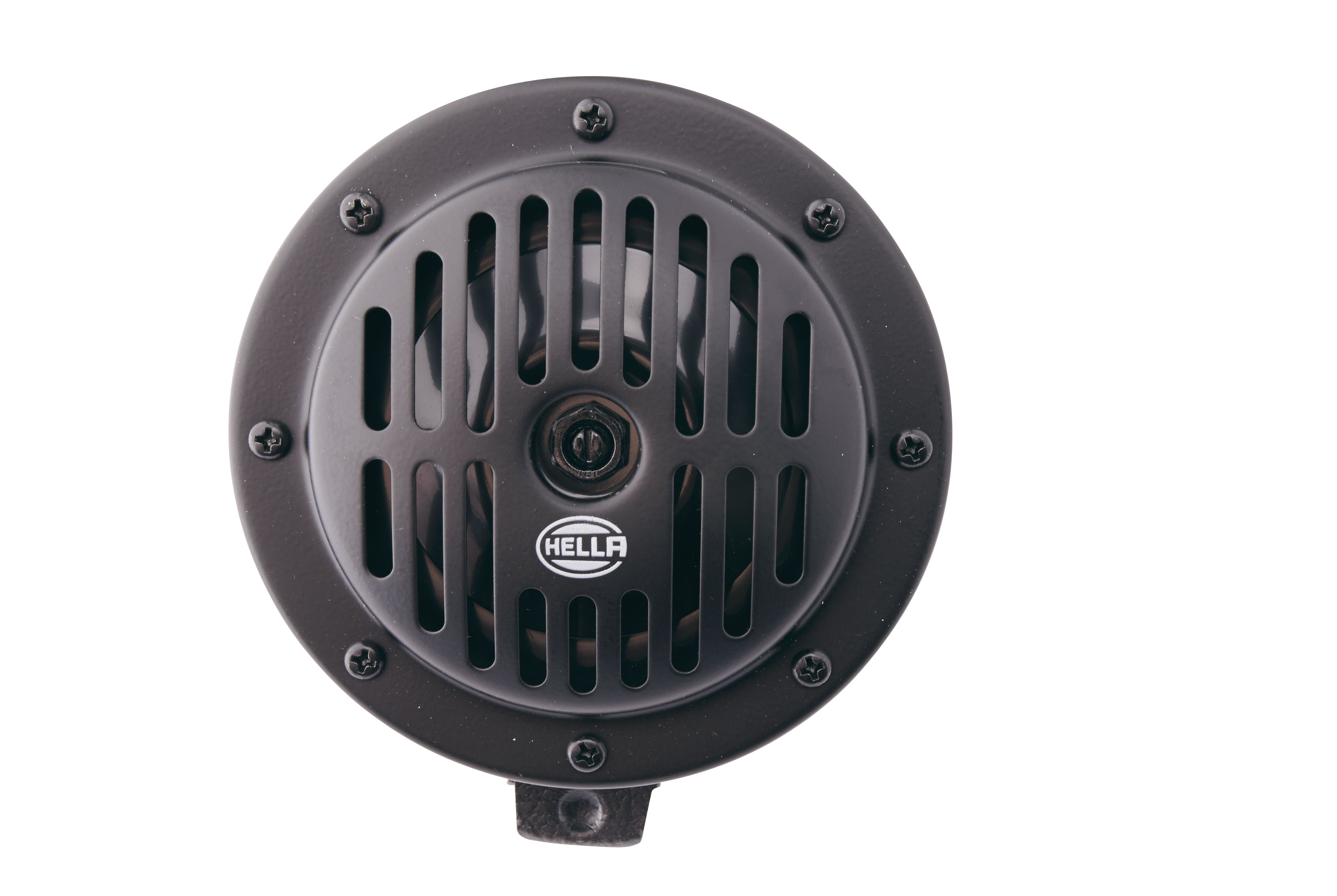

DL50 Set
- 3CB 004 811-042
- Voltage 12 V
- Power consumption 72 W
- Sound Level 114 dB(A)
- Frequency Range 310 Hz, 380 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal Low Tone , High Tone

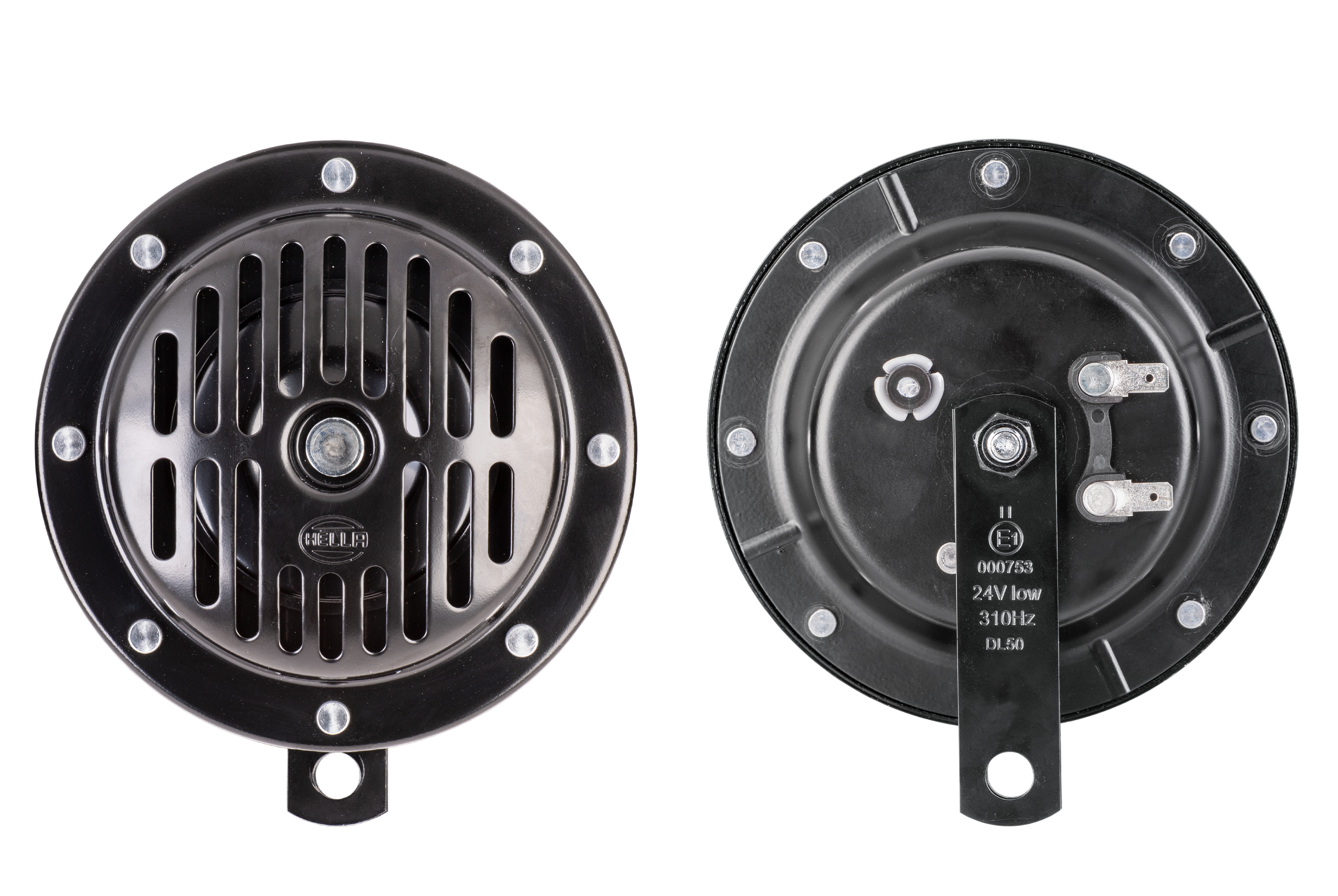

DL50 Single, 310 Hz
- 3CA 004 811-001
- Voltage 12 V
- Power consumption 72 W
- Sound Level 114 dB(A)
- Frequency Range 310 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone , Low Tone
DL50 Single, 380 Hz
- 3CA 004 811-011
- Voltage 12 V
- Power consumption 72 W
- Sound Level 114 dB(A)
- Frequency Range 380 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone , Low Tone
DL50 Set
- 3CB 004 811-132
- Voltage 24 V
- Power consumption 84 W
- Sound Level 114 dB(A)
- Frequency Range 310 Hz, 380 Hz
- Charging Rate 3,5 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone , Low Tone
DL50 Single, 310 Hz, 24 V
- 3CA 004 811-021
- Voltage 24 V
- Power consumption 84 W
- Sound Level 114 dB(A)
- Frequency Range 310 Hz
- Charging Rate 3,5 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal Low Tone , High Tone
DL50 Single, 380 Hz, 24 V
- 3CA 004 811-031
- Voltage 24 V
- Power consumption 84 W
- Sound Level 114 dB(A)
- Frequency Range 380 Hz
- Charging Rate 3,5 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone , Low Tone
|
DL50 Set
|
DL50 Single, 310 Hz
|
DL50 Single, 380 Hz
|
DL50 Set
|
DL50 Single, 310 Hz, 24 V
|
DL50 Single, 380 Hz, 24 V
|
|
|---|---|---|---|---|---|---|
| 3CB 004 811-042 | 3CA 004 811-001 | 3CA 004 811-011 | 3CB 004 811-132 | 3CA 004 811-021 | 3CA 004 811-031 | |
| Voltage | 12 V | 12 V | 12 V | 24 V | 24 V | 24 V |
| Power consumption | 72 W | 72 W | 72 W | 84 W | 84 W | 84 W |
| Sound Level | 114 dB(A) | 114 dB(A) | 114 dB(A) | 114 dB(A) | 114 dB(A) | 114 dB(A) |
| Frequency Range | 310 Hz, 380 Hz | 310 Hz | 380 Hz | 310 Hz, 380 Hz | 310 Hz | 380 Hz |
| Charging Rate | 6 A | 6 A | 6 A | 3,5 A | 3,5 A | 3,5 A |
| Prot.type (IP Code) | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| fulfils ECE standard | R28 | R28 | R28 | R28 | R28 | R28 |
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved |
| Signal | Low Tone , High Tone | High Tone , Low Tone | High Tone , Low Tone | High Tone , Low Tone | Low Tone , High Tone | High Tone , Low Tone |
| Housing Colour | black | black | black | black | black | black |
| Quantity | 2 | 1 | 1 | 2 | 1 | 1 |
| Operating Mode | Electric | Electric | Electric | Electric | Electric | Electric |
| Overall Height | 143 mm | |||||
| Ø | 130 mm | |||||
| Depth | 61 mm | |||||
| Temperature range from | -20 °C | |||||
| Temperature range to | +80 °C | |||||
| Mounting Type | Flat Plug-in Connector | |||||
| Supplementary Article/Supplementary Info 2 | with E quality seal | |||||
| Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
|
|
Downloads
2248-Product Info Sheet Horns Europe-DL50-EN
This could also be of interest to you
Light left on in the car: what now?
Left the car lights on for too long and the battery is flat? Not a problem! We'll show you how to safely jump start your car and what you should do now.
Changing the low beam: Here's how it’s done
Your low beam has dropped out? Don't worry! With the help of our instructions, you will be able to change the bulb in no time at all – whether halogen or xenon.
Comparison between H4 and H7: Differences between headlamp bulbs
Discover the advantages and disadvantages of H4 and H7 lamps.
Discover more HELLA products
S130 – 24 V disc horn | Avant-garde sound in chrome
Powerful 24V disc horn in chrome design, low sound and strong performance – ideal for on and off-road use

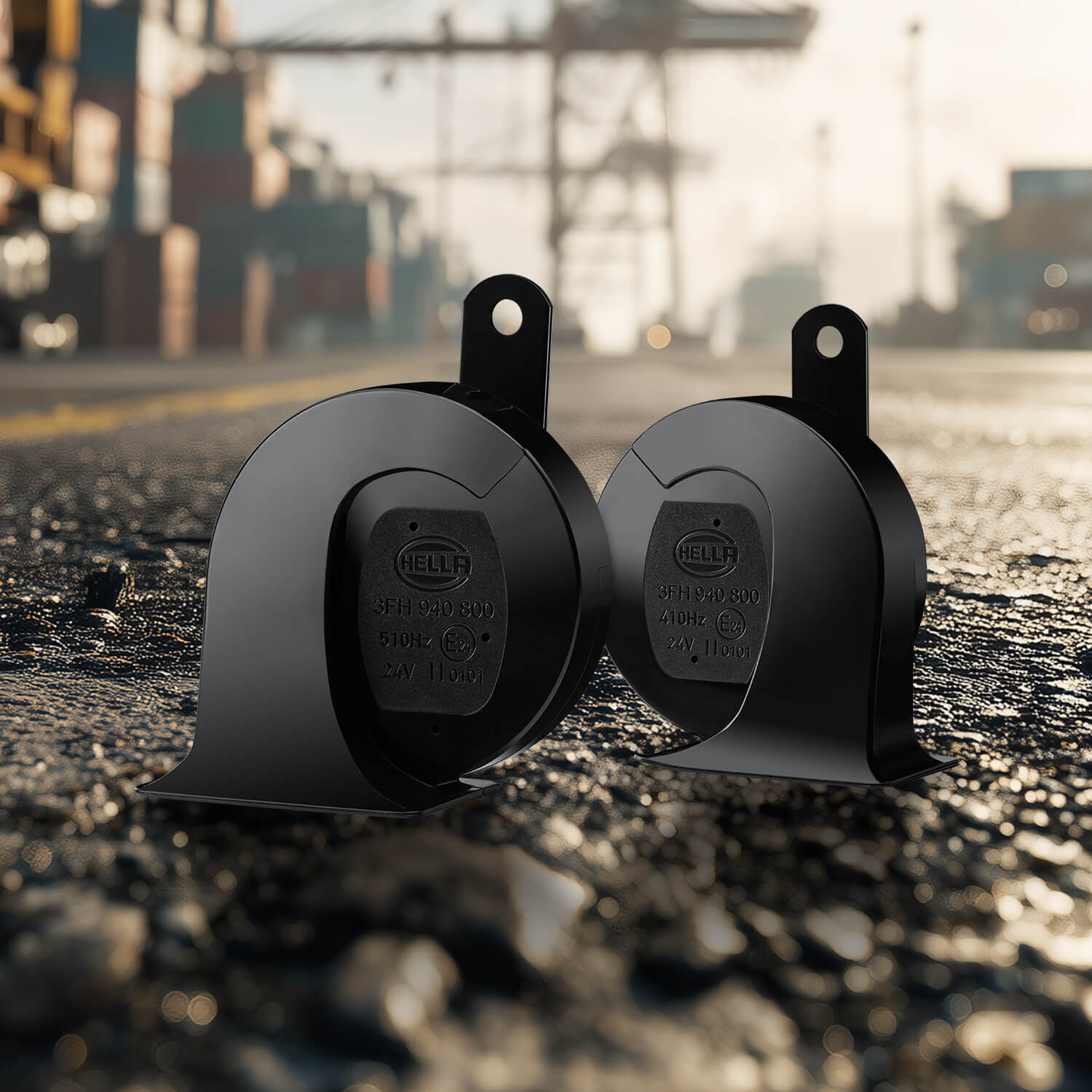

TE30 – 24 V trumpet horn | Harmonic
