Acoustic pedestrian alerting system (AVAS)

The sound of silence: For road users, electric vehicles are difficult to notice acoustically, as they produce almost no driving noise at low speeds.



To prevent the risk of accidents, the flush mounting of an acoustic warning system has been mandatory in the European Union since July 2019 for all newly developed pure electric drive vehicles (PEV), hybrid electric vehicles (HEV), and fuel cell vehicles (FCV). Up to speeds of 20 km/h (EU), vehicles must produce a sound similar to an internal combustion engine via a loudspeaker. In the US, the threshold is 19 mph (30 km/h). At speeds above this, the tire rolling noise is sufficient.

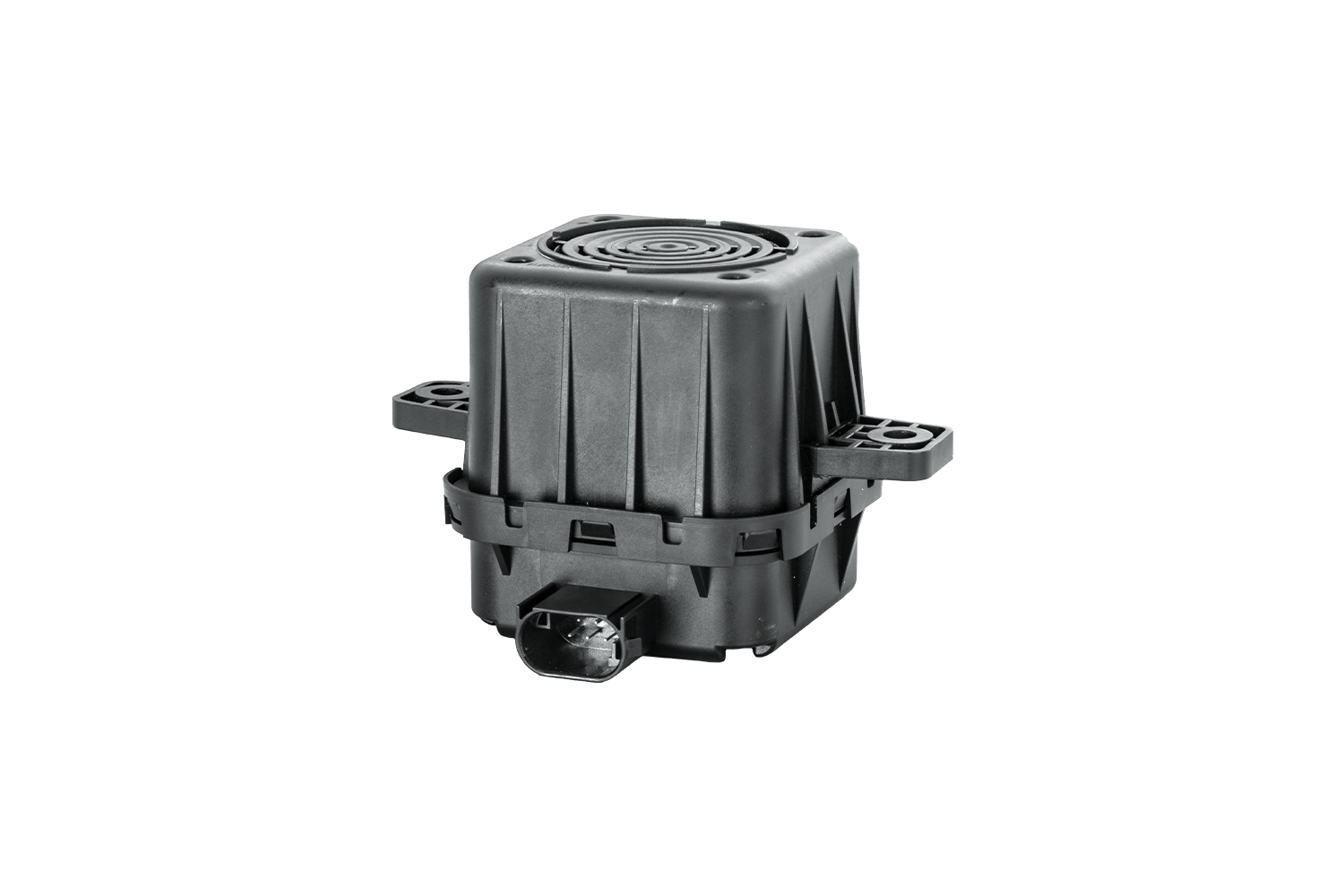

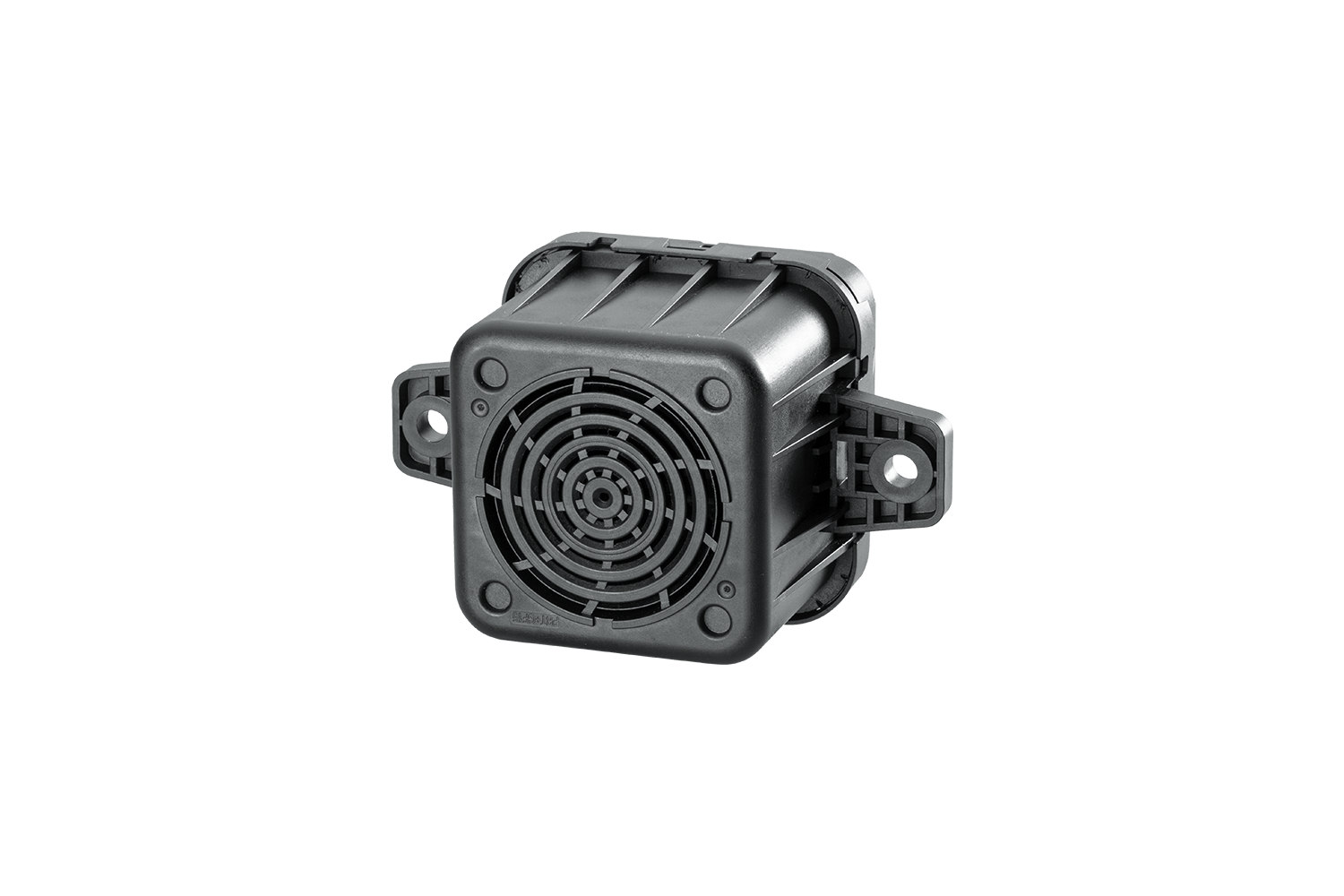

The acoustic warning system for vehicles (AVAS) from HELLA optimally fulfills these legal conditions. The system is automatically activated at startup and produces a clearly audible artificial engine noise, up to the specified speed and when reverse gear is engaged. When the target speed is exceeded, the signal is automatically faded out. The HELLA AVAS can moreover be manually switched on and off. Internal communication with the vehicle’s on-board electronics is done via CAN bus.

Product Advantages

  • For pure electric drive vehicles (PEV), hybrid electric vehicles (HEV), and fuel cell vehicles (FCV) with a silent engine to increase the safety of road users
  • Simulates simple engine noise
  • Space-saving and compact loudspeaker
  • Low power consumption

Bus

E-Car

E-Garbage truck

Technical Data

Operating temperature 9 – 16 V
Current consumption 150 mA (normal state), idle current 100 μA
Weight 350 g
Operating temperature -40 °C to +85 °C
CAN Diagnostic (based on UDS standard)
Speaker 2 inch (Impedance 4 Ω)
Mute function Support On / Off status via CAN
Frequency range 160 Hz to 5 kHz
Sound pressure level 65 ± 5 dB in 1 m; generation 0 km/h - 30 km/h (N. N.); Minimum frequency change rate: 0.8% (km/h)
Operating vehicle speed 2 to 20 km/h
Protection class IP 6K9K
Digital amplifier 32 bit at a sampling rate of max. 96 kHz
Enclosure volume 0.4 l
Housing material PBT-GF15
Thermal overload protection Yes
Connector TYCO 114-18063-126

Program Overview

Variant Part number Packaging unit
AVAS pedestrian warning system with high-speed CAN communication and standard sound* 3SL 015 329-001 1
AVAS pedestrian warning system with high-speed CAN communication and standard sound* 3SL 015 329-007 30
