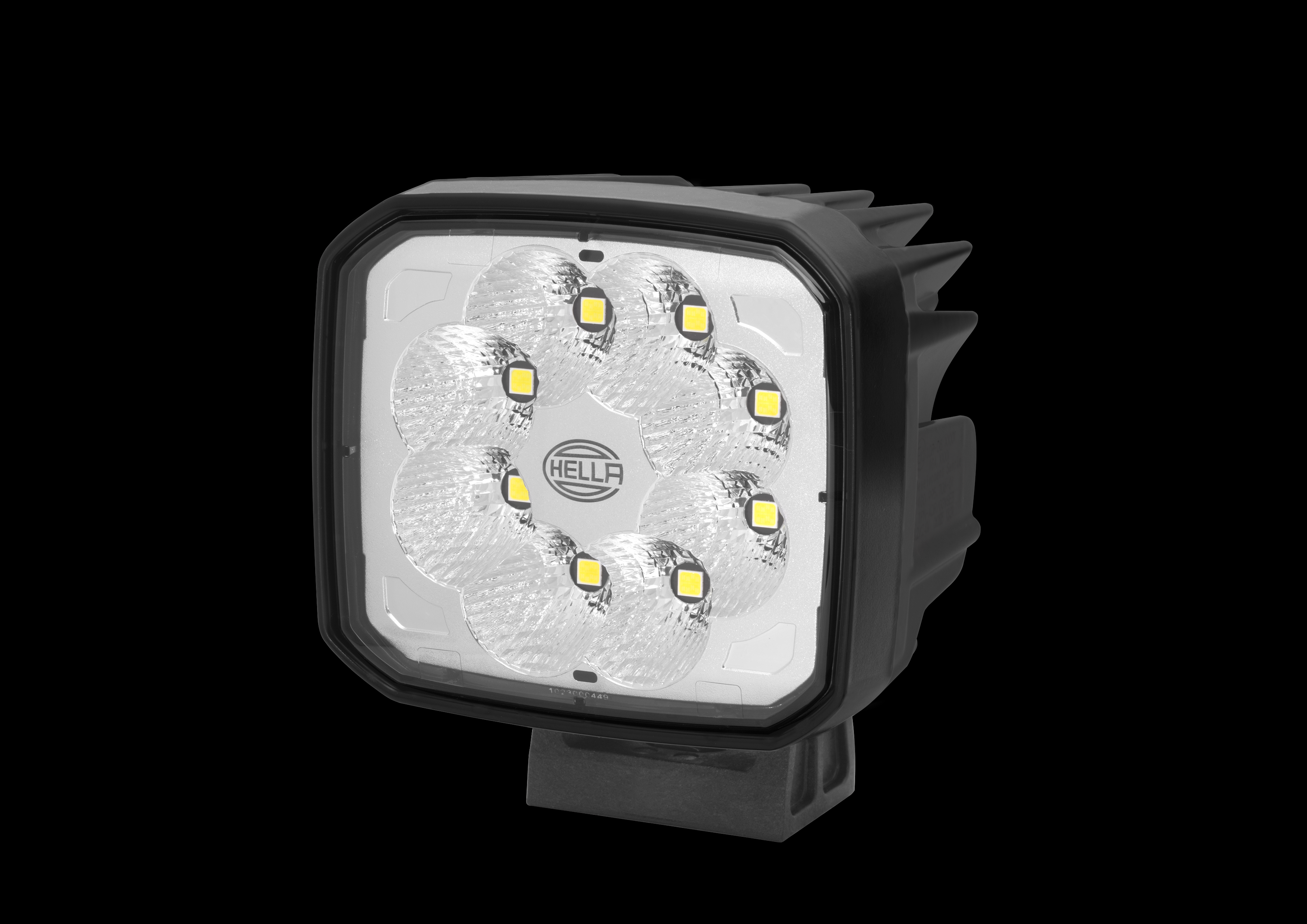

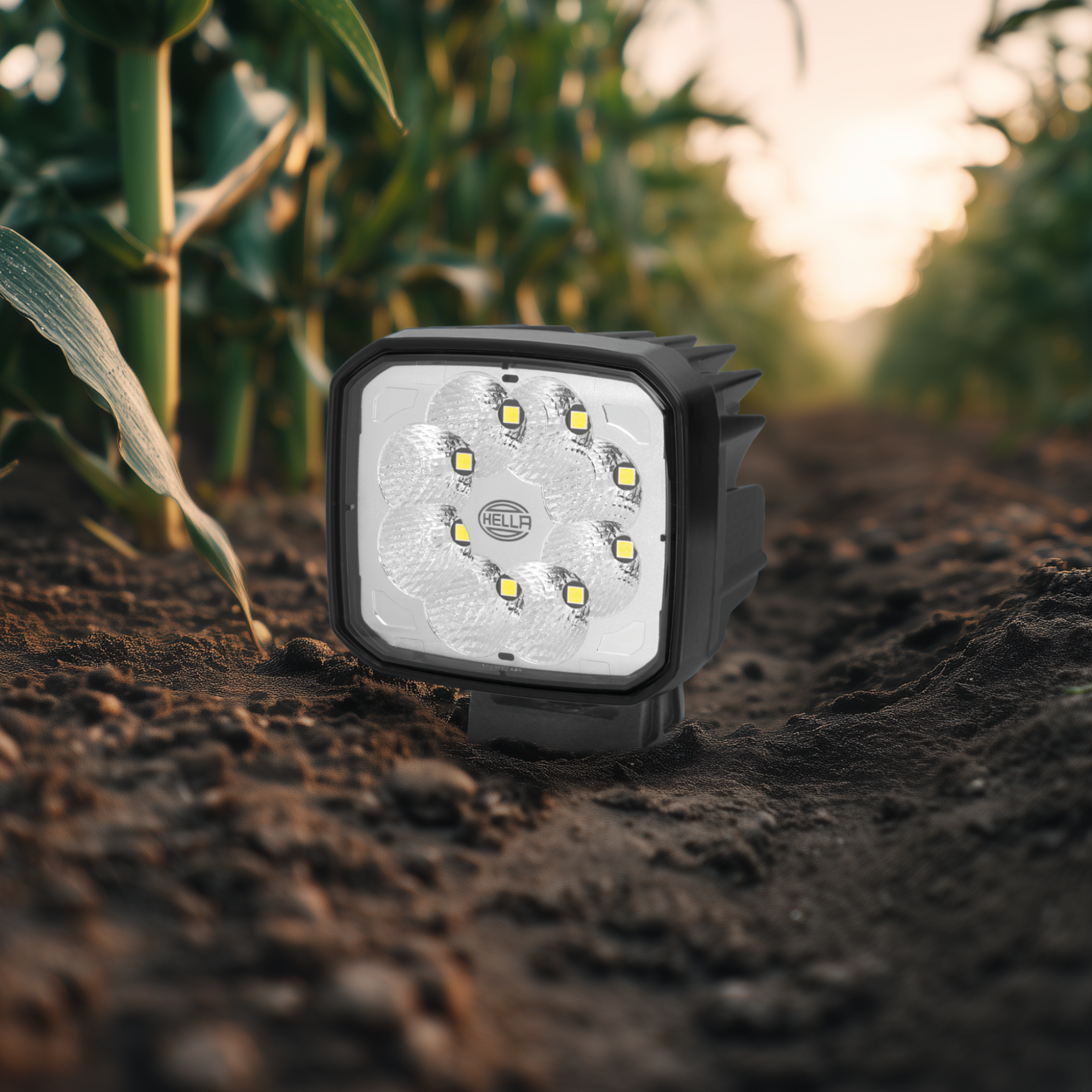

Ultra Beam S series
Ultra Beam S series
Maximum efficiency with high light output: HELLA Ultra Beam S series impresses with its contemporary design, high energy savings and reliable performance – ideal for demanding and intense areas of work.
- Improved light distribution for excellent light output
- Best energy efficiency
- Innovative electronics with soft start when switching on
- Rugged design, also suitable for tough working environments
Maximum efficiency meets powerful light output
Ultra Beam S series offers over 110 lumens per watt, setting new standards in efficiency and light quality. Equipped with 8 high-power LEDs and a colour temperature of 6,500 K, the headlamp provides daylight-like illumination – ideal for accurate work, even after dark.
Technical Sheet
Square 4000lm Close Range - Ultrabeam S
- 1GA 995 706-001
- Mounting Type Bolted
- Fastening Type Foot-mounted
- Lamp Type LED
- Light Design LED
- Colour Temperature 6500 K
- Luminous Flux 4400 lm
- Theoretical luminous flux 5500 lm
- Voltage from 9 V
- Voltage to 32 V
Square 4000lm Long Range - Ultrabeam S
- 1GA 995 706-011
- Mounting Type Bolted
- Fastening Type Bracket system
- Lamp Type LED
- Light Design LED
- Colour Temperature 6500 K
- Luminous Flux 4400 lm
- Theoretical luminous flux 5500 lm
- Voltage from 9 V
- Voltage to 32 V
|
Square 4000lm Close Range - Ultrabeam S
|
Square 4000lm Long Range - Ultrabeam S
|
|
|---|---|---|
| 1GA 995 706-001 | 1GA 995 706-011 | |
| Mounting Type | Bolted | Bolted |
| Fastening Type | Foot-mounted | Bracket system |
| Lamp Type | LED | LED |
| Light Design | LED | LED |
| Colour Temperature | 6500 K | 6500 K |
| Luminous Flux | 4400 lm | 4400 lm |
| Theoretical luminous flux | 5500 lm | 5500 lm |
| Voltage from | 9 V | 9 V |
| Voltage to | 32 V | 32 V |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Power consumption | 39 W | 39 W |
| Width | 115 mm | 115 mm |
| Height | 131 mm | 131 mm |
| Depth | 83 mm | 83 mm |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) |
| Housing material | Die-Cast Aluminium | Die-Cast Aluminium |
| Plug Type | DEUTSCH plug | DEUTSCH plug |
| Housing Colour | black | black |
| Diffusing Lens Type | Patterned diffusing lens | Clear diffusing lens |
| Prot.type (IP Code) | IP6K8 , IP6K9K | IP6K8 , IP6K9K |
| Temperature range from | -40 °C | -40 °C |
| Temperature range to | +85 °C | +85 °C |
| fulfils ECE standard | R10 | R10 |
| Weight | 895 g | 895 g |
| Quantity | 1 | 1 |
| Light Distribution | Short-Range Illumination | Long-range illumination |
| Number of LEDs | 8 | 8 |
| Registration Type | ADR/GGVS approved | ADR/GGVS approved |
| Search the web | Search the web | |
|
|
|
