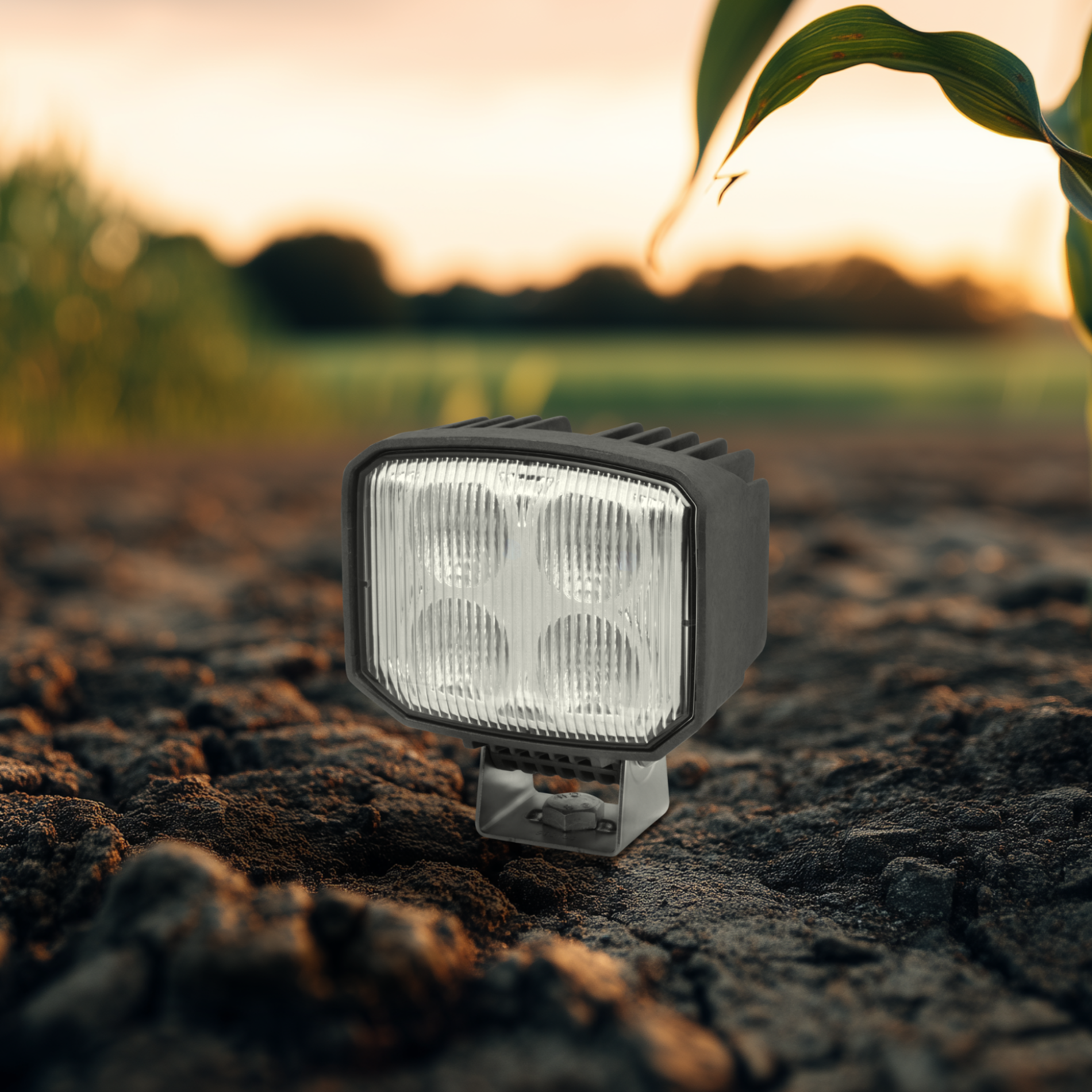

Power Beam S Series Consistent Quality
The Power Beam S series is a like-for-like replacement halogen headlamp and impresses with higher efficiency, a longer lifetime and low weight thanks to corrosion-resistant plastic.
- Halogen replacement series
- Longer lifetime and higher efficiency compared to halogen
- Low weight and high corrosion resistance thanks to plastic material
Efficient halogen replacement for versatile use
The slim Power Beam S series is ideal as a direct replacement for halogen lamps. With daylight-like illumination, automatic overheating protection dimming and rugged, lightweight plastic housing, it offers reliable lighting for trucks, construction machinery and more. A product for efficient and safe operation areas.
Technical Sheet
Power Beam S - 1150lm Close Range
- 1GA 996 588-001
- Theoretical luminous flux 1250 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1000 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
12 W
Width
112 mm
Height
127 mm
Depth
66 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
393 g
Quantity
1
Number of LEDs
2
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Power Beam S - 1150lm Long Range
- 1GA 996 588-011
- Theoretical luminous flux 1250 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 1000 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
12 W
Width
112 mm
Height
127 mm
Depth
66 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
393 g
Quantity
1
Number of LEDs
2
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Power Beam S - 1850lm Close Range
- 1GA 996 588-201
- Theoretical luminous flux 2313 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1850 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
17 W, 19 W
Width
112 mm
Height
127 mm
Depth
66 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
397 g
Quantity
1
Number of LEDs
4
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Power Beam S - 1850lm Long Range
- 1GA 996 588-211
- Theoretical luminous flux 2313 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 1850 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
17 W
Width
112 mm
Height
127 mm
Depth
66 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
397 g
Quantity
1
Number of LEDs
4
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
|
Power Beam S - 1150lm Close Range
|
Power Beam S - 1150lm Long Range
|
Power Beam S - 1850lm Close Range
|
Power Beam S - 1850lm Long Range
|
|
|---|---|---|---|---|
| 1GA 996 588-001 | 1GA 996 588-011 | 1GA 996 588-201 | 1GA 996 588-211 | |
| Theoretical luminous flux | 1250 lm | 1250 lm | 2313 lm | 2313 lm |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Prot.type (IP Code) | IP6K7 , IP6K9K | IP6K7 , IP6K9K | IP6K7 , IP6K9K | IP6K7 , IP6K9K |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| Light Distribution | Short-Range Illumination | Long-range illumination | Short-Range Illumination | Long-range illumination |
| fulfils ECE standard | R10 | R10 | R10 | R10 |
| Luminous Flux | 1000 lm | 1000 lm | 1850 lm | 1850 lm |
| Mounting Type | Bolted | Bolted | Bolted | Bolted |
| Fastening Type | Bracket system | Bracket system | Bracket system | Bracket system |
| Lamp Type | LED | LED | LED | LED |
| Light Design | LED | LED | LED | LED |
| Colour Temperature | 6500 K | 6500 K | 6500 K | 6500 K |
| Voltage from | 9 V | 9 V | 9 V | 9 V |
| Voltage to | 32 V | 32 V | 32 V | 32 V |
| Power consumption | 12 W | 12 W | 17 W, 19 W | 17 W |
| Width | 112 mm | 112 mm | 112 mm | 112 mm |
| Height | 127 mm | 127 mm | 127 mm | 127 mm |
| Depth | 66 mm | 66 mm | 66 mm | 66 mm |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Housing Colour | black | black | black | black |
| Diffusing Lens Type | Patterned diffusing lens | Clear diffusing lens | Patterned diffusing lens | Clear diffusing lens |
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C |
| Temperature range to | +85 °C | +85 °C | +85 °C | +85 °C |
| fulfils EMC/CISPR standard | Class 4 , Class 5 | Class 4 , Class 5 | Class 4 , Class 5 | Class 4 , Class 5 |
| Weight | 393 g | 393 g | 397 g | 397 g |
| Quantity | 1 | 1 | 1 | 1 |
| Number of LEDs | 2 | 2 | 4 | 4 |
| Registration Type | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved |
