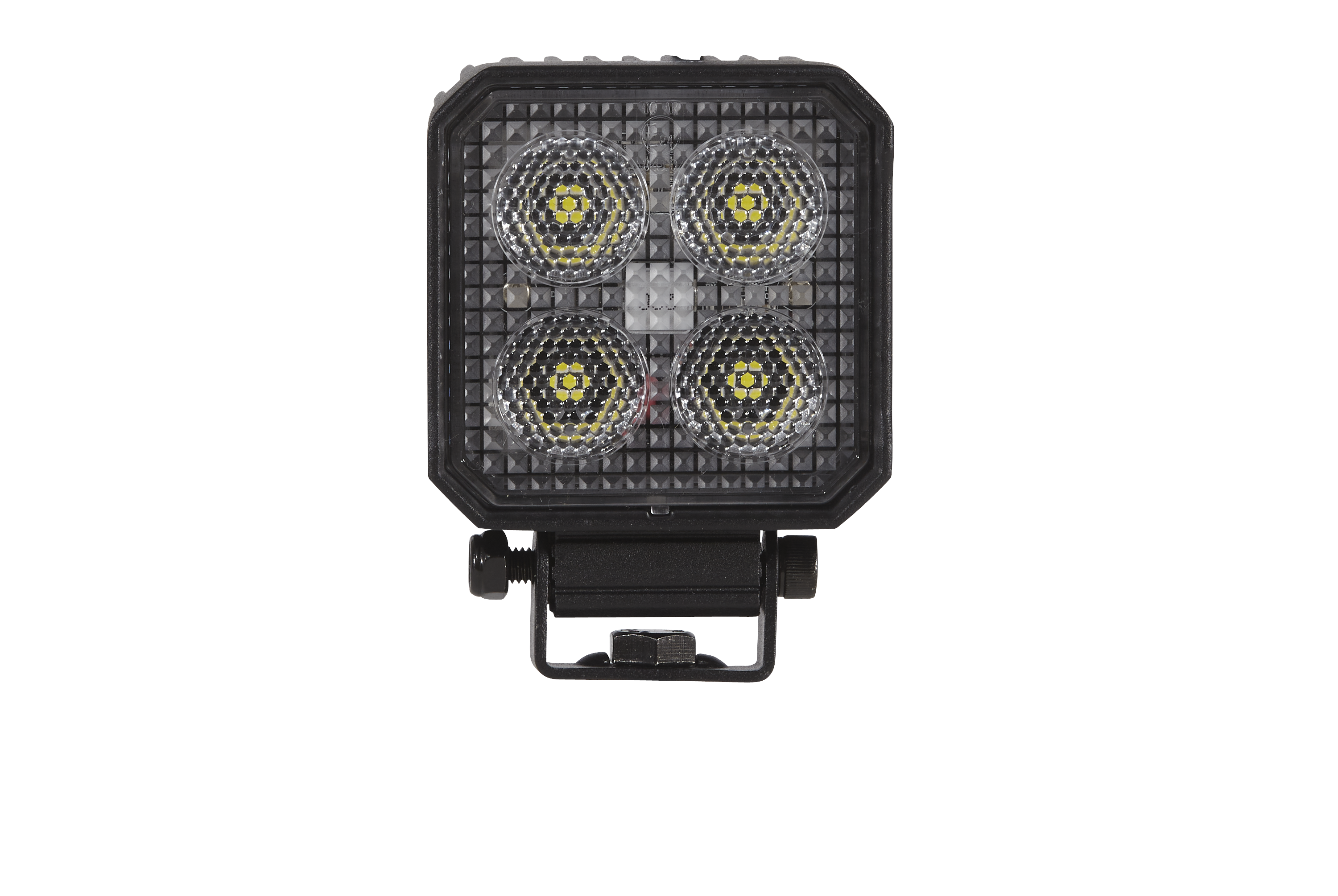

TS1700
TS1700
The HELLA VALUEFIT TS1700 work lamp combines powerful light output with a compact, black design. Integrated thermal management adjusts the brightness to the ambient temperature, prevents overheating and optimises the light output in cold conditions – for the best visibility in any conditions.
- Work lamps with innovative thermal management
- Powerful light output despite a compact design
- Contemporary, elegant look with black design
Powerful and durable – even at extreme temperatures
HELLA VALUEFIT work lamps offer automatic light output adjustment to the ambient temperature thanks to its innovative thermal sensor. This means that the light is intensified in cold temperatures and dimmed in high temperatures to prevent overheating. The compact design with rugged, salt spray-resistant housing ensures high reliability and a long lifetime.
Technical Sheet
Square 3000lm Long Range - S3000
- 1GA 357 110-002
- Mounting Type Bolted
- Fastening Type Bracket system
- Lamp Type LED
- Light Design LED
- Colour Temperature 5700 K
- Luminous Flux 1700 lm
- Theoretical luminous flux 2833 lm
- Voltage from 10 V
- Voltage to 30 V
|
Square 3000lm Long Range - S3000
|
|
|---|---|
| 1GA 357 110-002 | |
| Mounting Type | Bolted |
| Fastening Type | Bracket system |
| Lamp Type | LED |
| Light Design | LED |
| Colour Temperature | 5700 K |
| Luminous Flux | 1700 lm |
| Theoretical luminous flux | 2833 lm |
| Voltage from | 10 V |
| Voltage to | 30 V |
| Voltage | 12 V, 24 V |
| Power consumption | 24 W |
| Width | 70 mm |
| Height | 95 mm |
| Depth | 41 mm |
| Diffusing Lens Material | PC (Polycarbonate) |
| Housing material | Die-Cast Aluminium |
| Cable Length | 800 mm |
| Plug Type | open cable ends |
| Housing Colour | black |
| Diffusing Lens Type | Patterned diffusing lens |
| Prot.type (IP Code) | IP6K7 , IP6K9K |
| fulfils ECE standard | R10 |
| Weight | 310 g |
| Quantity | 18 |
| Light Distribution | Short-Range Illumination |
| Number of LEDs | 4 |
| Packaging | Box |
| Temperature range from | -40 °C |
| Temperature range to | +65 °C |
| Search the web | |
|
|
