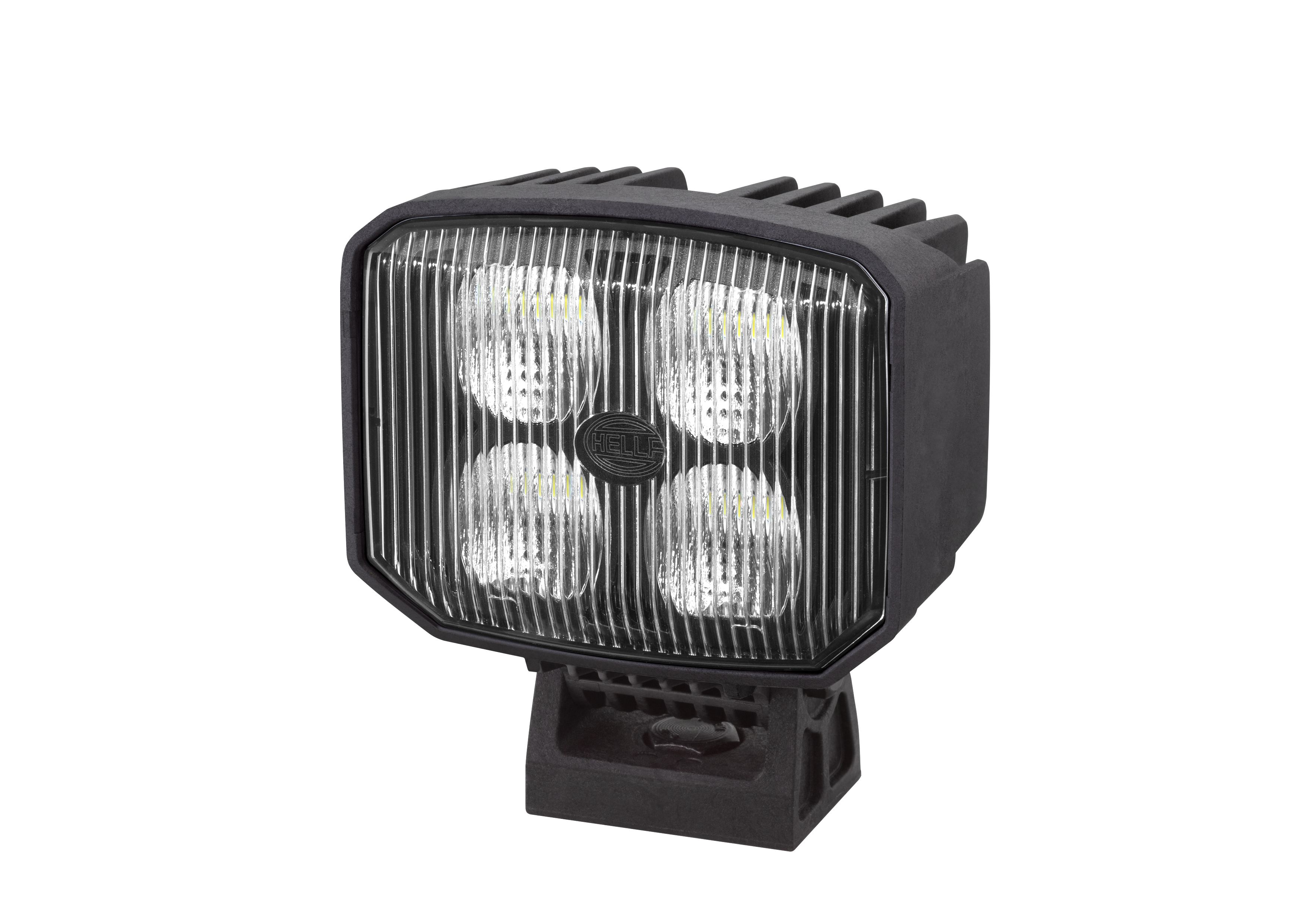

Power Beam S series - Black Edition
Power Beam S series - Black Edition
Power Beam S series Black Edition combines proven Power Beam S series quality with an elegant, black design. It impresses with its high efficiency, long lifetime and matches contemporary vehicles perfectly – for strong performance and a stylish appearance.
- Halogen replacement series
- Longer lifetime and higher efficiency compared to halogen
- Low weight and high corrosion resistance thanks to plastic material
Efficiency and design in perfect harmony
Black Edition extends the Power Beam S series with a contemporary, black design that seamlessly blends into current vehicle design. The LED work lamps generates a high light output at a low energy consumption. The rugged, lightweight design with corrosion protection ensures a long lifetime and versatile application options.
Technical Sheet
Power Beam S Black Edition - 1850lm Long Range
- 1GA 996 588-411
- Mounting Type Bolted
- Fastening Type Bracket system
- Lamp Type LED
- Light Design LED
- Voltage 12 V, 24 V
- Voltage from 9 V
- Voltage to 32 V
- Height 126 mm
- Width 112 mm
Power Beam S Black Edition - 1850lm Close Range
- 1GA 996 588-401
- Mounting Type Bolted
- Fastening Type Bracket system
- Lamp Type LED
- Light Design LED
- Voltage 12 V, 24 V
- Voltage from 9 V
- Voltage to 32 V
- Height 126 mm
- Width 112 mm
|
Power Beam S Black Edition - 1850lm Long Range
|
Power Beam S Black Edition - 1850lm Close Range
|
|
|---|---|---|
| 1GA 996 588-411 | 1GA 996 588-401 | |
| Mounting Type | Bolted | Bolted |
| Fastening Type | Bracket system | Bracket system |
| Lamp Type | LED | LED |
| Light Design | LED | LED |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Voltage from | 9 V | 9 V |
| Voltage to | 32 V | 32 V |
| Height | 126 mm | 126 mm |
| Width | 112 mm | 112 mm |
| Depth | 66 mm | 66 mm |
| Light Distribution | Long-range illumination | Short-Range Illumination |
| fulfils ECE standard | R10 | R10 |
| Registration Type | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved |
| Plug Type | DEUTSCH plug | DEUTSCH plug |
| Prot.type (IP Code) | IP6K7 , IP6K9K | IP6K7 , IP6K9K |
| fulfils EMC/CISPR standard | Class 4 , class 5 , Class 5 | Class 4 , class 5 |
| Luminous Flux | 1850 lm | 1850 lm |
| Colour Temperature | 6500 K | 6500 K |
| Number of LEDs | 4 | 4 |
| Power consumption | 17 W | 17 W |
| Housing Colour | black | black |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) |
| Diffusing Lens Type | Clear diffusing lens | Patterned diffusing lens |
| Quantity | 1 | 1 |
| Theoretical luminous flux | 2313 lm | 2313 lm |
| Weight | 397 g | 397 g |
| Temperature range from | -40 °C | -40 °C |
| Temperature range to | +85 °C | +85 °C |
