R 2100 Series Advanced Lighting Solutions
Farmer
R 2100 Series Advanced Lighting Solutions
Compact, powerful, versatile: HELLA VALUEFIT LED work lamps offer powerful light output and reliable illumination in an ample range of working conditions – ideal for everyday professional use.
- Universal LED work lamps for large-area illumination
- 3 versions with various light outputs up to 5,000 lumens
- Rugged die-cast aluminium housing
- Compact size for universal applications
- Position light in white (ECE R148) or amber
Reliable LED power for professional applications
The HELLA VALUEFIT series combines high light output, durable materials and flexible installation options. With up to 5,000 lumens, the compact LED work lamp ensures optimum visibility and safe working – even in demanding conditions.
Technical Sheet

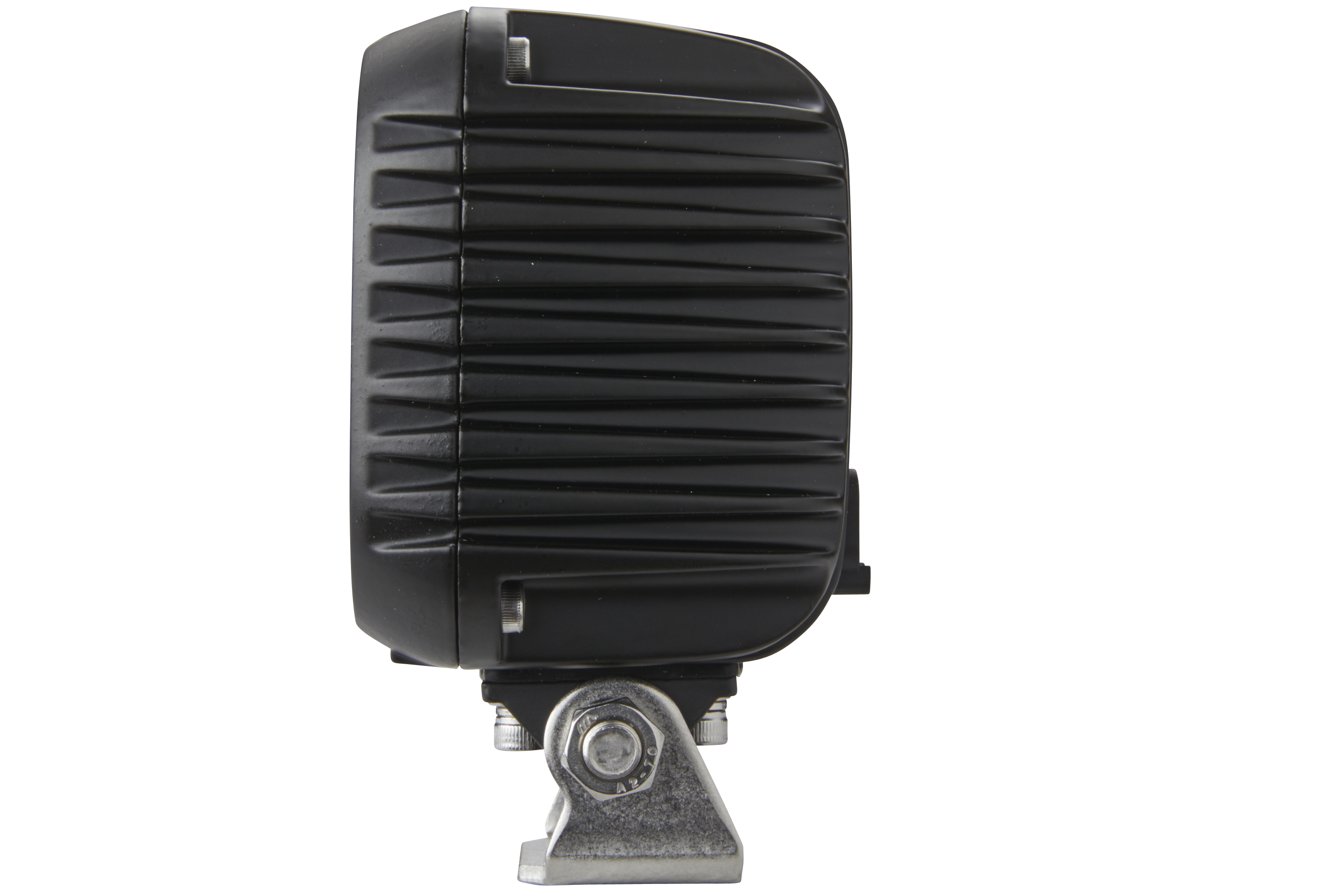

Square 3000lm Long Range - S3000
- 1GA 357 109-002
- Theoretical luminous flux 6300 lm
- Voltage 12 V, 24 V
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Mounting Type Bolted , mounting
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
52 V
Power consumption
31 W
Height
123 mm
Width
100 mm
Depth
73 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
9
Supplementary Article/Supplementary Info 2
with cable
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Weight
790 g
Housing Type
Aluminium Housing

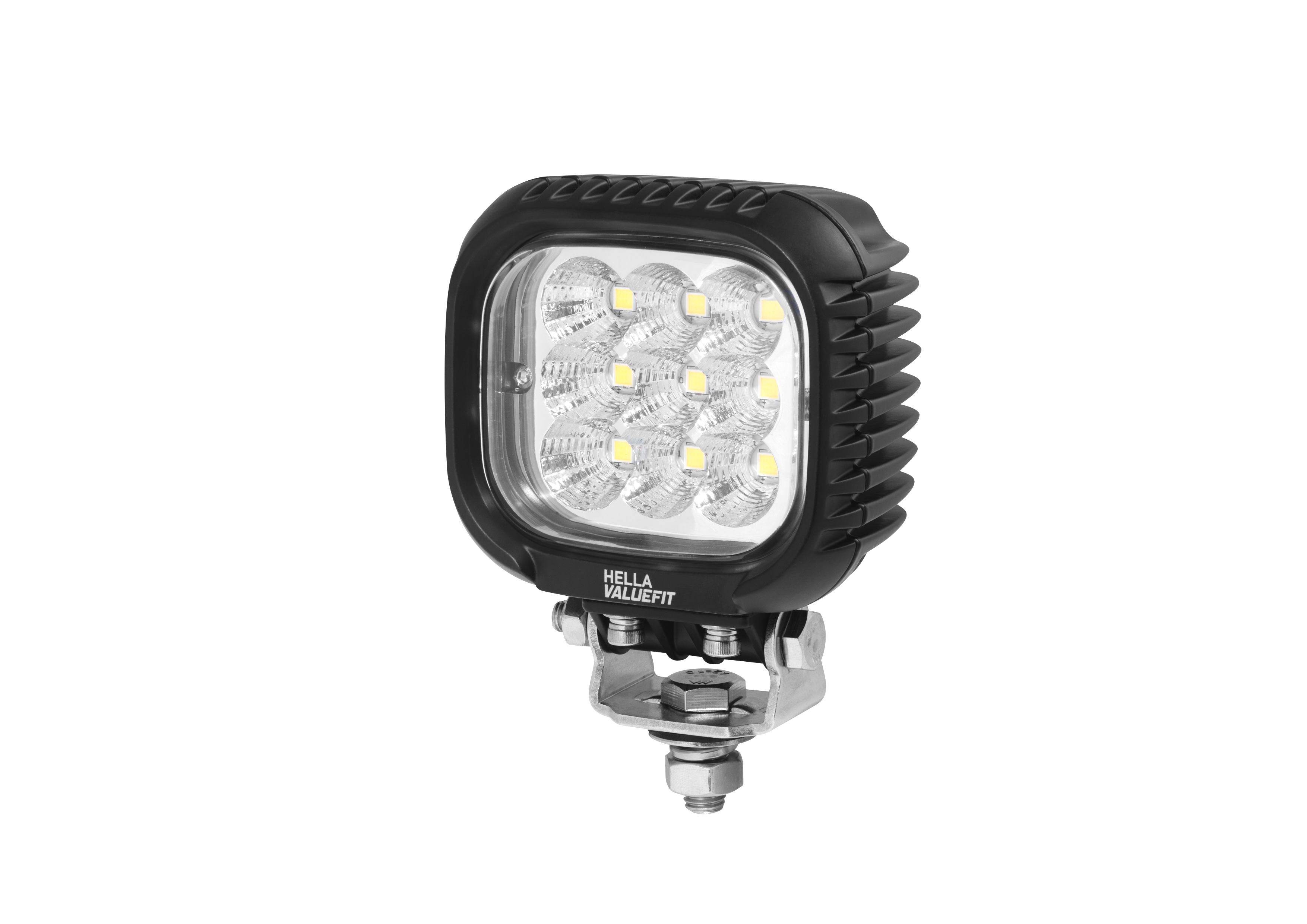

Square 3000lm Close Range - S3000
- 1GA 357 109-012
- Theoretical luminous flux 6300 lm
- Voltage 12 V, 24 V
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Mounting Type Bolted , mounting
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
52 V
Power consumption
31 W
Height
123 mm
Width
100 mm
Depth
73 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
9
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Weight
790 g
Housing Type
Aluminium Housing

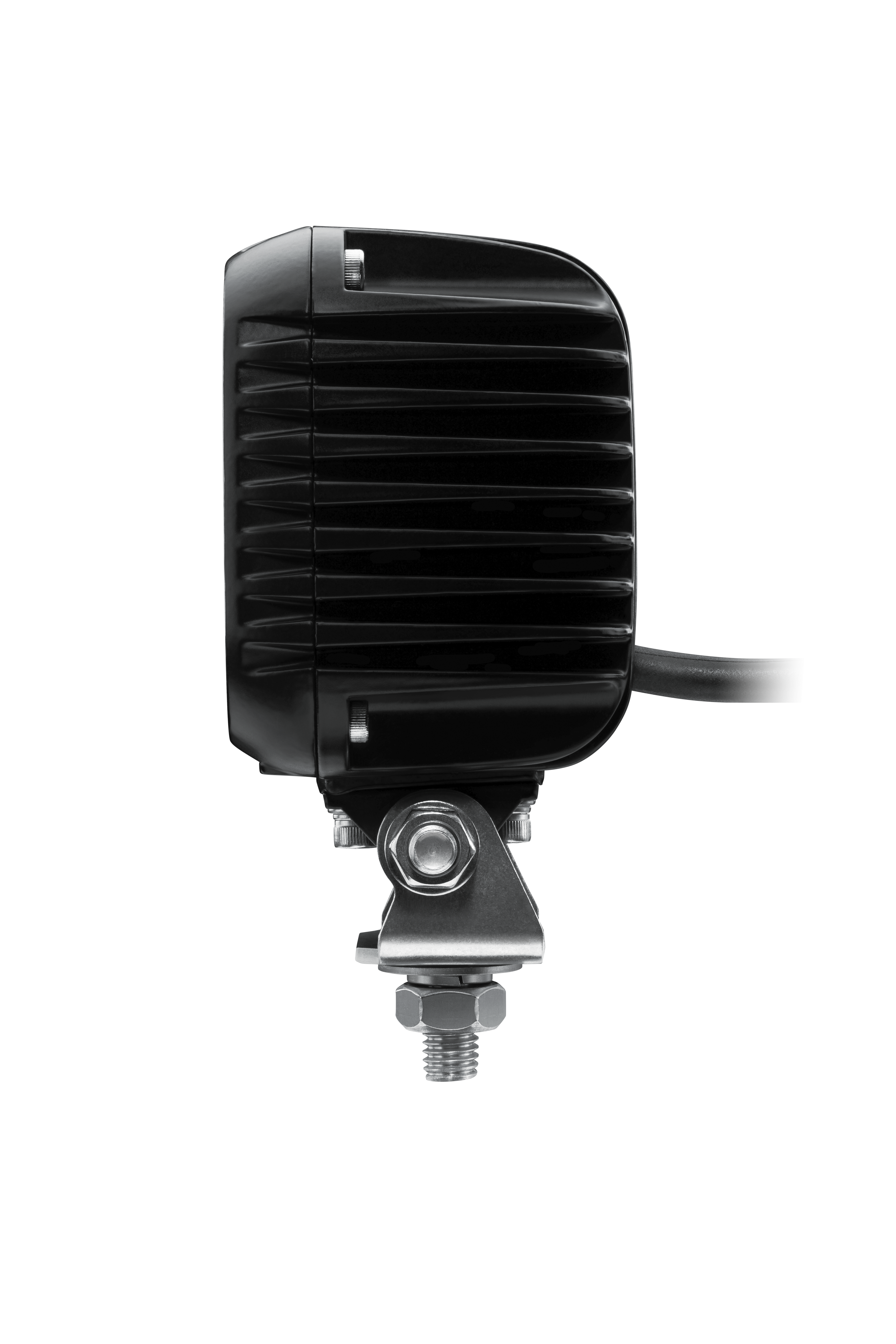

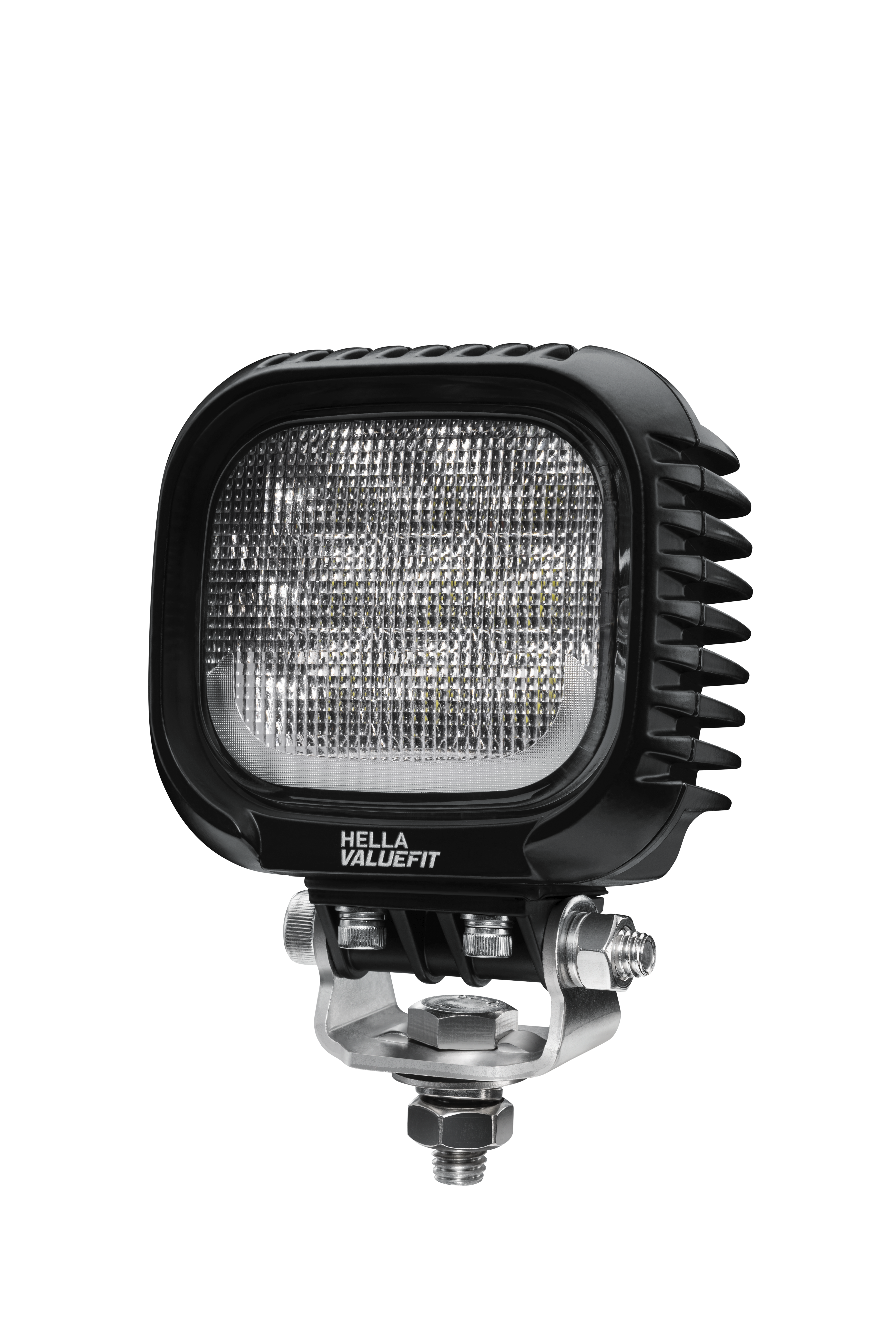

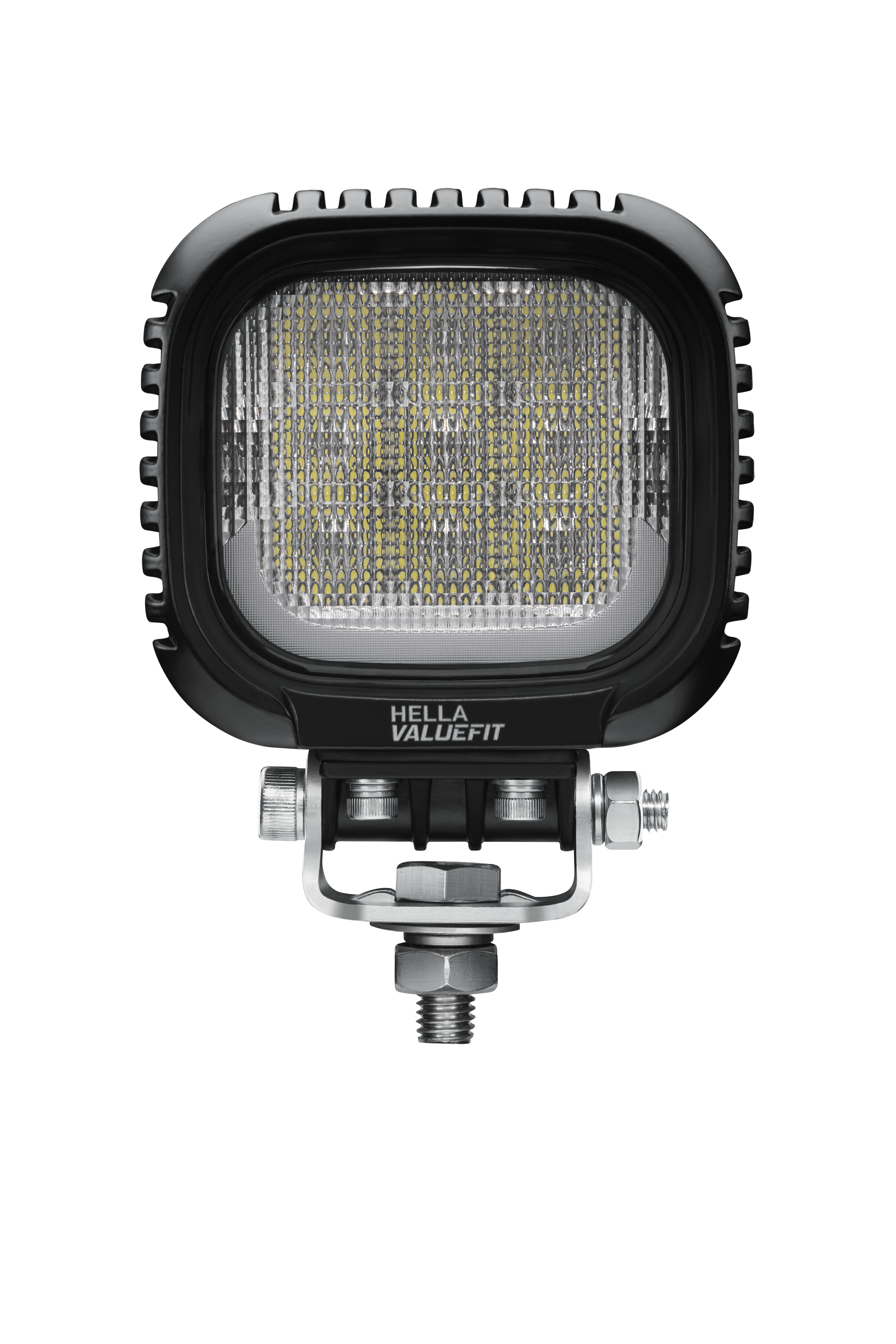

Square 3000lm Close Range with Position Light White/Amber - S3000 2.0
- 1GA 357 109-031
- Theoretical luminous flux 6300 lm
- Voltage 12 V, 24 V
- Light Function with position light (LED)
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 3000 lm
Mounting Type
Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
30 V
Power consumption
63 W
Height
123 mm
Width
100 mm
Depth
73 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
9
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
790 g

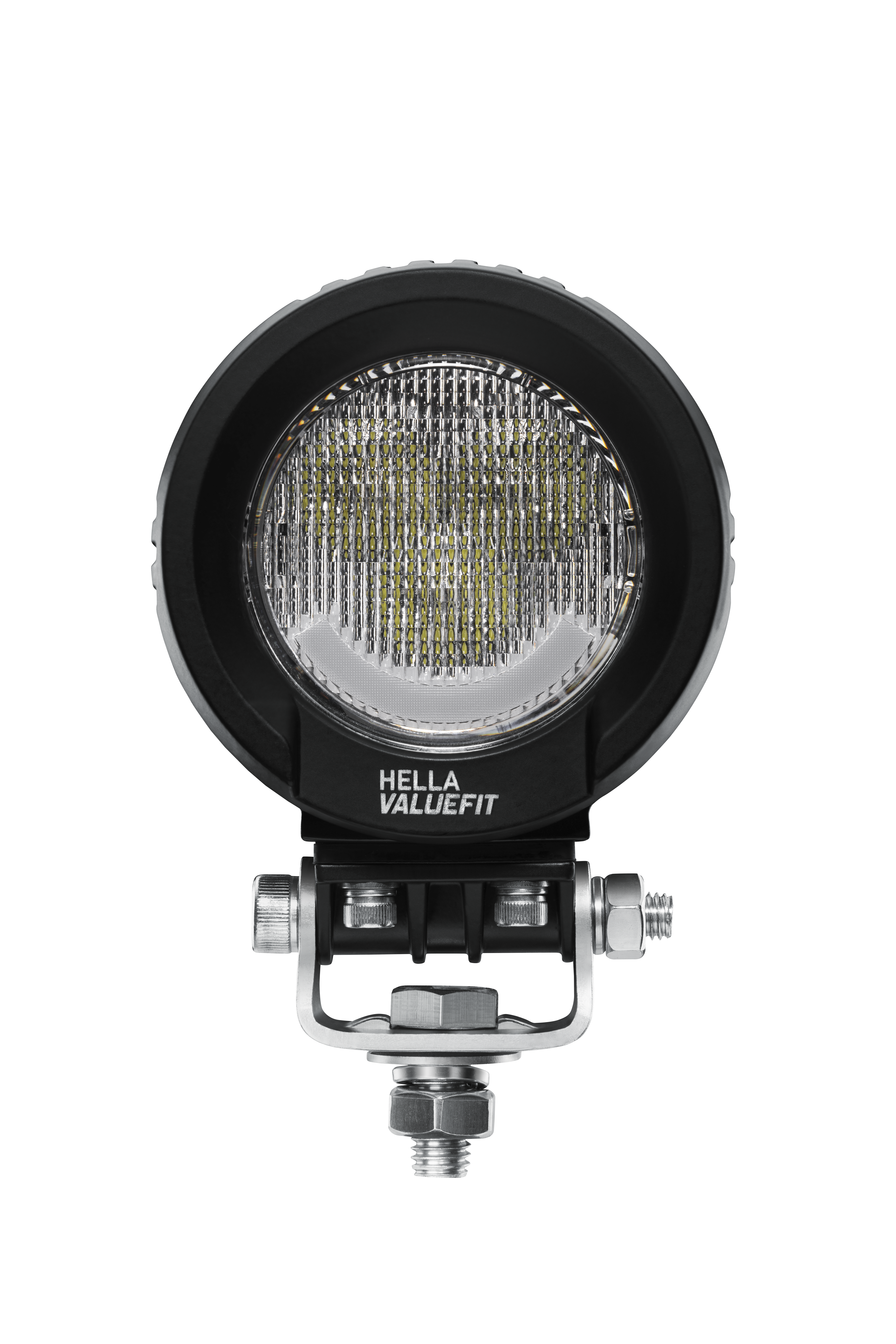

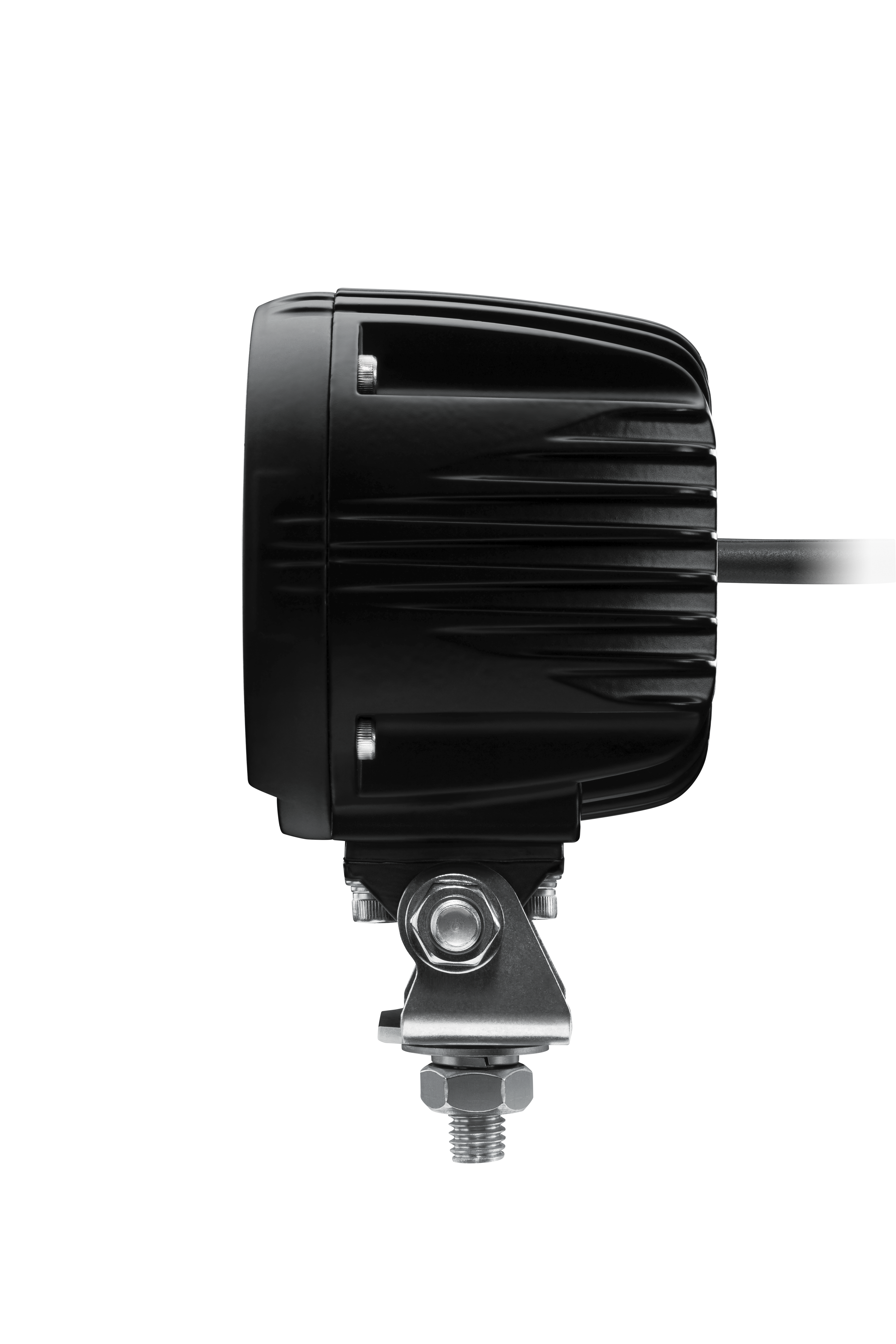

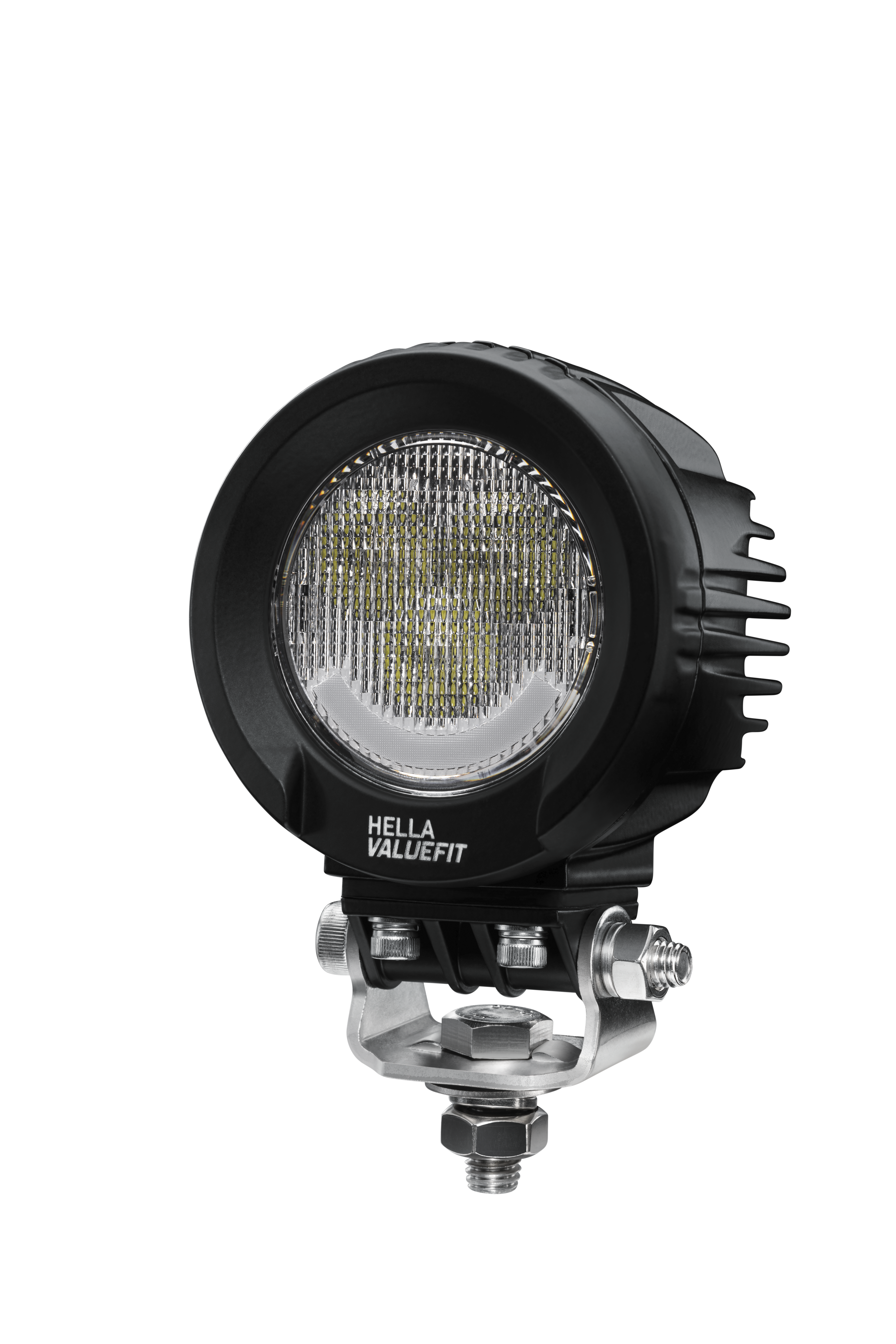

Round 2100lm Close Range with Position Light White/Amber - R2100 2.0
- 1G0 357 109-111
- Theoretical luminous flux 2700 lm
- Voltage 12 V, 24 V
- Light Function with position light (LED)
- Cable Length 800 mm
- Prot.type (IP Code) IP67
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 2100 lm
Mounting Type
Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
24 V
Power consumption
27 W
Height
123 mm
Width
91 mm
Depth
75 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
4
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
784 g

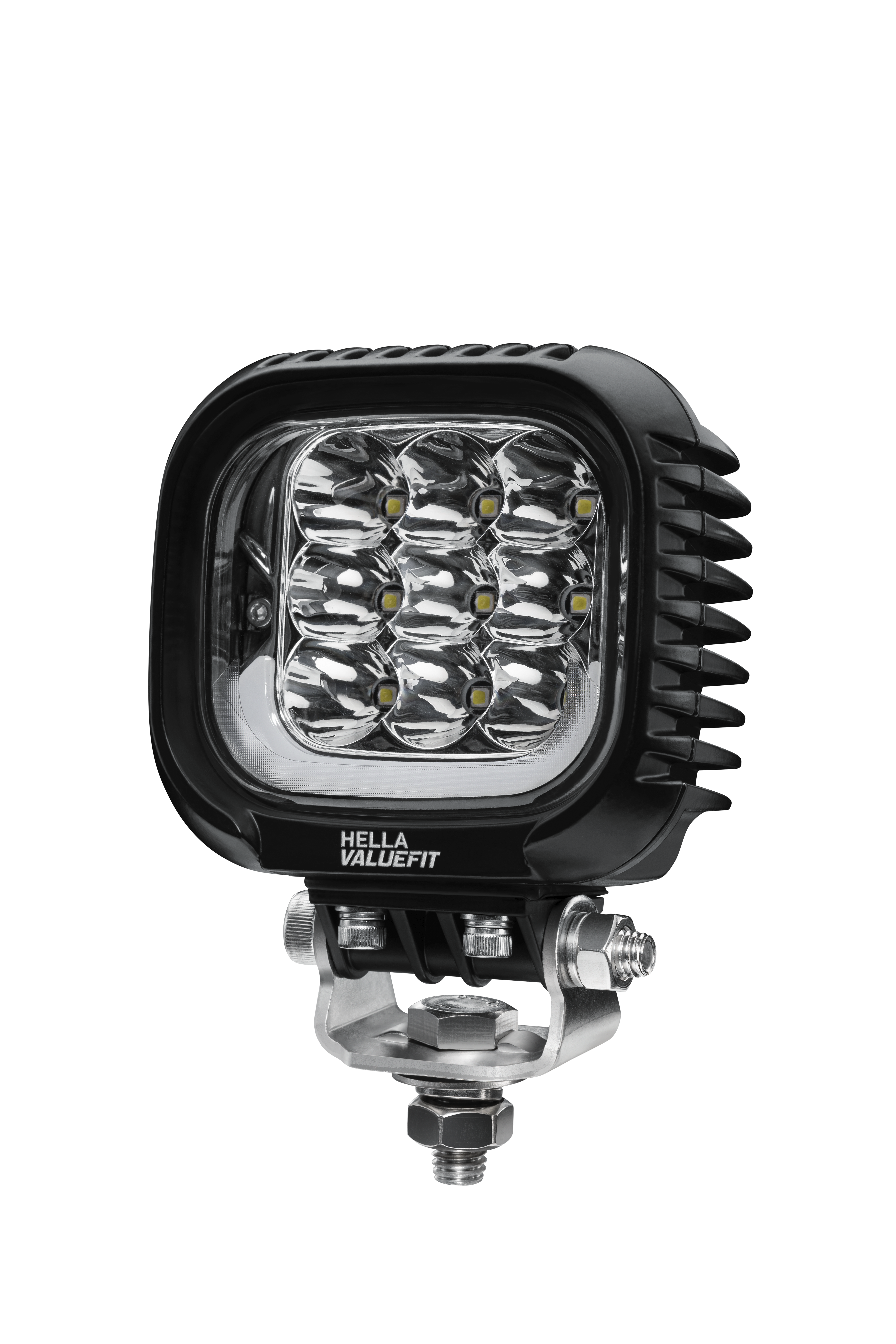

Square 3000lm Long Range with Position Light White/Amber - S3000 2.0
- 1GA 357 109-041
- Theoretical luminous flux 6300 lm
- Voltage 12 V, 24 V
- Light Function with position light (LED)
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 3000 lm
Mounting Type
Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
30 V
Power consumption
63 W
Height
123 mm
Width
100 mm
Depth
73 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
9
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
790 g
Round 2100lm Close Range - R2100
- 1G0 357 109-101
- Theoretical luminous flux 4800 lm
- Voltage 12 V, 24 V
- Cable Length 800 mm
- Prot.type (IP Code) IP67
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 2100 lm
- Mounting Type Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
48 V
Power consumption
20 W
Height
123 mm
Width
91 mm
Depth
75 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
4
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
764 g

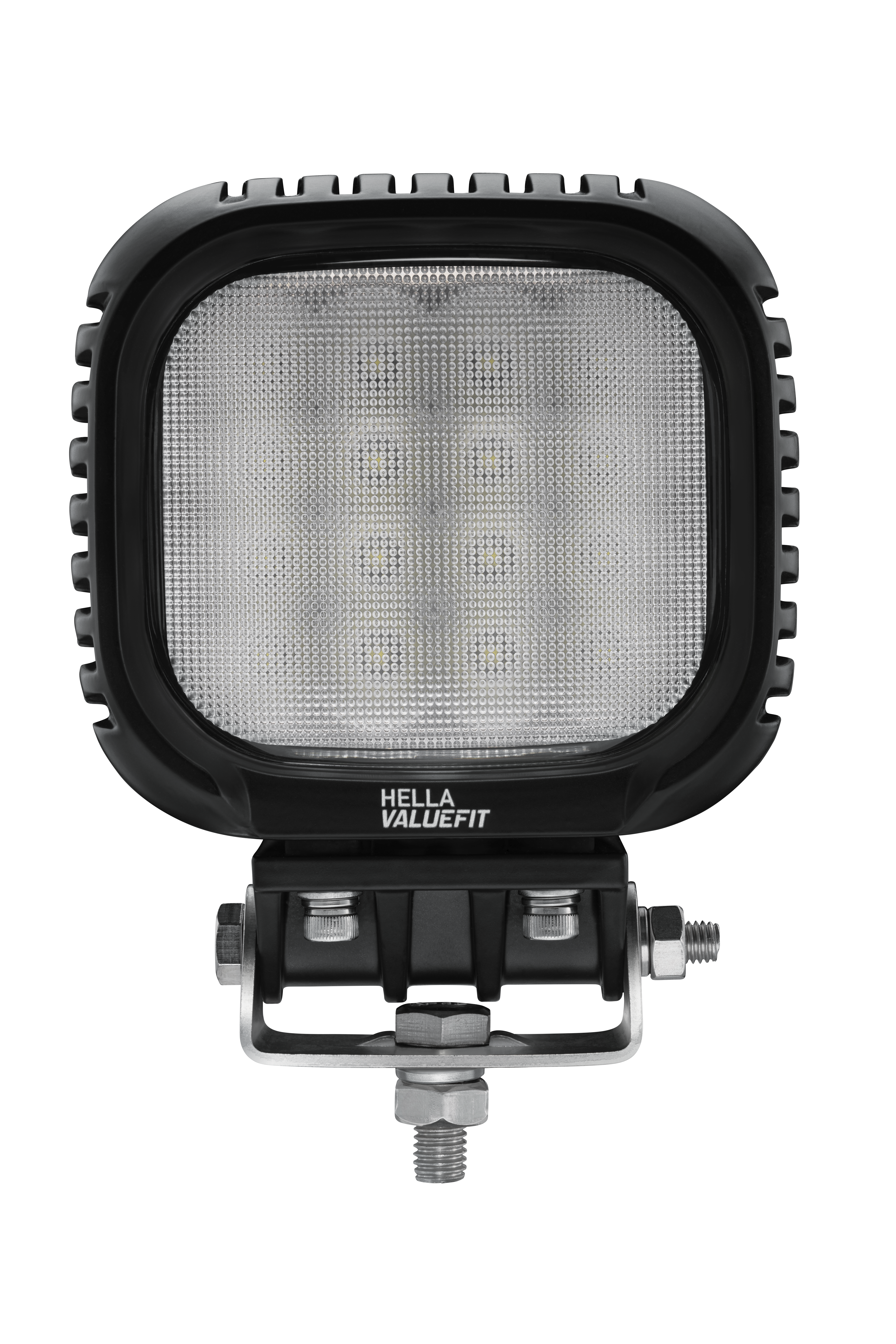

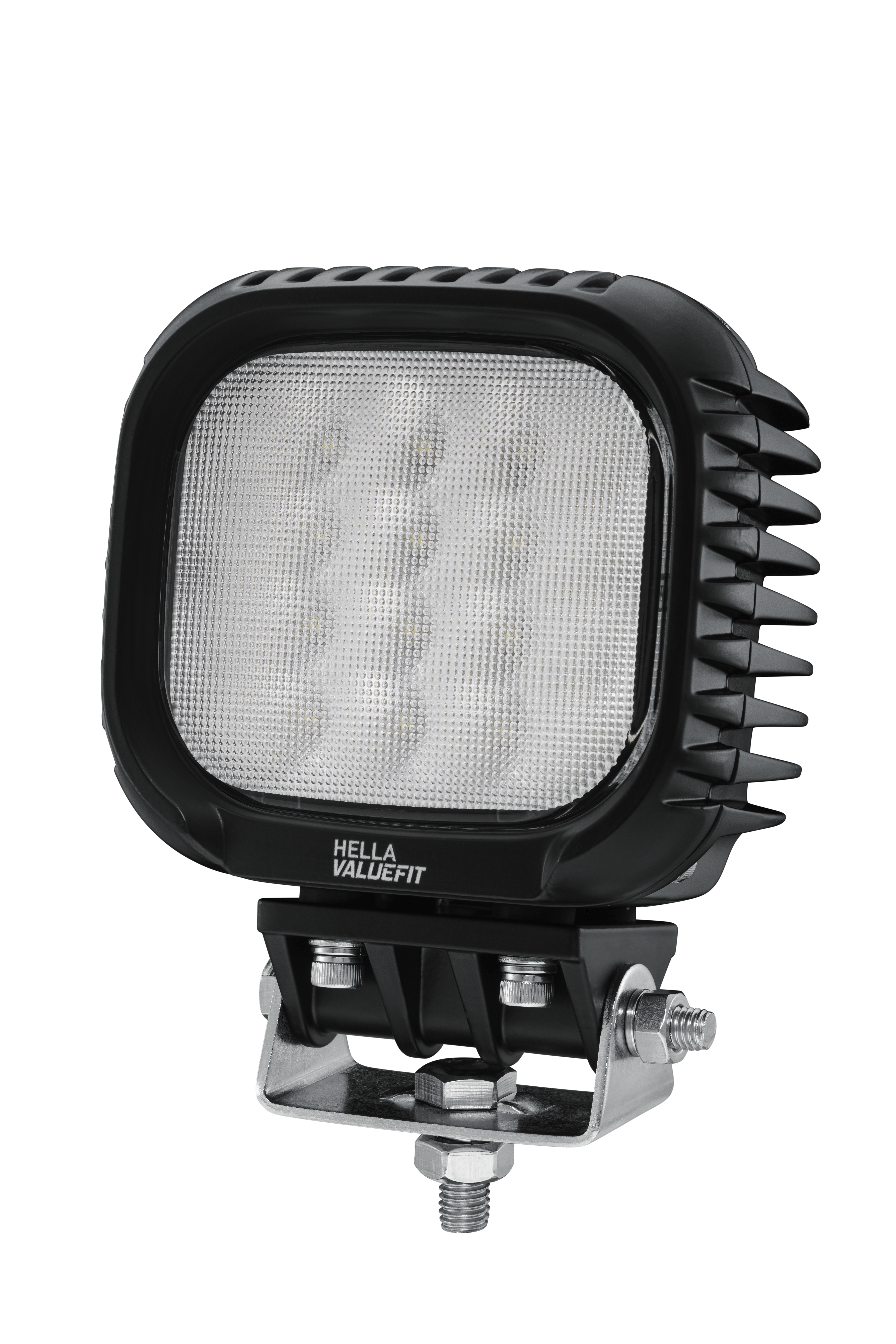

Square 5000lm Close Range - S5000
- 1GA 357 109-201
- Theoretical luminous flux 9600 lm
- Voltage 12 V, 24 V
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 5000 lm
- Mounting Type Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
48 V
Power consumption
45 W
Height
158 mm
Width
125 mm
Depth
88 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
16
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Housing material
Die-Cast Aluminium
Quantity
1
Weight
1487 g

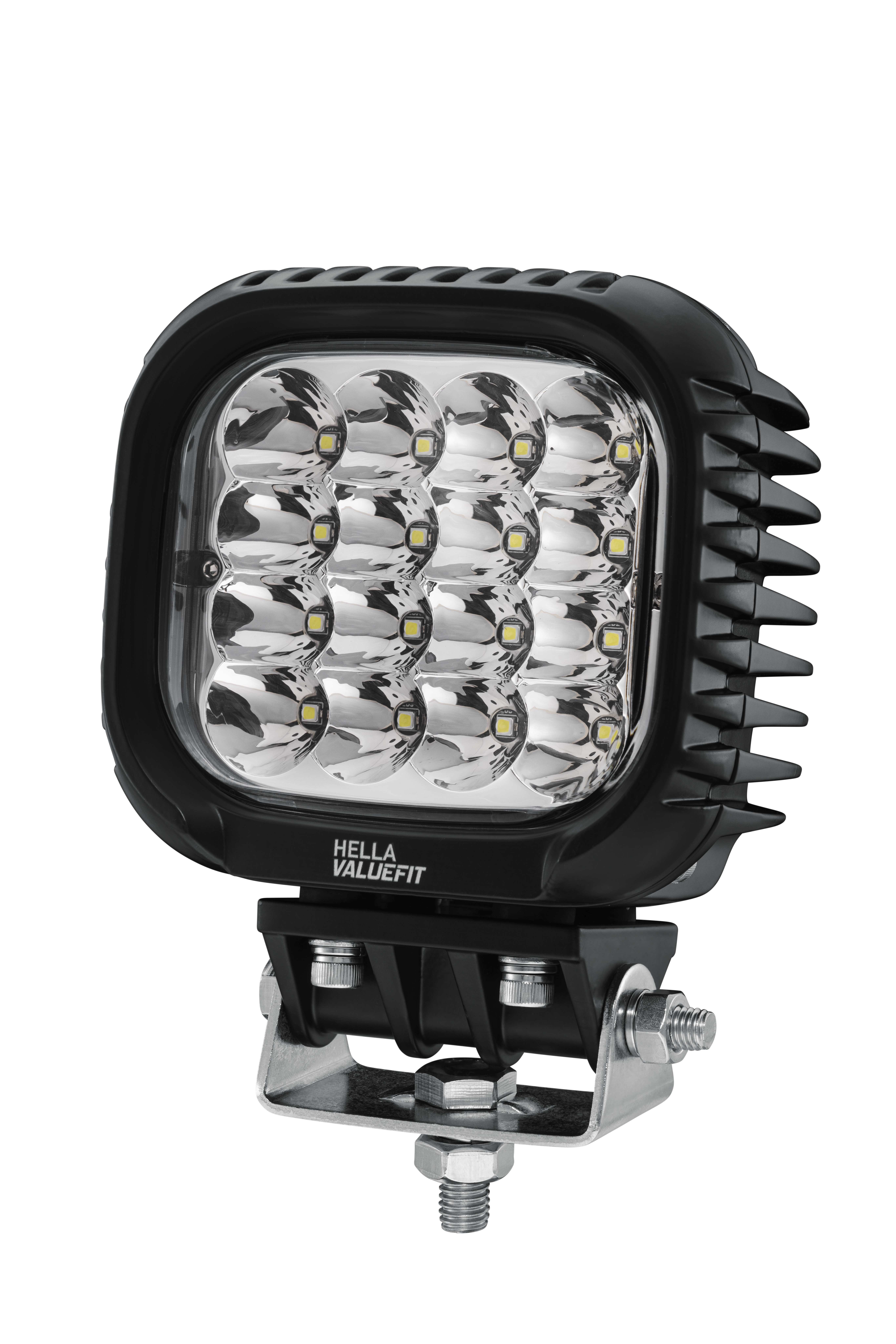

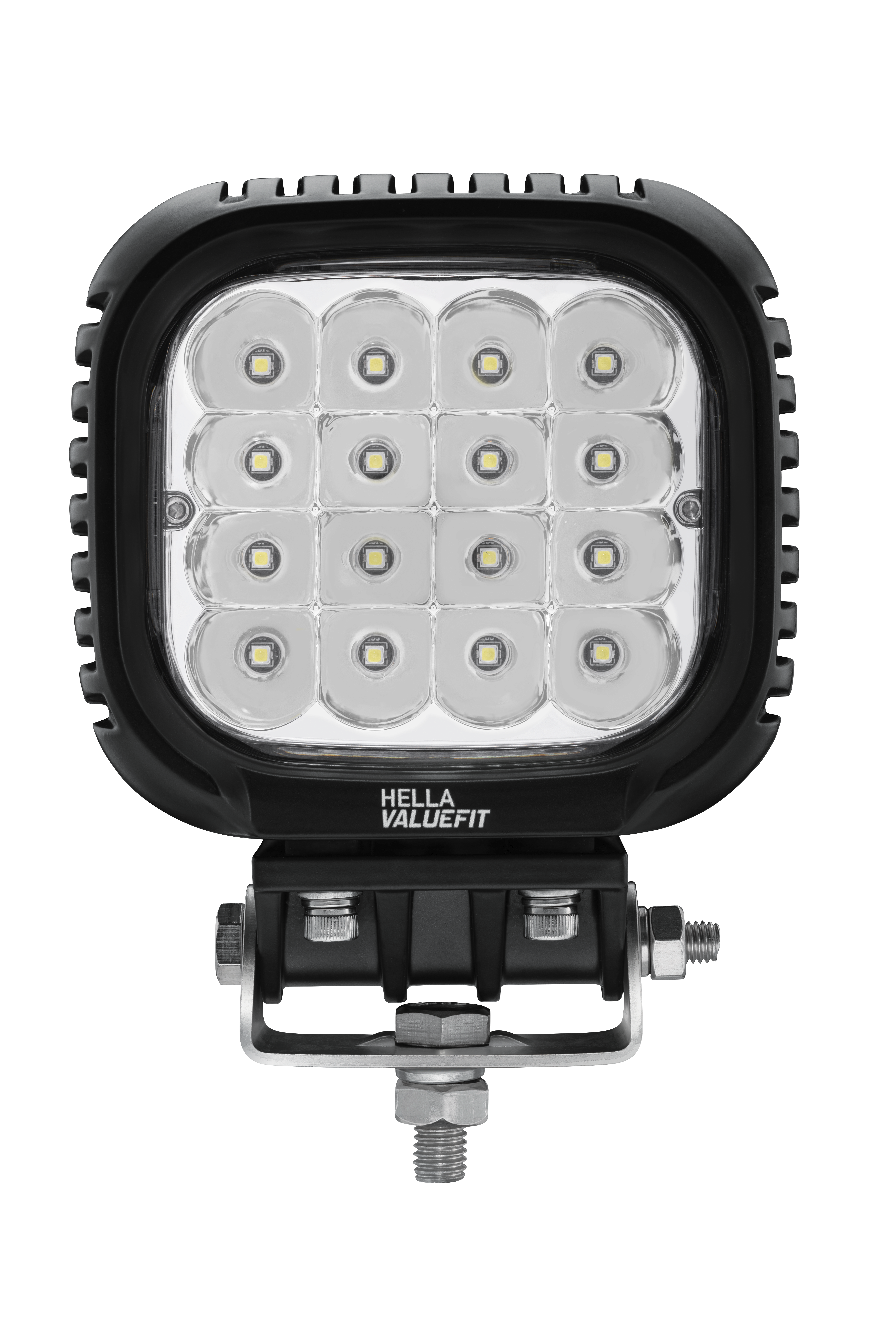

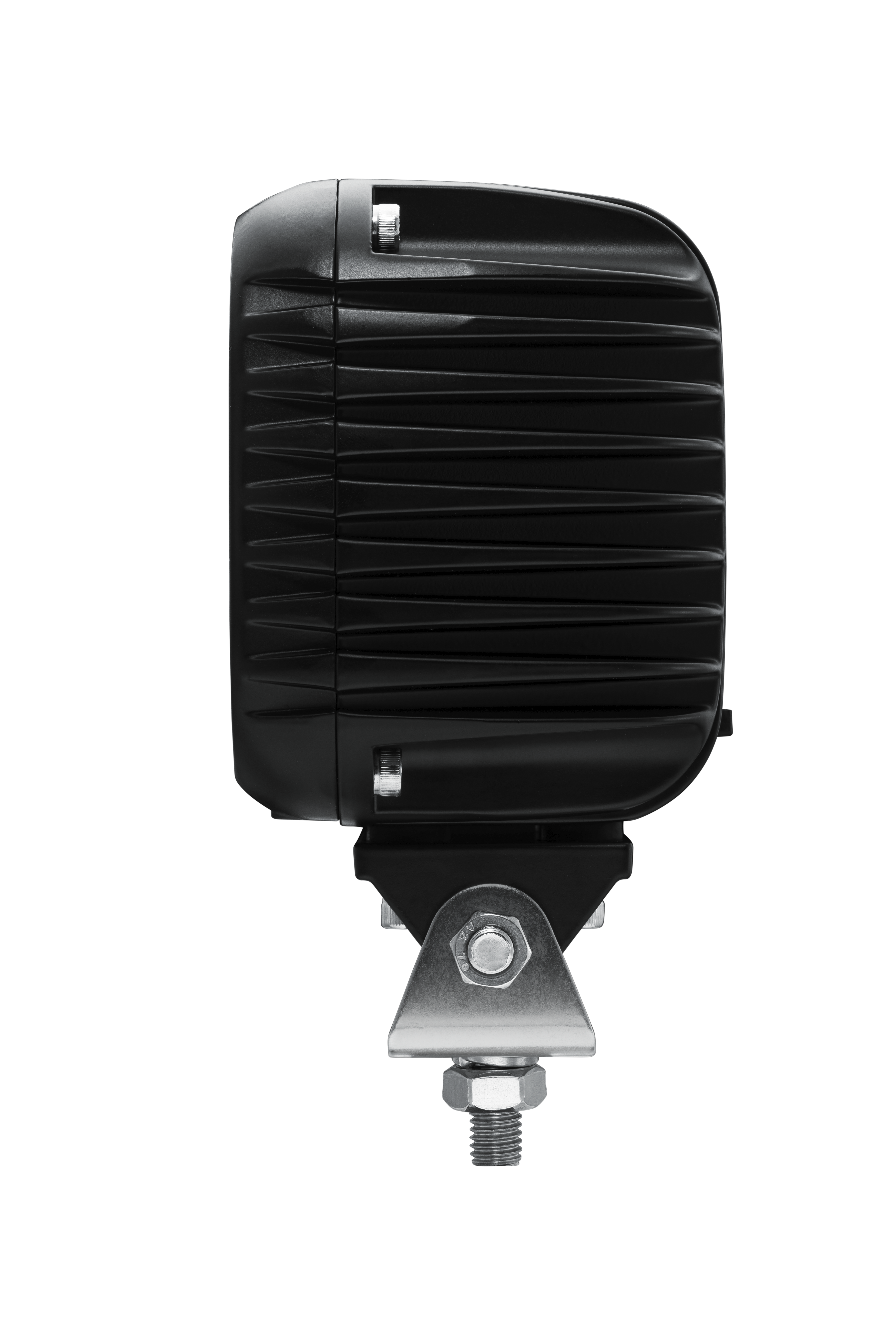

Square 5000lm Long Range - S5000
- 1GA 357 109-211
- Theoretical luminous flux 9600 lm
- Voltage 12 V, 24 V
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 5000 lm
- Mounting Type Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
48 V
Power consumption
45 W
Height
158 mm
Width
125 mm
Depth
88 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
16
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
1487 g
Square 5000lm Close Range with Position Light White/Amber - S5000 2.0
- 1GA 357 109-221
- Theoretical luminous flux 11200 lm
- Voltage 12 V, 24 V
- Light Function with position light (LED)
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 5000 lm
Mounting Type
Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
30 V
Power consumption
84 W
Height
158 mm
Width
125 mm
Depth
88 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
16
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
1500 g
Square 5000lm Long Range with Position Light White/Amber - S5000 2.0
- 1GA 357 109-231
- Theoretical luminous flux 11200 lm
- Voltage 12 V, 24 V
- Light Function with position light (LED)
- Cable Length 800 mm
- Prot.type (IP Code) IP6K7 , IP6K9
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 5000 lm
Mounting Type
Bolted
Fastening Type
Bracket system
Light Design
LED
Lamp Type
LED
Voltage from
12 V
Voltage to
30 V
Power consumption
84 W
Height
158 mm
Width
125 mm
Depth
88 mm
Registration Type
ECE approved
Colour Temperature
6500 K
Number of LEDs
16
Supplementary Article/Supplementary Info 2
with adapter
Housing Colour
black
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+65 °C
Housing material
Die-Cast Aluminium
Quantity
1
Weight
1500 g
|
Square 3000lm Long Range - S3000
|
Square 3000lm Close Range - S3000
|
Square 3000lm Close Range with Position Light White/Amber - S3000 2.0
|
Round 2100lm Close Range with Position Light White/Amber - R2100 2.0
|
Square 3000lm Long Range with Position Light White/Amber - S3000 2.0
|
Round 2100lm Close Range - R2100
|
Square 5000lm Close Range - S5000
|
Square 5000lm Long Range - S5000
|
Square 5000lm Close Range with Position Light White/Amber - S5000 2.0
|
Square 5000lm Long Range with Position Light White/Amber - S5000 2.0
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 1GA 357 109-002 | 1GA 357 109-012 | 1GA 357 109-031 | 1G0 357 109-111 | 1GA 357 109-041 | 1G0 357 109-101 | 1GA 357 109-201 | 1GA 357 109-211 | 1GA 357 109-221 | 1GA 357 109-231 | |
| Theoretical luminous flux | 6300 lm | 6300 lm | 6300 lm | 2700 lm | 6300 lm | 4800 lm | 9600 lm | 9600 lm | 11200 lm | 11200 lm |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Light Function | with position light (LED) | with position light (LED) | with position light (LED) | with position light (LED) | with position light (LED) | |||||
| Cable Length | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Prot.type (IP Code) | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP67 | IP6K7 , IP6K9 | IP67 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| Light Distribution | Short-Range Illumination | Long-range illumination | Short-Range Illumination | Short-Range Illumination | Long-range illumination | Short-Range Illumination | Short-Range Illumination | Long-range illumination | Short-Range Illumination | Long-range illumination |
| fulfils ECE standard | R10 | R10 | R10 , R148 | R10 , R148 | R10 , R148 | R10 | R10 | R10 | R10 , R148 | R10 , R148 |
| Luminous Flux | 3000 lm | 3000 lm | 3000 lm | 2100 lm | 3000 lm | 2100 lm | 5000 lm | 5000 lm | 5000 lm | 5000 lm |
| Mounting Type | Bolted , mounting | Bolted , mounting | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted |
| Fastening Type | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system | Bracket system |
| Light Design | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Type | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Voltage from | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V |
| Voltage to | 52 V | 52 V | 30 V | 24 V | 30 V | 48 V | 48 V | 48 V | 30 V | 30 V |
| Power consumption | 31 W | 31 W | 63 W | 27 W | 63 W | 20 W | 45 W | 45 W | 84 W | 84 W |
| Height | 123 mm | 123 mm | 123 mm | 123 mm | 123 mm | 123 mm | 158 mm | 158 mm | 158 mm | 158 mm |
| Width | 100 mm | 100 mm | 100 mm | 91 mm | 100 mm | 91 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Depth | 73 mm | 73 mm | 73 mm | 75 mm | 73 mm | 75 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved |
| Colour Temperature | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K | 6500 K |
| Number of LEDs | 9 | 9 | 9 | 4 | 9 | 4 | 16 | 16 | 16 | 16 |
| Supplementary Article/Supplementary Info 2 | with cable | with adapter | with adapter | with adapter | with adapter | with adapter | with adapter | with adapter | with adapter | |
| Housing Colour | black | black | black | black | black | black | black | black | black | black |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Diffusing Lens Type | Patterned diffusing lens | Clear diffusing lens | Patterned diffusing lens | Patterned diffusing lens | Clear diffusing lens | Patterned diffusing lens | Patterned diffusing lens | Clear diffusing lens | Patterned diffusing lens | Clear diffusing lens |
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | |
| Temperature range to | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | |
| Housing material | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Weight | 790 g | 790 g | 790 g | 784 g | 790 g | 764 g | 1487 g | 1487 g | 1500 g | 1500 g |
| Housing Type | Aluminium Housing | Aluminium Housing | ||||||||
| Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
|
|
|
|
|
|
Downloads
2235-KI-VALUEFIT-R2100-S3000-S5000-HELLA-EN
3.03 MB |
Downloads
View light performance in ELIVER
The right light for any application – find the matching headlamp in ELIVER now.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperOur complete range in the HELLA online catalogue!
Can't find what you're looking for? Here's an online overview of all our universal products.
View online catalogueKeen to see more? Our stories for you
Show all stories
This could also be of interest to you
Cookie consent
