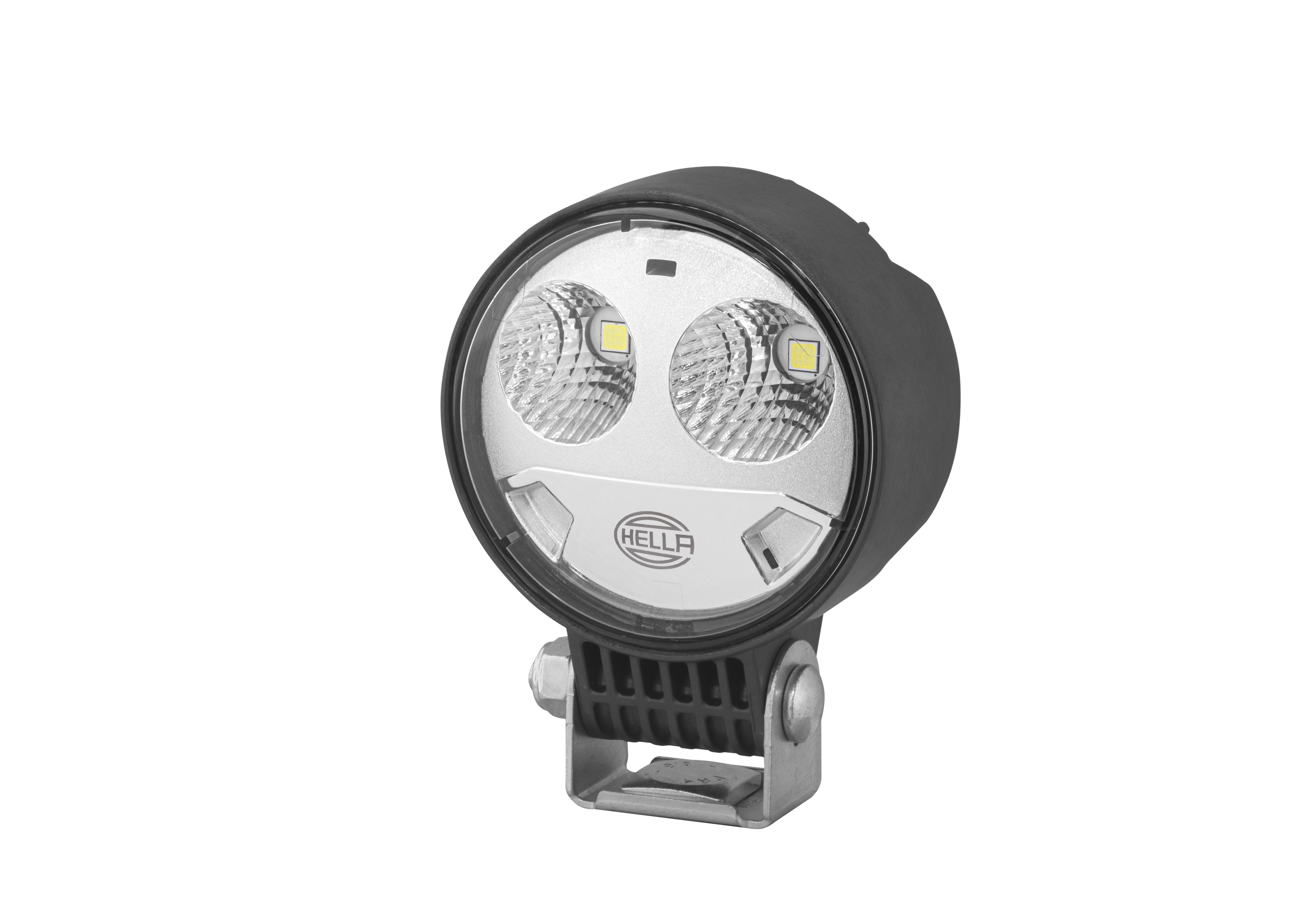

Module 70 S Series Dependable Performance
The modular LED work lamp offers straight-forward conversion from halogen to cutting-edge LED technology. The S series impresses with a long lifetime, reliable overheating protection and a rugged, lightweight housing made of corrosion-resistant plastic.
- Halogen replacement series
- Longer lifetime and higher efficiency compared to halogen
- Low weight and high corrosion resistance thanks to plastic material
Reliable LED solution as cutting-edge halogen replacement
The Module 70 S series is specially designed for a straight-forward switch from halogen to LED technology. Thanks to its high efficiency, rugged plastic housing and automatic dimming if it heats up, it offers durable, low-maintenance lighting. Ideal for commercial vehicles, agricultural and construction machinery, which benefit from improved light quality and reduced energy consumption.
Technical Sheet
Square 1150lm Close Range - Modul 70-I S
- 1G0 996 776-001
- Theoretical luminous flux 1438 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1150 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
11,2 W, 11,6 W
Width
83 mm
Height
114 mm
Depth
64 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
228 g
Quantity
1
Number of LEDs
2
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Square 1150lm Long Range - Modul 70-I S
- 1G0 996 776-011
- Theoretical luminous flux 1438 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 1150 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
11,2 W, 11,6 W
Width
83 mm
Height
114 mm
Depth
64 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
228 g
Quantity
1
Number of LEDs
2
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Square 1850lm Close Range - Modul 70-II S
- 1G0 996 776-201
- Theoretical luminous flux 2313 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1850 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
17 W
Width
83 mm
Height
114 mm
Depth
64 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Patterned diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
234 g
Quantity
1
Number of LEDs
4
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
Square 1850lm Long Range - Modul 70-II S
- 1G0 996 776-211
- Theoretical luminous flux 2313 lm
- Voltage 12 V, 24 V
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Long-range illumination
- fulfils ECE standard R10
- Luminous Flux 1850 lm
- Mounting Type Bolted
- Fastening Type Bracket system
Lamp Type
LED
Light Design
LED
Colour Temperature
6500 K
Voltage from
9 V
Voltage to
32 V
Power consumption
17 W
Width
83 mm
Height
114 mm
Depth
64 mm
Diffusing Lens Material
PC (Polycarbonate)
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-40 °C
Temperature range to
+85 °C
fulfils EMC/CISPR standard
Class 4 , Class 5
Weight
234 g
Quantity
1
Number of LEDs
4
Registration Type
ECE approved , ADR/GGVS approved , RCM approved
|
Square 1150lm Close Range - Modul 70-I S
|
Square 1150lm Long Range - Modul 70-I S
|
Square 1850lm Close Range - Modul 70-II S
|
Square 1850lm Long Range - Modul 70-II S
|
|
|---|---|---|---|---|
| 1G0 996 776-001 | 1G0 996 776-011 | 1G0 996 776-201 | 1G0 996 776-211 | |
| Theoretical luminous flux | 1438 lm | 1438 lm | 2313 lm | 2313 lm |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Prot.type (IP Code) | IP6K7 , IP6K9K | IP6K7 , IP6K9K | IP6K7 , IP6K9K | IP6K7 , IP6K9K |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| Light Distribution | Short-Range Illumination | Long-range illumination | Short-Range Illumination | Long-range illumination |
| fulfils ECE standard | R10 | R10 | R10 | R10 |
| Luminous Flux | 1150 lm | 1150 lm | 1850 lm | 1850 lm |
| Mounting Type | Bolted | Bolted | Bolted | Bolted |
| Fastening Type | Bracket system | Bracket system | Bracket system | Bracket system |
| Lamp Type | LED | LED | LED | LED |
| Light Design | LED | LED | LED | LED |
| Colour Temperature | 6500 K | 6500 K | 6500 K | 6500 K |
| Voltage from | 9 V | 9 V | 9 V | 9 V |
| Voltage to | 32 V | 32 V | 32 V | 32 V |
| Power consumption | 11,2 W, 11,6 W | 11,2 W, 11,6 W | 17 W | 17 W |
| Width | 83 mm | 83 mm | 83 mm | 83 mm |
| Height | 114 mm | 114 mm | 114 mm | 114 mm |
| Depth | 64 mm | 64 mm | 64 mm | 64 mm |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Housing Colour | black | black | black | black |
| Diffusing Lens Type | Patterned diffusing lens | Clear diffusing lens | Patterned diffusing lens | Clear diffusing lens |
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C |
| Temperature range to | +85 °C | +85 °C | +85 °C | +85 °C |
| fulfils EMC/CISPR standard | Class 4 , Class 5 | Class 4 , Class 5 | Class 4 , Class 5 | Class 4 , Class 5 |
| Weight | 228 g | 228 g | 234 g | 234 g |
| Quantity | 1 | 1 | 1 | 1 |
| Number of LEDs | 2 | 2 | 4 | 4 |
| Registration Type | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved | ECE approved , ADR/GGVS approved , RCM approved |
