CA20 – single-tone compressed-air horn | Super loud
CA20 – single-tone compressed-air horn | Super loud
Powerful compressed-air horn for maximum audible presence: The penetrating power sound ensures a maximum warning effect – perfectly matched to commercial vehicles with an existing compressed-air system and stringent demands in traffic.
- Particularly loud and very penetrating power sound
- Pneumatic actuation for vehicles with pneumatic brake systems
- Suitable for 8 mm cable diameter
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet
CA20 Air Horn
- 3PA 013 410-011
- Voltage 12 V
- Power consumption 120 W
- Sound Level 115 dB(A)
- Frequency Range 400 Hz
- Charging Rate 10 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone
CA20 Air Horn
- 3PA 013 410-041
- Voltage from 12 V
- Voltage to 24 V
- Power consumption 120 W
- Sound Level 115 dB(A)
- Frequency Range 400 Hz
- Charging Rate 10 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
|
CA20 Air Horn
|
CA20 Air Horn
|
|
|---|---|---|
| 3PA 013 410-011 | 3PA 013 410-041 | |
| Voltage from | 12 V | |
| Voltage to | 24 V | |
| Voltage | 12 V | |
| Power consumption | 120 W | 120 W |
| Sound Level | 115 dB(A) | 115 dB(A) |
| Frequency Range | 400 Hz | 400 Hz |
| Charging Rate | 10 A | 10 A |
| Prot.type (IP Code) | IP54 | IP54 |
| fulfils ECE standard | R28 | R28 |
| Registration Type | ECE approved | ECE approved |
| Signal | High Tone | High Tone |
| Housing Colour | black | black |
| Pressure [bar] | 8 bar | |
| Quantity | 1 | 1 |
| Operating Mode | Electric-pneumatic | Electric-pneumatic |
| Search the web | Search the web | |
|
|
|
Discover more HELLA products
CA10 – two-tone red compressor fanfare | Loud
Two-tone fanfare with compressor for a loud acoustic signal – ideal for clear warning signals and extra road safety.
CA26 – electropneumatic horn | Compact
Compact compressor horn with instant signal – perfect for motorcycles and vehicles without a compressed-air system.

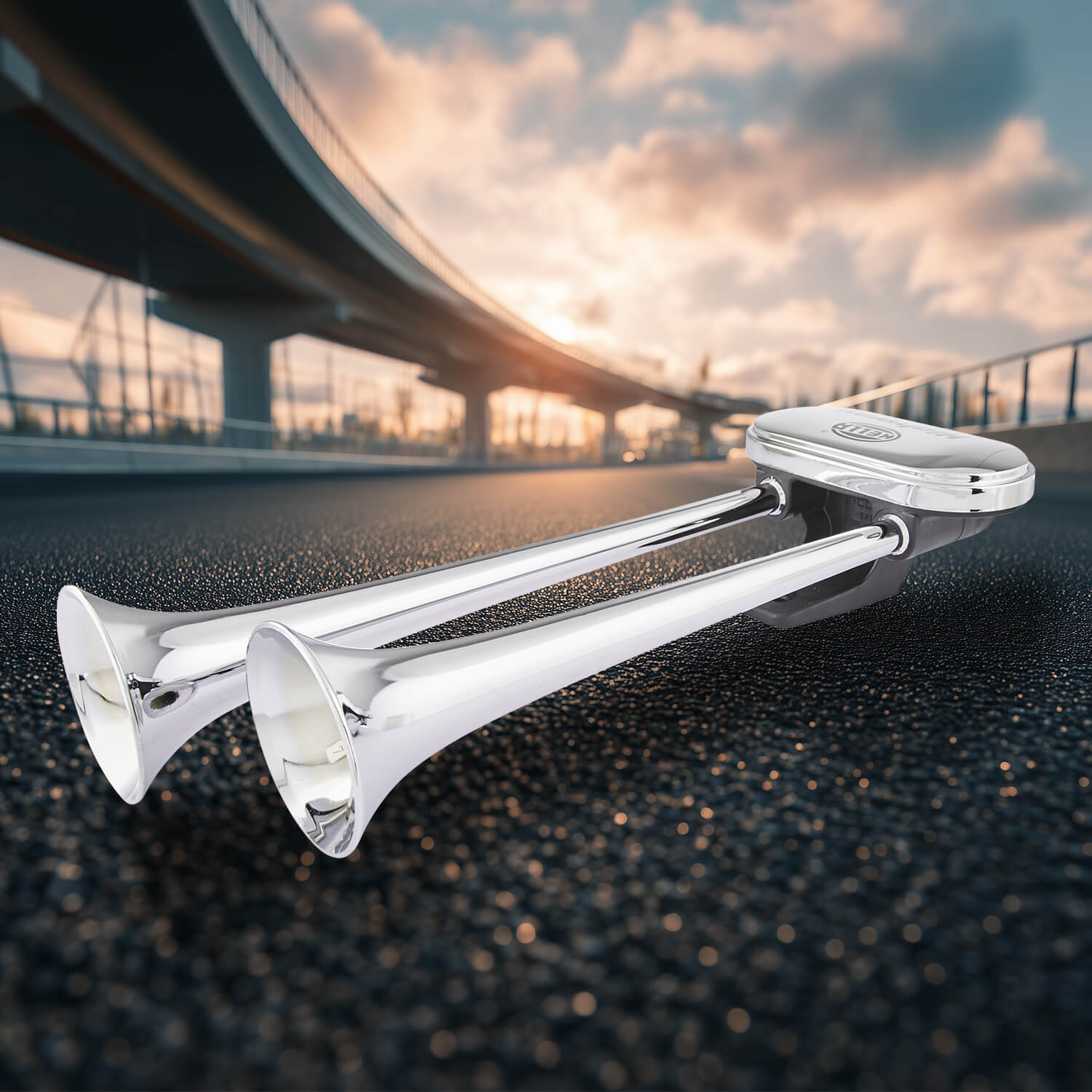

CA34 – two-tone chrome air horn | On-road use
Two-tone compressed-air horn with powerful sound, chromium-plated funnels and mounting kit – for vehicles with pneumatic brake systems.
CA42 – two-tone, chrome compressed-air horn with compressor | Super loud
Two-tone compressed-air horn with chrome-plated funnel and separate compressor – extremely loud, suitable for 12 V and 24 V.
