CA26 – electropneumatic horn | Compact
CA26 – electropneumatic horn | Compact
Maximum volume with minimum space requirement: The ultra-compact horn with integrated compressor impresses with immediate operational readiness and a powerful, assertive signal – ideal for tight installation conditions and a reliable warning effect.
- Super-compact design with horn and air compressor in one module
- Integrated compressor enables an immediate output of the acoustic signal
- Excellent for motorcycles and any other vehicles
- For vehicles and motorcycles without on-board compressed-air tanks
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet

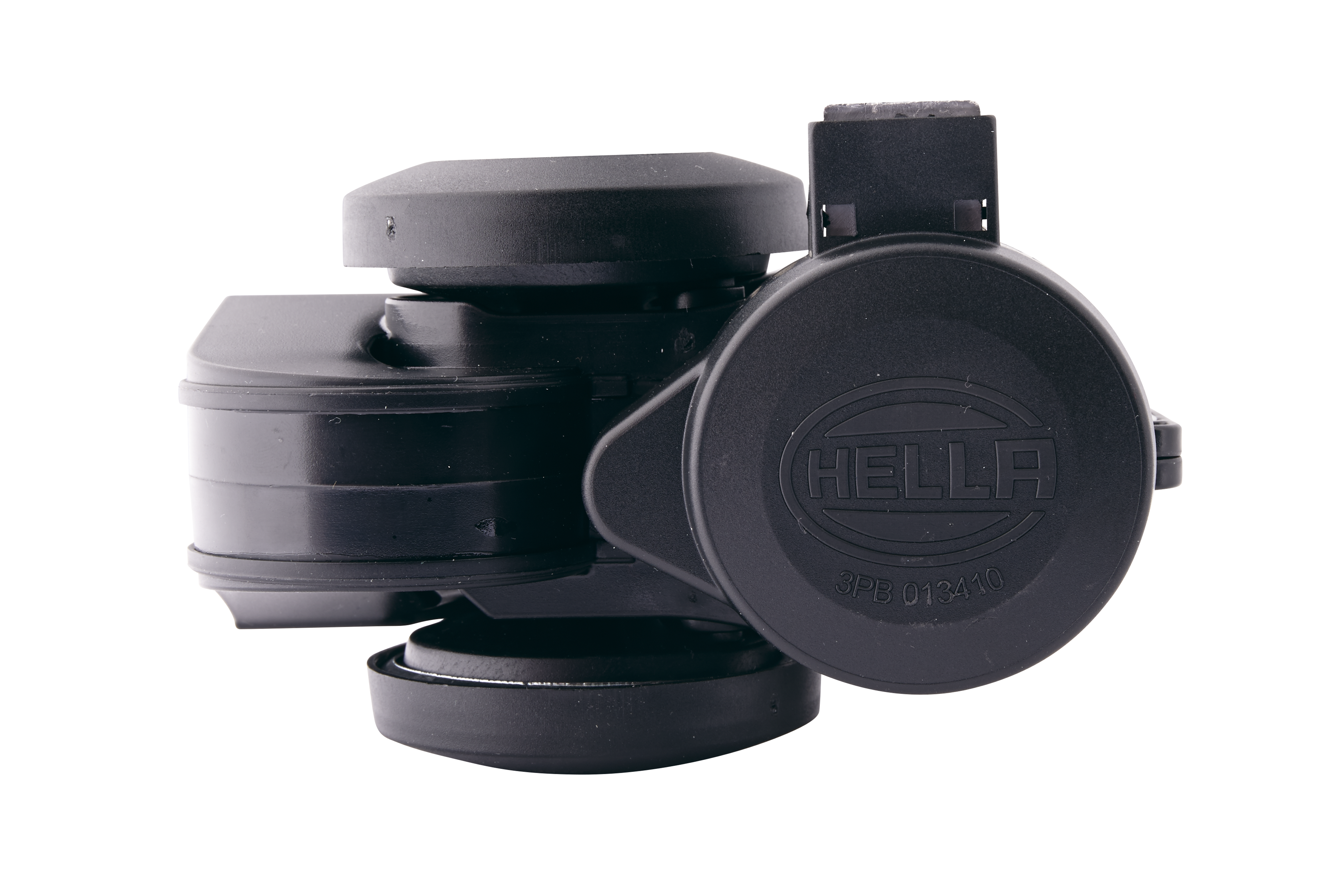

CA26 Air Horn
- 3PB 013 410-081
- Voltage 12 V
- Power consumption 120 W
- Sound Level 115 dB(A)
- Frequency Range 520 Hz, 660 Hz
- Charging Rate 10 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone

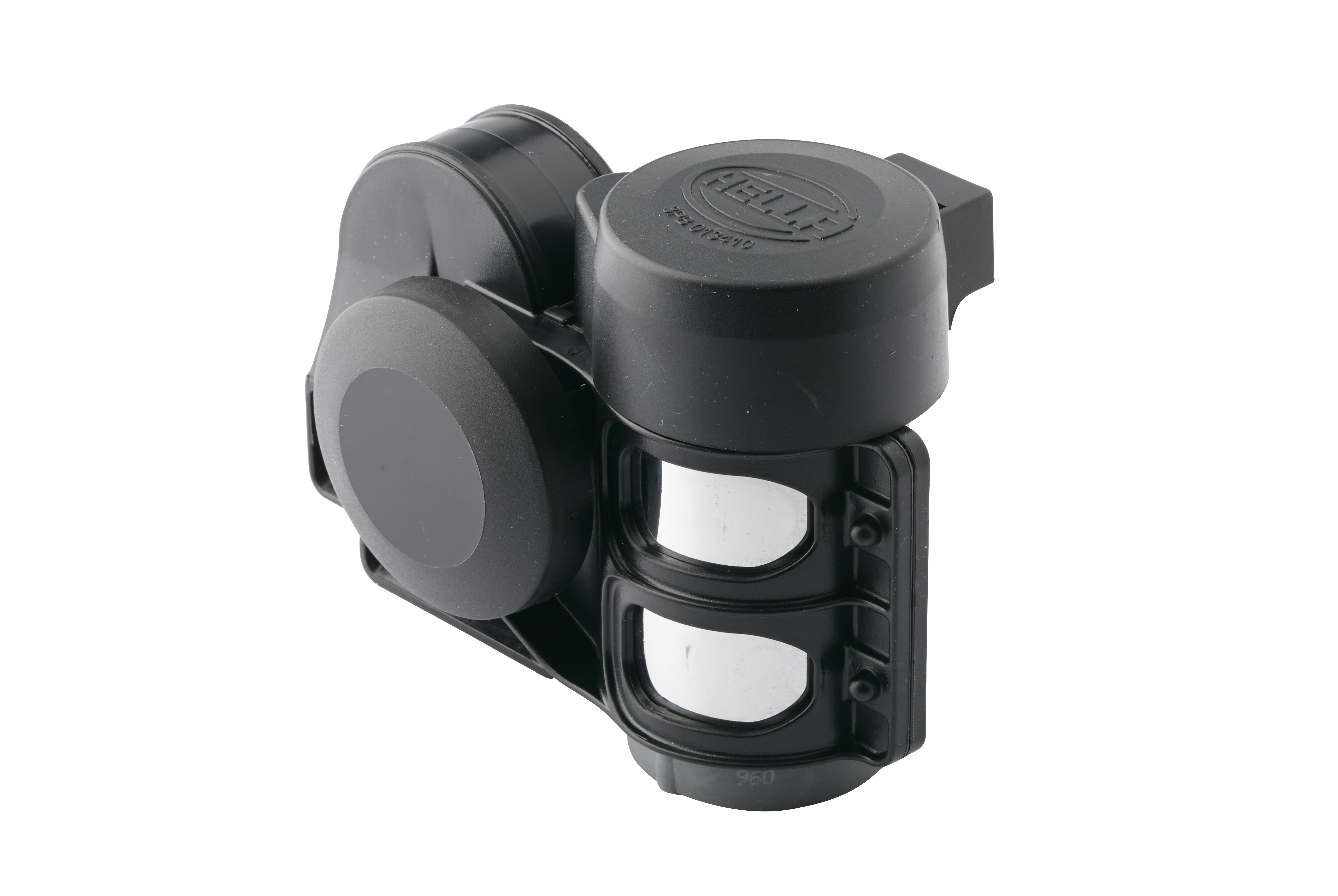

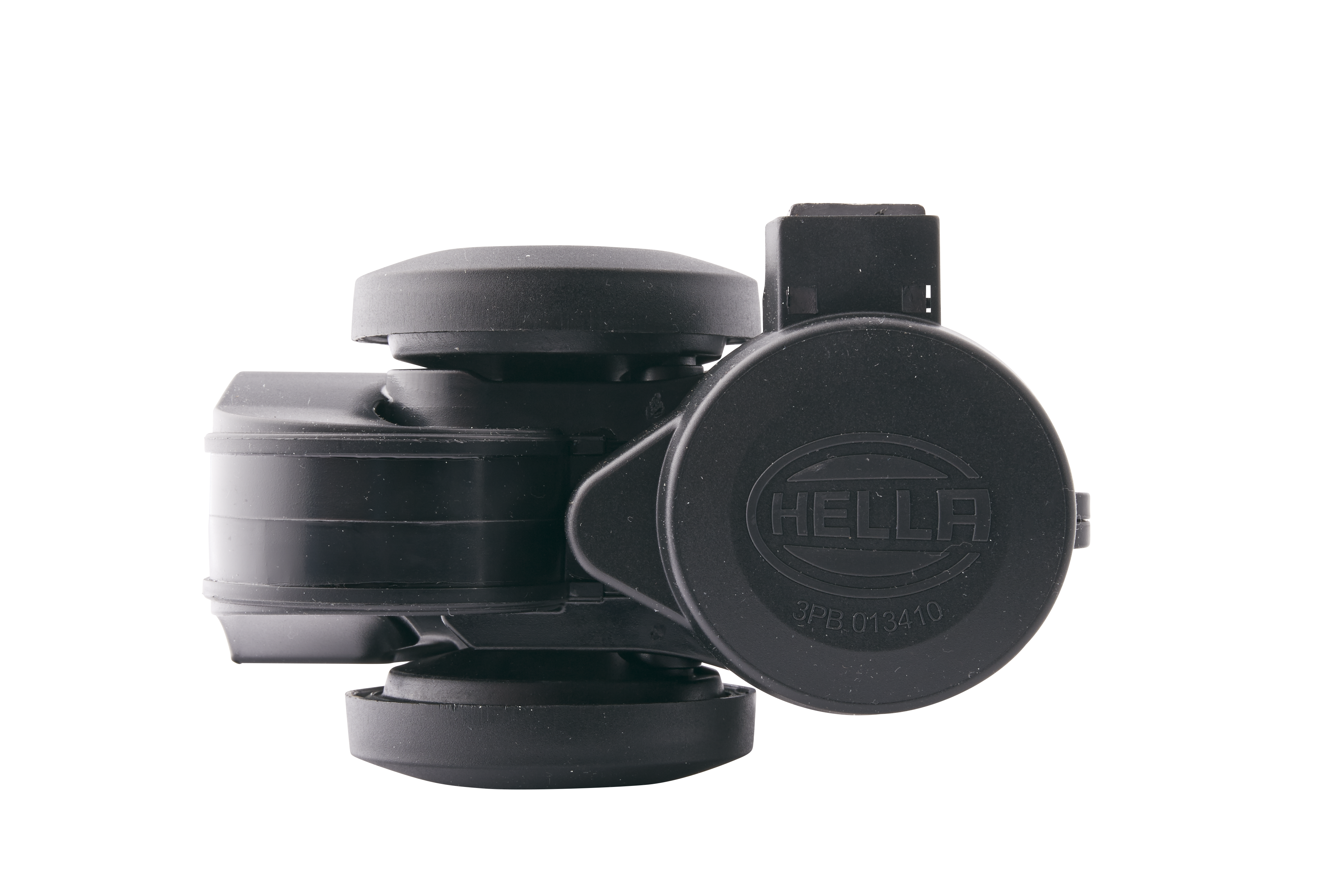

CA26 Air Horn, 24 V
- 3PB 013 410-091
- Voltage 24 V
- Power consumption 120 W
- Sound Level 115 dB(A)
- Frequency Range 520 Hz, 660 Hz
- Charging Rate 10 A
- Prot.type (IP Code) IP54
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone
|
CA26 Air Horn
|
CA26 Air Horn, 24 V
|
|
|---|---|---|
| 3PB 013 410-081 | 3PB 013 410-091 | |
| Voltage | 12 V | 24 V |
| Power consumption | 120 W | 120 W |
| Sound Level | 115 dB(A) | 115 dB(A) |
| Frequency Range | 520 Hz, 660 Hz | 520 Hz, 660 Hz |
| Charging Rate | 10 A | 10 A |
| Prot.type (IP Code) | IP54 | IP54 |
| fulfils ECE standard | R28 | R28 |
| Registration Type | ECE approved | ECE approved |
| Signal | High Tone | High Tone |
| Housing Colour | black | black |
| Quantity | 1 | 1 |
| Operating Mode | Electric-pneumatic | Electric-pneumatic |
| Search the web | Search the web | |
|
|
|
Downloads
1948_KI_CA26_Electropneumatic_Horn_HELLA_EN
