Black Magic Edgeless Pro Technology
Black Magic Edgeless Pro impresses with its powerful light output, contemporary, edgeless design and high levels of resistance. It is designed for extreme conditions and combines innovative technology with a clear-cut, functional design idiom.
- The high-boost function offers maximum light performance
- Innovative lighting design: Versatile white and amber position light, combined with a cutting-edge welcome and goodbye light
- The edgeless aluminium housing with electrophoresis coating offers more effective corrosion protection
Edgeless housing for maximum protection
Black Magic Edgeless Pro's aluminium housing not only impresses with its contemporary, slim shape, but also with its resistant electrophoresis coating. This ensures effective protection against corrosion – even in extreme weather and operating conditions.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperTechnical Sheet
Black Magic Edgeless Pro 20"
- 1FJ 358 236-001
- Light Function with position light (LED) , with high beam (LED) , High-boost
- Luminous Flux 3730 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 50
- Rated Power 88 W
- Mounting Type Screw Connection
Fitting Position
Front
Lamp Type
LED
Luminous in boost mode
6332 lm
Theoretical luminous flux
5290 lm
Theoretical luminous flux in Boost mode
8820 lm
Number of light functions
3
Number of LEDs
21
Colour Temperature
5700 K
Housing Colour
black
Frame Colour
black
Lens Colour
Crystal clear
Light colour
yellow (amber) , white
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-30 °C
Temperature range to
+65 °C
Prot.type (IP Code)
IP69K , IP68
Shape
Slim
Overall Height
47 mm
Length
522 mm
Height
40 mm
Depth
54 mm
Length
522 mm
Cable Length
2000 mm
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
443 m
max. light cone range at 1 lux (high boost function)
571 m
Weight
1500 g

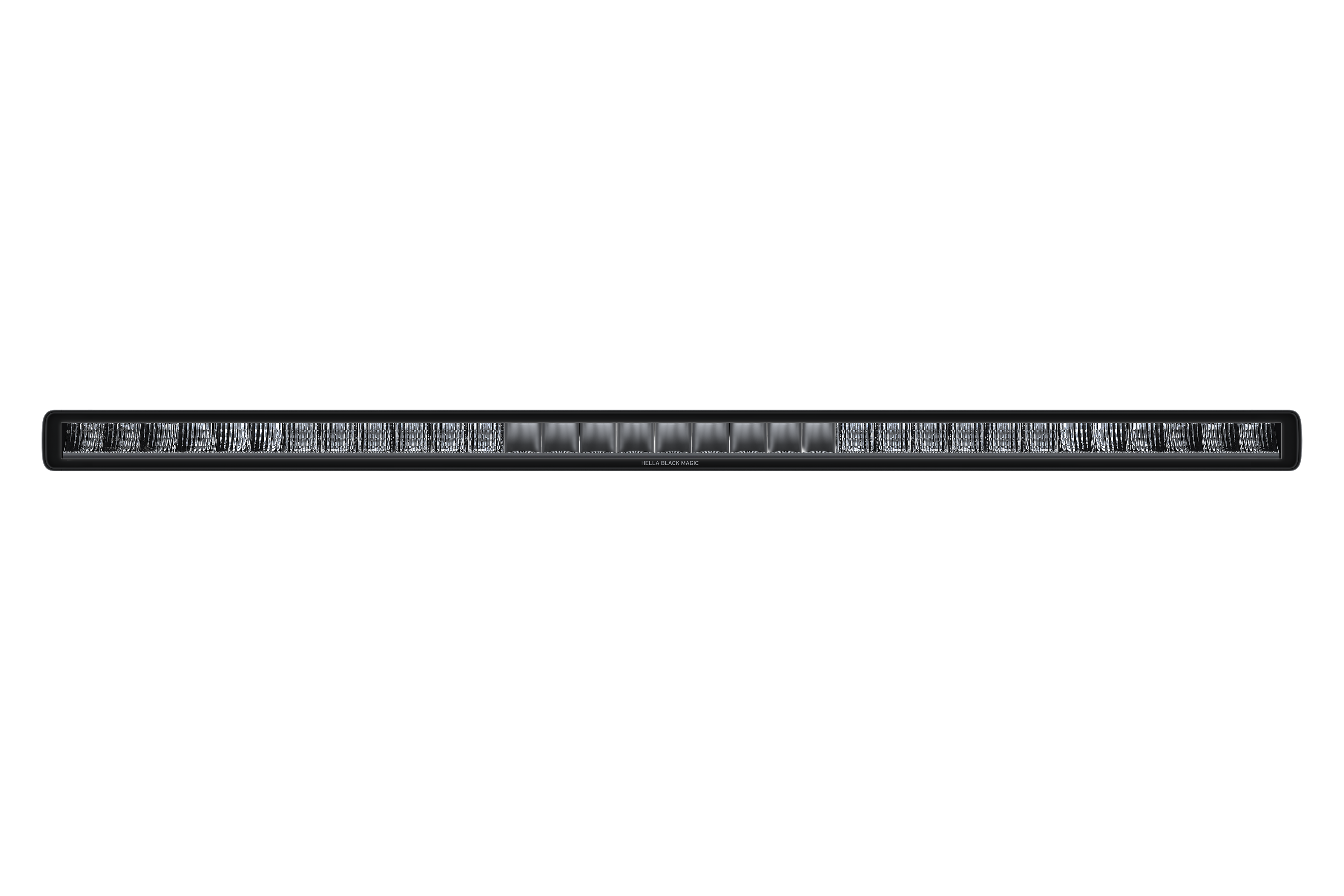

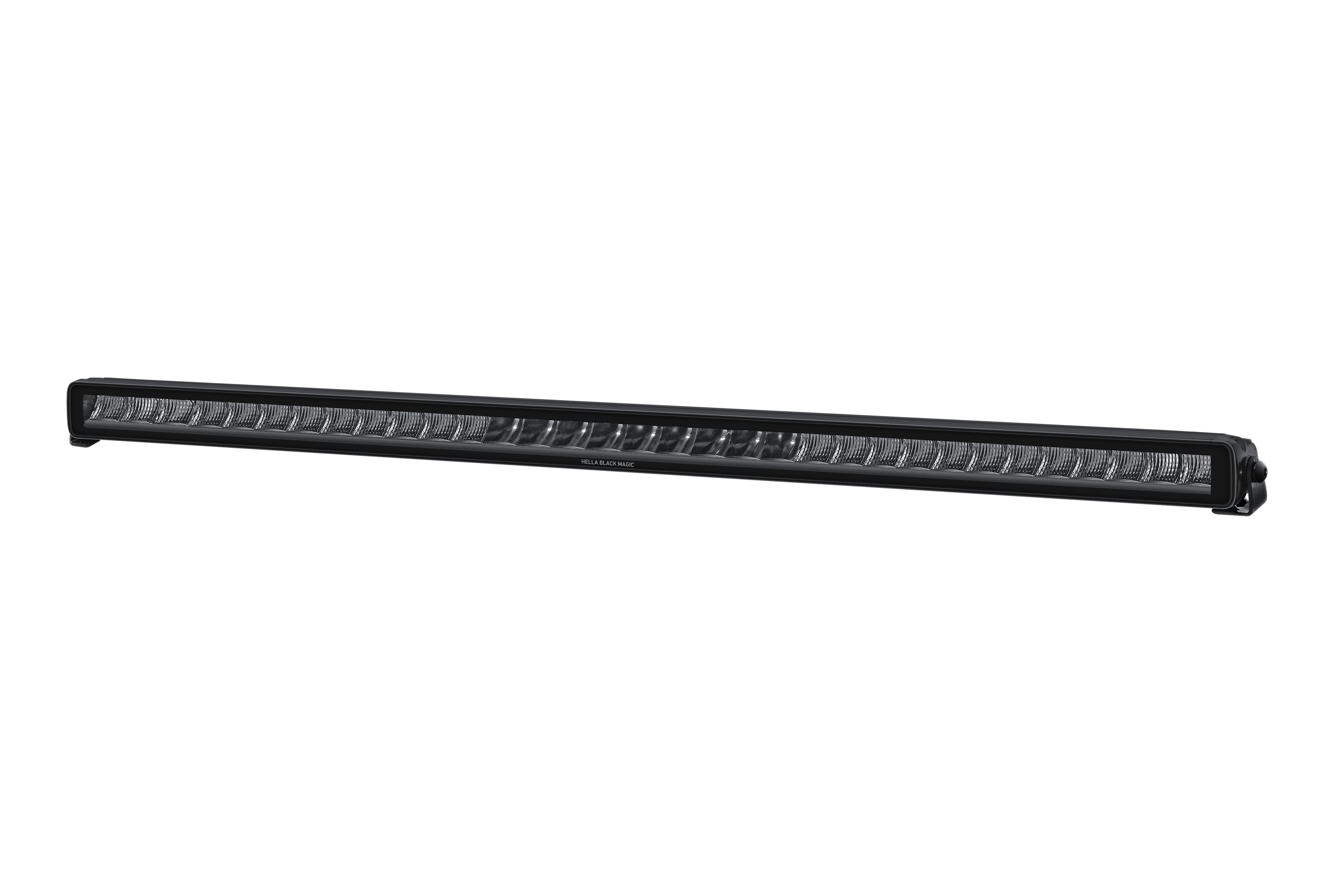

Black Magic Edgeless Pro 32"
- 1FJ 358 236-011
- Light Function with position light (LED) , with high beam (LED) , High-boost
- Luminous Flux 5417 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 50
- Rated Power 133 W
- Mounting Type Bolted , Screw Connection
Fitting Position
Front
Lamp Type
LED
Luminous in boost mode
9181 lm
Theoretical luminous flux
8316 lm
Theoretical luminous flux in Boost mode
13860 lm
Number of light functions
3
Number of LEDs
33
Colour Temperature
5700 K
Housing Colour
black
Frame Colour
black
Lens Colour
Crystal clear
Light colour
yellow (amber) , white
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-30 °C
Temperature range to
+65 °C
Prot.type (IP Code)
IP69K , IP68
Shape
Slim
Overall Height
47 mm
Length
798 mm
Height
40 mm
Depth
54 mm
Length
798 mm
Cable Length
2000 mm
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
432 m
max. light cone range at 1 lux (high boost function)
553 m
Weight
1930 g

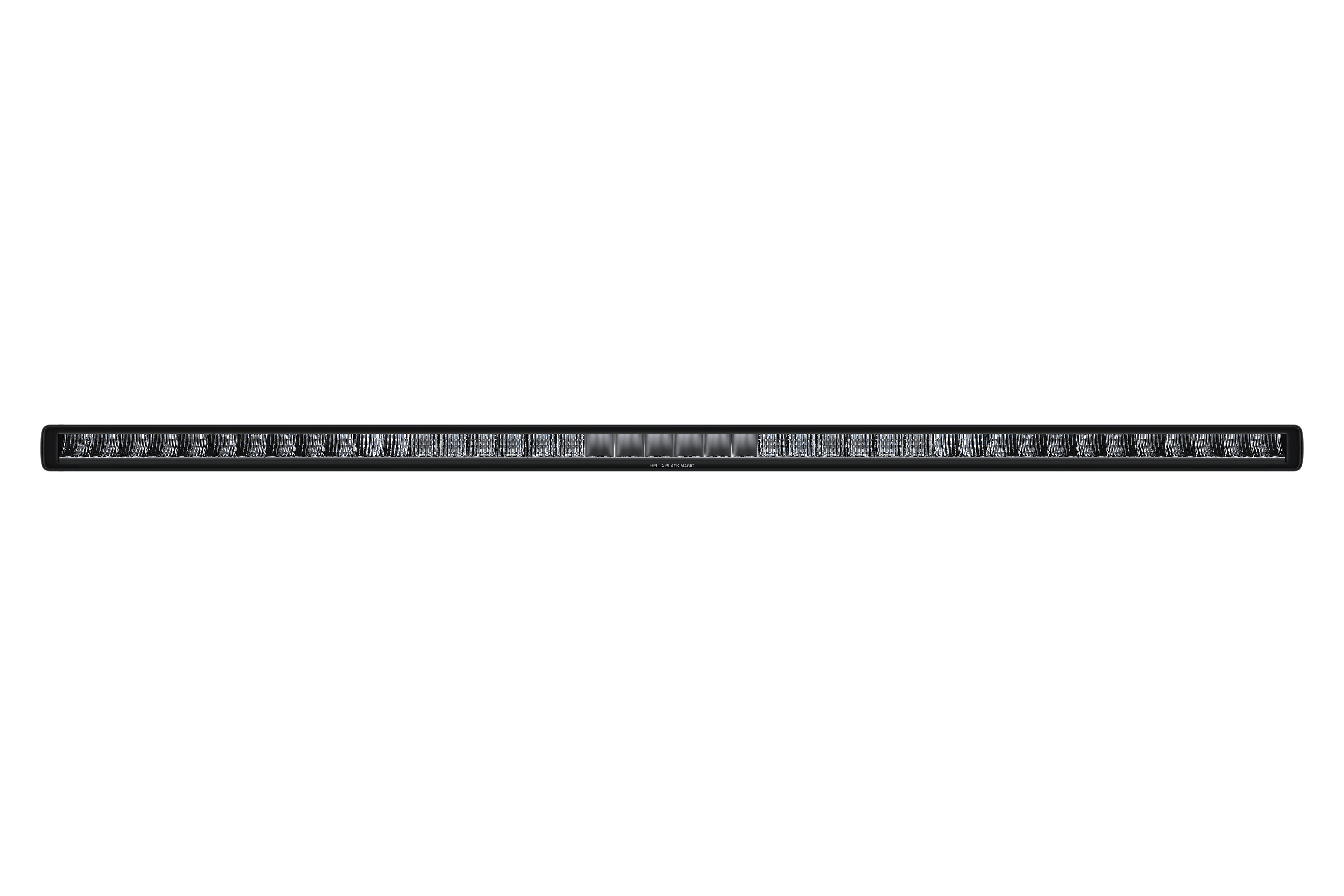

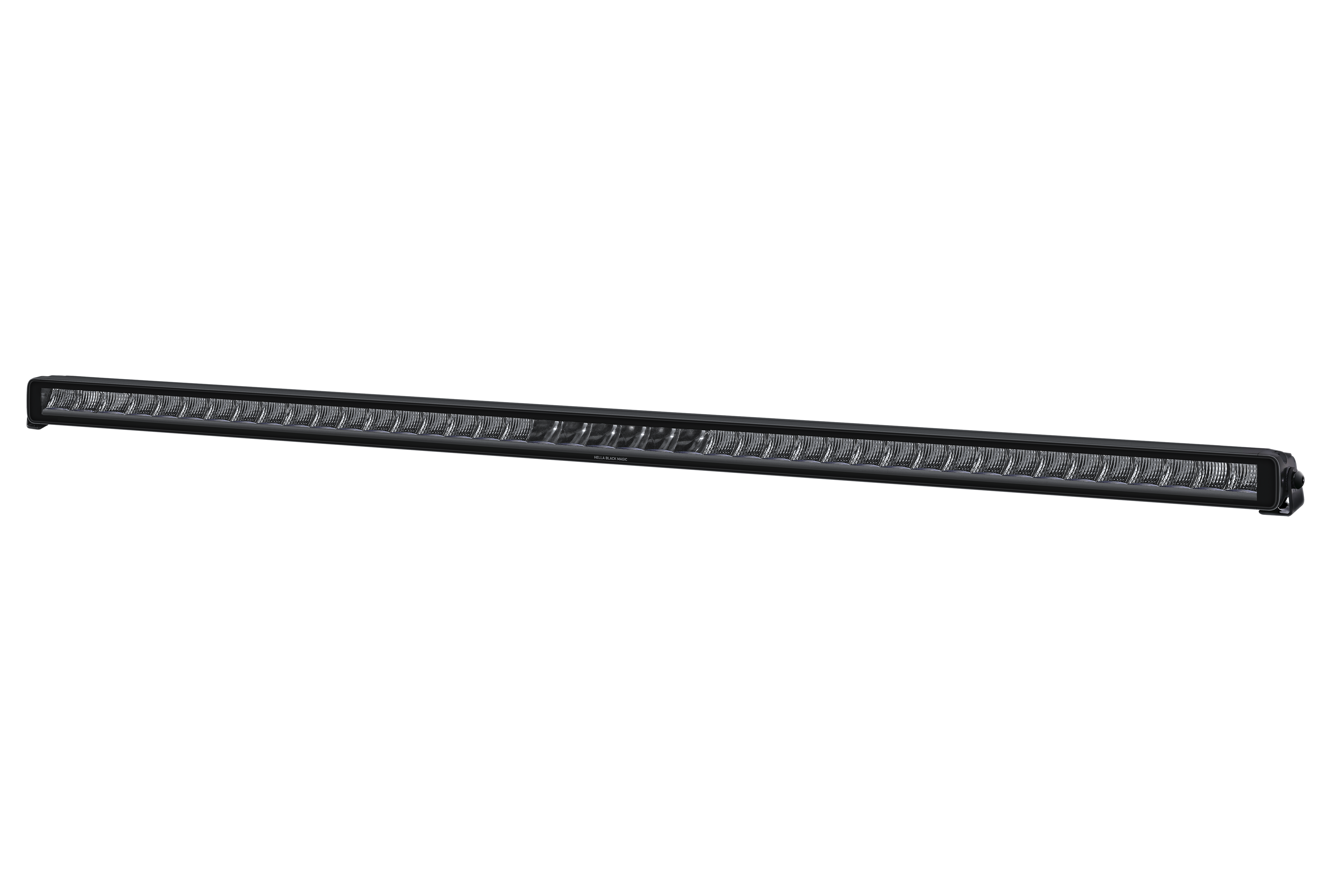

Black Magic Edgeless Pro 40"
- 1FJ 358 236-021
- Light Function with high beam (LED) , High-boost
- Luminous Flux 6508 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 172 W
- Mounting Type Bolted , Screw Connection
Fitting Position
Front
Lamp Type
LED
Luminous in boost mode
11140 lm
Theoretical luminous flux
10584 lm
Theoretical luminous flux in Boost mode
17640 lm
Number of light functions
3
Number of LEDs
42
Colour Temperature
5700 K
Housing Colour
black
Frame Colour
black
Lens Colour
Crystal clear
Light colour
yellow (amber) , white
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-30 °C
Temperature range to
+65 °C
Prot.type (IP Code)
IP69K , IP68
Shape
Slim
Overall Height
47 mm
Length
1006 mm
Height
40 mm
Depth
54 mm
Length
1006 mm
Cable Length
2000 mm
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
474 m
max. light cone range at 1 lux (high boost function)
619 m
Weight
2600 g

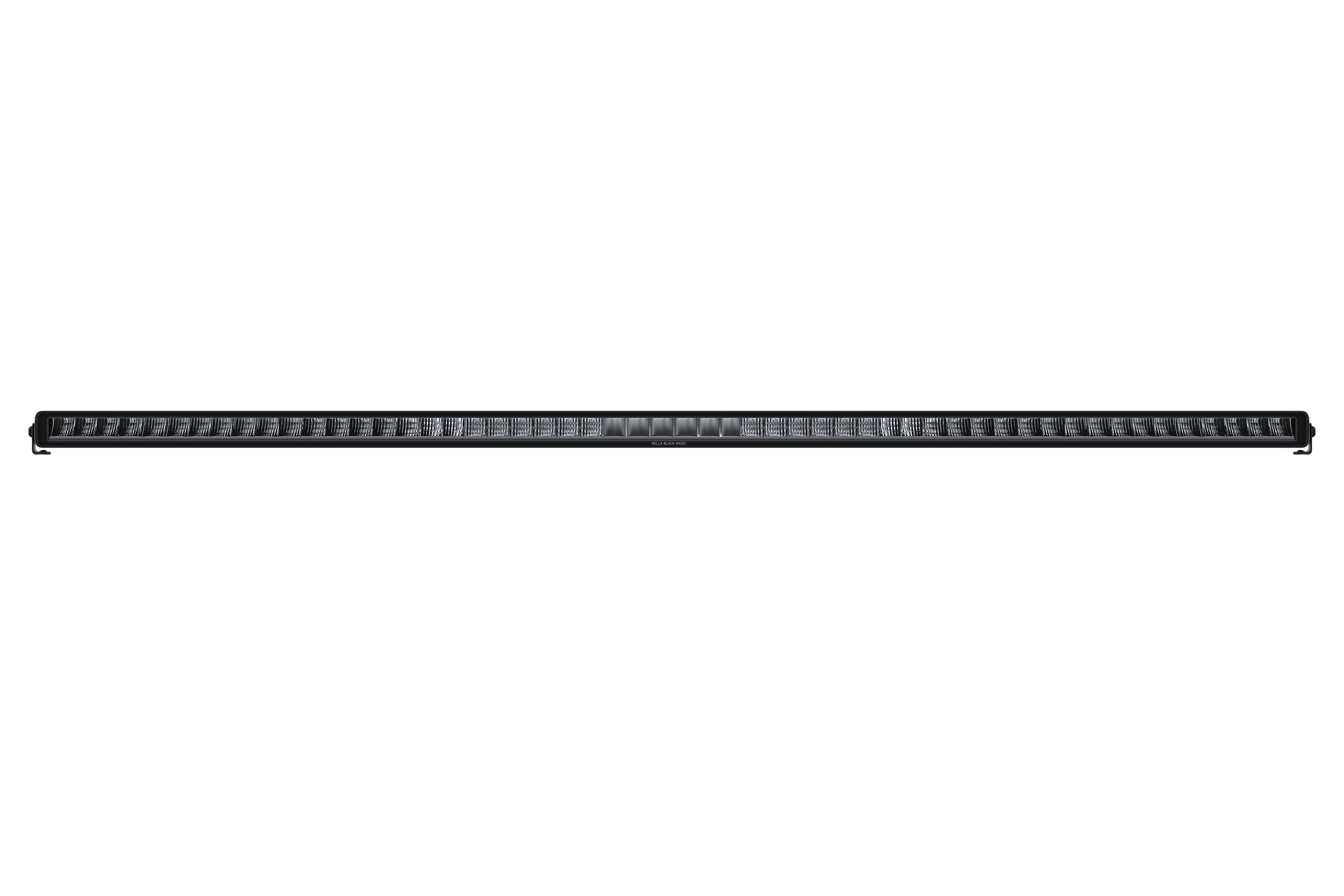

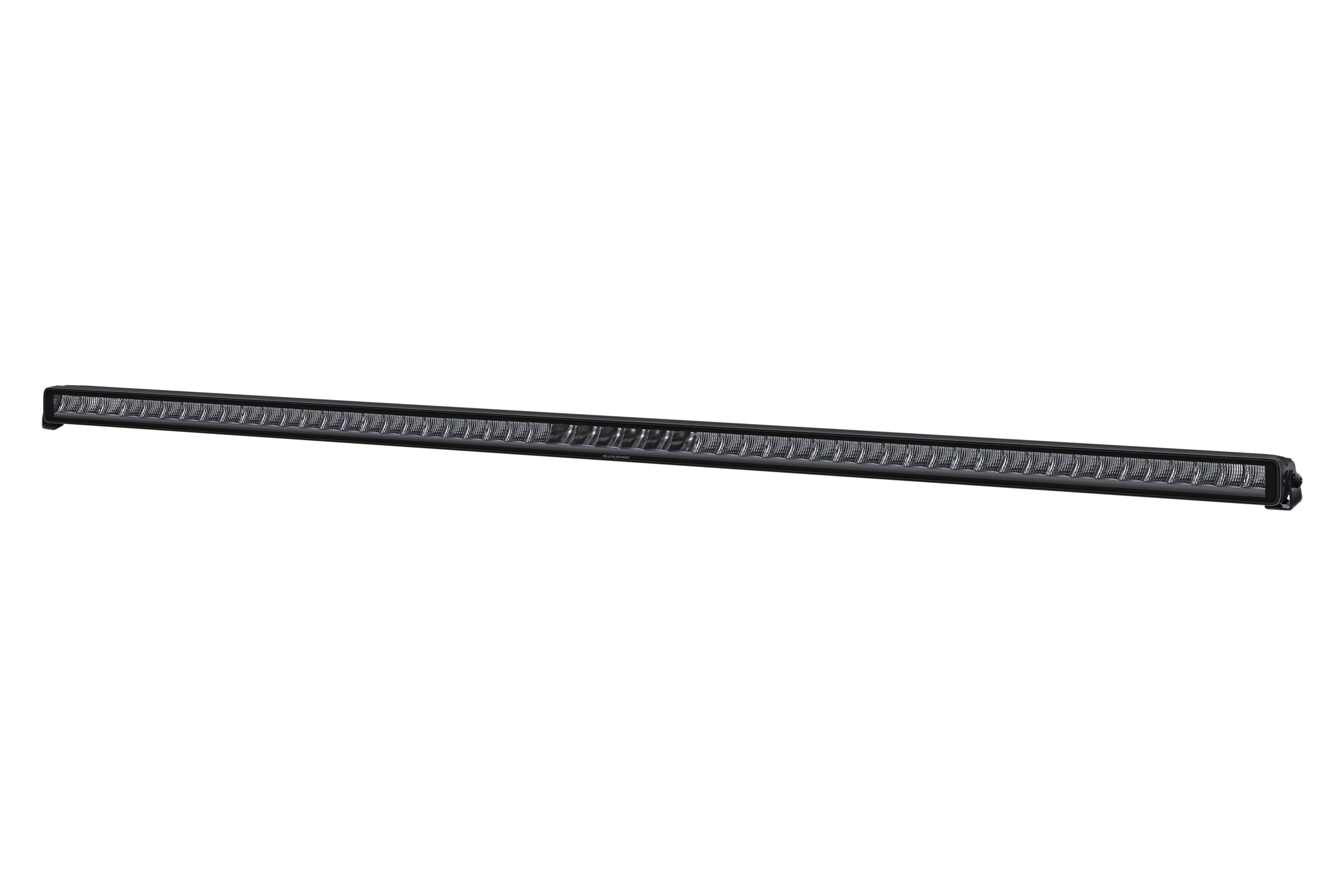

Black Magic Edgeless Pro 50"
- 1FJ 358 236-031
- Light Function with position light (LED) , with high beam (LED) , High-boost
- Luminous Flux 7576 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 35
- Rated Power 226 W
- Mounting Type Bolted , AMP Connection
Fitting Position
Front
Lamp Type
LED
Luminous in boost mode
12942 lm
Theoretical luminous flux
11600 lm
Theoretical luminous flux in Boost mode
19332 lm
Number of light functions
3
Number of LEDs
54
Colour Temperature
5700 K
Housing Colour
black
Frame Colour
black
Lens Colour
Crystal clear
Light colour
yellow (amber) , white
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-30 °C
Temperature range to
+65 °C
Prot.type (IP Code)
IP69K , IP68
Shape
Slim
Overall Height
47 mm
Length
1282 mm
Height
40 mm
Depth
54 mm
Length
1282 mm
Cable Length
2000 mm
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
396 m
max. light cone range at 1 lux (high boost function)
522 m
Weight
3250 g

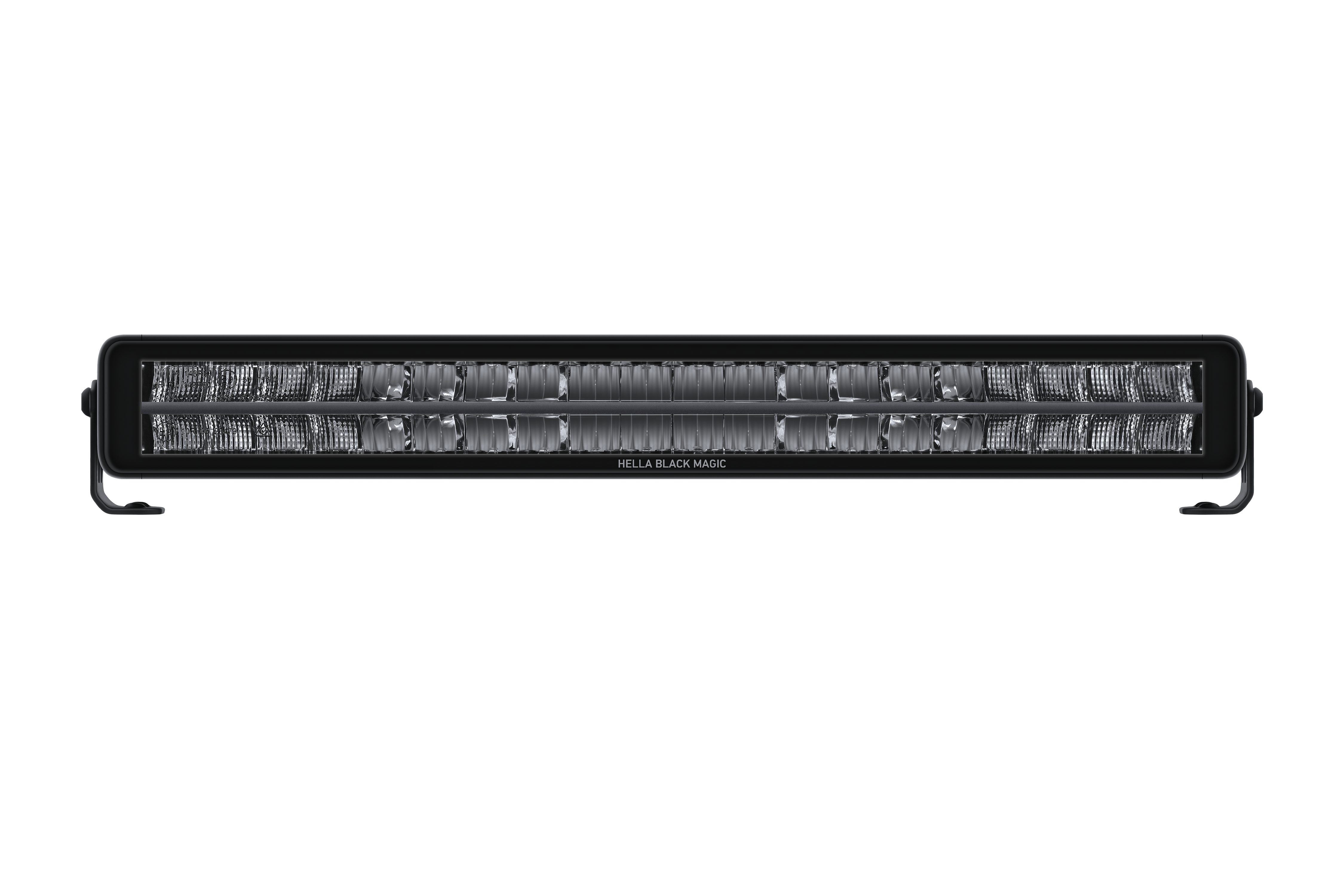

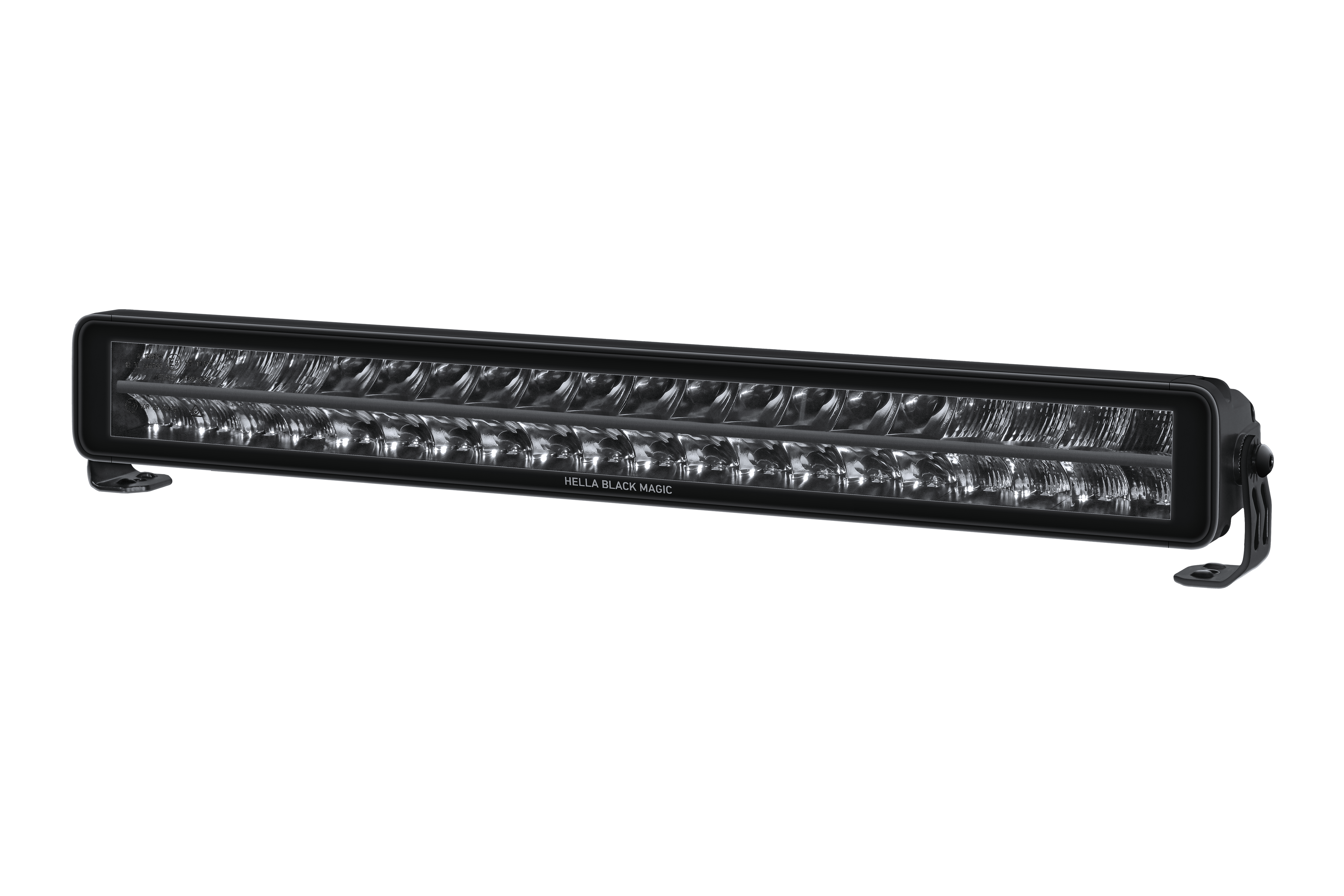

Black Magic Edgeless Pro 21,5" Double Row
- 1FJ 358 236-041
- Light Function with position light (LED) , with high beam (LED) , High-boost
- Luminous Flux 4870 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 50
- Rated Power 174 W
- Mounting Type Bolted , Screw Connection
Fitting Position
Front
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Luminous in boost mode
10246 lm
Theoretical luminous flux
8400 lm
Theoretical luminous flux in Boost mode
16800 lm
Number of light functions
3
Number of LEDs
40
Colour Temperature
5700 K
Housing Colour
black
Frame Colour
black
Lens Colour
Crystal clear
Light colour
yellow (amber) , white
Diffusing Lens Material
PC (Polycarbonate)
Diffusing Lens Type
Clear diffusing lens
Temperature range from
-30 °C
Temperature range to
+65 °C
Prot.type (IP Code)
IP69K , IP68
Shape
Slim
Overall Height
86 mm
Length
561 mm, 21,5 Inch
Height
70 mm
Depth
68 mm
Length
561 mm, 21,5 Inch
Cable Length
2000 mm
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
464 m
max. light cone range at 1 lux (high boost function)
663 m
Weight
2550 g
|
Black Magic Edgeless Pro 20"
|
Black Magic Edgeless Pro 32"
|
Black Magic Edgeless Pro 40"
|
Black Magic Edgeless Pro 50"
|
Black Magic Edgeless Pro 21,5" Double Row
|
|
|---|---|---|---|---|---|
| 1FJ 358 236-001 | 1FJ 358 236-011 | 1FJ 358 236-021 | 1FJ 358 236-031 | 1FJ 358 236-041 | |
| Light Function | with position light (LED) , with high beam (LED) , High-boost | with position light (LED) , with high beam (LED) , High-boost | with high beam (LED) , High-boost | with position light (LED) , with high beam (LED) , High-boost | with position light (LED) , with high beam (LED) , High-boost |
| Luminous Flux | 3730 lm | 5417 lm | 6508 lm | 7576 lm | 4870 lm |
| Light Distribution | Spot Illumination | Spot Illumination | Spot Illumination | Spot Illumination | Spot Illumination |
| fulfils ECE standard | R10 , R148 , R149 | R10 , R148 , R149 | R10 , R148 , R149 | R10 , R148 , R149 | R10 , R148 , R149 |
| Housing material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Reference number | 50 | 50 | 45 | 35 | 50 |
| Rated Power | 88 W | 133 W | 172 W | 226 W | 174 W |
| Mounting Type | Screw Connection | Bolted , Screw Connection | Bolted , Screw Connection | Bolted , AMP Connection | Bolted , Screw Connection |
| Fitting Position | Front | Front | Front | Front | Front |
| Lamp Type | LED | LED | LED | LED | LED |
| Voltage from | 10 V | ||||
| Voltage to | 30 V | ||||
| Luminous in boost mode | 6332 lm | 9181 lm | 11140 lm | 12942 lm | 10246 lm |
| Theoretical luminous flux | 5290 lm | 8316 lm | 10584 lm | 11600 lm | 8400 lm |
| Theoretical luminous flux in Boost mode | 8820 lm | 13860 lm | 17640 lm | 19332 lm | 16800 lm |
| Number of light functions | 3 | 3 | 3 | 3 | 3 |
| Number of LEDs | 21 | 33 | 42 | 54 | 40 |
| Colour Temperature | 5700 K | 5700 K | 5700 K | 5700 K | 5700 K |
| Housing Colour | black | black | black | black | black |
| Frame Colour | black | black | black | black | black |
| Lens Colour | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear |
| Light colour | yellow (amber) , white | yellow (amber) , white | yellow (amber) , white | yellow (amber) , white | yellow (amber) , white |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Diffusing Lens Type | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens |
| Temperature range from | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C |
| Temperature range to | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C |
| Prot.type (IP Code) | IP69K , IP68 | IP69K , IP68 | IP69K , IP68 | IP69K , IP68 | IP69K , IP68 |
| Shape | Slim | Slim | Slim | Slim | Slim |
| Overall Height | 47 mm | 47 mm | 47 mm | 47 mm | 86 mm |
| Length | 522 mm | 798 mm | 1006 mm | 1282 mm | 561 mm, 21,5 Inch |
| Height | 40 mm | 40 mm | 40 mm | 40 mm | 70 mm |
| Depth | 54 mm | 54 mm | 54 mm | 54 mm | 68 mm |
| Length | 522 mm | 798 mm | 1006 mm | 1282 mm | 561 mm, 21,5 Inch |
| Cable Length | 2000 mm | 2000 mm | 2000 mm | 2000 mm | 2000 mm |
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved |
| max. light cone range at 1 lux (main light function) | 443 m | 432 m | 474 m | 396 m | 464 m |
| max. light cone range at 1 lux (high boost function) | 571 m | 553 m | 619 m | 522 m | 663 m |
| Weight | 1500 g | 1930 g | 2600 g | 3250 g | 2550 g |
