LBE 2
Truck
Offroad
LBE 2
Contemporary design meets powerful output: HELLA VALUEFIT LBE 2 impresses with its powerful high beam, innovative light functions and versatile application options – for better visibility, greater safety and a customised look.
- The successor to the HELLA VALUEFIT LBE light bar series with its new design and additional light functions
- White position light: for use on public roads
- An amber, on trend function light: For individual, attention-grabbing vehicle styling (off-road use)
- Available in different lengths – optionally with flash and high-boost function (selection of varying flashing patterns)
Contemporary design meets powerful illumination
The HELLA VALUEFIT LBE 2 impresses with a revised, dynamic design and a powerful high-beam function that ensures optimum visibility on and off-road. Depending on the model, an amber position light and a warning flash function complete the range of functions – ideal for off-road and special applications.
Technical Sheet

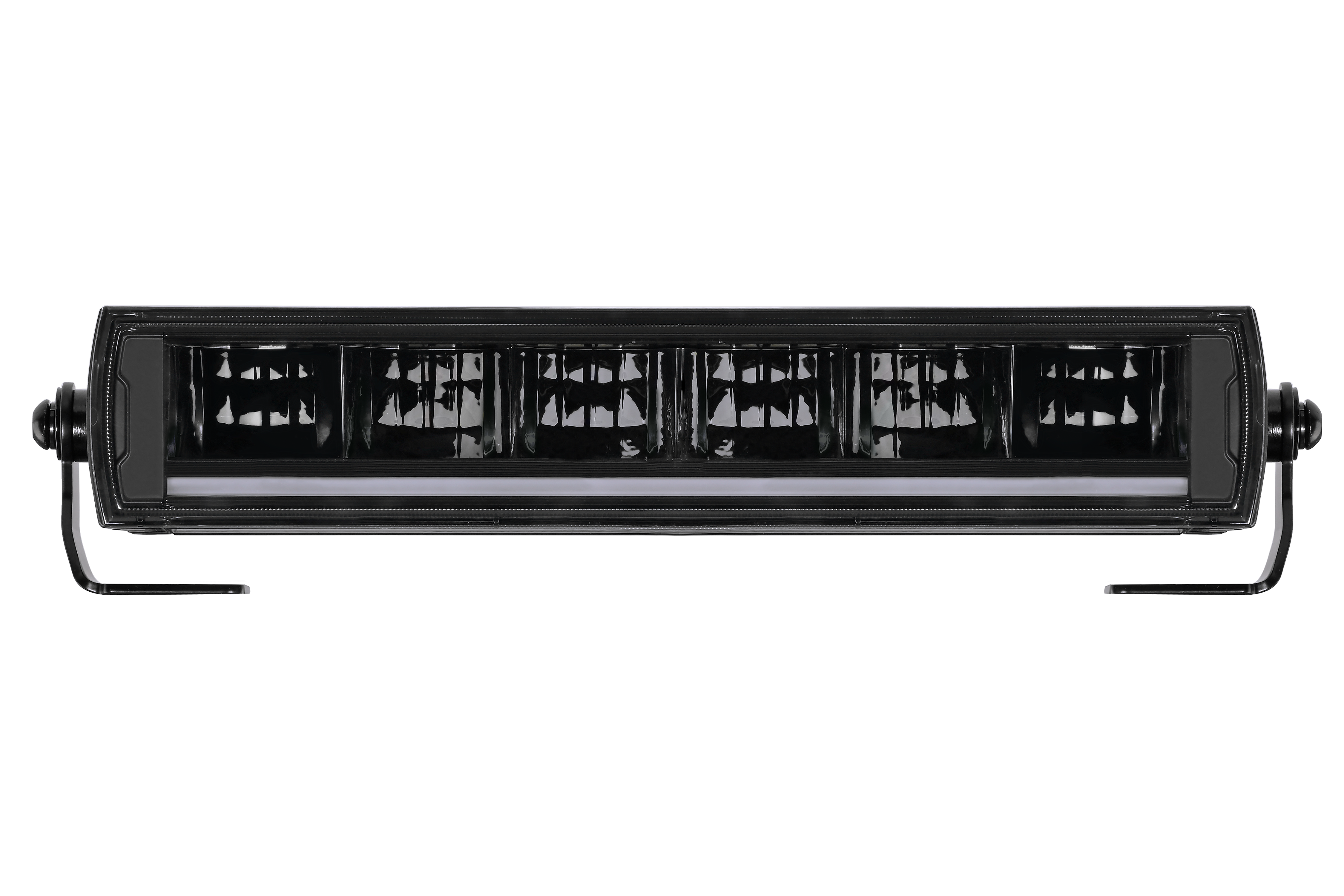

LBE 2 Lightbar 310
- 1FE 357 666-001
- Light Function with high beam (LED) , with position light (LED)
- Luminous Flux 3800 lm
- Theoretical luminous flux 6000 lm
- fulfils ECE standard R148 , R149 , R10
- Registration Type ECE approved
- Prot.type (IP Code) IP67 , IP69K
- Housing material Aluminium
- Height 59 mm
- Length 314 mm
Depth
73 mm
Weight
1400 g
Temperature range from
-40 °C
Temperature range to
+65 °C
Fastening Type
Screw connection
Lamp Type
LED
Light Design
LED
Voltage
12 V, 24 V
Rated Power
82 W
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Overall Height
77 mm
Number of light functions
2
Number of LEDs
60
Light colour
white , yellow (amber)
Colour Temperature
5700 K
Cable Length
1000 mm
Lens Colour
white
Frame Colour
black
Shape
Slim
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
max. light cone range at 1 lux (main light function)
340 m
Reference number
30

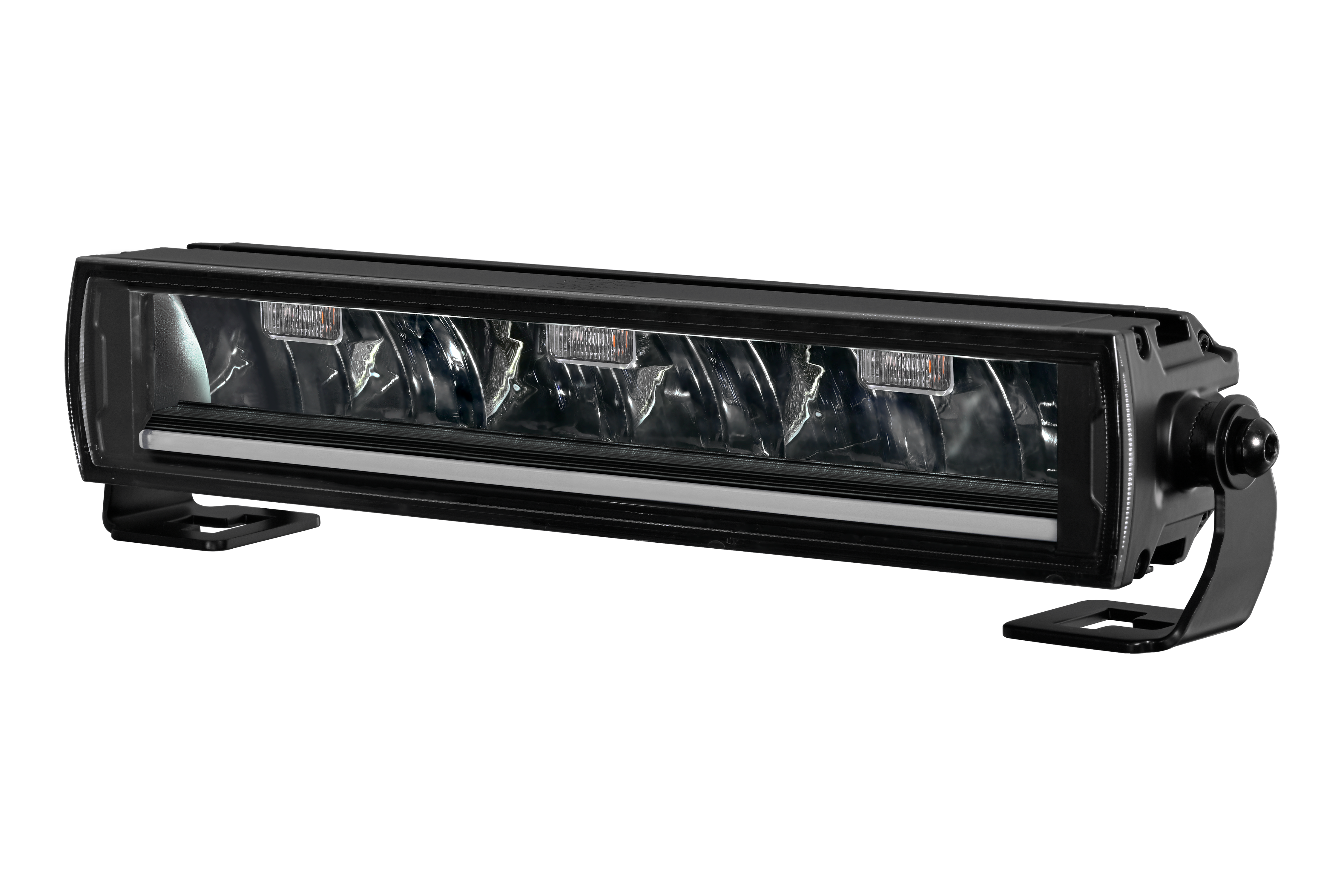

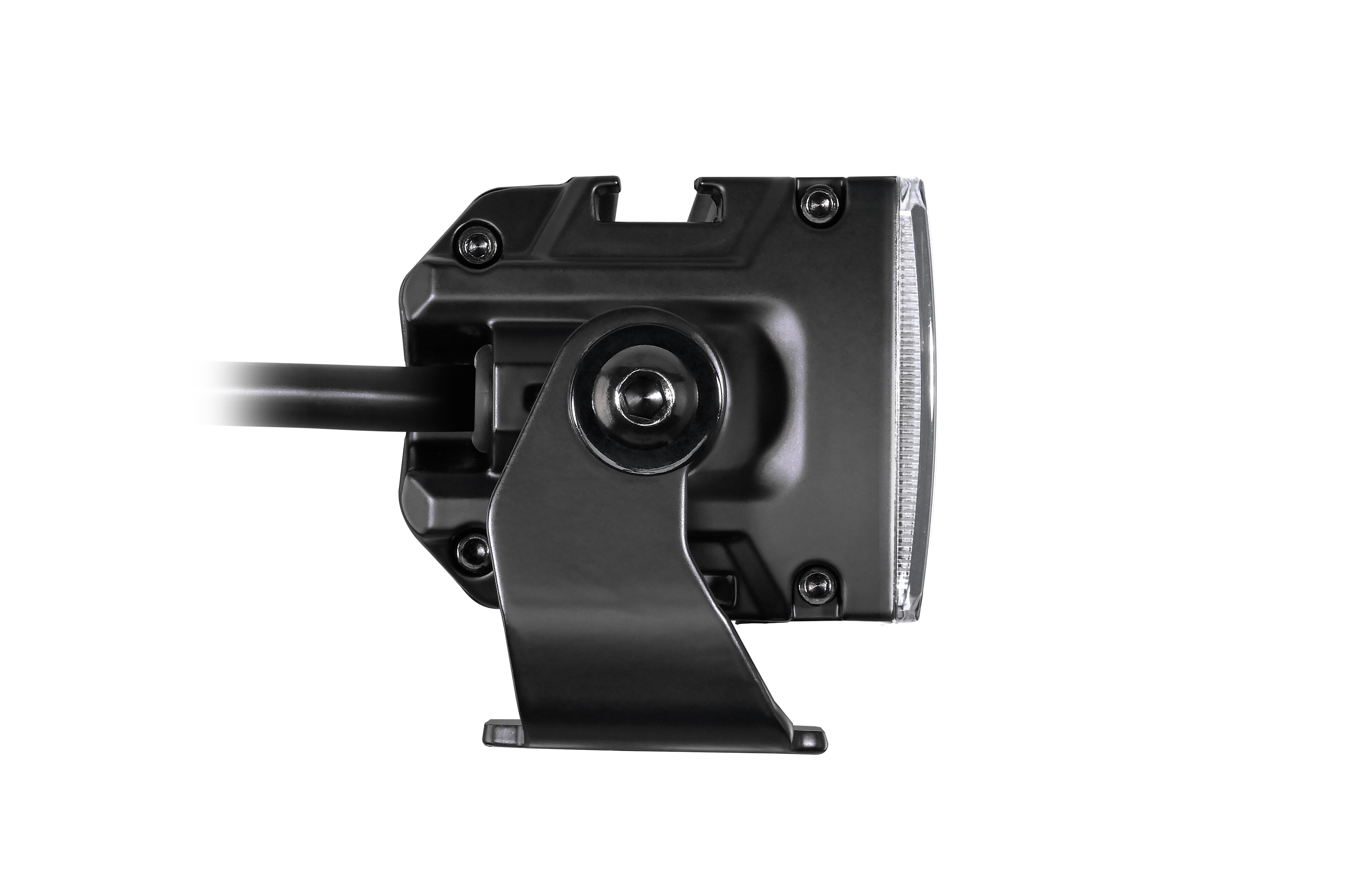

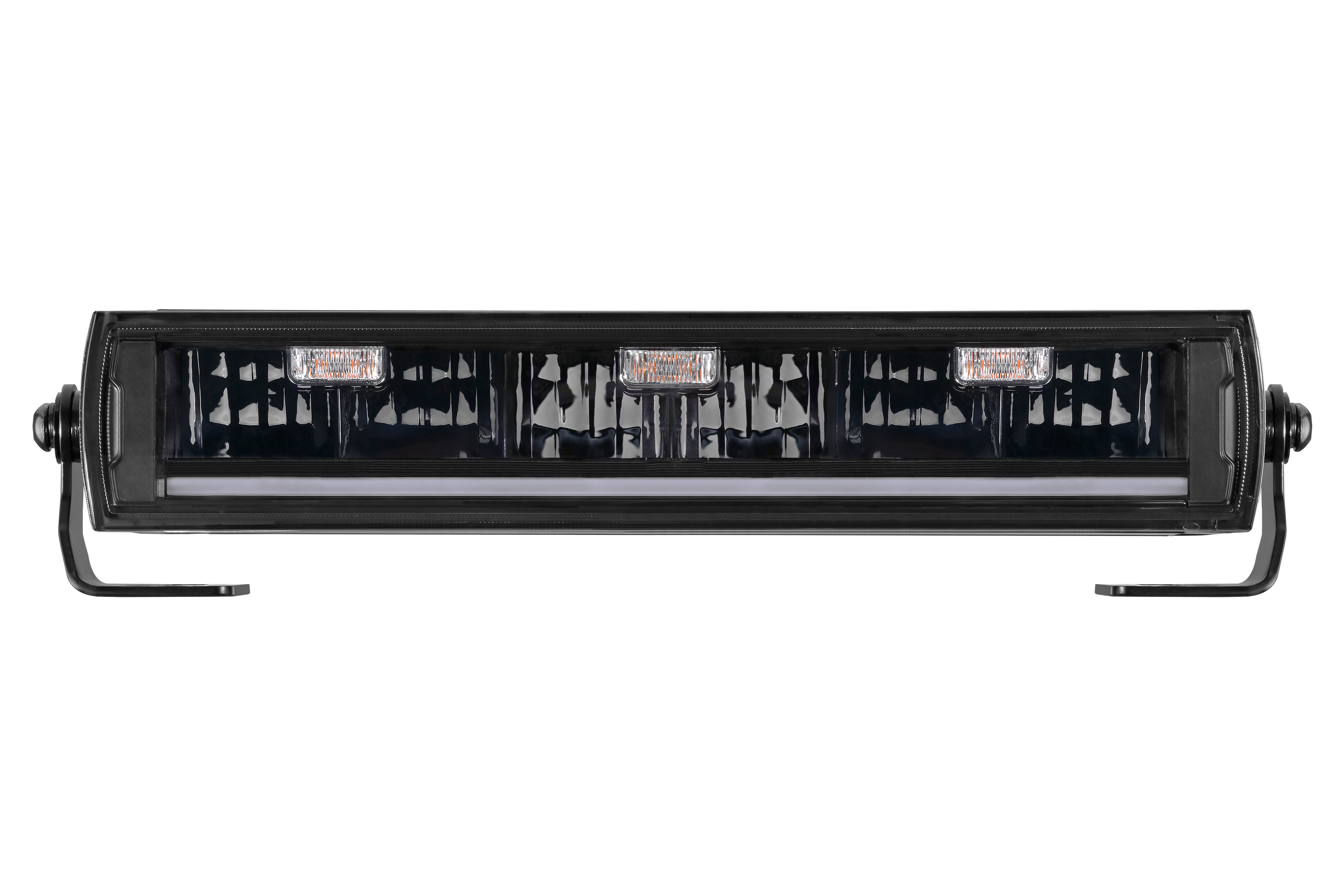

LBE 2 Lightbar 310 Flasher
- 1FE 357 666-011
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal
- Luminous Flux 3800 lm
- Theoretical luminous flux 6000 lm
- fulfils ECE standard R65 , R10 , R148 , R149
- fulfils EMC/CISPR standard CISPR 25 Class 3
- Registration Type ECE approved
- Prot.type (IP Code) IP67 , IP69K
- Housing material Aluminium
- Height 59 mm
Length
314 mm
Depth
73 mm
Weight
1400 g
Temperature range from
-40 °C
Temperature range to
+65 °C
Fastening Type
Screw connection
Lamp Type
LED
Light Design
LED
Voltage
12 V, 24 V
Rated Power
110 W
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Overall Height
77 mm
Number of light functions
3
Number of LEDs
66
Light colour
white , yellow (amber)
Colour Temperature
5700 K
Cable Length
1000 mm
Lens Colour
white
Frame Colour
black
Shape
Slim
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
max. light cone range at 1 lux (main light function)
340 m
Reference number
30

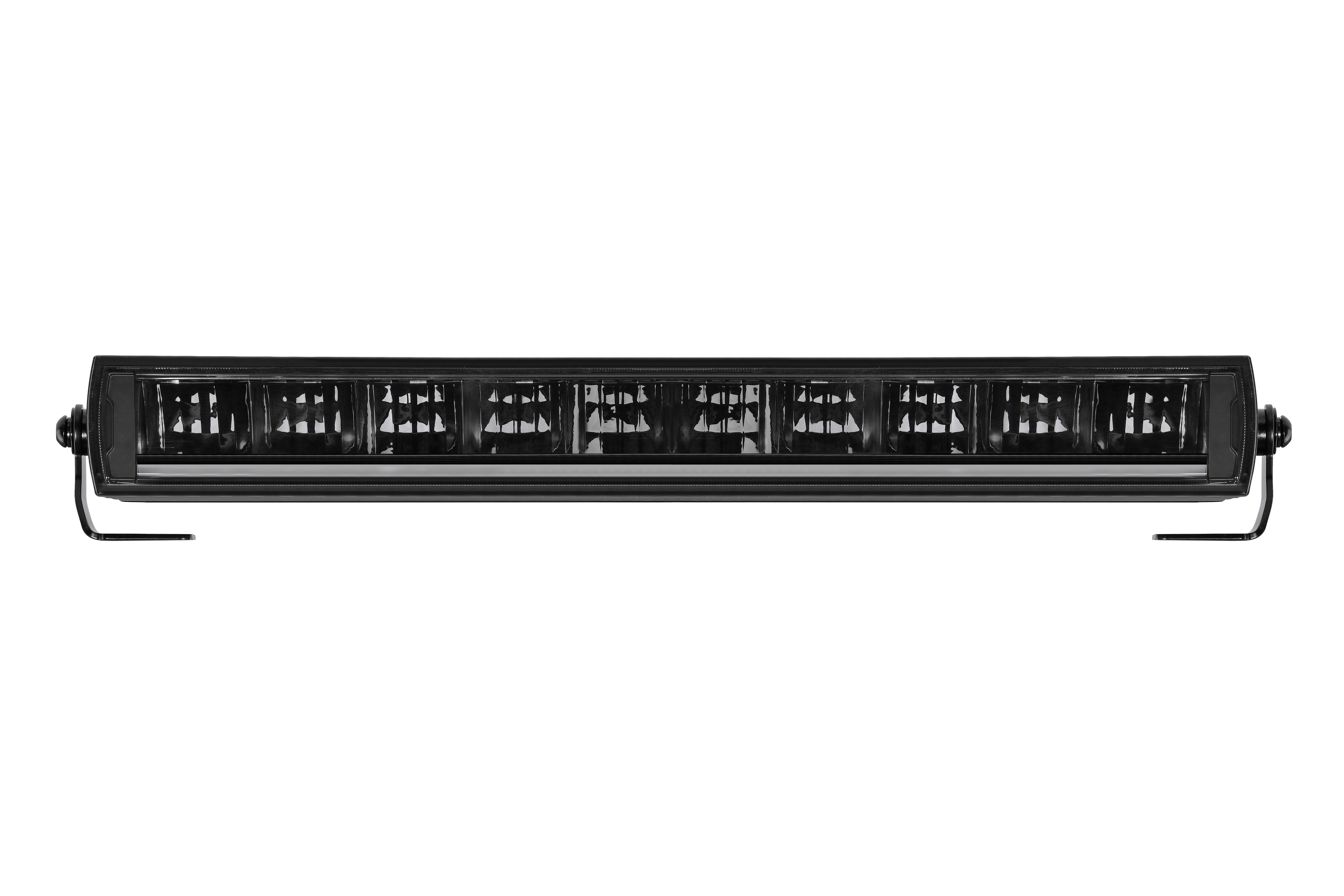

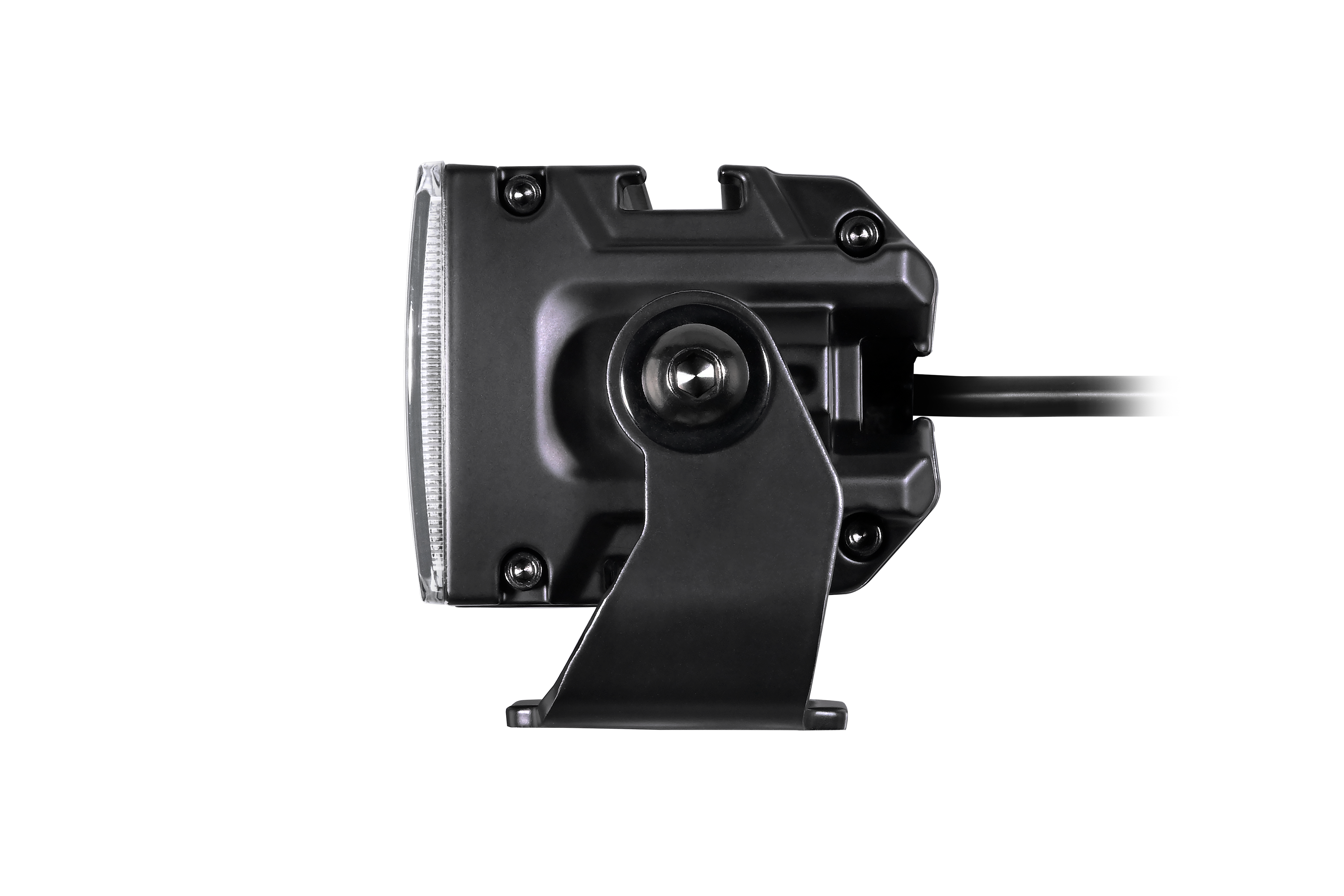

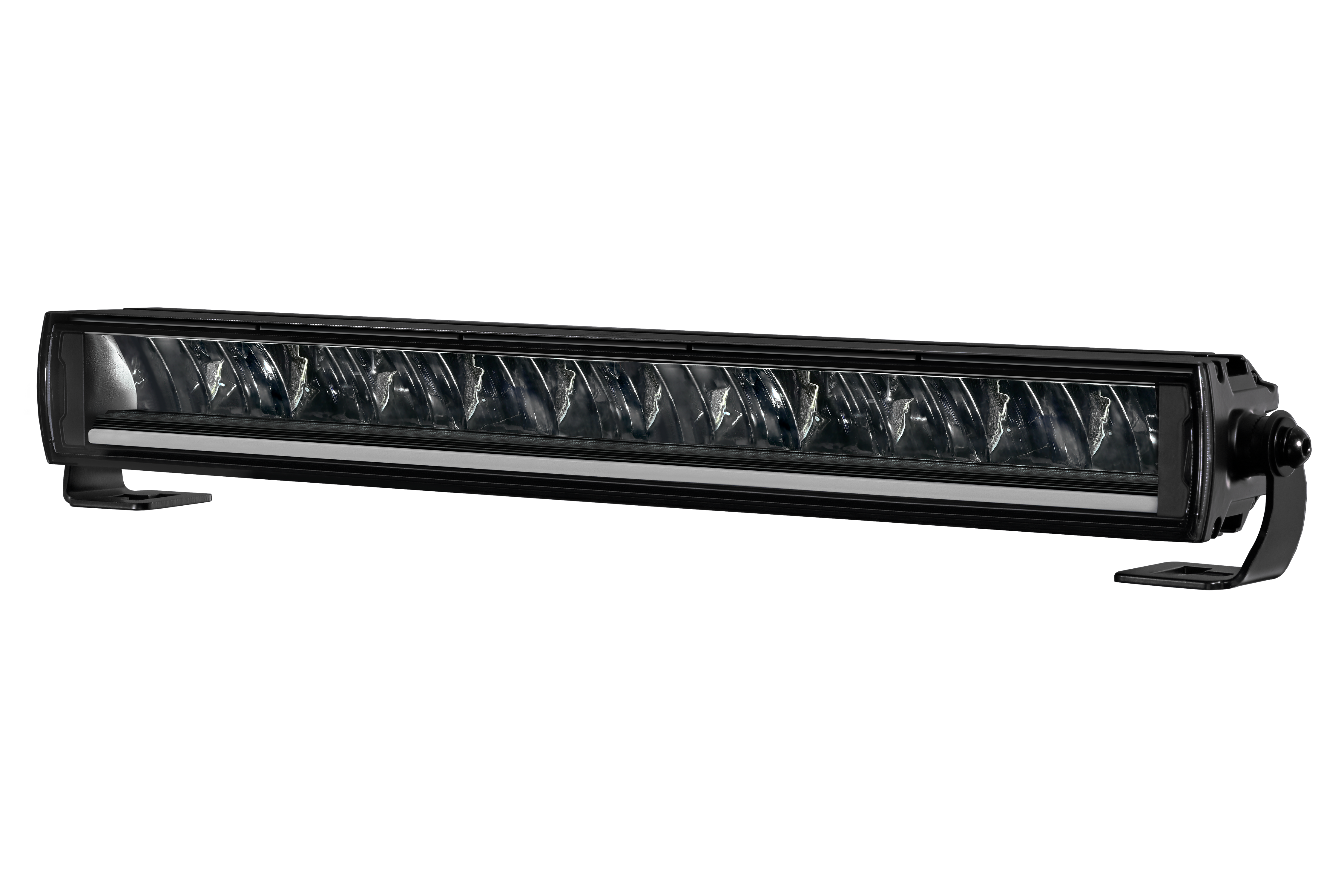

LBE 2 Lightbar 490
- 1FE 357 666-021
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 4600 lm
- Theoretical luminous flux 12000 lm
- fulfils ECE standard R10 , R148 , R149
- Registration Type ECE approved
- Prot.type (IP Code) IP69K , IP67
- Housing material Aluminium
- Height 59 mm
- Length 493 mm
Depth
73 mm
Weight
1950 g
Temperature range from
-40 °C
Temperature range to
+65 °C
Fastening Type
Screw connection
Lamp Type
LED
Light Design
LED
Voltage
12 V, 24 V
Rated Power
140 W
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Overall Height
77 mm
Number of light functions
3
Number of LEDs
110
Light colour
white , yellow (amber)
Luminous in boost mode
6300 lm
Colour Temperature
5700 K
Cable Length
1000 mm
Lens Colour
white
Frame Colour
black
Shape
Slim
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
max. light cone range at 1 lux (main light function)
438 m
max. light cone range at 1 lux (high boost function)
570 m
Reference number
37,5

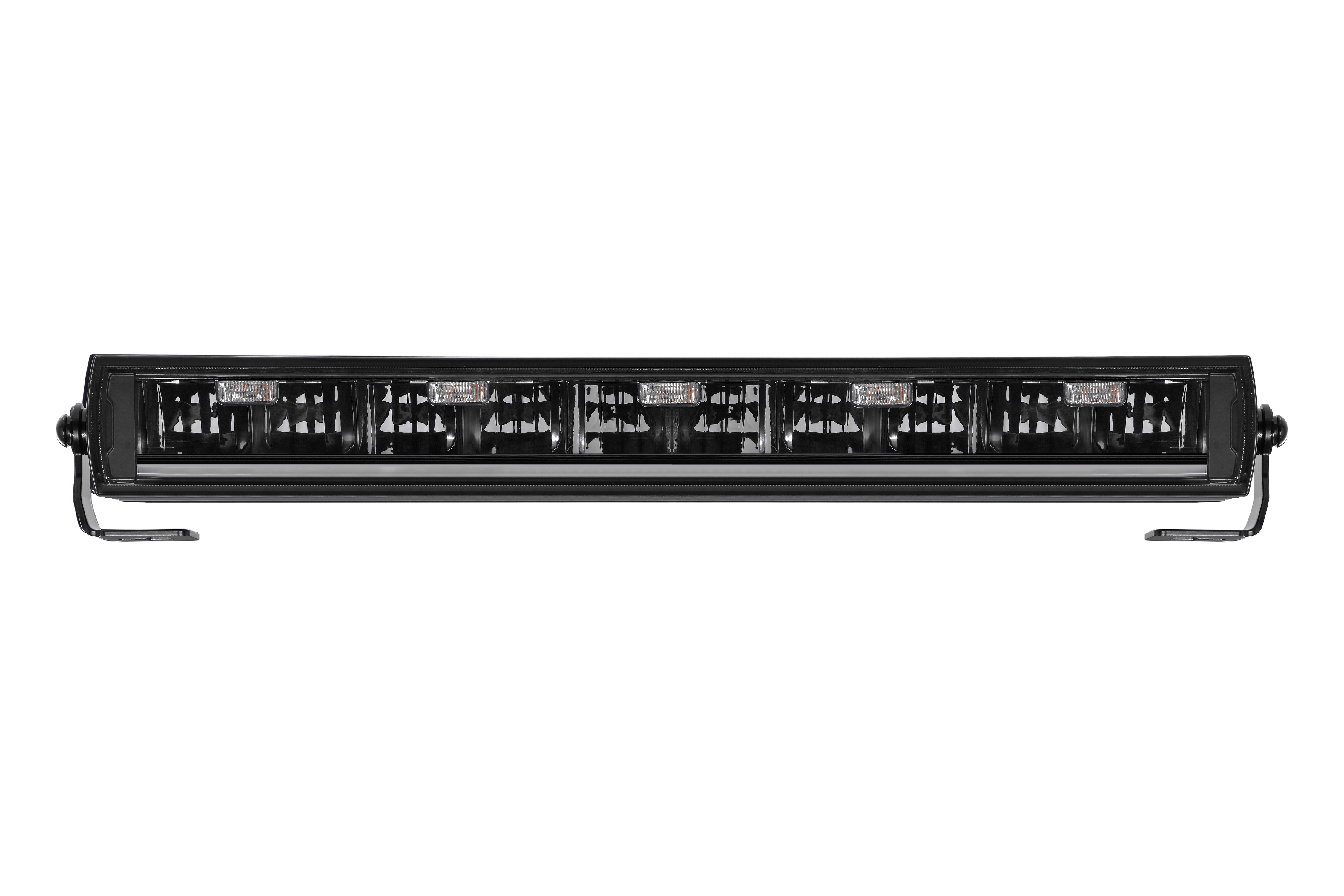

LBE 2 Lightbar 490 Flasher
- 1FE 357 666-031
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 4400 lm
- Theoretical luminous flux 12000 lm
- fulfils ECE standard R10 , R65 , R148 , R149
- fulfils EMC/CISPR standard CISPR 25 Class 3
- Registration Type ECE approved
- Prot.type (IP Code) IP67 , IP69K
- Housing material Aluminium
- Height 59 mm
Length
493 mm
Depth
73 mm
Weight
1950 g
Temperature range from
-40 °C
Temperature range to
+65 °C
Fastening Type
Screw connection
Lamp Type
LED
Light Design
LED
Voltage
12 V, 24 V
Rated Power
170 W
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Overall Height
77 mm
Number of light functions
4
Number of LEDs
120
Light colour
white , yellow (amber)
Luminous in boost mode
5700 lm
Colour Temperature
5700 K
Cable Length
1000 mm
Lens Colour
white
Frame Colour
black
Shape
Slim
Housing Colour
black
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
max. light cone range at 1 lux (main light function)
438 m
max. light cone range at 1 lux (high boost function)
570 m
Reference number
37,5
|
LBE 2 Lightbar 310
|
LBE 2 Lightbar 310 Flasher
|
LBE 2 Lightbar 490
|
LBE 2 Lightbar 490 Flasher
|
|
|---|---|---|---|---|
| 1FE 357 666-001 | 1FE 357 666-011 | 1FE 357 666-021 | 1FE 357 666-031 | |
| Light Function | with high beam (LED) , with position light (LED) | with high beam (LED) , with position light (LED) , with flashing warning signal | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost |
| Luminous Flux | 3800 lm | 3800 lm | 4600 lm | 4400 lm |
| Theoretical luminous flux | 6000 lm | 6000 lm | 12000 lm | 12000 lm |
| fulfils ECE standard | R148 , R149 , R10 | R65 , R10 , R148 , R149 | R10 , R148 , R149 | R10 , R65 , R148 , R149 |
| fulfils EMC/CISPR standard | CISPR 25 Class 3 | CISPR 25 Class 3 | ||
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved |
| Prot.type (IP Code) | IP67 , IP69K | IP67 , IP69K | IP69K , IP67 | IP67 , IP69K |
| Housing material | Aluminium | Aluminium | Aluminium | Aluminium |
| Height | 59 mm | 59 mm | 59 mm | 59 mm |
| Length | 314 mm | 314 mm | 493 mm | 493 mm |
| Depth | 73 mm | 73 mm | 73 mm | 73 mm |
| Weight | 1400 g | 1400 g | 1950 g | 1950 g |
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C |
| Temperature range to | +65 °C | +65 °C | +65 °C | +65 °C |
| Fastening Type | Screw connection | Screw connection | Screw connection | Screw connection |
| Lamp Type | LED | LED | LED | LED |
| Light Design | LED | LED | LED | LED |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Rated Power | 82 W | 110 W | 140 W | 170 W |
| Voltage from | 10 V | 10 V | 10 V | 10 V |
| Voltage to | 30 V | 30 V | 30 V | 30 V |
| Fitting Position | Front | Front | Front | Front |
| Overall Height | 77 mm | 77 mm | 77 mm | 77 mm |
| Number of light functions | 2 | 3 | 3 | 4 |
| Number of LEDs | 60 | 66 | 110 | 120 |
| Light colour | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) |
| Luminous in boost mode | 6300 lm | 5700 lm | ||
| Colour Temperature | 5700 K | 5700 K | 5700 K | 5700 K |
| Cable Length | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Lens Colour | white | white | white | white |
| Frame Colour | black | black | black | black |
| Shape | Slim | Slim | Slim | Slim |
| Housing Colour | black | black | black | black |
| Diffusing Lens Type | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| max. light cone range at 1 lux (main light function) | 340 m | 340 m | 438 m | 438 m |
| max. light cone range at 1 lux (high boost function) | 570 m | 570 m | ||
| Reference number | 30 | 30 | 37,5 | 37,5 |
| Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
Downloads
2256-KI-HELLA-VALUEFIT-LBE-2-Lightbars-HELLA-EN
1.46 MB |
