Black Magic Edgeless Pro Mini Design
Compact design meets maximum functionality: Black Magic Edgeless Pro Mini impresses with its innovative lighting technology, stylish design and high durability. Ideal for versatile applications – whether as a work lamp or reversing light.
- Innovative lighting technology for powerful and homogeneous illumination
- The unique design combines style with function and is available as a work lamp and reversing lamp
- Versatile light functions – featuring position light, warning flash function and impressive light output of up to 3,500 lumens
Indirect lighting design for maximum visibility with compact dimensions
The innovative, indirect reflector design of Black Magic Edgeless Pro Mini ensures particularly homogeneous and powerful illumination. The housing remains compact and rugged – ideal for applications with limited space and high demands on light quality.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperTechnical Sheet

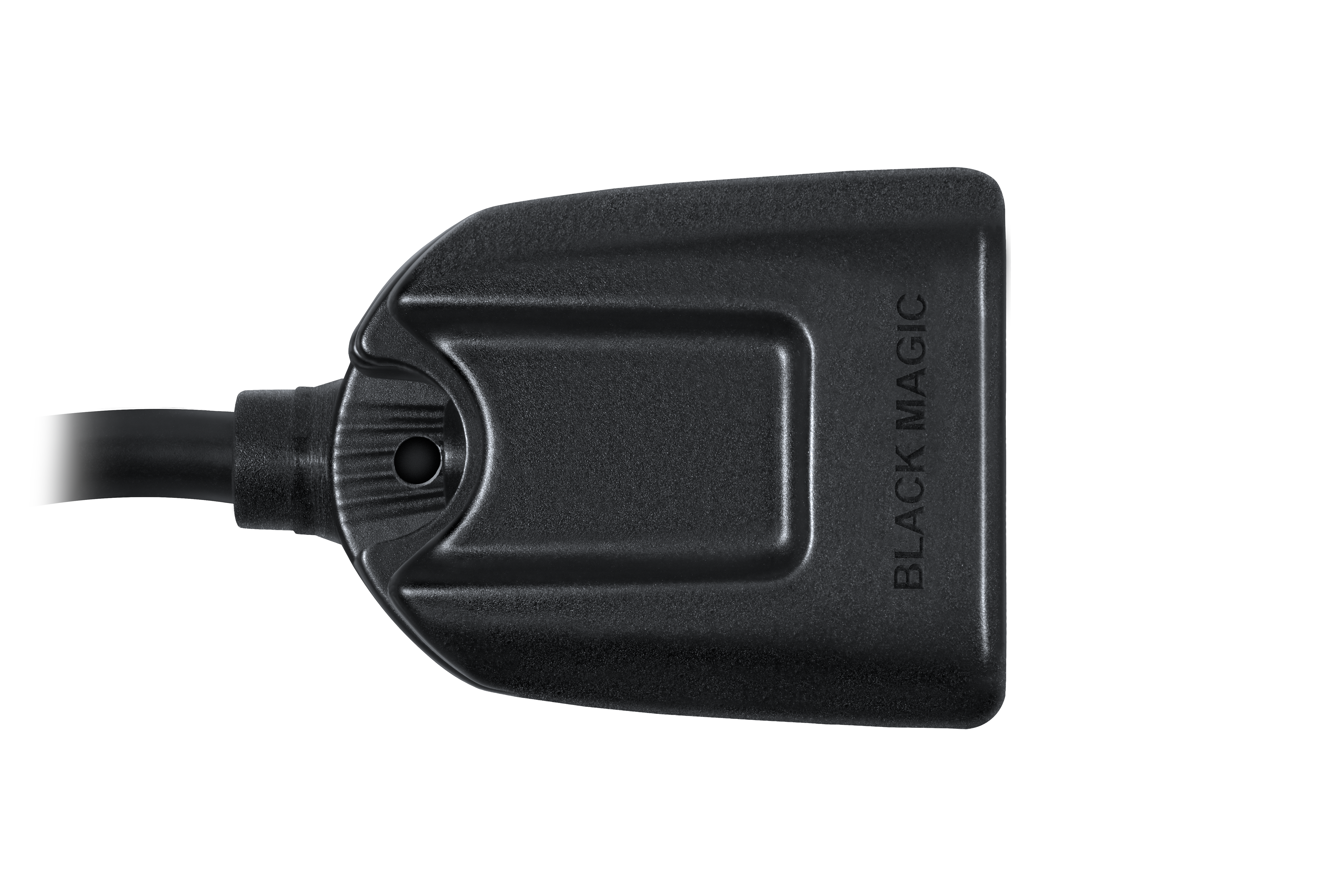

Black Magic Edgeless Pro Mini Lightbar 7", Flood, Flasher
- 1FB 358 236-201
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal
- Luminous Flux 2154 lm
- Light Distribution Floodlight
- fulfils ECE standard R10 , R65 , R148
- Housing material Aluminium
- Voltage 12 V, 24 V
- Rated Power 24 W
- Mounting Type Bolted
- Lamp Type LED
Fastening Type
Screw connection
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
44,1 mm
Overall Height
56,7 mm
Length
176,6 mm
Depth
64,8 mm
Number of light functions
3
Number of LEDs
27
Light colour
white , yellow (amber)
Colour Temperature
5700 K
Theoretical luminous flux
3540 lm
Cable Length
800 mm
Lens Colour
white
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Frame Colour
black
Shape
Slim
Housing Colour
black
fulfils EMC/CISPR standard
CISPR 25 Class 3
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
53 m
Prot.type (IP Code)
IP69K , IP68
Temperature range from
-30 °C
Temperature range to
+65 °C
Weight
500 g
Black Magic Edgeless Pro Mini Lightbar 7", Spot Flasher
- 1FB 358 236-211
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal
- Luminous Flux 2152 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R65 , R148
- Housing material Aluminium
- Voltage 12 V, 24 V
- Rated Power 24 W
- Mounting Type Bolted , Screw Connection
- Lamp Type LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
44,1 mm
Overall Height
56,7 mm
Length
176,6 mm
Depth
64,8 mm
Number of light functions
3
Number of LEDs
27
Light colour
white , yellow (amber) , white
Colour Temperature
5700 K
Theoretical luminous flux
3540 lm
Cable Length
800 mm
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Frame Colour
black
Shape
Slim
Housing Colour
black
fulfils EMC/CISPR standard
CISPR 25 Class 3
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
218 m
Prot.type (IP Code)
IP69K , IP68
Temperature range from
-30 °C
Temperature range to
+65 °C
Weight
500 g
Black Magic Edgeless Pro Mini Lightbar, 7", Flood, Flasher, red Position Light
- 2ZR 358 236-221
- Light Function with reverse light , with position light (LED) , with flashing warning signal
- Luminous Flux 500 lm
- Light Distribution Spot Illumination
- fulfils ECE standard R10 , R65 , R148
- Housing material Aluminium
- Voltage 12 V, 24 V
- Rated Power 12 W
- Mounting Type Bolted , Screw Connection
- Lamp Type LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
44,1 mm
Overall Height
56,7 mm
Length
176,6 mm
Depth
64,8 mm
Number of light functions
3
Number of LEDs
27
Light colour
red , yellow (amber)
Colour Temperature
5700 K
Theoretical luminous flux
835 lm
Cable Length
2000 mm
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Frame Colour
black
Shape
Slim
Housing Colour
black
fulfils EMC/CISPR standard
CISPR 25 Class 3
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
20 m
Prot.type (IP Code)
IP69K , IP68
Temperature range from
-30 °C
Temperature range to
+65 °C
Weight
500 g
|
Black Magic Edgeless Pro Mini Lightbar 7", Flood, Flasher
|
Black Magic Edgeless Pro Mini Lightbar 7", Spot Flasher
|
Black Magic Edgeless Pro Mini Lightbar, 7", Flood, Flasher, red Position Light
|
|
|---|---|---|---|
| 1FB 358 236-201 | 1FB 358 236-211 | 2ZR 358 236-221 | |
| Light Function | with high beam (LED) , with position light (LED) , with flashing warning signal | with high beam (LED) , with position light (LED) , with flashing warning signal | with reverse light , with position light (LED) , with flashing warning signal |
| Luminous Flux | 2154 lm | 2152 lm | 500 lm |
| Light Distribution | Floodlight | Spot Illumination | Spot Illumination |
| fulfils ECE standard | R10 , R65 , R148 | R10 , R65 , R148 | R10 , R65 , R148 |
| Housing material | Aluminium | Aluminium | Aluminium |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Rated Power | 24 W | 24 W | 12 W |
| Mounting Type | Bolted | Bolted , Screw Connection | Bolted , Screw Connection |
| Lamp Type | LED | LED | LED |
| Fastening Type | Screw connection | ||
| Voltage from | 10 V | 10 V | 10 V |
| Voltage to | 30 V | 30 V | 30 V |
| Fitting Position | Front | Front | Front |
| Height | 44,1 mm | 44,1 mm | 44,1 mm |
| Overall Height | 56,7 mm | 56,7 mm | 56,7 mm |
| Length | 176,6 mm | 176,6 mm | 176,6 mm |
| Depth | 64,8 mm | 64,8 mm | 64,8 mm |
| Number of light functions | 3 | 3 | 3 |
| Number of LEDs | 27 | 27 | 27 |
| Light colour | white , yellow (amber) | white , yellow (amber) , white | red , yellow (amber) |
| Colour Temperature | 5700 K | 5700 K | 5700 K |
| Theoretical luminous flux | 3540 lm | 3540 lm | 835 lm |
| Cable Length | 800 mm | 800 mm | 2000 mm |
| Lens Colour | white | Crystal clear | Crystal clear |
| Diffusing Lens Type | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Frame Colour | black | black | black |
| Shape | Slim | Slim | Slim |
| Housing Colour | black | black | black |
| fulfils EMC/CISPR standard | CISPR 25 Class 3 | CISPR 25 Class 3 | CISPR 25 Class 3 |
| Registration Type | ECE approved | ECE approved | ECE approved |
| max. light cone range at 1 lux (main light function) | 53 m | 218 m | 20 m |
| Prot.type (IP Code) | IP69K , IP68 | IP69K , IP68 | IP69K , IP68 |
| Temperature range from | -30 °C | -30 °C | -30 °C |
| Temperature range to | +65 °C | +65 °C | +65 °C |
| Weight | 500 g | 500 g | 500 g |
