RokLUME 190 TP
Compact work aid: The HELLA RokLUME 190 TP LED work lamp combines small dimensions, a robust plastic housing, and an impressive light output. With its reliable illumination of the working area, it is suitable for a wide range of applications. The compact dimensions allow for use even under cramped installation conditions.
With its six durable, energy-efficient, high-performance LEDs, the work lamp produces 1,850 lumens of light output while consuming just 26 watts. The multi-faceted reflector evenly distributes the daylight-like light into the working area, in close-range or long-range illumination depending on the variant.
The lightweight and heat conductive plastic housing provides excellent heat dissipation and, in conjunction with the temperature sensors, prevents overheating. Thanks to this innovative material, the work lamp is completely corrosion-resistant and also dustproof, watertight, and high-pressure jet cleaner resistant.
The ECE-approved lamp can be mounted upright and pendant using the fiberglass-reinforced plastic bracket.
Compact work aid: The HELLA RokLUME 190 TP LED work lamp combines small dimensions, a robust plastic housing, and an impressive light output. With its reliable illumination of the working area, it is suitable for a wide range of applications. The compact dimensions allow for use even under cramped installation conditions.
With its six durable, energy-efficient, high-performance LEDs, the work lamp produces 1,850 lumens of light output while consuming just 26 watts. The multi-faceted reflector evenly distributes the daylight-like light into the working area, in close-range or long-range illumination depending on the variant.
The lightweight and heat conductive plastic housing provides excellent heat dissipation and, in conjunction with the temperature sensors, prevents overheating. Thanks to this innovative material, the work lamp is completely corrosion-resistant and also dustproof, watertight, and high-pressure jet cleaner resistant.
The ECE-approved lamp can be mounted upright and pendant using the fiberglass-reinforced plastic bracket.
Image of the long-range illumination of the RokLUME 190 TP
Image of the close-range illumination of the RokLUME 190 TP
Dimensional sketch of the RokLUME 190 TP

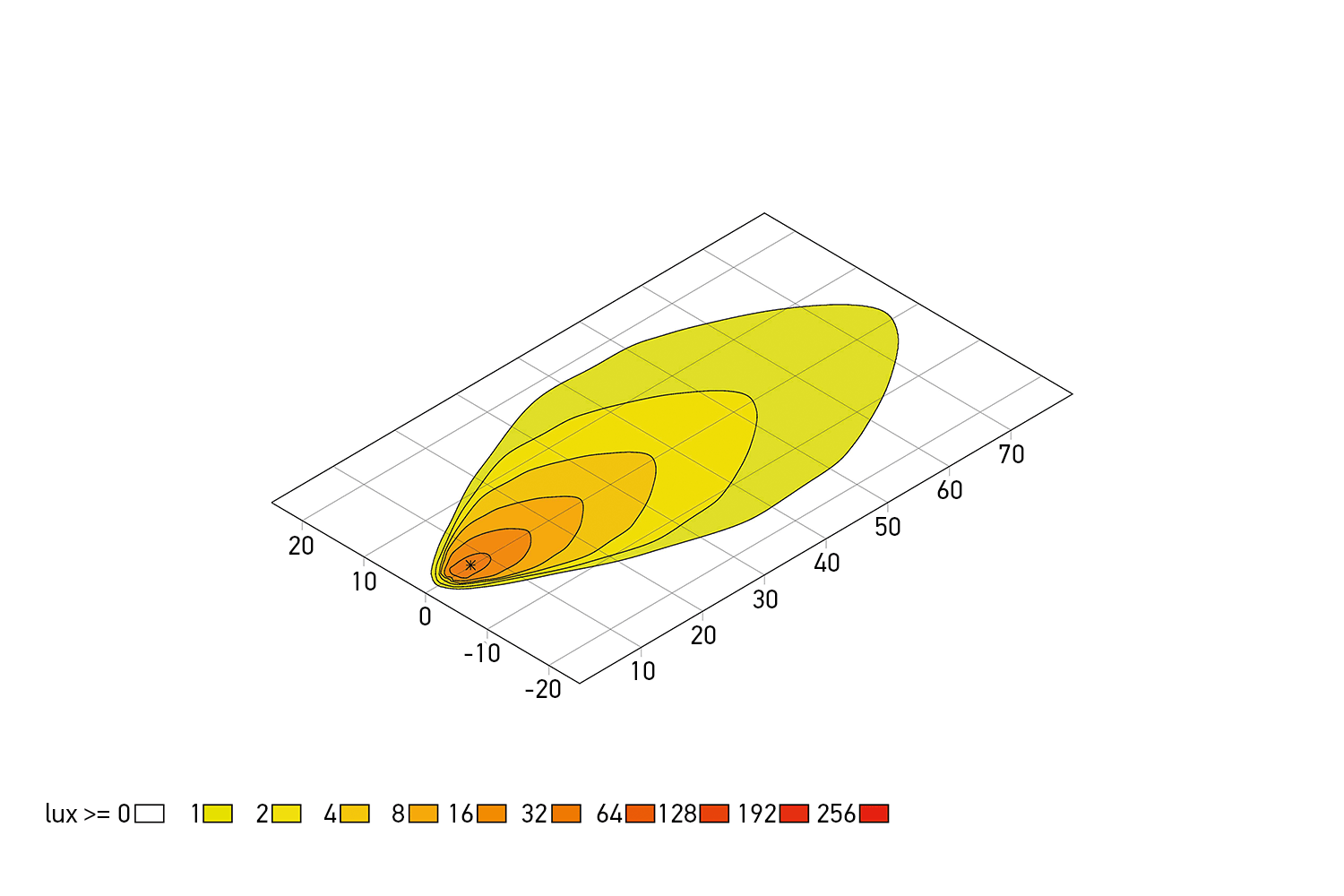

Light distribution of the long-range illumination of the RokLUME 190 TP

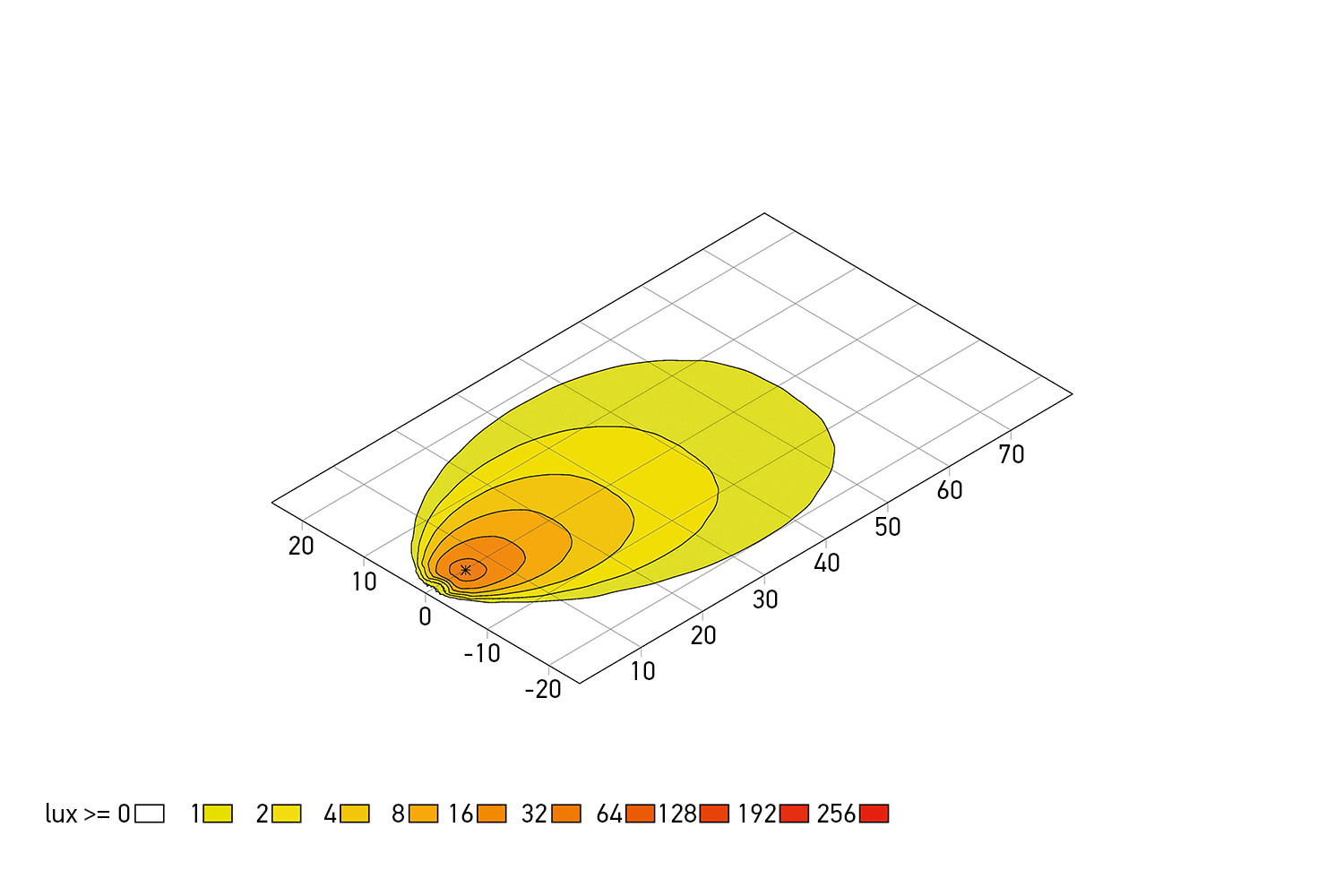

Light distribution of the close-range illumination of the RokLUME 190 TP
Technical Data
| Operating voltage | Multi-voltage (10.5-32 V) |
| Rated voltage | 12 V/ 24 V |
| Power consumption | 26 W |
| Light output | 1,850 lm |
| Light source | LED |
| Color temperature | 5,000 K |
| Material |
Housing: heat conductive plastic Bracket: fiberglass reinforced plastic |
| Weight | 450 g |
| Temperature range | - 40 °C+ 50 °C |
| Degree of protection | IP 6K9K, IP 6K8 |
| Type approval | ADR/GGVSEB |
| EMC protection | ECE-R10, RCM |
| Salt spray resistance | 720 h as per DIN EN ISO 9227 |
| Mounting | Upright and pendant |
| Connection | DEUTSCH DT 2 pin connector |
| Manufactured in | Austria |
Program Overview
| Illumination | Part number |
|---|---|
| Close-range illumination | 1GA 996 488-501 |
| Long-range illumination | 1GA 996 488-511 |
