Power Beam S series reversing light
Power Beam S series reversing light

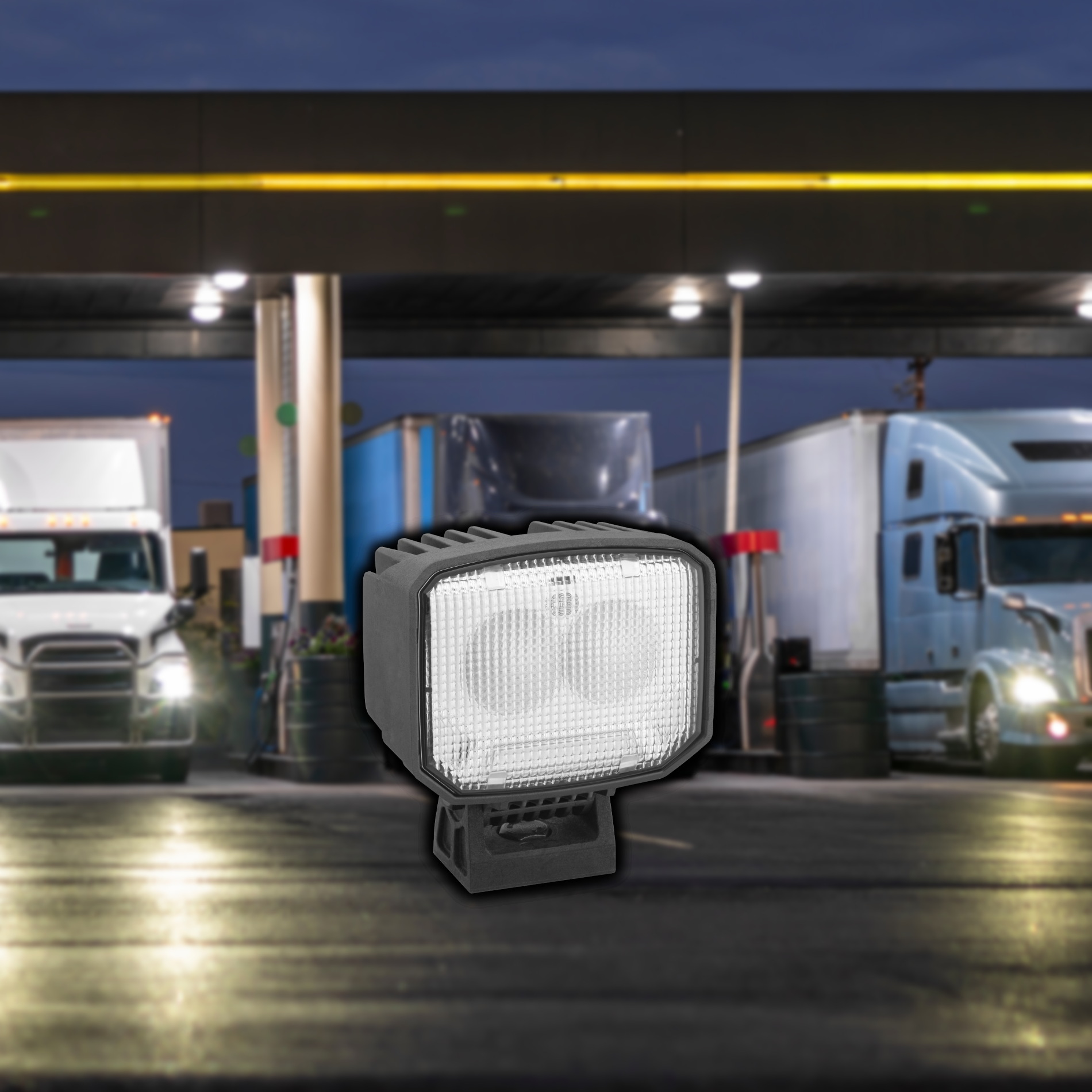

With 1,150 lumens, the Power Beam S-Series reversing light provides bright, daylight-like illumination of the work area – even in the dark. The intelligent thermal management system protects against overheating and makes it reliable in any situation.
- Halogen replacement series
- Longer lifetime and higher efficiency compared to halogen
- Low weight and high corrosion resistance
- ADR/GGVSEB certified for dangerous goods transports
Compact reverse lamp with thermal protection and powerful light output
The Power Beam S series delivers a powerful 1,150 lumens at 5,000 Kelvin for a clear view to the rear. The temperature remains within the optimum range thanks to automatic dimming from 50°C and an innovative cooling fin design. The rugged plastic housing reliably protects against water, dust and high-pressure cleaning. Ideal for demanding working environments with changing conditions.
Technical Sheet
Power Beam S Reverse
- 2ZR 996 588-501
- Theoretical luminous flux 1437 lm
- Voltage 12 V, 24 V
- Registration Type ADR/GGVS approved , ECE approved
- Prot.type (IP Code) IP6K7 , IP6K9K
- Plug Type DEUTSCH plug
- Light Distribution Ground Illumination
- fulfils ECE standard R10 , R148
- Luminous Flux 1150 lm
- Mounting Type mounting , Screw Connection
|
Power Beam S Reverse
|
|
|---|---|
| 2ZR 996 588-501 | |
| Theoretical luminous flux | 1437 lm |
| Voltage | 12 V, 24 V |
| Registration Type | ADR/GGVS approved , ECE approved |
| Prot.type (IP Code) | IP6K7 , IP6K9K |
| Plug Type | DEUTSCH plug |
| Light Distribution | Ground Illumination |
| fulfils ECE standard | R10 , R148 |
| Luminous Flux | 1150 lm |
| Mounting Type | mounting , Screw Connection |
| Fastening Type | Screw-on |
| Light Design | LED |
| Lamp Type | LED |
| Voltage from | 9 V |
| Voltage to | 32 V |
| Fitting Position | Rear Fitting |
| Length | 95 mm |
| Height | 126 mm |
| Width | 112 mm |
| Depth | 66 mm |
| Ø | 112 mm |
| Light Function | with reverse light (LED) |
| Number of light functions | 1 |
| Number of LEDs | 2 |
| Number of pins | 2 -pin connector |
| Housing Type | with housing |
| Housing material | Plastic |
| Housing Colour | black |
| Lens Colour | Crystal clear |
| Diffusing Lens Type | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) |
| Colour Temperature | 5000 K |
| Temperature range from | -40 °C |
| Temperature range to | +85 °C |
| Power consumption | 11,2 W |
| Weight | 398 g |
