Mini light bar

Truck

Mini light bar

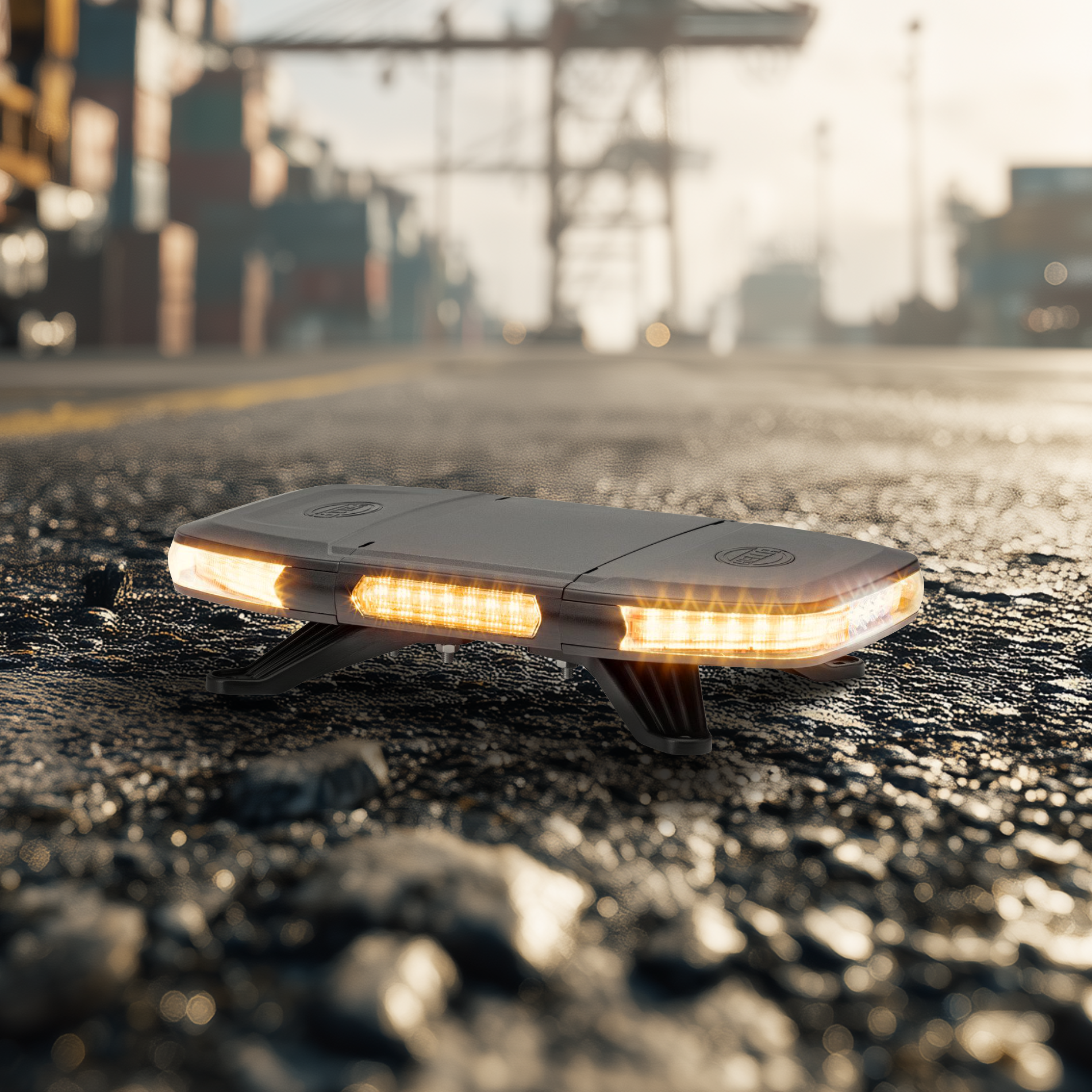

Powerful, compact and flexible in use: Mini light bar offers an eye-catching 360° LED warning signal with flashing or rotating light, impresses with its rugged design, durable technology and versatile installation options for a wide range of applications.

User-defined flashing patterns (flashing and rotating)
Polarity reversal protection
Optimally protected against strong vibrations

Technical details

Sound test

Ambient noise On Off

Search the web

Compact, 360° warning effect

Mini light bar uses an amber LED light to provide an intensive warning signal that is visible from all sides. Whether flashing or rotating – it attracts maximum attention at minimum design height. Thanks to its rugged finish, multi-voltage capability and flexible installation, it is ideal for an ample range of applications in commercial environments.

Technical Sheet

Mini Lightbar

2RL 014 565-001
Fitting Position frontal sided
Mounting Type Screw Connection
Lamp Type LED
Light Design LED
Length 400 mm
Width 218 mm
Height 45 mm
Depth 400 mm
Overall Height 49 mm

Registration Type ADR/GGVS approved , ECE approved

fulfils ECE standard R10 , R65 , TA1

Quantity 1

Lens Colour Crystal clear

LED colour yellow (amber)

Voltage 12 V, 24 V

fulfils SAE standard J845 Class 1

Housing material PC (Polycarbonate)

Fastening Type Horizontal fastening

Reverse polarity protection Yes

Temperature range from -40 °C

Temperature range to +65 °C

fulfils EMC/CISPR standard Class 3

Prot.type (IP Code) IPX9K , IPX4K , IP6X

Supplementary Article/Supplementary Info 2 Electromagnetic Compatibility (EMC)

Light Function with rotating warning signal , with flashing warning signal

Cable Length 3000 mm, 500 mm

SVHC 7439-92-1; Lead

Light colour yellow (amber)

Housing Colour black

Power consumption 70 W

Diffusing Lens Material PC (Polycarbonate)

Weight 1300 g

Search the web

	Mini Lightbar
	2RL 014 565-001
Fitting Position	frontal sided
Mounting Type	Screw Connection
Lamp Type	LED
Light Design	LED
Length	400 mm
Width	218 mm
Height	45 mm
Depth	400 mm
Overall Height	49 mm

Registration Type	ADR/GGVS approved , ECE approved
fulfils ECE standard	R10 , R65 , TA1
Quantity	1
Lens Colour	Crystal clear
LED colour	yellow (amber)
Voltage	12 V, 24 V
fulfils SAE standard	J845 Class 1
Housing material	PC (Polycarbonate)
Fastening Type	Horizontal fastening
Reverse polarity protection	Yes
Temperature range from	-40 °C
Temperature range to	+65 °C
fulfils EMC/CISPR standard	Class 3
Prot.type (IP Code)	IPX9K , IPX4K , IP6X
Supplementary Article/Supplementary Info 2	Electromagnetic Compatibility (EMC)
Light Function	with rotating warning signal , with flashing warning signal
Cable Length	3000 mm, 500 mm
SVHC	7439-92-1; Lead
Light colour	yellow (amber)
Housing Colour	black
Power consumption	70 W
Diffusing Lens Material	PC (Polycarbonate)
Weight	1300 g
