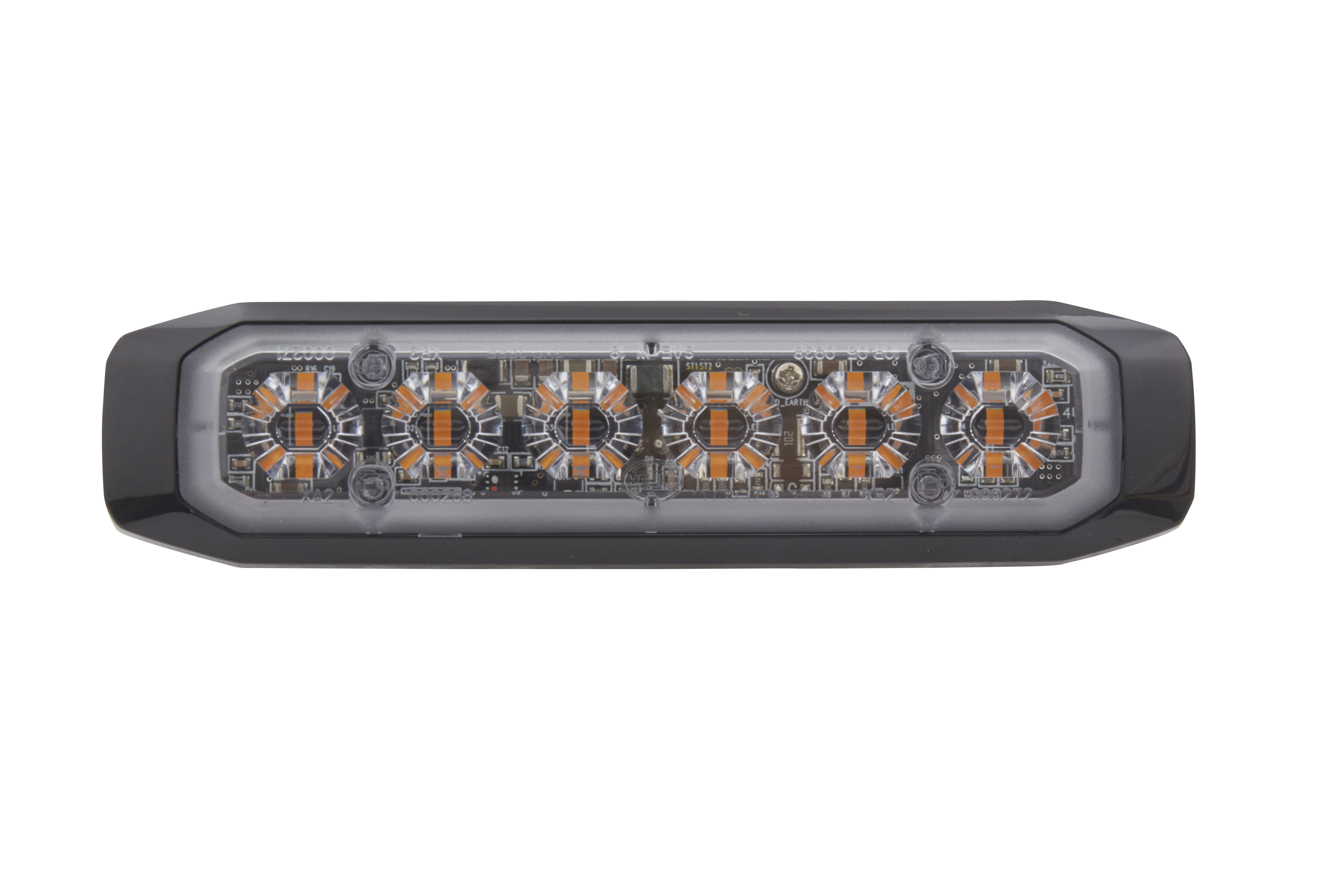

BST-Slim warning lamp

HELLA BST-Slim combines a particularly slim, only 12.8 mm high design with powerful LED technology. Manually adjust the brightness of the 6-LED version for optimum visibility, day and night. This makes the unit ideal for flexible and versatile installation options.

Multi-voltage function

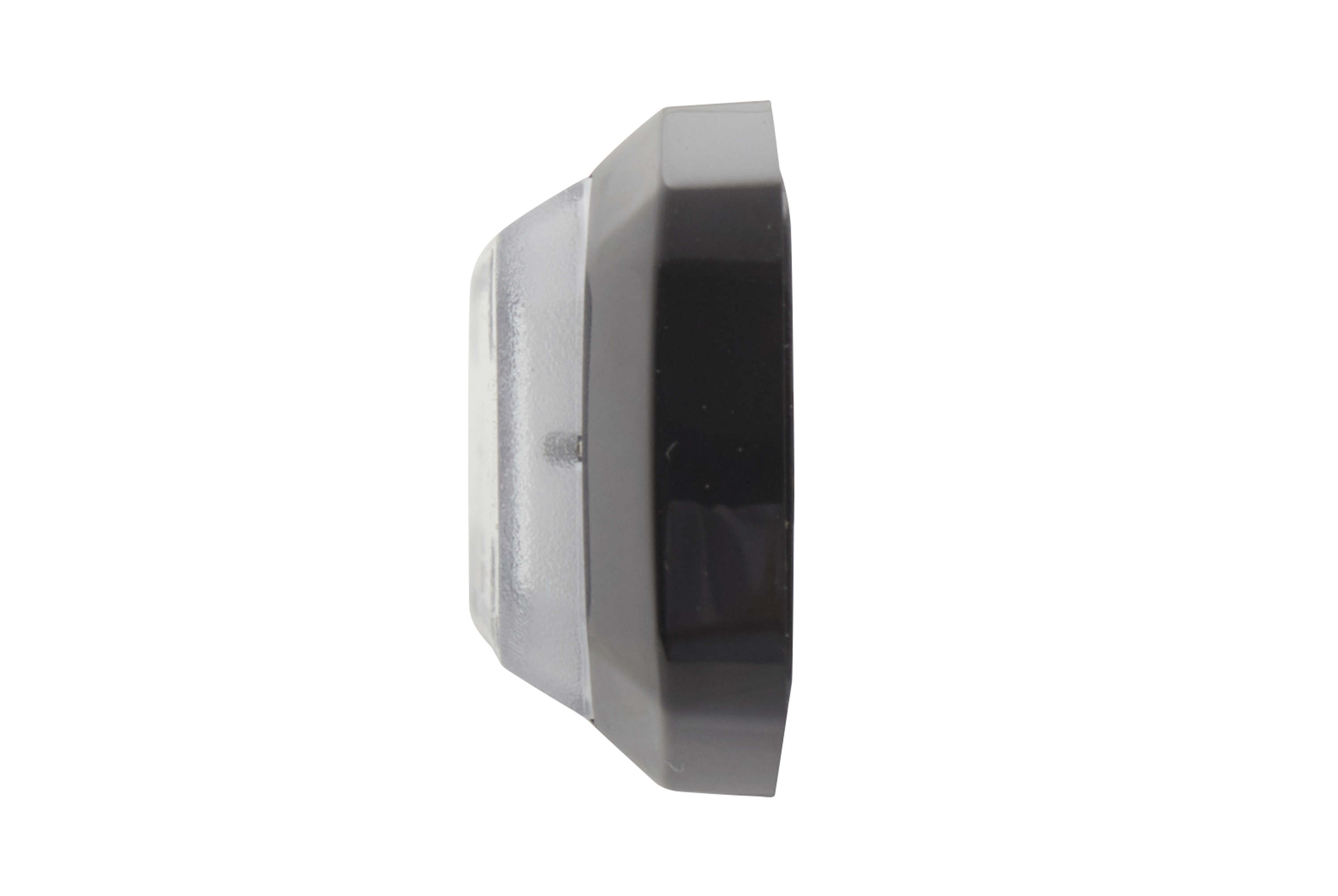

Only 12.8 mm high
Manual brightness adjustment: Switch between low and high brightness for day and night-time use

Technical details

Sound test

Ambient noise On Off

Search the web

Extra-slim warning lamp with powerful LED technology for flexible application

HELLA BST-Slim impresses with a height of just 12.8 mm and powerful, high-performance LEDs that generate an intense warning effect. Thanks to the 6-LED version you can adjust the brightness to day and night-time conditions using a manual switch. Five ECE-approved flashing patterns provide versatile signalling options. Its slim design enables flexible and easy installation.

Technical Sheet

BST-SLIM

2XD 014 562-201
Mounting Type Screw Connection
Light Design LED
Lamp Type LED
Voltage 12 V, 24 V
Length 132 mm
Height 32 mm
Width 132 mm
Depth 12,8 mm
Overall Height 12,8 mm

Fitting Position frontal sided

Light Function with flashing warning signal

Light colour yellow (amber)

Number of LEDs 6

Plug Type open cable ends

Supplementary Article/Supplementary Info 2 with control switch

Prot.type (IP Code) IPX7 , IPX9K

fulfils ECE standard R10 , R65 , XA2

SVHC 7439-92-1; Lead

fulfils SAE standard J845 Class 1

fulfils EMC/CISPR standard Class 5

Registration Type ECE approved , SAE approved , ADR/GGVS approved

Fastening Type for horizontal fastening

Housing material Aluminium

Power consumption 17 W

Diffusing Lens Material PC (Polycarbonate)

Housing Colour black

LED colour yellow (amber)

Lens Colour Crystal clear

Reverse polarity protection Yes

Temperature range from -40 °C

Temperature range to +80 °C

Cable Length 250 mm

Weight 76 g

Supplementary Article/Supplementary Info Observe the national mounting, install. and operat. regs.

Quantity 2

Special Purpose Vehicle for special-purpose vehicles
