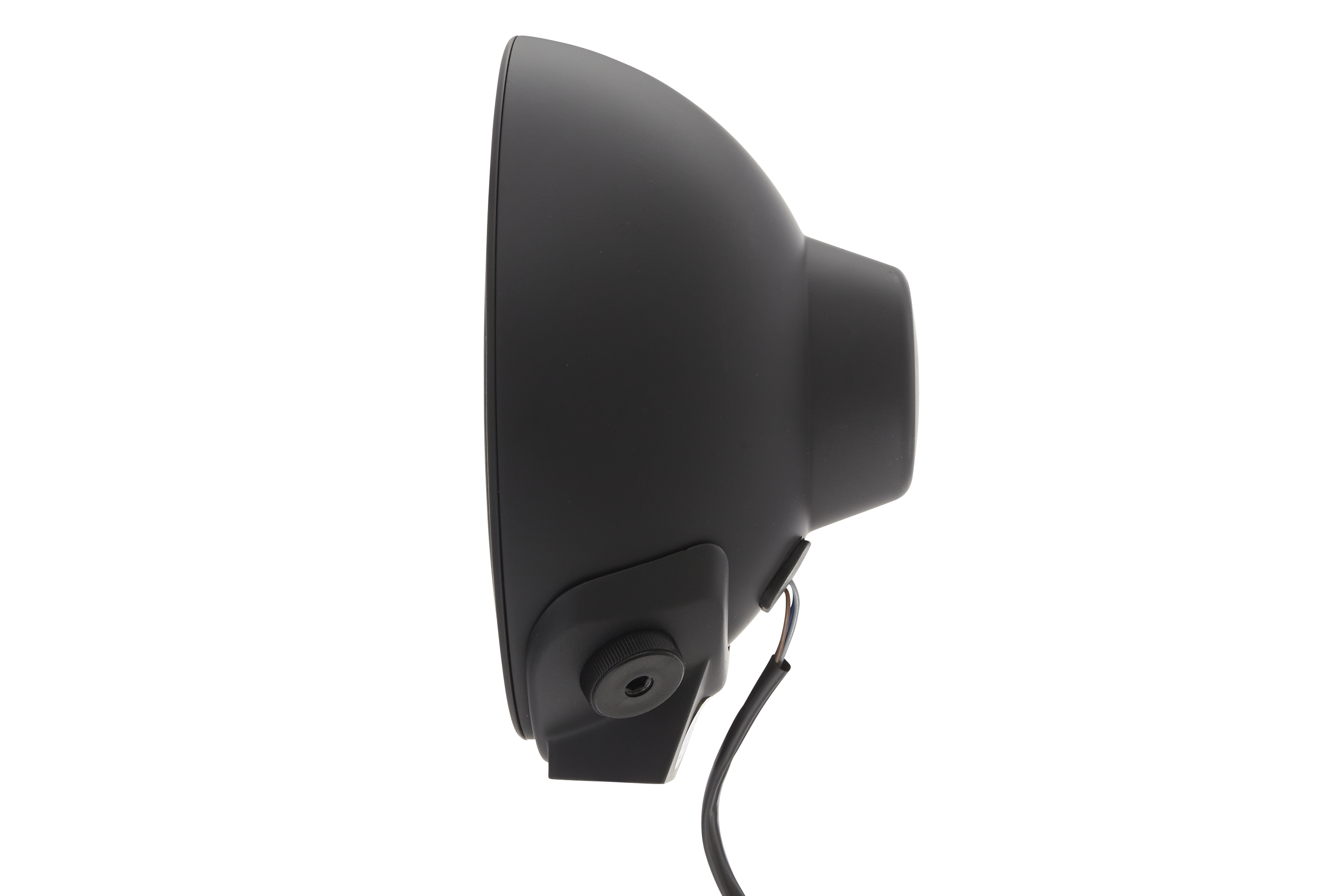

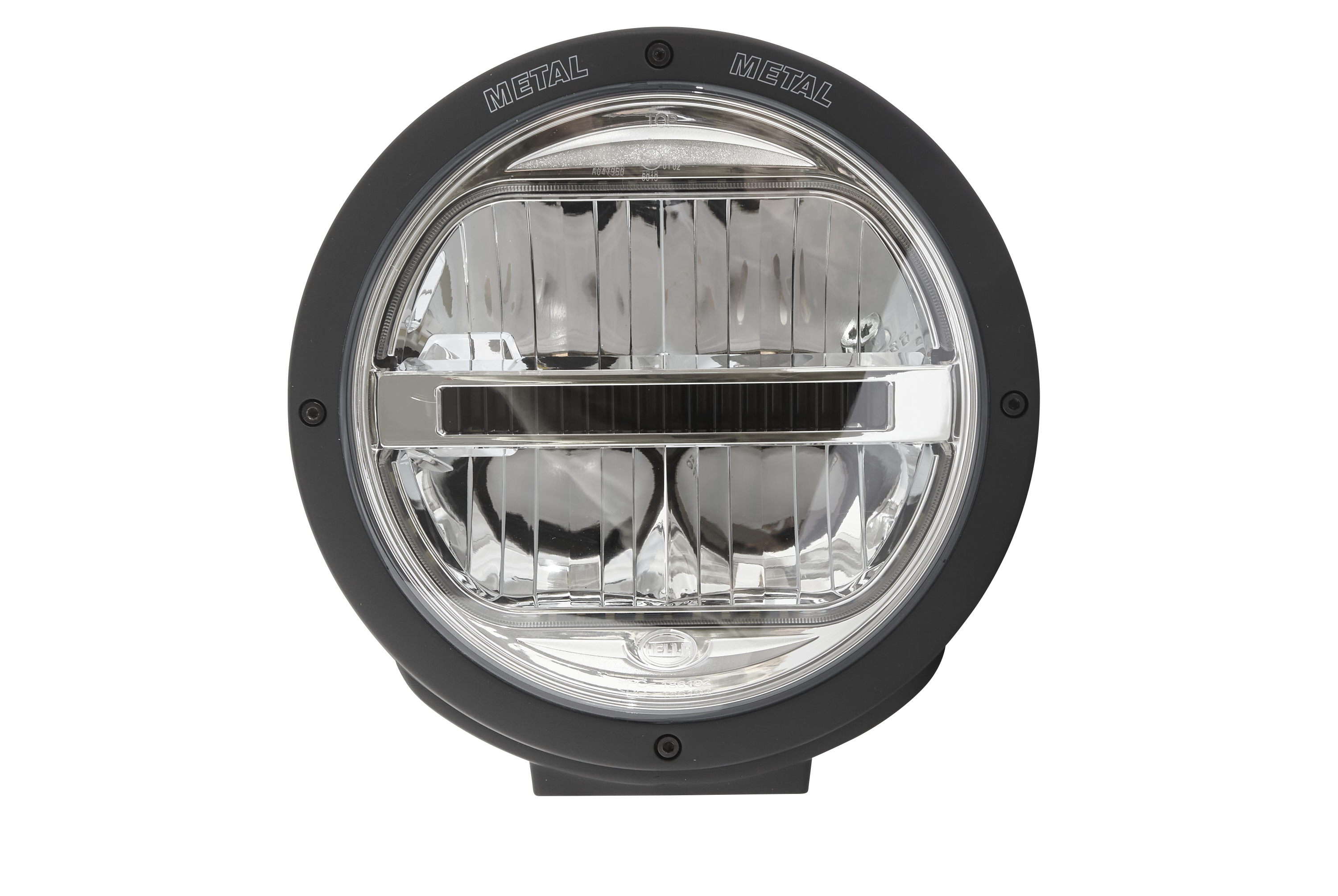

Luminator LED
Luminator LED
Luminator LED combines powerful high beam with an unmistakable night-time design. Innovative EdgeLight technology and clear, cool, white light ensure impressive visibility and a striking appearance – day and night.
- Rugged, solid metal headlamp with fastening bracket for precision adjustment.
- Vibration-resistant under extreme conditions.
- Characteristic, unmistakable light design.
Clear-cut design. Powerful technology. Impressive light performance.
With its striking hexagonal light pattern and brilliant LED technology, Luminator LED sets new standards in design and function. Its efficient cooling fin ensures optimum thermal management while the vibration-resistant, solid metal structure offers maximum stability – ideal for demanding applications.
Technical Sheet
Luminator LED
- 1F8 016 560-001
- Mounting Type Bolted
- Fastening Type Swivelling Mounting Bracket
- Light Design LED
- Lamp Type LED
- Light colour white
- Voltage 24 V, 12 V
- Fitting Position Left , Right
- Height 222 mm
- Overall Height 232 mm
|
Luminator LED
|
|
|---|---|
| 1F8 016 560-001 | |
| Mounting Type | Bolted |
| Fastening Type | Swivelling Mounting Bracket |
| Light Design | LED |
| Lamp Type | LED |
| Light colour | white |
| Voltage | 24 V, 12 V |
| Fitting Position | Left , Right |
| Height | 222 mm |
| Overall Height | 232 mm |
| Width | 222 mm |
| Depth | 131 mm |
| Fitting Depth | 90 mm |
| Length | 5 Inch |
| Light Function | with position light (LED) , with high beam (LED) |
| Number of light functions | 2 |
| fulfils ECE standard | R7 , R10 , R112 |
| Reference number | 25 |
| Cable Length | 800 mm |
| Housing Colour | black |
| Lens Colour | Crystal clear |
| Frame Colour | black |
| Shape | round |
| Number of LEDs | 5 |
| Diffusing Lens Type | Clear diffusing lens |
| Supplementary Article/Supplementary Info | with LED |
| SVHC | 7439-92-1; Lead |
| Prot.type (IP Code) | IP67 , IP69K |
| Registration Type | ECE approved |
| Power consumption | 1,3 W, 2,7 W, 8 W |
| Colour Temperature | 6000 K |
| Weight | 2681 g |
| Luminous Flux | 1050 lm |
| Housing material | Zinc Die Casting |
| Search the web | |
|
|
View light performance in ELIVER
The right light for any application – find the matching headlamp in ELIVER now.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperOur complete range in the HELLA online catalogue!
Can't find what you're looking for? Here's an online overview of all our universal products.
View online catalogueThis could also be of interest to you
Blade series
Compact auxiliary lamp with striking white or amber LED position light – for on and off-road use.

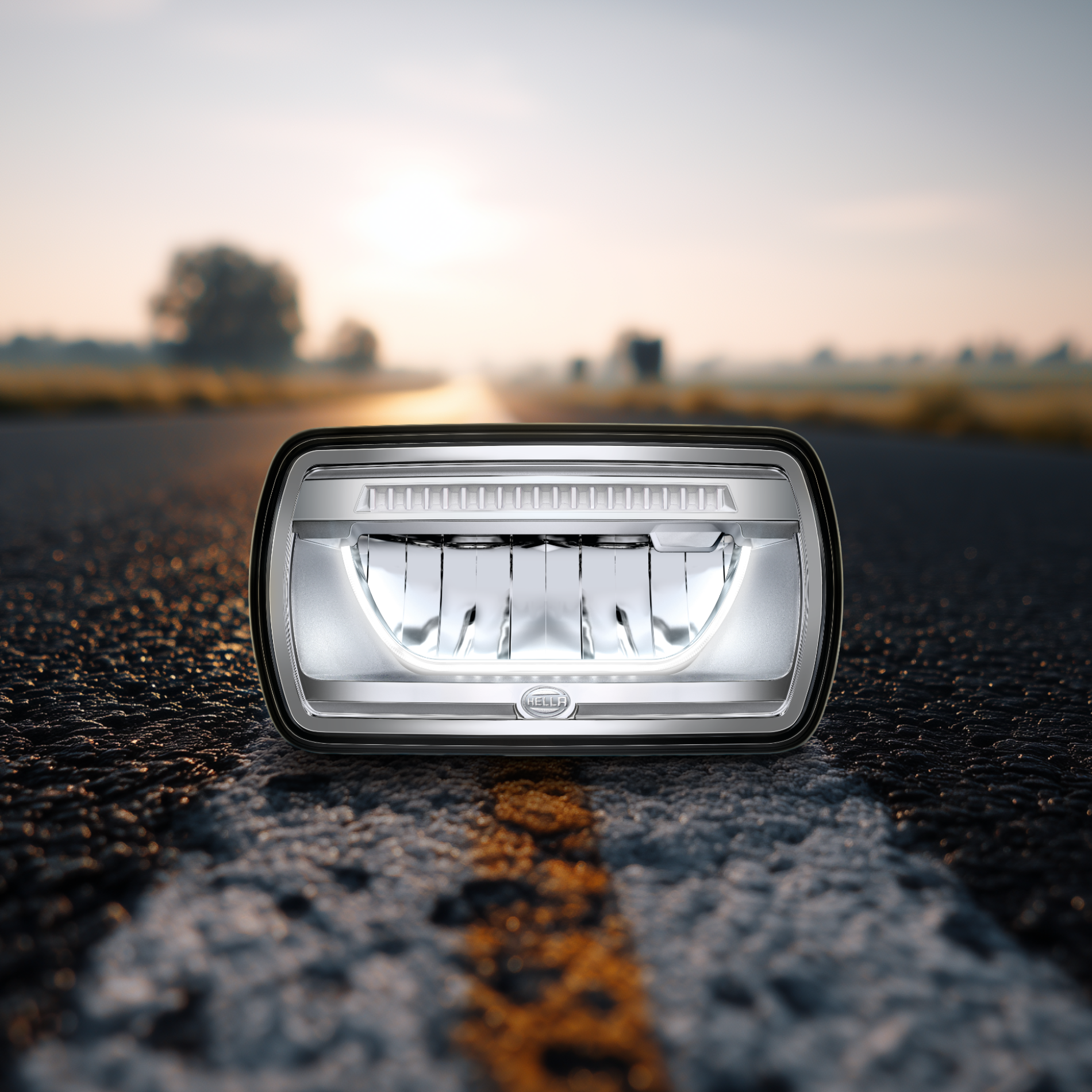

Jumbo LED
Jumbo LED combines a modern look with powerful LED performance – for a striking design and maximum visibility.

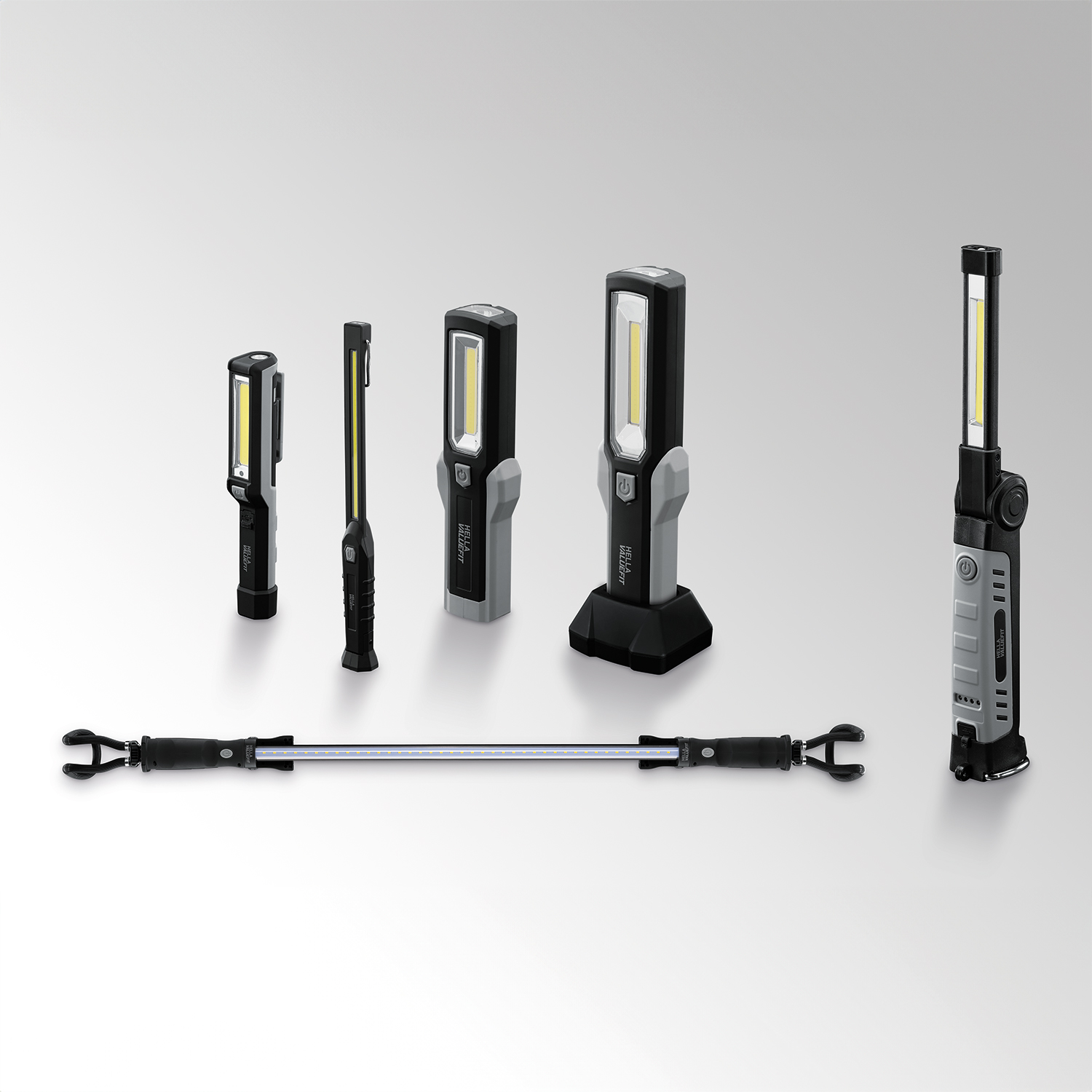

HELLA VALUEFIT hand lamps
