Combi 220
The HELLA C220 halogen combination headlamp impresses with reliable light functions such as low beam, high beam, position light and direction indicator light. The rugged housing made of glass-fibre reinforced plastic and the option of installing it on vertical surfaces make it versatile and durable in use.
- Combination headlamp for mounting
- Suitable for installation on vertical surfaces
- Integrated position light
Versatile halogen combination headlamp for flexible installation and optimum illumination
C220 combines H7 low beam, H3 high beam, position light and direction indicator light in a single headlamp. Its compact design means it can also be installed on vertical surfaces, guaranteeing versatile use. The hardened glass and the acidproof, glass-fibre reinforced plastic housing make it particularly rugged for demanding use.
Technical Sheet

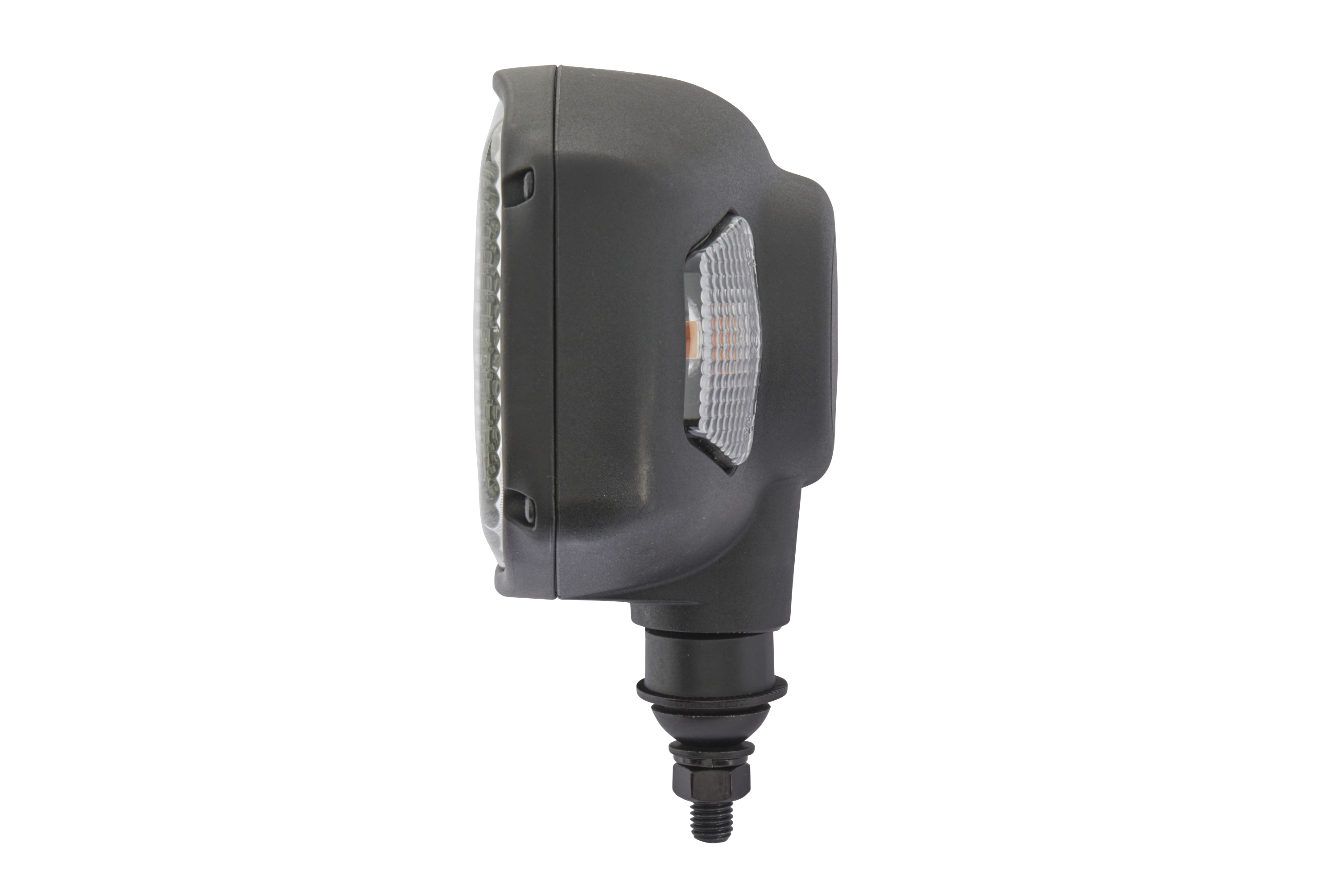

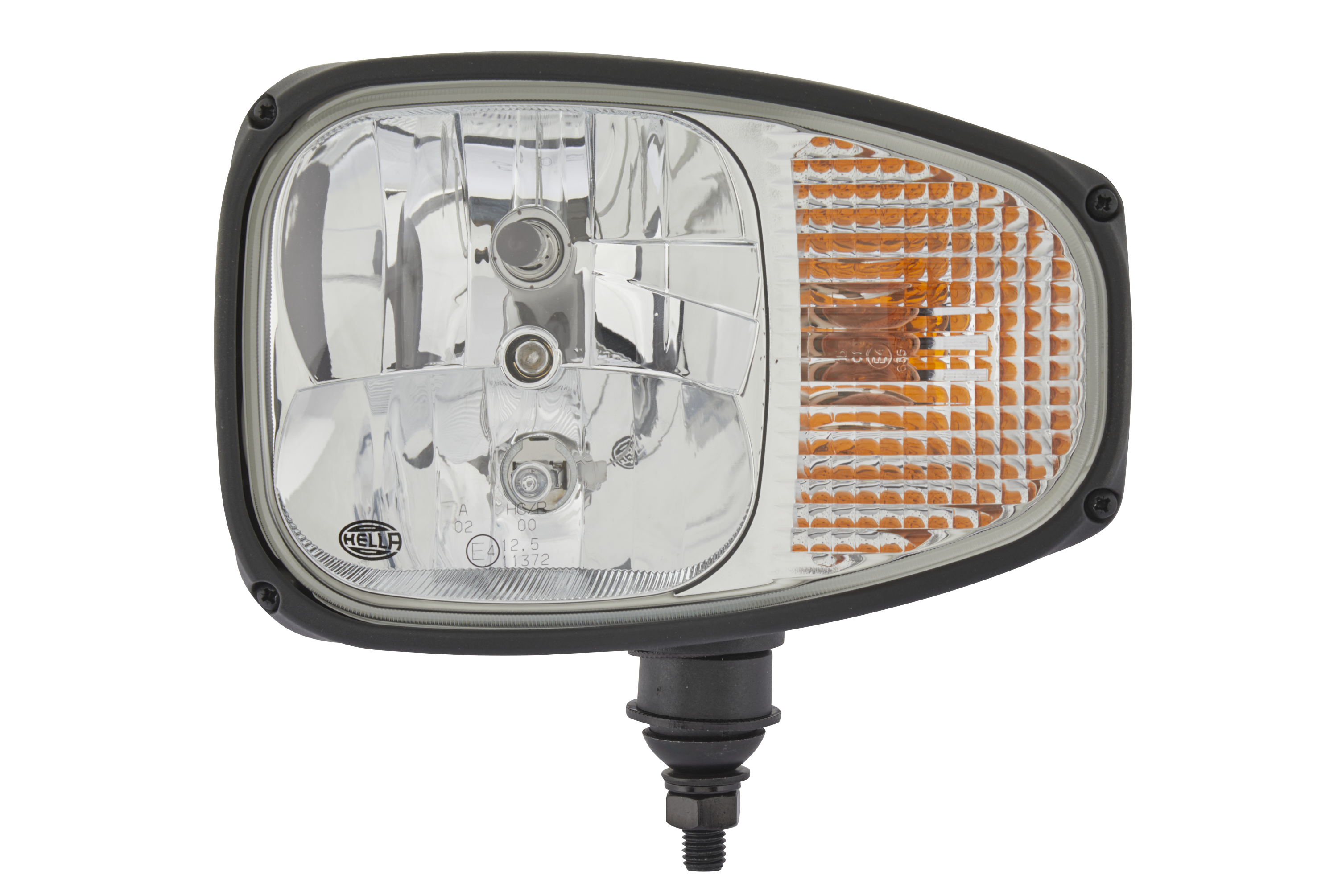

C220 left 12V
- 1EE 996 174-251
- Housing material PC (Polycarbonate)
- Voltage 12 V, 24 V
- Light Function with indicator , with position light , with high beam , with low beam
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Left
- Lamp Type PY21W , H7/H3 , T4W
Mounting Type
Bolted
Fastening Type
Screw-on
Light Design
Bulb Technology
Width
225 mm
Height
150 mm
Depth
101 mm
Number of light functions
4
Registration Type
ECE approved , SAE approved
Supplementary Article/Supplementary Info 2
without bulbs

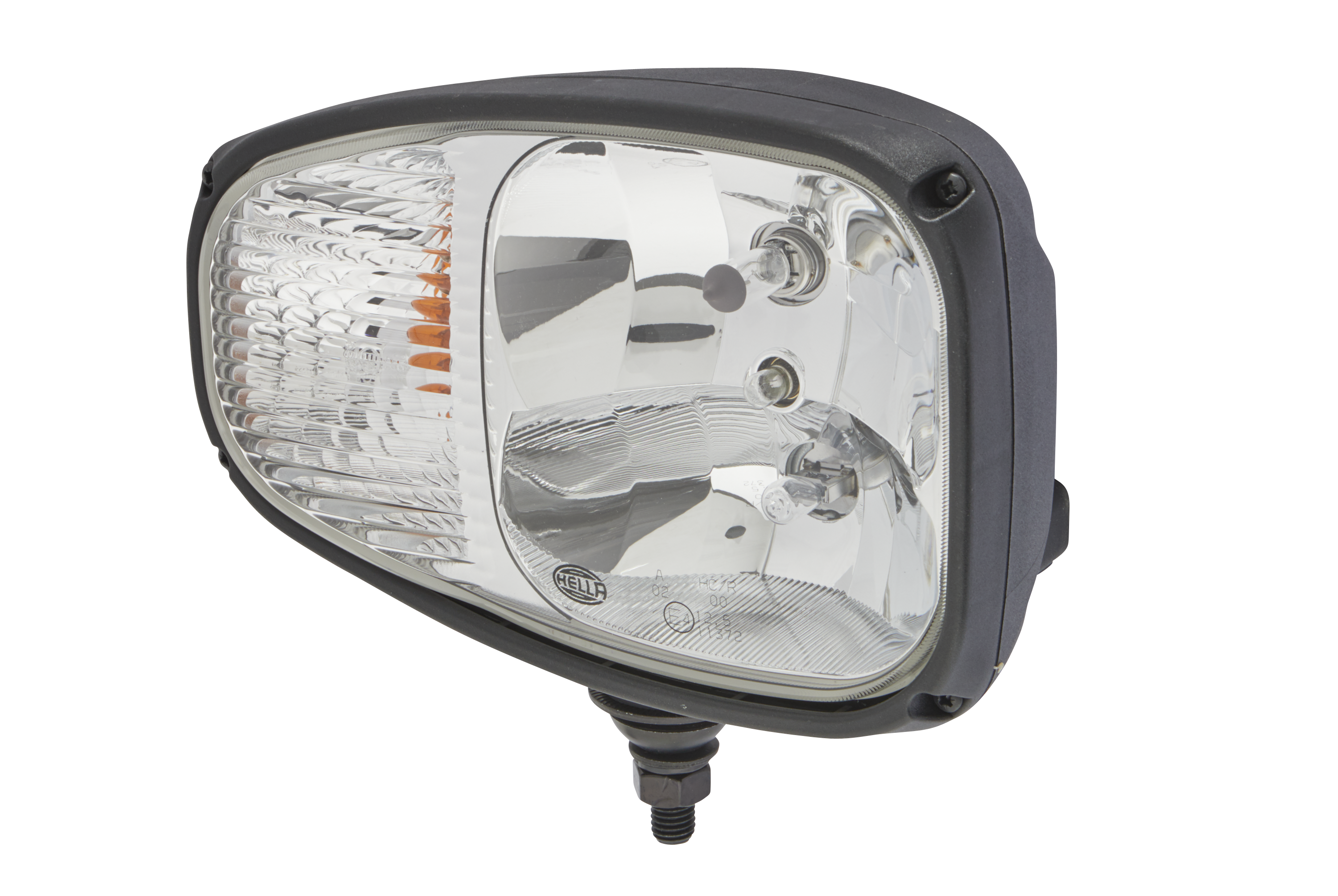

C220 right 12V
- 1EE 996 174-261
- Housing material PC (Polycarbonate)
- Voltage 12 V
- Light Function with low beam , with indicator , with high beam , with position light
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Right
- Lamp Type H7/H3 , T4W , PY21W
Mounting Type
mounting
Light Design
Bulb Technology
Width
225 mm
Height
150 mm
Depth
101 mm
Number of light functions
4
Registration Type
ECE approved , SAE approved
C220 left 24V
- 1EE 996 174-391
- Housing material PC (Polycarbonate)
- Voltage 12 V, 24 V
- Light Function with high beam , with low beam , with position light , with indicator
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Left
- Lamp Type PY21W , H3 , T4W , H7
Mounting Type
Bolted
Fastening Type
Screw-on
Light Design
Bulb Technology
Width
225 mm
Height
150 mm
Depth
101 mm
Number of light functions
4
Registration Type
ECE approved
Supplementary Article/Supplementary Info 2
with bulbs
C220 right 24V
- 1EE 996 174-401
- Housing material PC (Polycarbonate)
- Voltage 12 V, 24 V
- Light Function with position light , with low beam , with high beam , with indicator
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Right
- Lamp Type T4W , H3 , H7 , PY21W
Mounting Type
Bolted
Fastening Type
Screw-on
Light Design
Bulb Technology
Width
225 mm
Height
150 mm
Depth
101 mm
Number of light functions
4
Registration Type
ECE approved
Supplementary Article/Supplementary Info 2
with bulbs
|
C220 left 12V
|
C220 right 12V
|
C220 left 24V
|
C220 right 24V
|
|
|---|---|---|---|---|
| 1EE 996 174-251 | 1EE 996 174-261 | 1EE 996 174-391 | 1EE 996 174-401 | |
| Housing material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Voltage | 12 V, 24 V | 12 V | 12 V, 24 V | 12 V, 24 V |
| Light Function | with indicator , with position light , with high beam , with low beam | with low beam , with indicator , with high beam , with position light | with high beam , with low beam , with position light , with indicator | with position light , with low beam , with high beam , with indicator |
| Left-hand/Right-hand Traffic | for right-hand traffic | for right-hand traffic | for right-hand traffic | for right-hand traffic |
| Prot.type (IP Code) | IP6K9K | IP6K9K | IP6K9K | IP6K9K |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| fulfils ECE standard | R10 , R112 | R10 , R112 | R10 , R112 | R10 , R112 |
| Fitting Position | Left | Right | Left | Right |
| Lamp Type | PY21W , H7/H3 , T4W | H7/H3 , T4W , PY21W | PY21W , H3 , T4W , H7 | T4W , H3 , H7 , PY21W |
| Mounting Type | Bolted | mounting | Bolted | Bolted |
| Fastening Type | Screw-on | Screw-on | Screw-on | |
| Light Design | Bulb Technology | Bulb Technology | Bulb Technology | Bulb Technology |
| Width | 225 mm | 225 mm | 225 mm | 225 mm |
| Height | 150 mm | 150 mm | 150 mm | 150 mm |
| Depth | 101 mm | 101 mm | 101 mm | 101 mm |
| Number of light functions | 4 | 4 | 4 | 4 |
| Registration Type | ECE approved , SAE approved | ECE approved , SAE approved | ECE approved | ECE approved |
| Supplementary Article/Supplementary Info 2 | without bulbs | with bulbs | with bulbs | |
| Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
