C240

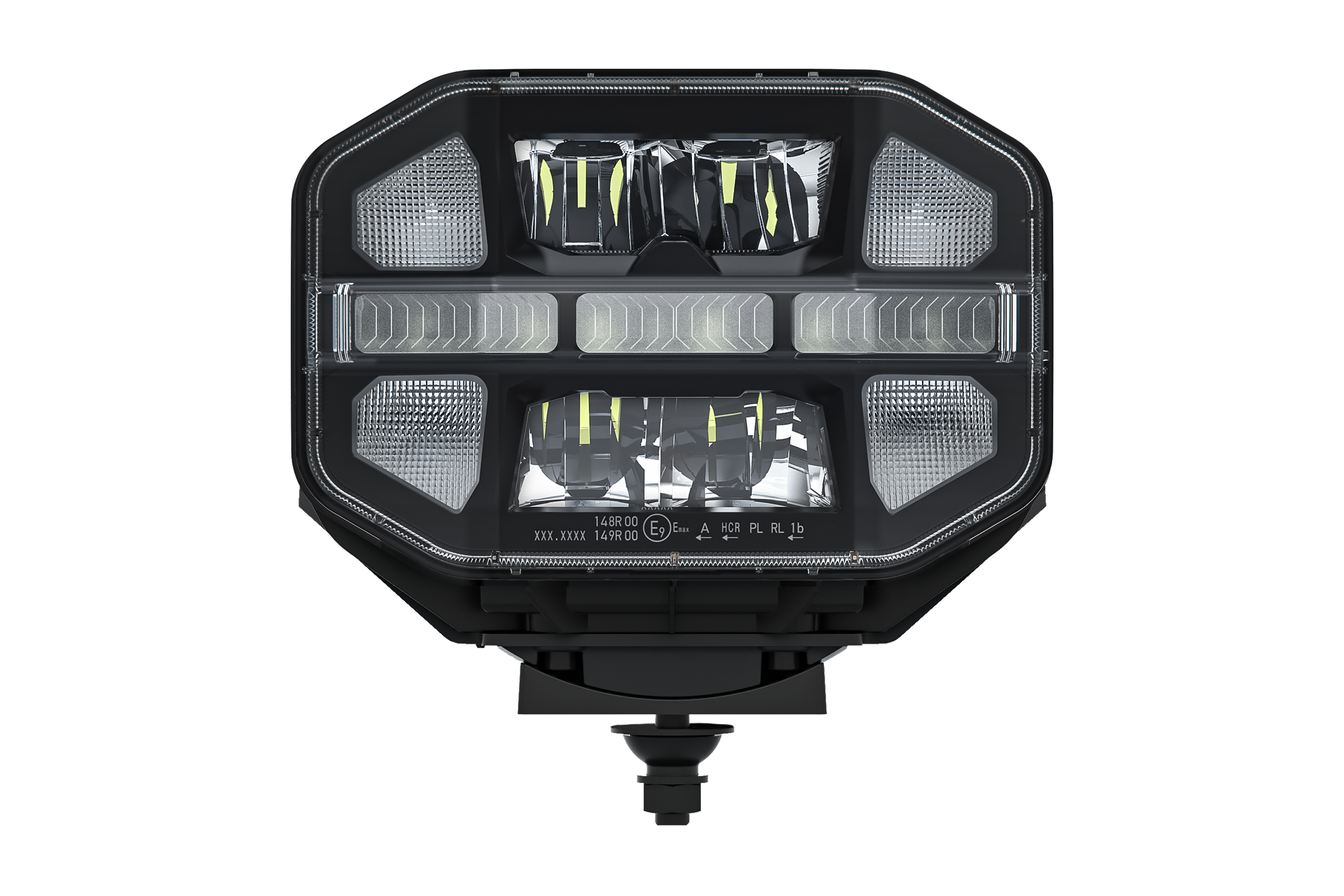

The HELLA C240 LED combination headlamp combines seven light functions in one rugged housing with effective heat dissipation, ensuring optimum visibility and a long lifetime – ideal for demanding applications.
- Combination headlamp with high beam, low beam, daytime running light, position light, front and rear direction indicator (cat. 5) with 100% LED design
- Homogeneous beam pattern with a sharp cut-off line for low beam
- Compliant component coating, corrosion protection and fuse protection ensure safer operation
- A thick aluminium heat sink with a large PCB surface ensures improved thermal management
Rugged and versatile – LED lighting technology for the highest demands
HELLA C240 impresses with state-of-the-art LED technology and a wide range of integrated light functions – from high beam to direction indicator. The rugged housing made of glass-fibre reinforced plastic and aluminium ensures optimum durability. Thermal management with temperature sensors protects against overheating, while the shatterproof cover lens withstands vibrations and impacts.
Technical Sheet
C240 left
- 1EF 328 550-231
- Housing material PBT
- Voltage 12 V, 24 V
- Light Function with high beam (LED) , with low beam (LED) , with position light (LED) , with indicator (LED)
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R149 , R148 , R10
- Fitting Position Left
- Lamp Type LED
Mounting Type
Bolted
Fastening Type
Vertical fastening
Supplementary Article/Supplementary Info 2
with direction indicator failure control
Version
with side DI
Light Design
Asymmetric
Registration Type
ECE approved
Temperature range from
-40 °C
Temperature range to
+50 °C
Number of pins
6 -pin connector
Height
252 mm
Width
245 mm
Depth
141 mm
Reverse polarity protection
Yes
paired article number
1EF 328 550-241
Lens Colour
transparent
Housing Colour
black
Diffusing Lens Material
Plastic
Number of light functions
4
C240 right
- 1EF 328 550-241
- Housing material PBT
- Voltage 12 V, 24 V
- Light Function with high beam (LED) , with low beam (LED) , with position light (LED) , with indicator (LED)
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R149 , R148 , R10
- Fitting Position Right
- Lamp Type LED
Mounting Type
Bolted
Fastening Type
Vertical fastening
Supplementary Article/Supplementary Info 2
with direction indicator failure control
Version
with side DI
Light Design
Asymmetric
Registration Type
ECE approved
Temperature range from
-40 °C
Temperature range to
+50 °C
Number of pins
6 -pin connector
Height
252 mm
Width
245 mm
Depth
141 mm
Reverse polarity protection
Yes
paired article number
1EF 328 550-231
Lens Colour
transparent
Housing Colour
black
Diffusing Lens Material
Plastic
Number of light functions
4
|
C240 left
|
C240 right
|
|
|---|---|---|
| 1EF 328 550-231 | 1EF 328 550-241 | |
| Housing material | PBT | PBT |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Light Function | with high beam (LED) , with low beam (LED) , with position light (LED) , with indicator (LED) | with high beam (LED) , with low beam (LED) , with position light (LED) , with indicator (LED) |
| Left-hand/Right-hand Traffic | for right-hand traffic | for right-hand traffic |
| Prot.type (IP Code) | IP6K9K | IP6K9K |
| Plug Type | DEUTSCH plug | DEUTSCH plug |
| fulfils ECE standard | R149 , R148 , R10 | R149 , R148 , R10 |
| Fitting Position | Left | Right |
| Lamp Type | LED | LED |
| Mounting Type | Bolted | Bolted |
| Fastening Type | Vertical fastening | Vertical fastening |
| Supplementary Article/Supplementary Info 2 | with direction indicator failure control | with direction indicator failure control |
| Version | with side DI | with side DI |
| Light Design | Asymmetric | Asymmetric |
| Registration Type | ECE approved | ECE approved |
| Temperature range from | -40 °C | -40 °C |
| Temperature range to | +50 °C | +50 °C |
| Number of pins | 6 -pin connector | 6 -pin connector |
| Height | 252 mm | 252 mm |
| Width | 245 mm | 245 mm |
| Depth | 141 mm | 141 mm |
| Reverse polarity protection | Yes | Yes |
| paired article number | 1EF 328 550-241 | 1EF 328 550-231 |
| Lens Colour | transparent | transparent |
| Housing Colour | black | black |
| Diffusing Lens Material | Plastic | Plastic |
| Number of light functions | 4 | 4 |
