C140 LED Innovation
C140 LED combines all the main light functions in 100 % LED technology and provides powerful, daylight-like light. Developed for extreme conditions, the unit impresses with its long service life, maintenance-free operation and rugged design.
- Combination headlamp in 100% LED technology
- Excellent light distribution
- For extreme and highly demanding applications
Full LED power for maximum continuous output
C140 LED is the first main headlamp of its kind with fully integrated LED technology for low beam, high beam, direction indicator and position light. The powerful light output in a daylight-like colour ensures fatigue-free work. The rugged housing with integrated thermal concept reliably protects from overheating and vibrations.
Technical Sheet

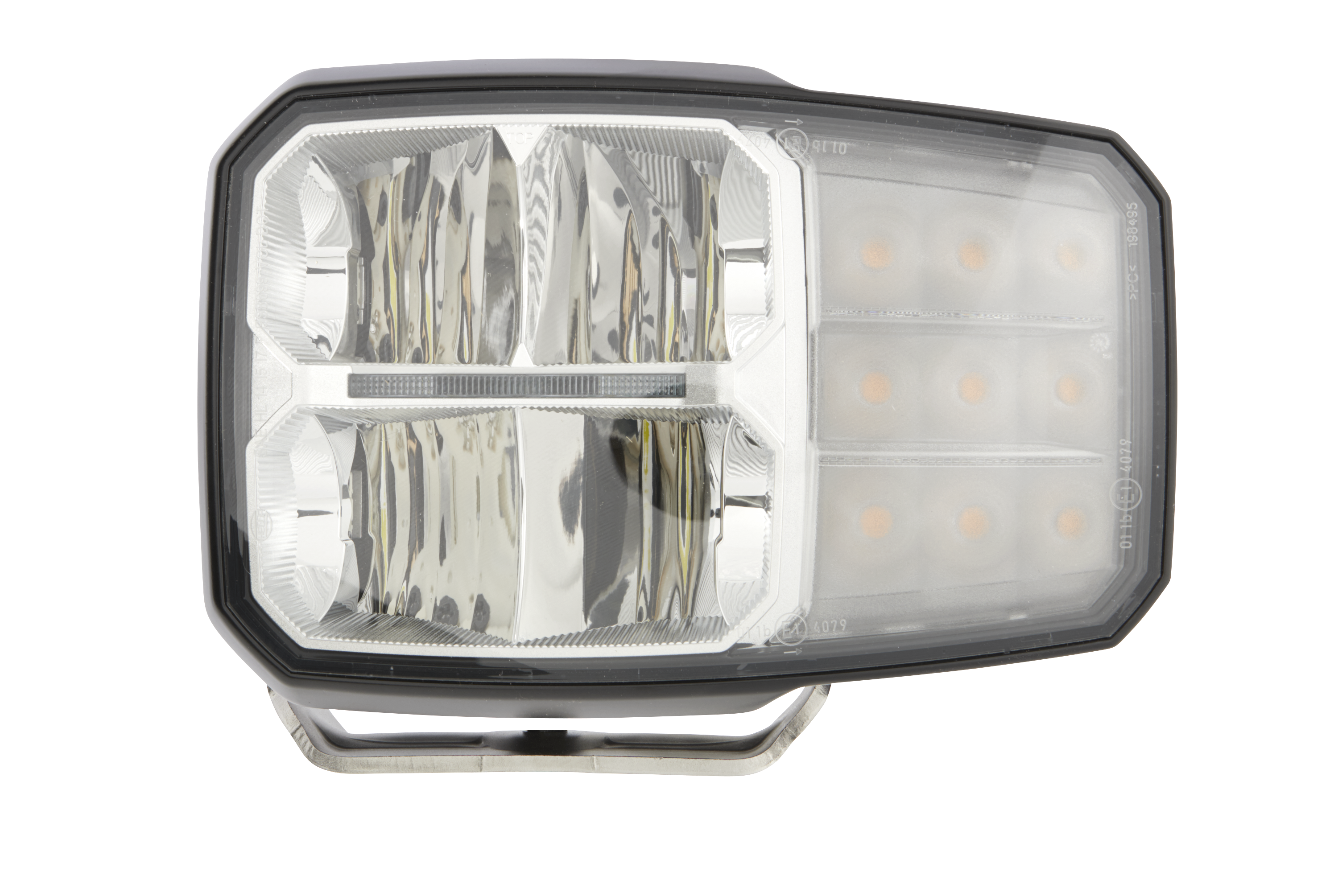

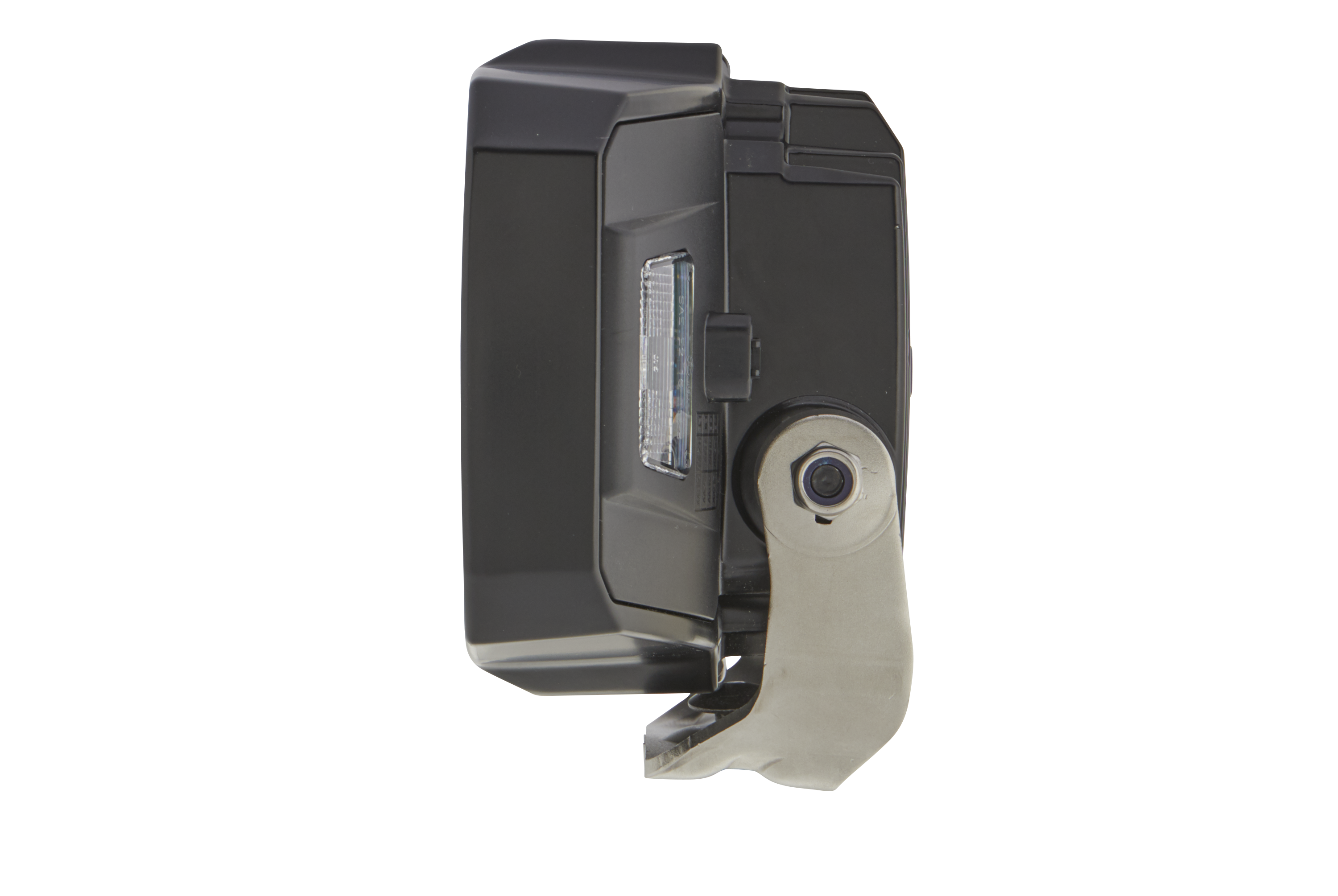

C140 left
- 1EE 996 374-011
- Housing material Aluminium
- Voltage 24 V, 12 V
- Light Function with indicator , with low beam , with high beam , with position light
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Left
- Lamp Type LED
Mounting Type
mounting
Fastening Type
Horizontal fastening
Light Design
LED
Width
248 mm
Height
167 mm
Depth
114 mm
Number of light functions
4
Registration Type
SAE approved , ECE approved
Housing Colour
black
Connector type
DEUTSCH
Diffusing Lens Material
Plastic
Lens Colour
transparent

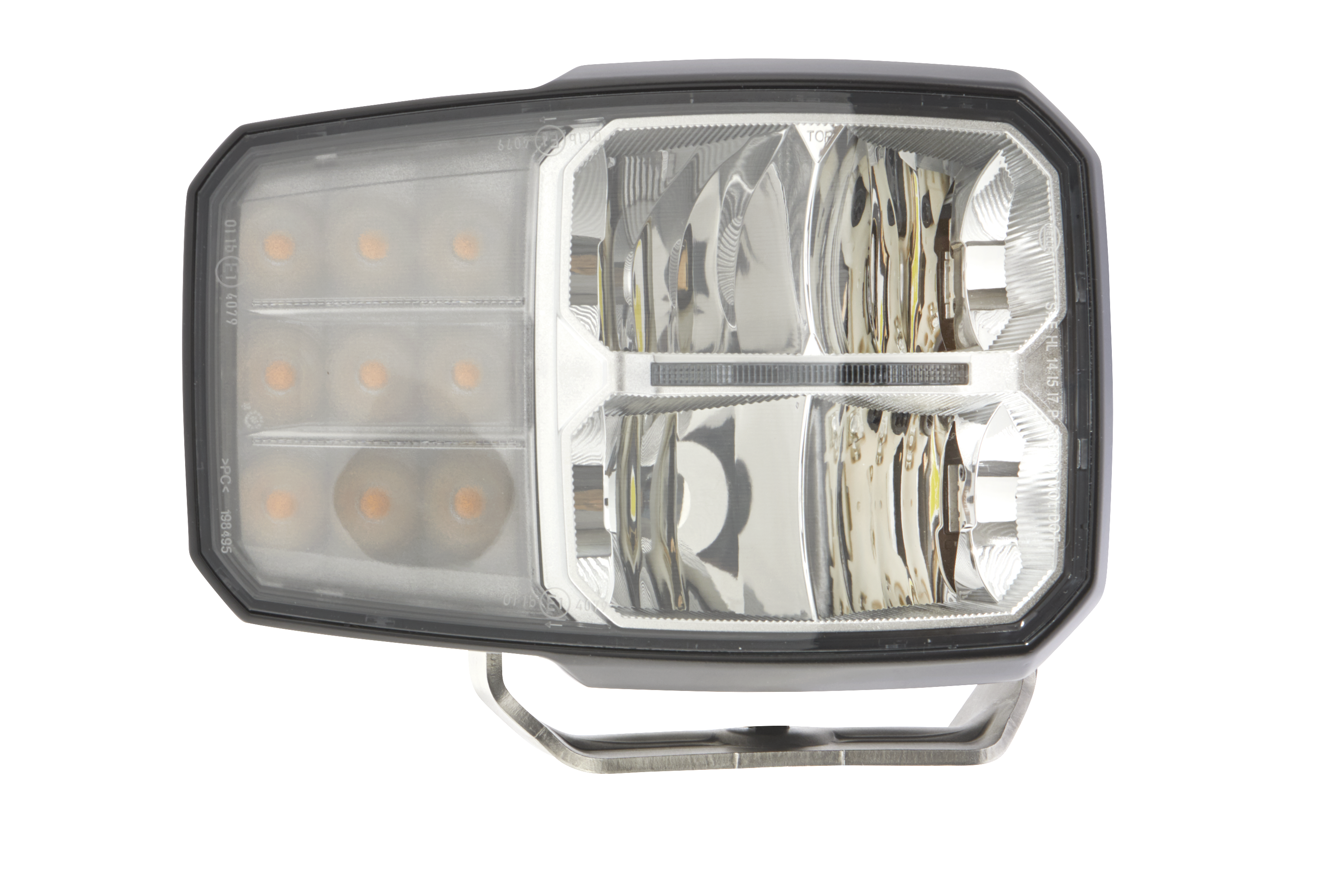

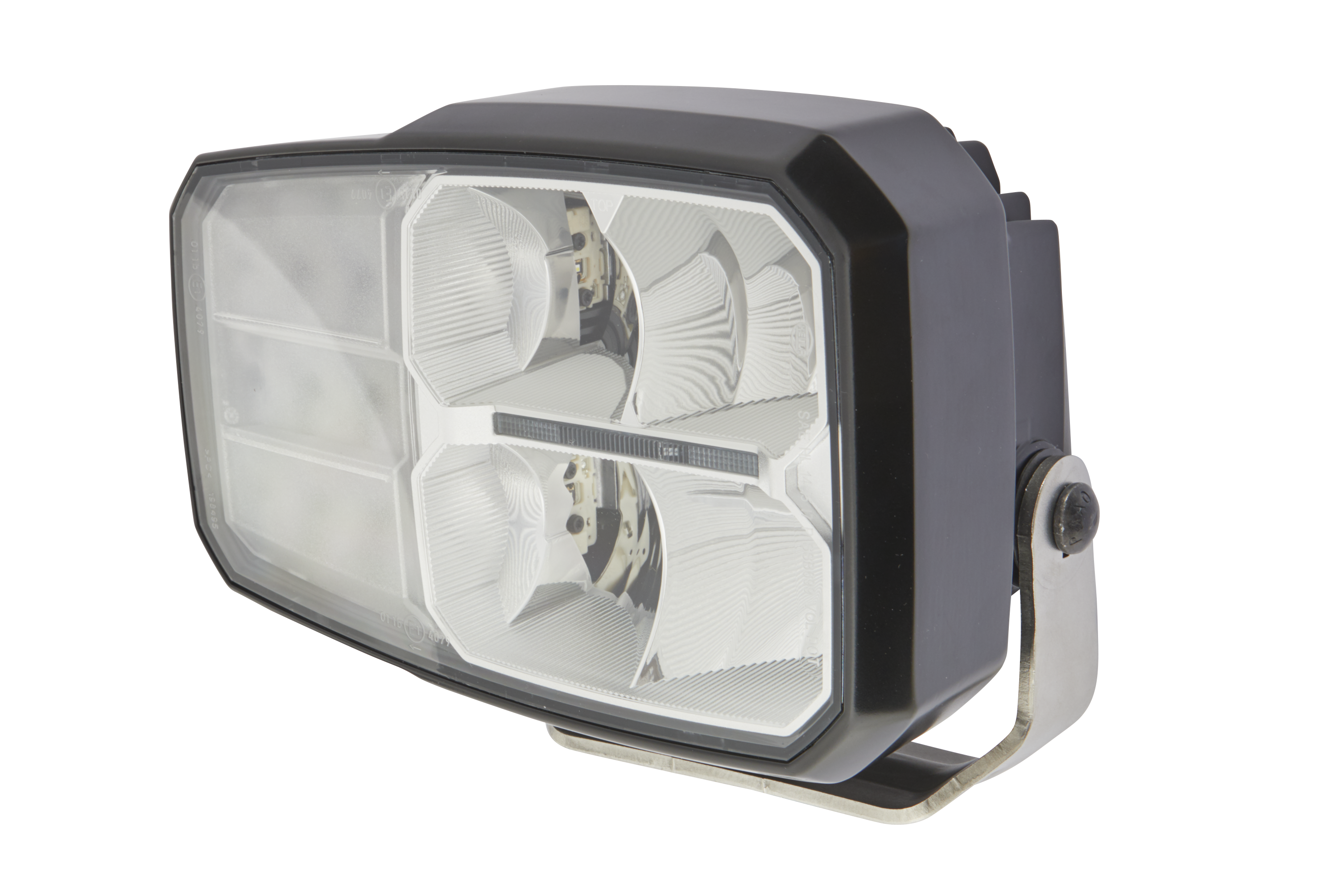

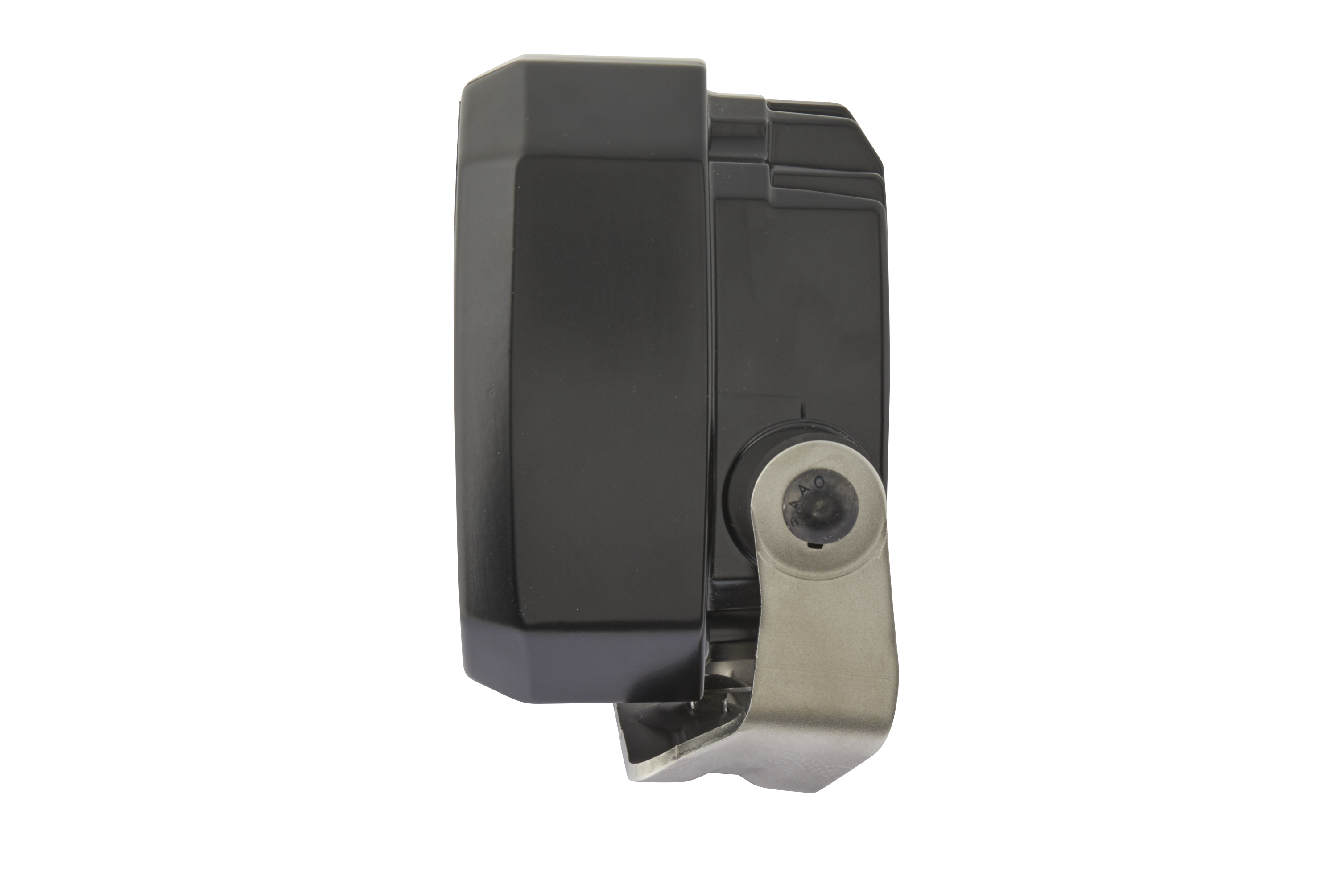

C140 right
- 1EE 996 374-021
- Housing material Aluminium
- Voltage 24 V, 12 V
- Light Function with indicator , with low beam , with high beam , with position light
- Left-hand/Right-hand Traffic for right-hand traffic
- Prot.type (IP Code) IP6K9K
- Plug Type DEUTSCH plug
- fulfils ECE standard R10 , R112
- Fitting Position Right
- Lamp Type LED
Mounting Type
mounting
Fastening Type
Horizontal fastening
Light Design
LED
Width
248 mm
Height
167 mm
Depth
114 mm
Number of light functions
4
Registration Type
ECE approved , SAE approved
Housing Colour
black
Diffusing Lens Material
Plastic
Lens Colour
transparent
|
C140 left
|
C140 right
|
|
|---|---|---|
| 1EE 996 374-011 | 1EE 996 374-021 | |
| Housing material | Aluminium | Aluminium |
| Voltage | 24 V, 12 V | 24 V, 12 V |
| Light Function | with indicator , with low beam , with high beam , with position light | with indicator , with low beam , with high beam , with position light |
| Left-hand/Right-hand Traffic | for right-hand traffic | for right-hand traffic |
| Prot.type (IP Code) | IP6K9K | IP6K9K |
| Plug Type | DEUTSCH plug | DEUTSCH plug |
| fulfils ECE standard | R10 , R112 | R10 , R112 |
| Fitting Position | Left | Right |
| Lamp Type | LED | LED |
| Mounting Type | mounting | mounting |
| Fastening Type | Horizontal fastening | Horizontal fastening |
| Light Design | LED | LED |
| Width | 248 mm | 248 mm |
| Height | 167 mm | 167 mm |
| Depth | 114 mm | 114 mm |
| Number of light functions | 4 | 4 |
| Registration Type | SAE approved , ECE approved | ECE approved , SAE approved |
| Housing Colour | black | black |
| Connector type | DEUTSCH | |
| Diffusing Lens Material | Plastic | Plastic |
| Lens Colour | transparent | transparent |
