Floodlight
The highest light output for the toughest requirements: The HELLA Floodlight ensures optimum visibility, even in demanding environments with high, large-area lighting requirements, such as in mining on conveyor belts, high masts or in workshops. Depending on the variant, the LED work lamp produces an extremely high light output of 32,500 lumens, 65,000 lumens or even an outstanding 97,500 lumens, with a power consumption of 250 watts, 500 watts or 750 watts.
The premium die-cast aluminium housing is robust, corrosion-protected and dimensionally stable. LED technology ensures low current consumption and a longer lifetime compared to conventional metal halide lamps. Therefore, the floodlight contributes towards reducing CO2 and helps to protect the environment.
The light colour similar to daylight in combination with the specially developed colour temperature of 5,700 Kelvin ensures optimised, homogeneous illumination. In this way, the work lamps increase alertness, work performance and safety in mining.
The highest light output for the toughest requirements: The HELLA Floodlight ensures optimum visibility, even in demanding environments with high, large-area lighting requirements, such as in mining on conveyor belts, high masts or in workshops. Depending on the variant, the LED work lamp produces an extremely high light output of 32,500 lumens, 65,000 lumens or even an outstanding 97,500 lumens, with a power consumption of 250 watts, 500 watts or 750 watts.
The premium die-cast aluminium housing is robust, corrosion-protected and dimensionally stable. LED technology ensures low current consumption and a longer lifetime compared to conventional metal halide lamps. Therefore, the floodlight contributes towards reducing CO2 and helps to protect the environment.
The light colour similar to daylight in combination with the specially developed colour temperature of 5,700 Kelvin ensures optimised, homogeneous illumination. In this way, the work lamps increase alertness, work performance and safety in mining.

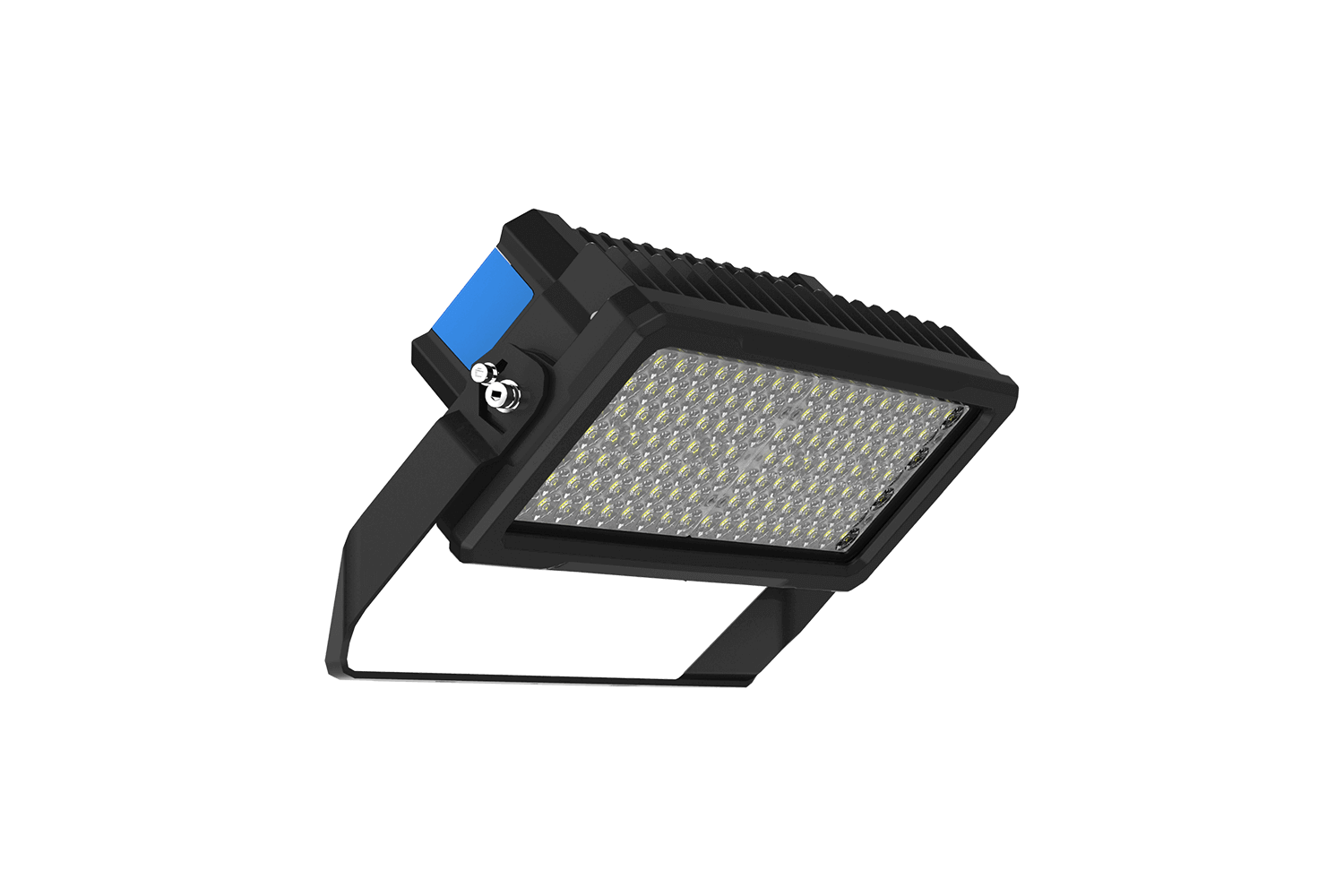

The picture shows the 250 W variant of the Floodlight.

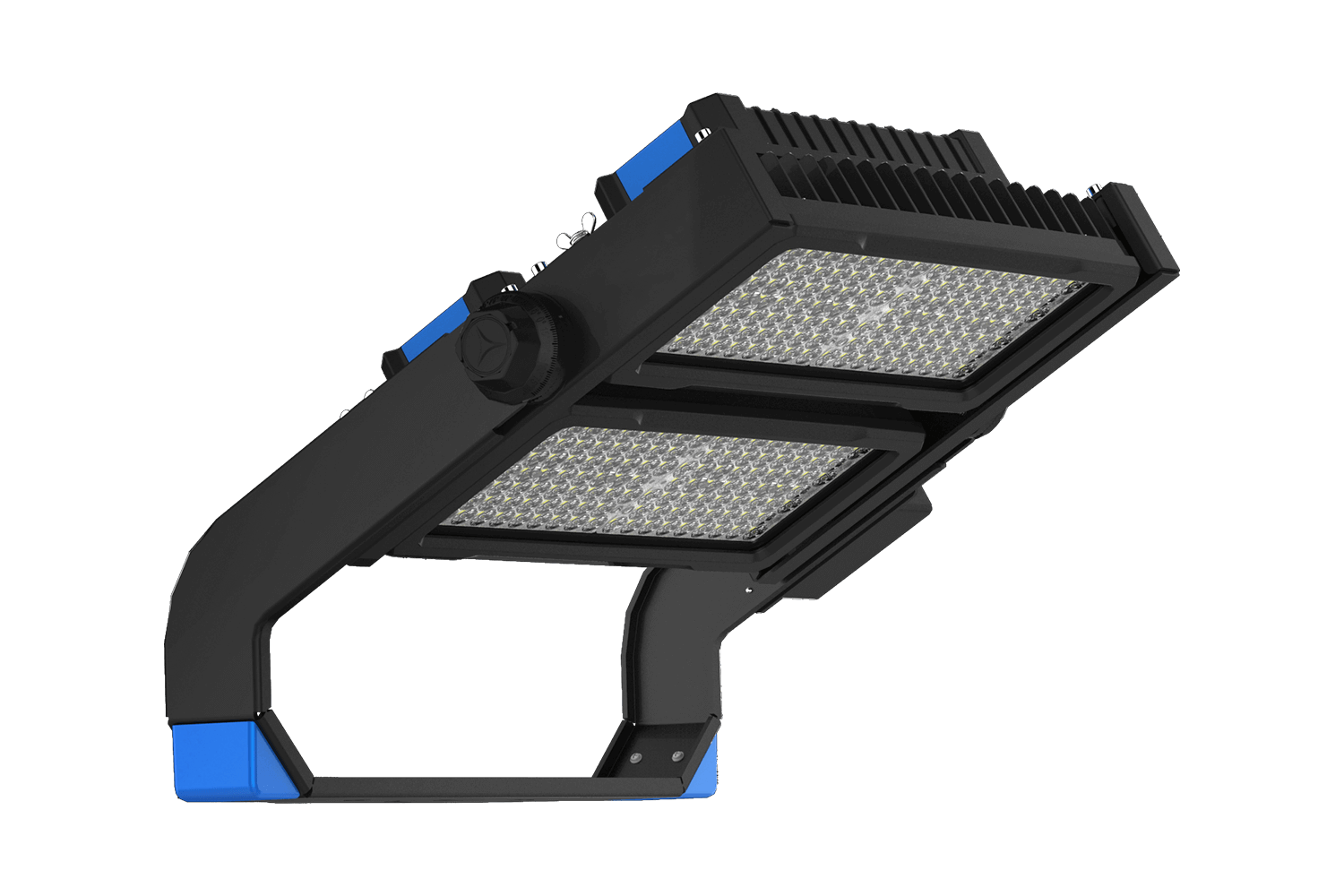

The picture shows the 500 W variant of the Floodlight.

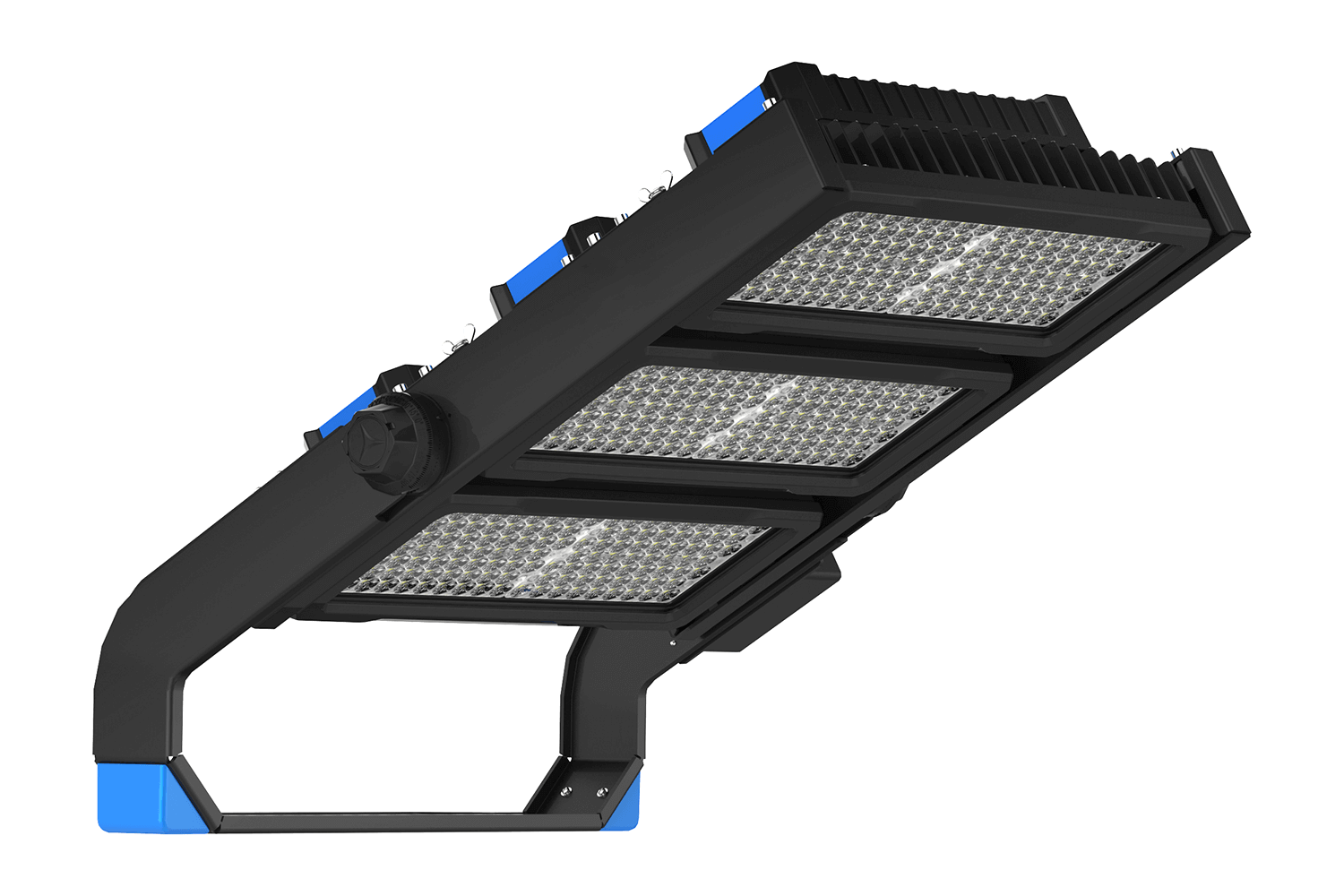

The picture shows the 750 W variant of the Floodlight.
The dimensional sketch of the Floodlight 250 W.
The dimensional sketch of the Floodlight 500 W.

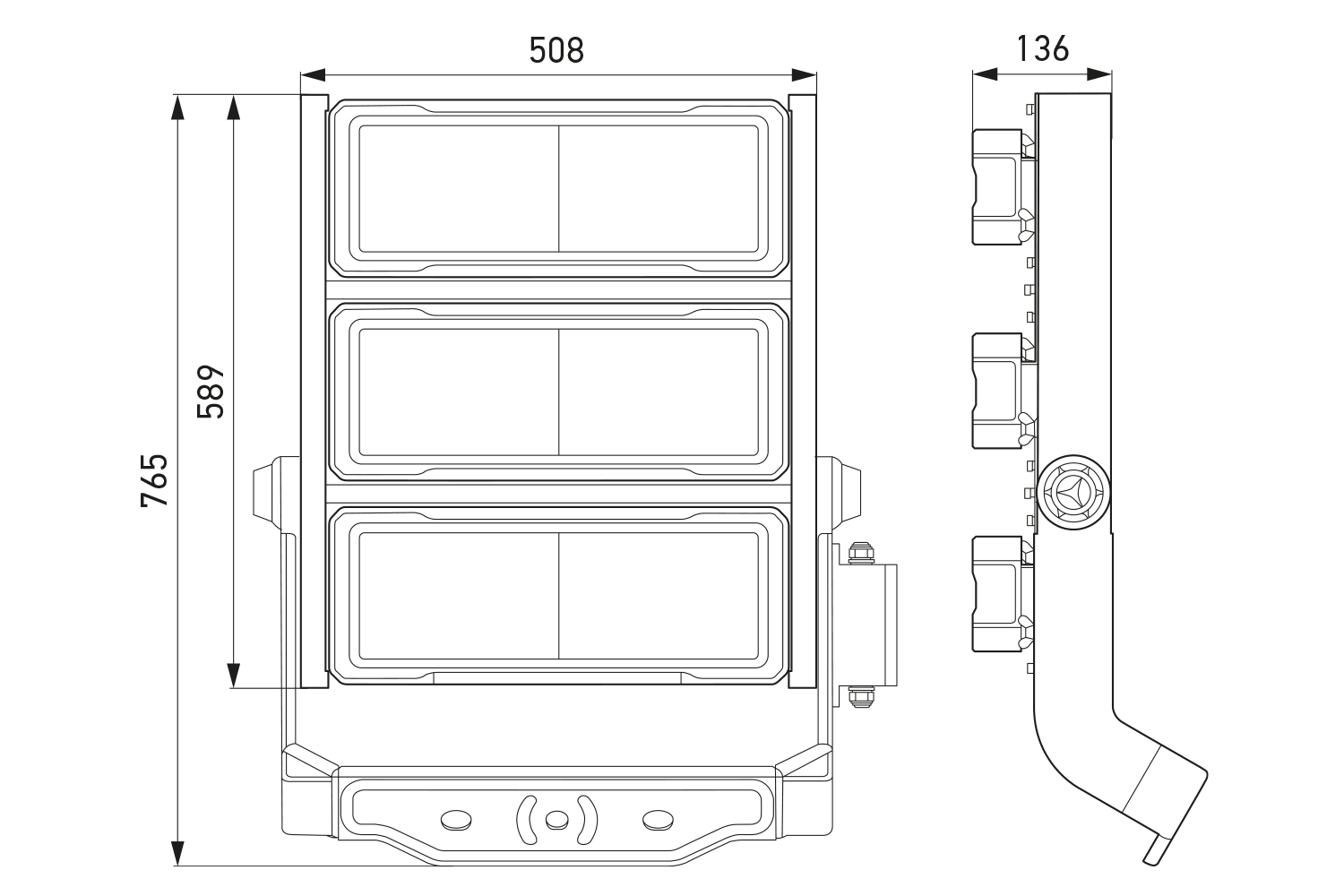

The dimensional sketch of the Floodlight 750 W.
The floodlight can be used for various applications in the mining industry.
Technical Data
| 250 W | 500 W | 750 W | |
|---|---|---|---|
| Operating voltage | Multi-voltage (100 - 277 V AC) | ||
| Rated voltage | 110 V AC/ 230 V AC | ||
| Power consumption | 250 W | 500 W | 750 W |
| Light output | 32,500 lm | 65,000 lm | 97,500 lm |
| Light source | LED | ||
| Colour temperature | 5,700 K | ||
| Material | Housing: die-cast aluminium | ||
| Weight | 6,500 g | 19,500 g | 27,000 g |
| Temperature range | -30 °C to +50 °C | ||
| Protection class | IP 65 | ||
| Type approval | UKCA, RoHS, UL, cUL, BIS, RCM | ||
| Mounting | Upright | ||
| Connection | 600 mm cable with open ends | ||
Program Overview
| Certified for this region | Variant | Illumination | Part number |
|---|---|---|---|
| Europe (EU), South Africa (SA) |
250 W | Long-range illumination | 1GJ 996 272-011 |
| Close-range illumination | 1GJ 996 272-021 | ||
| Extra-wide illumination | 1GJ 996 272-031 | ||
| Ultra-wide illumination | 1GJ 996 272-041 | ||
| 500 W | Long-range illumination | 1GJ 996 272-061 | |
| Close-range illumination | 1GJ 996 272-071 | ||
| Extra-wide illumination | 1GJ 996 272-081 | ||
| Ultra-wide illumination | 1GJ 996 272-091 | ||
| 750 W | Long-range illumination | 1GJ 996 272-111 | |
| Close-range illumination | 1GJ 996 272-121 | ||
| Extra-wide illumination | 1GJ 996 272-131 | ||
| Ultra-wide illumination | 1GJ 996 272-141 | ||
| United States (US), Canada (CA) |
250 W | Long-range illumination | 1GJ 996 272-261 |
| Close-range illumination | 1GJ 996 272-271 | ||
| Extra-wide illumination | 1GJ 996 272-281 | ||
| Ultra-wide illumination | 1GJ 996 272-291 | ||
| 500 W | Long-range illumination | 1GJ 996 272-311 | |
| Close-range illumination | 1GJ 996 272-321 | ||
| Extra-wide illumination | 1GJ 996 272-331 | ||
| Ultra-wide illumination | 1GJ 996 272-341 | ||
| 750 W | Long-range illumination | 1GJ 996 272-361 | |
| Close-range illumination | 1GJ 996 272-371 | ||
| Extra-wide illumination | 1GJ 996 272-381 | ||
| Ultra-wide illumination | 1GJ 996 272-391 |
Download the brief information to see more variants.
