Trailer Rear Combination Lamp
The FORVIA HELLA Full‑LED rear lamp for 24 V trailers combines an innovative design with high functionality. The characteristic LED light curtain provides a distinctive appearance, high light output and good visibility for other road users.
Thanks to durable LED technology, a robust housing and a homogeneous light signature based on Edge Light Technology, the rear lamp is designed for use in demanding conditions.
The full‑LED rear combination lamp with integrated ISO pulse in accordance with DIN ISO 13207 for indicator monitoring is also dustproof and waterproof, and protected against high‑pressure cleaning (IP 6K9K). The lamp is fully compatible with trailer applications and offers comprehensive protection against polarity reversal, overvoltage, overheating and short circuits.
The stop light function and the direction indicator light function were developed according to the technical aspects of ISO 26262:2018 in accordance with ASIL-B, the tail light function in accordance with ASIL A.
The FORVIA HELLA Full‑LED rear lamp for 24 V trailers combines an innovative design with high functionality. The characteristic LED light curtain provides a distinctive appearance, high light output and good visibility for other road users.
Thanks to durable LED technology, a robust housing and a homogeneous light signature based on Edge Light Technology, the rear lamp is designed for use in demanding conditions.
The full‑LED rear combination lamp with integrated ISO pulse in accordance with DIN ISO 13207 for indicator monitoring is also dustproof and waterproof, and protected against high‑pressure cleaning (IP 6K9K). The lamp is fully compatible with trailer applications and offers comprehensive protection against polarity reversal, overvoltage, overheating and short circuits.
The stop light function and the direction indicator light function were developed according to the technical aspects of ISO 26262:2018 in accordance with ASIL-B, the tail light function in accordance with ASIL A.
The standard version of the trailer rear combination lamp for 24 V trailers.

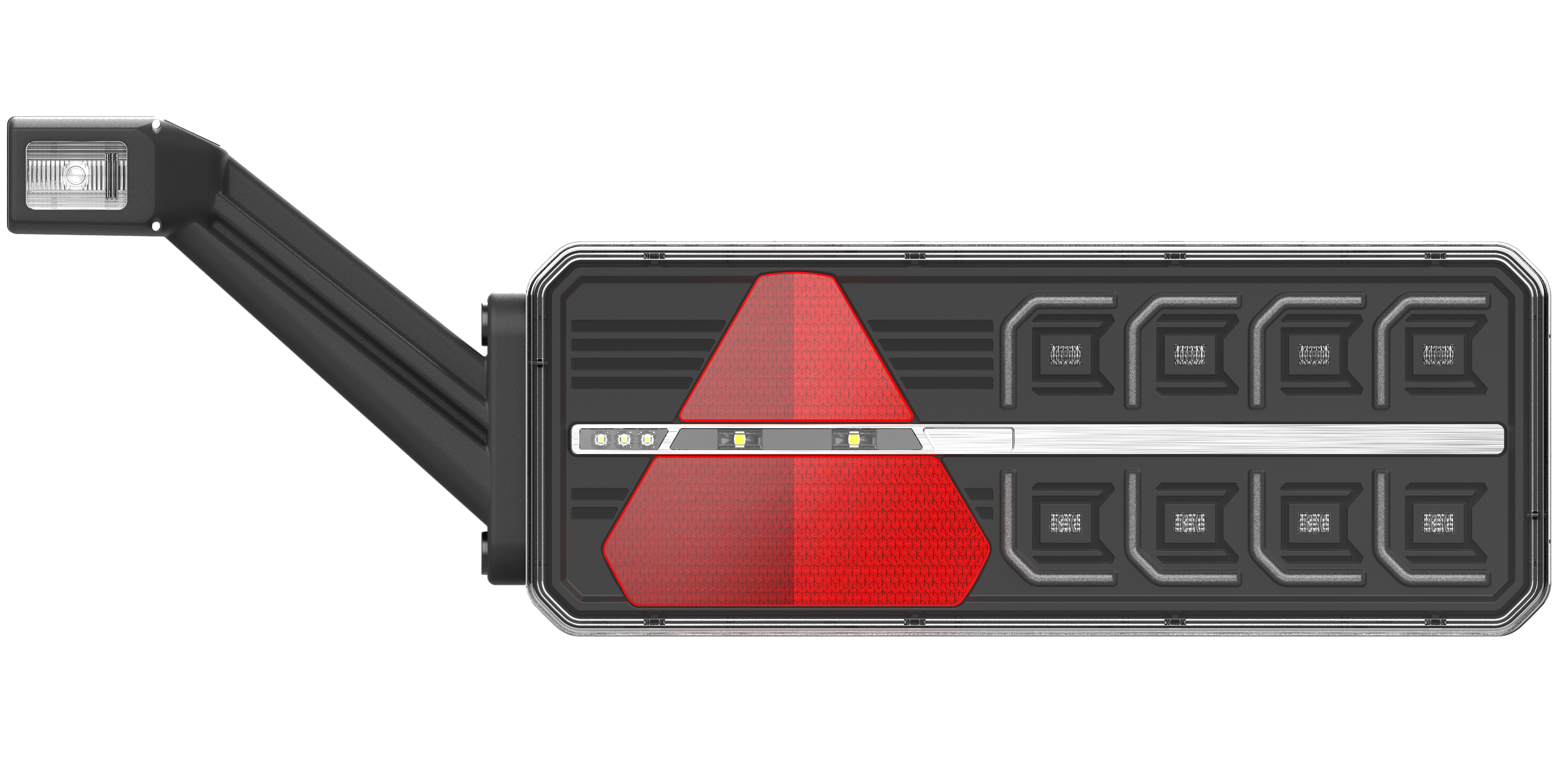

The standard version with rubber arm of the trailer rear combination lamp for 24 V trailers.
The compact version of the trailer rear combination lamp for 24 V trailers.
The standard version of the trailer rear combination lamp for 24 V trailers on application.
The compact version of the trailer rear combination lamp for 24 V trailers on application.
The trailer rear combination lamp on a trailer.
Dimensional sketch of the standard version of the trailer rear combination lamp
Dimensional sketch of the standard version with rubber arm of the trailer rear combination lamp
Dimensional sketch of the compact version of the trailer rear combination lamp
Video about the trailer rear combination lamp
Technical Data
| Standard | Compact | |
| Operating voltage range | 18 - 24 V | |
| Rated voltage | 24 V | |
| Current consumption | Tail light 0.1 A, stop light 0.15 A, direction indicator light 0.3 A, reverse light 0.24 A, rear fog light 0.12 A | Tail light 0.1 A, stop light 0.18 A, direction indicator light 0.24 A, reverse light 0.24 A, rear fog light 0.12 A |
| Power consumption | Direction indicator: Input 8.2 W, Output max. 5 W (SML), Reverse light: Input 6.5 W, Output max. 19 W, Tail light: Input 2.2 W, Output max. 4 W (LPL), Stop light: Input 3.3 W, Fog light: Input 3 W, Rubber arm: Output max. 2 W (ML) |
Direction indicator: Input 7.5 W, Output max. 5 W (SML), Reverse light: Input 6.5 W, Output max. 19 W, Tail light: Input 2.0 W, Output max. 4 W (LPL), Stop light: Input 1.5 W, Fog light: Input 2.2 W, Rubber arm: Output max. 2 W (ML) |
| Light function | Tail light (48 LEDs), direction indicator light (4 LEDs), stop light (4 LEDs), reverse light (4 LEDs), rear fog light (3 LEDs), reflex reflector |
Tail light (24 LEDs), direction indicator light (2 LEDs), stop light (2 LEDs), reverse light (2 LEDs), rear fog light (3 LEDs), reflex reflector |
| Light source | LED | |
| Material | Housing: ABS, Cover lens Polycarbonate (PC) | |
| Weight | 840 g | 625 g |
| Temperature range | -40 °C to +60 °C | |
| Protection class | IP 6K9K | |
| Approved | UN-R10,UN-R149; ADR/GGVS | |
| EMC protection | Class 4 (24 V) | |
| Protection | Polarity reversal protection, overvoltage protection, overheating protection, short circuit protection | |
| Mounting | With M8 fastening bolts | |
| Connection | Central 7-pin DIN bayonet connector, 2-pin AMP-SUPERSEAL connector for auxiliary light functions | |
Program Overview
| Product picture | Version | Variant | Part number |
 |
Standard | Left-hand side | 2VP 018 287-017 |
| Right-hand side | 2VP 018 287-037 | ||
 |
Standard with rubber arm | Left-hand side | 2VP 018 287-117 |
| Right-hand side | 2VP 018 287-107 | ||
 |
Compact | Left-hand side | 2VP 018 288-017 |
| Right-hand side | 2VP 018 288-037 |
