Power Beam compact coloured

For more safety in off-highway use: HELLA has expanded the existing work lamp models Power Beam 1000 compact and Power Beam 1800 compact with coloured versions.



The Power Beam compact coloured are equipped with coloured cover lenses especially for off-highway use. The series of coloured standard work lamps ensures more safety and comfort in everyday work. All lamps are approved for off-highway applications.



The different cover lens colours are for different applications: The Power Beam 1000 compact with red cover lens serves as a tail light, the amber variant as a direction indicator light and the green one functions as a status light, for individual status displays. For example, the green light can switch on when the handbrake is applied. The coloured Power Beam 1800 compact is only available in red. It can be used as a brake light, among other things.



Like the work lamps of the Power Beam compact series, the Power Beam compact coloured are ECE-approved and dust and waterproof according to IP 6K9K, IP 6K8. They are also effectively protected against polarity reversal and overheating. They can be mounted upright and pendant.

Product Advantages

  • For more safety and comfort in the off-highway business
  • Standard work lamps with coloured cover lenses
  • Suitable for various applications

Technical Data

  Power Beam 1000 compact coloured Power Beam 1800 compact coloured
Operating voltage Multi-voltage (10.5-32 V)
Rated voltage 12 V/ 24 V
Power consumption 12 W 26 W
Light source LED
Material Housing: die-cast aluminium
Bracket: stainless steel
Housing: plastic
Bracket: plastic
Weight 625 g 420 g
Temperature range  -40 °C to +50 °C
Protection class IP 6K8, IP 6K9K
Type approval ECE-R10, RCM
EMC protection CISPR 25
Mounting Upright and pendant
Connection DEUTSCH DT 2 pin connector
Manufactured in Austria

Program Overview

Variant Cover lens colour Possible application Part number

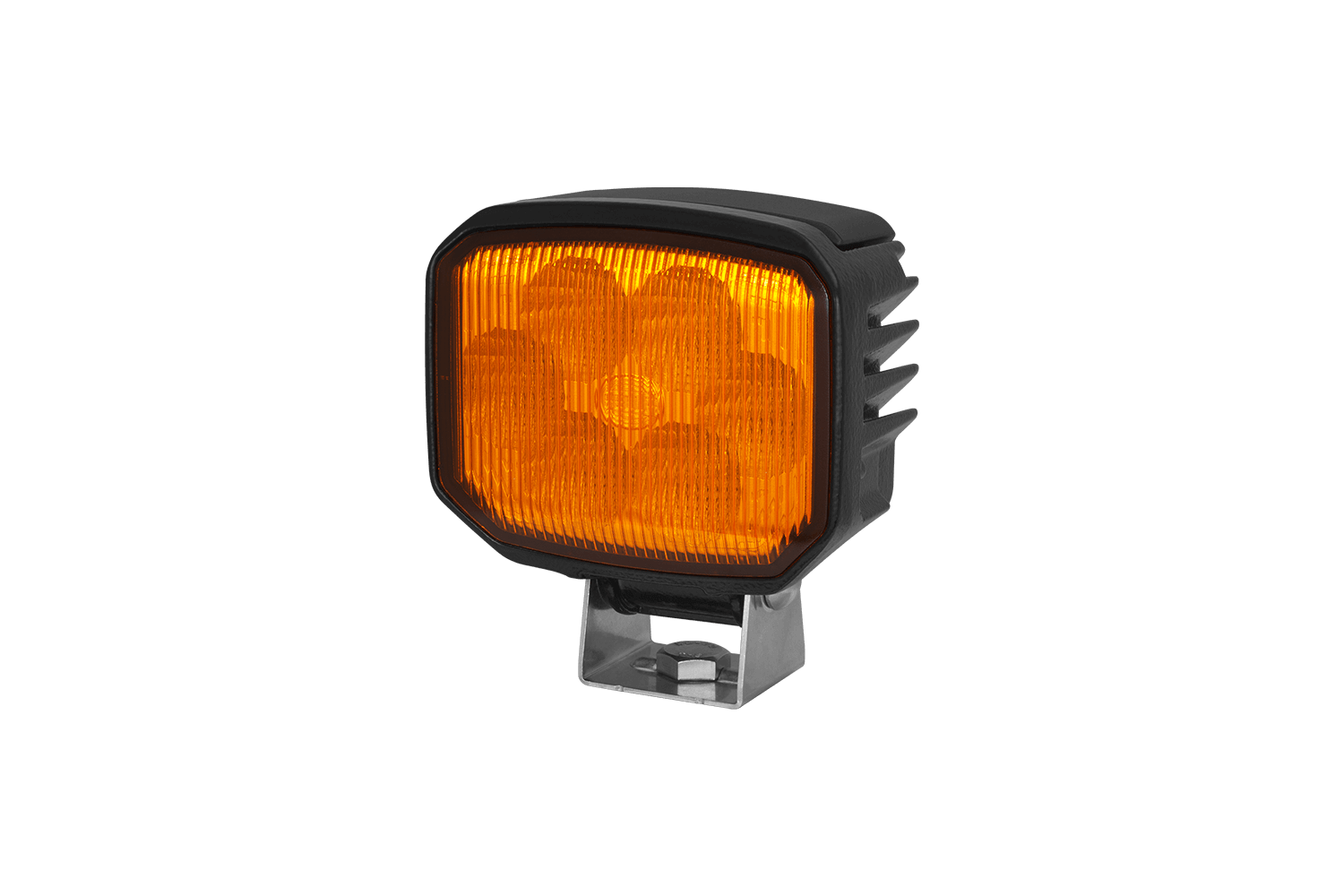

Power Beam 1000 compact coloured Amber Direction indicator light 1GA 996 188-617

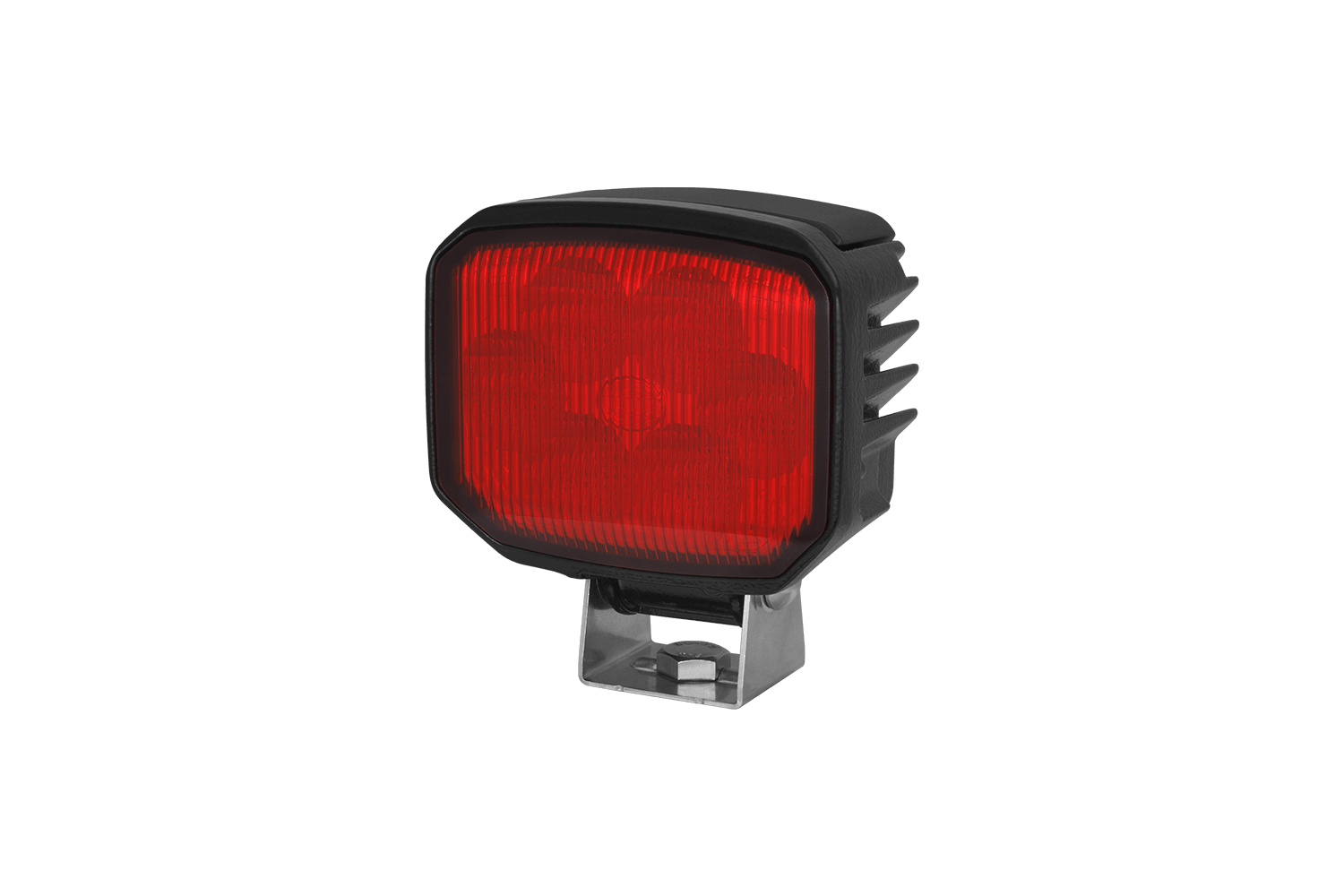

Red Tail light 1GA 996 188-627

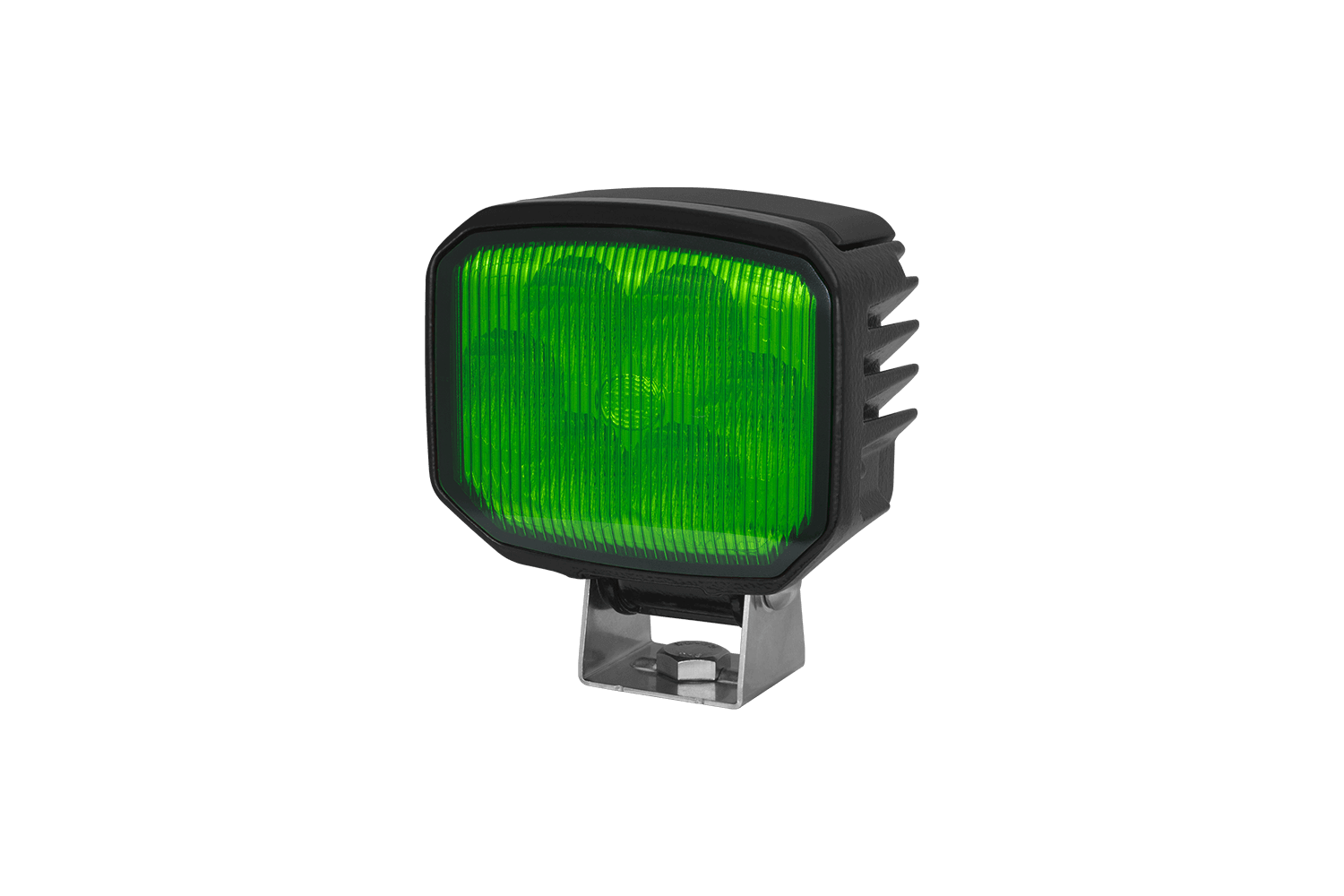

Green Status light 1GA 996 188-637

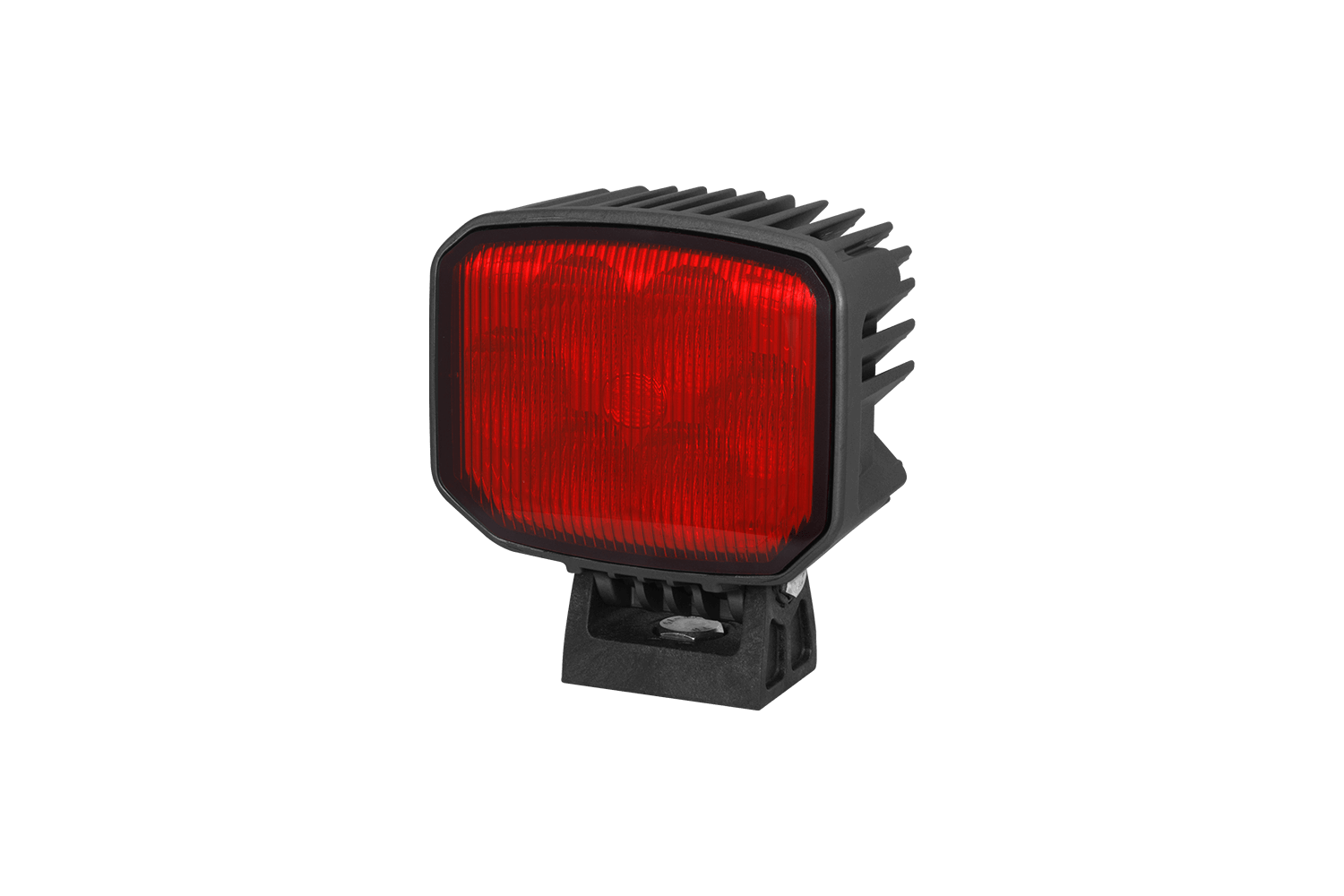

Power Beam 1800 compact coloured Red Stop light 1GA 996 488-167
