2023-04-10
RokLUME S700 Red
Powerful warning effect for powerful vehicles: The HELLA RokLUME S700 Red LED warning lamp provides a convincing warning effect through its combination of innovative VISIOTECH projection technology and powerful red LEDs. Due to the high light output, it is particularly suitable for vehicles with a large mounting height.
The specially developed lens bundles the red light when switched on and distributes it in stripes on the ground or work area. This provides an attention-grabbing warning marking around the vehicle. Operational safety is increased as a result.
The power consumption of the efficient and long-lasting LEDs is a low 25 watts.
The clear lens made of the high-tech material Grilamid® can withstand even heavy loads, as does the robust housing. Due to these features, dust and water resistance (IP 6K7) and high pressure cleaning resistance (IP 6K9K), the RokLUME S700 Red is suitable for very demanding operating conditions.
The multi-voltage-capable, corrosion-resistant warning lamp is effectively protected against overheating by its optimum thermal conductivity. It can be mounted upright and pendant.
Powerful warning effect for powerful vehicles: The HELLA RokLUME S700 Red LED warning lamp provides a convincing warning effect through its combination of innovative VISIOTECH projection technology and powerful red LEDs. Due to the high light output, it is particularly suitable for vehicles with a large mounting height.
The specially developed lens bundles the red light when switched on and distributes it in stripes on the ground or work area. This provides an attention-grabbing warning marking around the vehicle. Operational safety is increased as a result.
The power consumption of the efficient and long-lasting LEDs is a low 25 watts.
The clear lens made of the high-tech material Grilamid® can withstand even heavy loads, as does the robust housing. Due to these features, dust and water resistance (IP 6K7) and high pressure cleaning resistance (IP 6K9K), the RokLUME S700 Red is suitable for very demanding operating conditions.
The multi-voltage-capable, corrosion-resistant warning lamp is effectively protected against overheating by its optimum thermal conductivity. It can be mounted upright and pendant.
Photo of the RokLUME S700 Red
Photo of the RokLUME S700 Red, switched on
Dimensional sketch of the RokLUME S700 Red

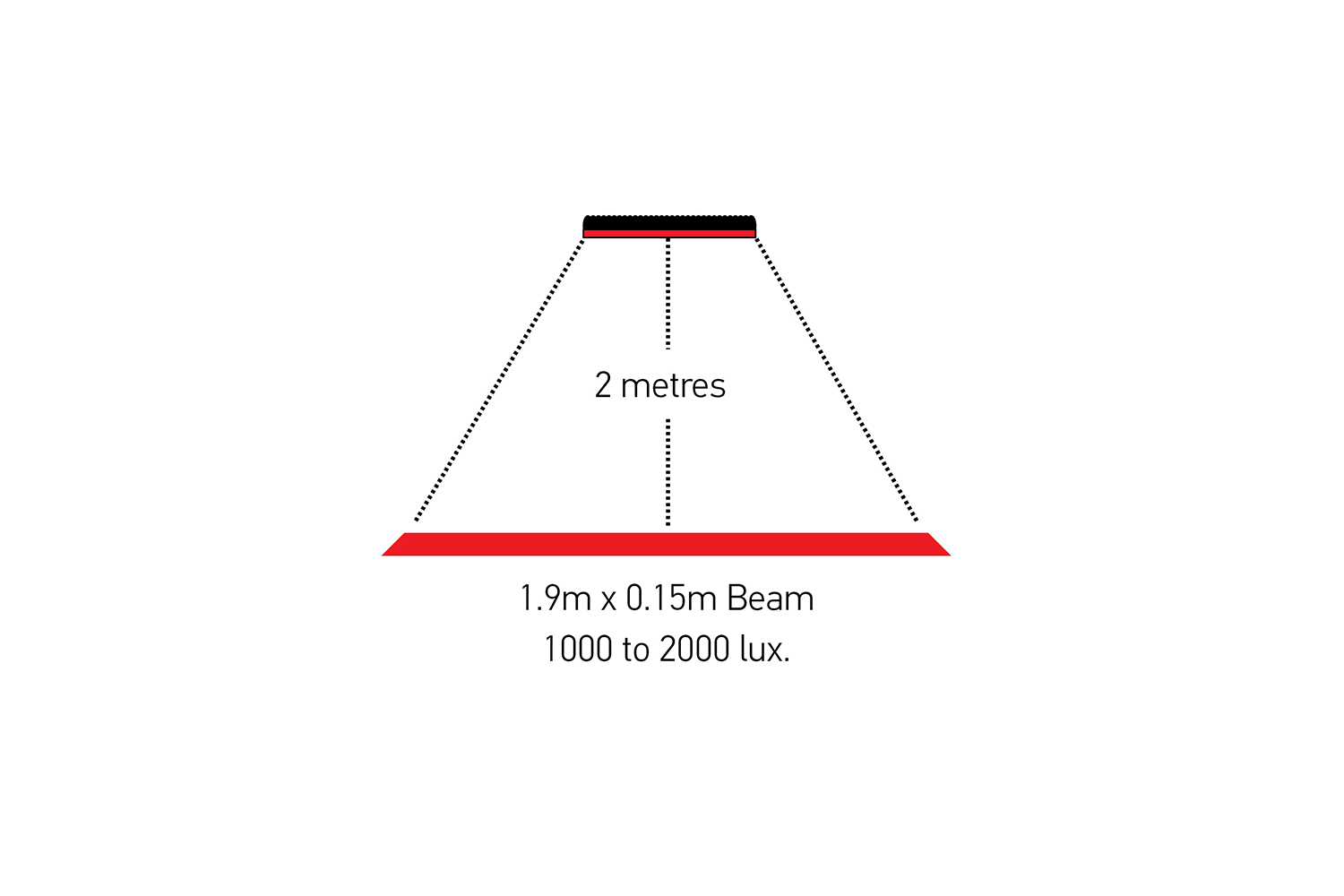

Light distribution of the RokLUME S700 Red
Technical Data
| Operating voltage | Multi-voltage (9-32 V) |
| Rated voltage | 12V/ 24V |
| Power consumption | 25 W |
| Light source | LED |
| Material |
Housing: heat conductive plastic Cover lens: heavy duty Grilamid® |
| Weight | 960 g |
| Temperature range | -40 °C to +60 °C |
| Protection class | IP 6K9K, IP 6K7 |
| EMC protection | ECE-R10, RCM |
| Salt spray resistance | 720 h as per DIN EN ISO 9227 |
| Mounting | Upright and pendant |
| Connection | 2,500 mm cable |
Program Overview
| Projected symbol | Part number |
|---|---|
| Broad light strip, red | 2XD 958 130-661 |
