RokLUME C180
Impresses with external and internal values: The HELLA RokLUME C180 work lamp has an attractive, round design and is extremely compact with a lens diameter of 83 mm.
Despite its small dimensions, it offers a very high light output of 3,500 lumens through its durable, energy-efficient, high-performance LEDs. The light is evenly distributed in the close-range by a special reflector. At only 29 watts (at 12 volts) or 27.7 watts (at 24 volts) the power consumption is very low despite the strong light output.
The work lamp for universal use has a very robust die-cast aluminium housing, which is absolutely corrosion-resistant due to the special NanoSafe coating. The RokLUME C180 is also dustproof, waterproof, and high-pressure cleaning resistant, and has an impact-resistant lens.
Optimized thermal management and integrated electronics prevent the ECE-approved lamp from overheating. The electronics also ensure overvoltage and polarity reversal protection. The RokLUME C180 can be mounted upright or pendant.
Impresses with external and internal values: The HELLA RokLUME C180 work lamp has an attractive, round design and is extremely compact with a lens diameter of 83 mm.
Despite its small dimensions, it offers a very high light output of 3,500 lumens through its durable, energy-efficient, high-performance LEDs. The light is evenly distributed in the close-range by a special reflector. At only 29 watts (at 12 volts) or 27.7 watts (at 24 volts) the power consumption is very low despite the strong light output.
The work lamp for universal use has a very robust die-cast aluminium housing, which is absolutely corrosion-resistant due to the special NanoSafe coating. The RokLUME C180 is also dustproof, waterproof, and high-pressure cleaning resistant, and has an impact-resistant lens.
Optimized thermal management and integrated electronics prevent the ECE-approved lamp from overheating. The electronics also ensure overvoltage and polarity reversal protection. The RokLUME C180 can be mounted upright or pendant.

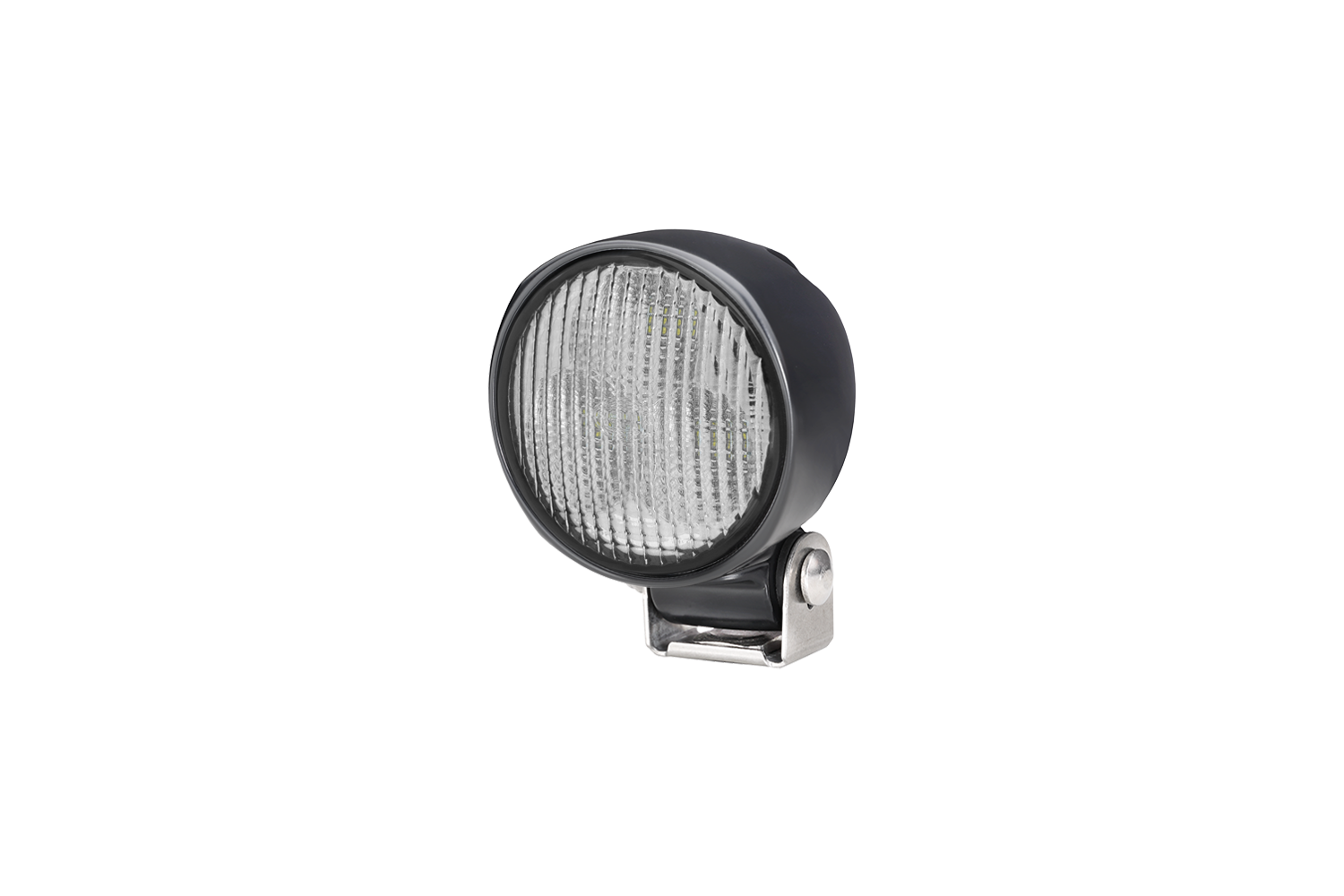

Photo of the RokLUME C180
Dimensional sketch of the RokLUME C180
Photo of the RokLUME C180
Technical Data
| Operating voltage range | Multi-voltage (9-32 V) |
| Rated voltage | 12 V and 24 V |
| Current consumption | 12 V: Ø 2.2 A* 24 V: Ø 0.99 A** |
| Power consumption | 12 V: Ø 29 W* 24 V: Ø 27.7 W** |
| Light output (warm) | Ø 3,500 lm |
| Light source | LED |
| Colour temperature | 5,000 K |
| Material | Housing: die-cast aluminium with NanoSafe coating Cover lens: glass |
| Weight | 538 g |
| Temperature range | -40 °C to +85 °C (overheating protection) |
| Protection class | IP 6K9K, IP 6K8 |
| Approved | ECE-R10 |
| Compliant | RCM, CISPR 25 Class 5 (12 V and 24 V) |
| Protection | Polarity reversal protection, overvoltage protection |
| Salt spray resistance | 1,000 h as per DIN EN ISO 9227 |
| Mounting | Upright and pendant mounting |
| Connection | 2,000 mm cable with open end, DEUTSCH DT connector 2-pin enclosed |
| Manufactured in | Austria |
* Warm measured at 13.2 V after 30 minutes of operation.
** Warm measured at 28 V after 30 minutes of operation.
Program Overview
| Illumination | Part number |
|---|---|
| Close-range illumination | 1G0 996 476-701 |
