FlexaTec
Highly individual: The flexible and extremely flat HELLA FlexaTec LED light strip can be extended to a length of up to 100 meters as required. This means it can be adapted to the respective area of application.
FlexaTec is available in lengths of 10 m or 100 m and in both 110 V AC and 230 V AC versions. Depending on the variant, the light output is 1,200 (110 V AC) or 1,500 (230 V AC) lumens per meter, with a low power consumption of just 11 watts (110 V AC) or 15 watts (230 V AC). The daylight-like light is particularly easy on the eyes and provides uniform illumination of the work area. Other light colours are available upon customer request.
Specially designed clips make mounting particularly quick and easy. The flexible PVC material complies with flammability class V0. The FlexaTec LED light strip is CB type-approved and dust- and waterproof.
Highly individual: The flexible and extremely flat HELLA FlexaTec LED light strip can be extended to a length of up to 100 meters as required. This means it can be adapted to the respective area of application.
FlexaTec is available in lengths of 10 m or 100 m and in both 110 V AC and 230 V AC versions. Depending on the variant, the light output is 1,200 (110 V AC) or 1,500 (230 V AC) lumens per meter, with a low power consumption of just 11 watts (110 V AC) or 15 watts (230 V AC). The daylight-like light is particularly easy on the eyes and provides uniform illumination of the work area. Other light colours are available upon customer request.
Specially designed clips make mounting particularly quick and easy. The flexible PVC material complies with flammability class V0. The FlexaTec LED light strip is CB type-approved and dust- and waterproof.

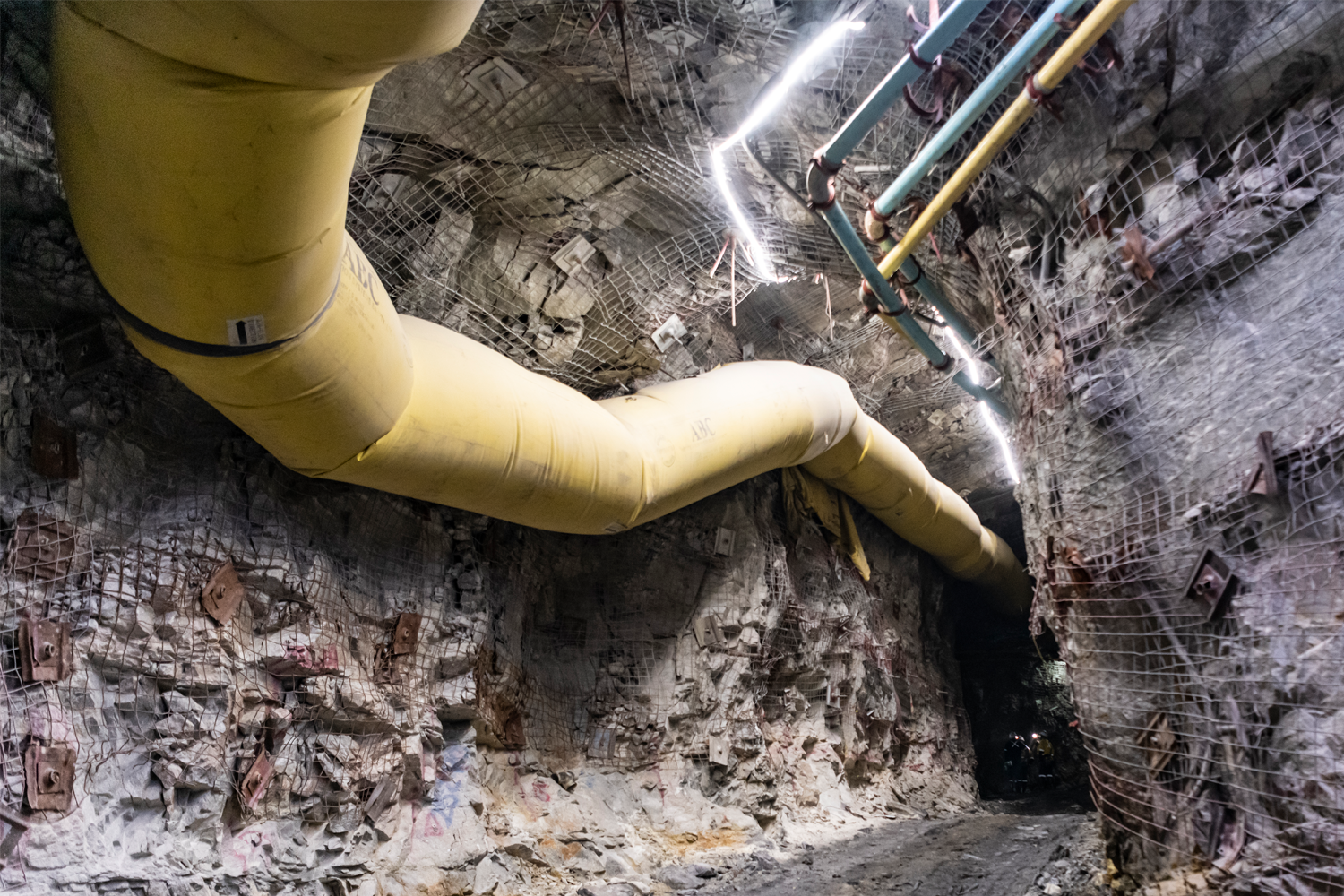

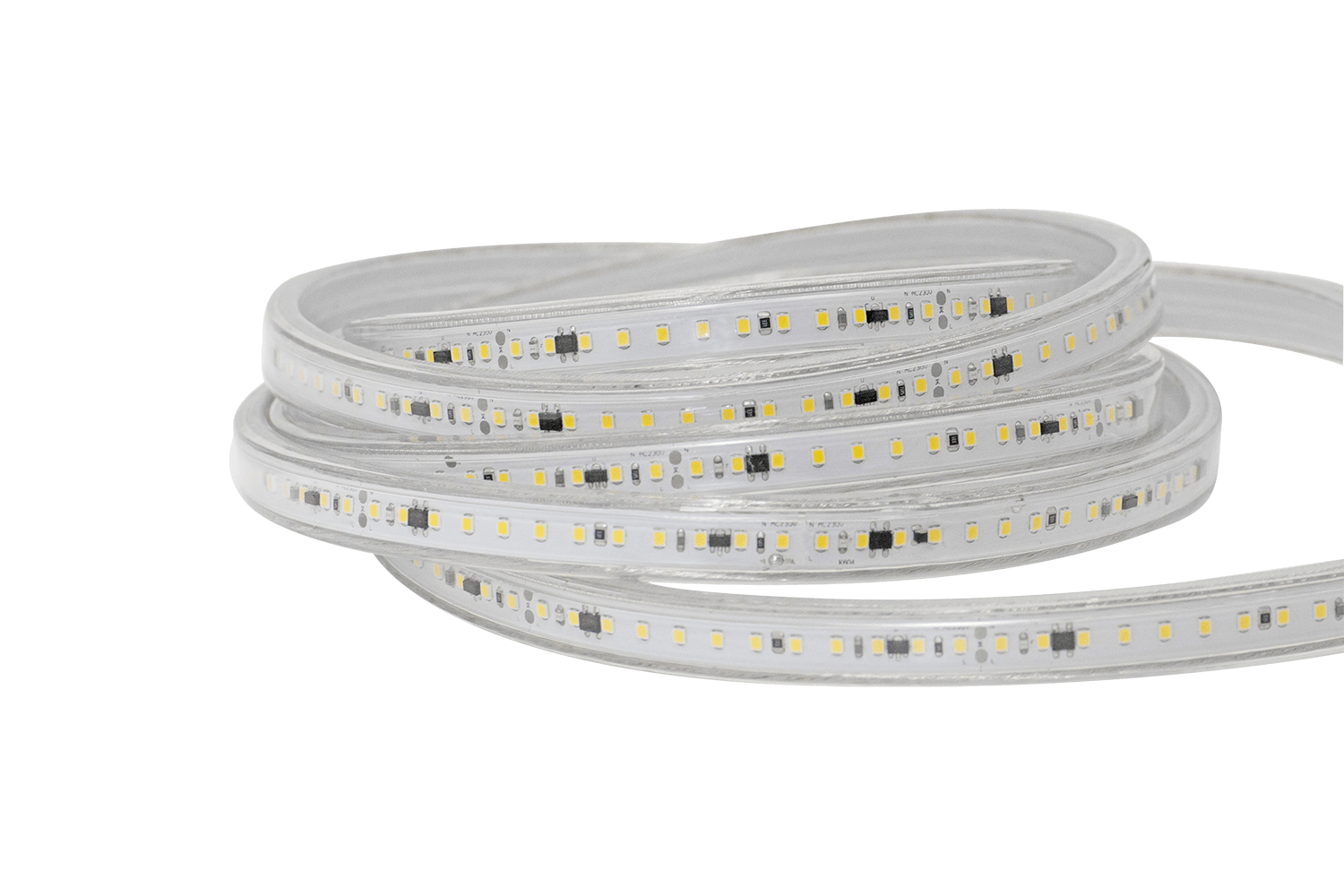

Photo of the FlexaTec

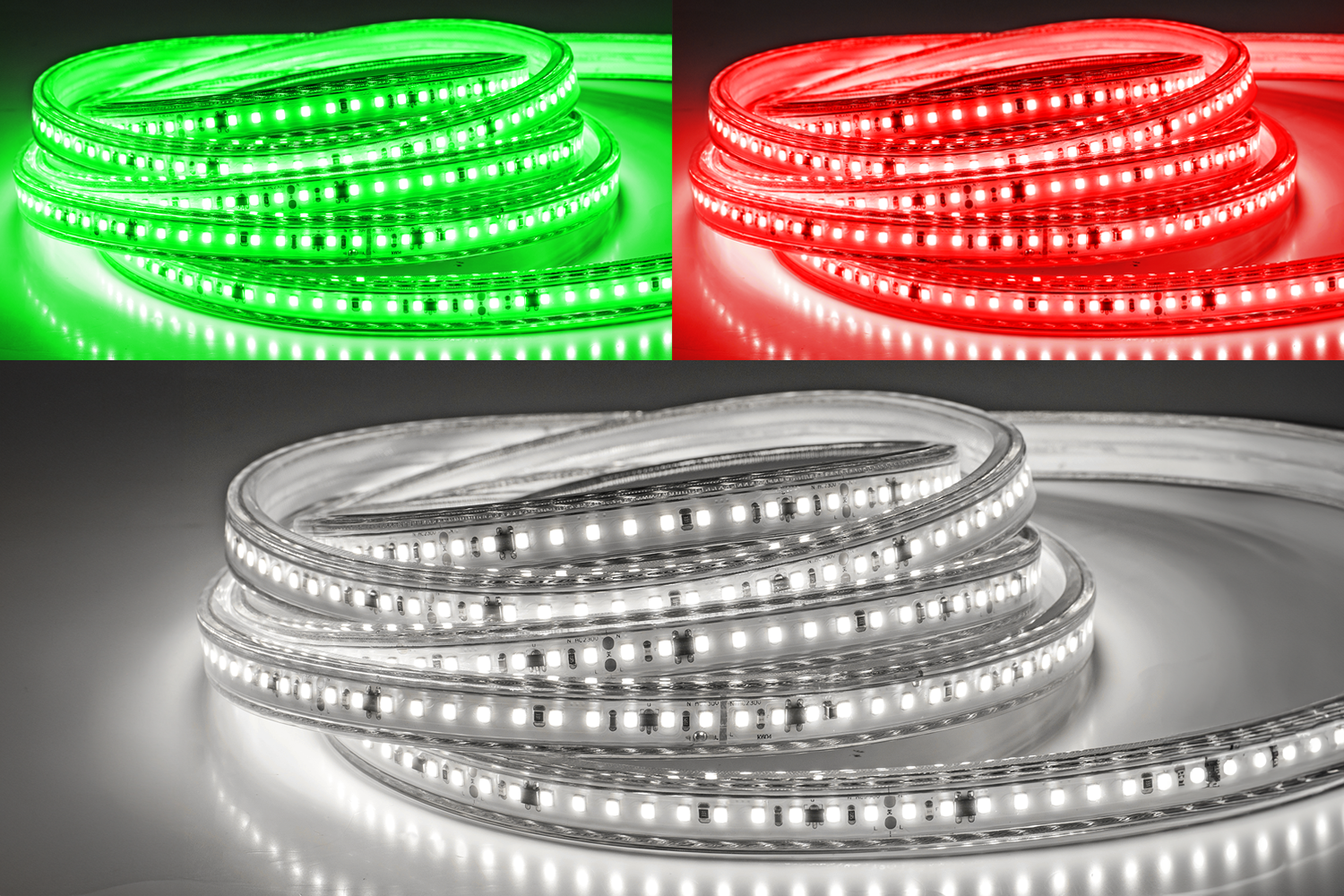

Photo of the FlexaTec switched on
Dimensional sketch of the 10 m FlexaTec version with cable with open end
Dimensional sketch of the 100 m FlexaTec version with cable with open end

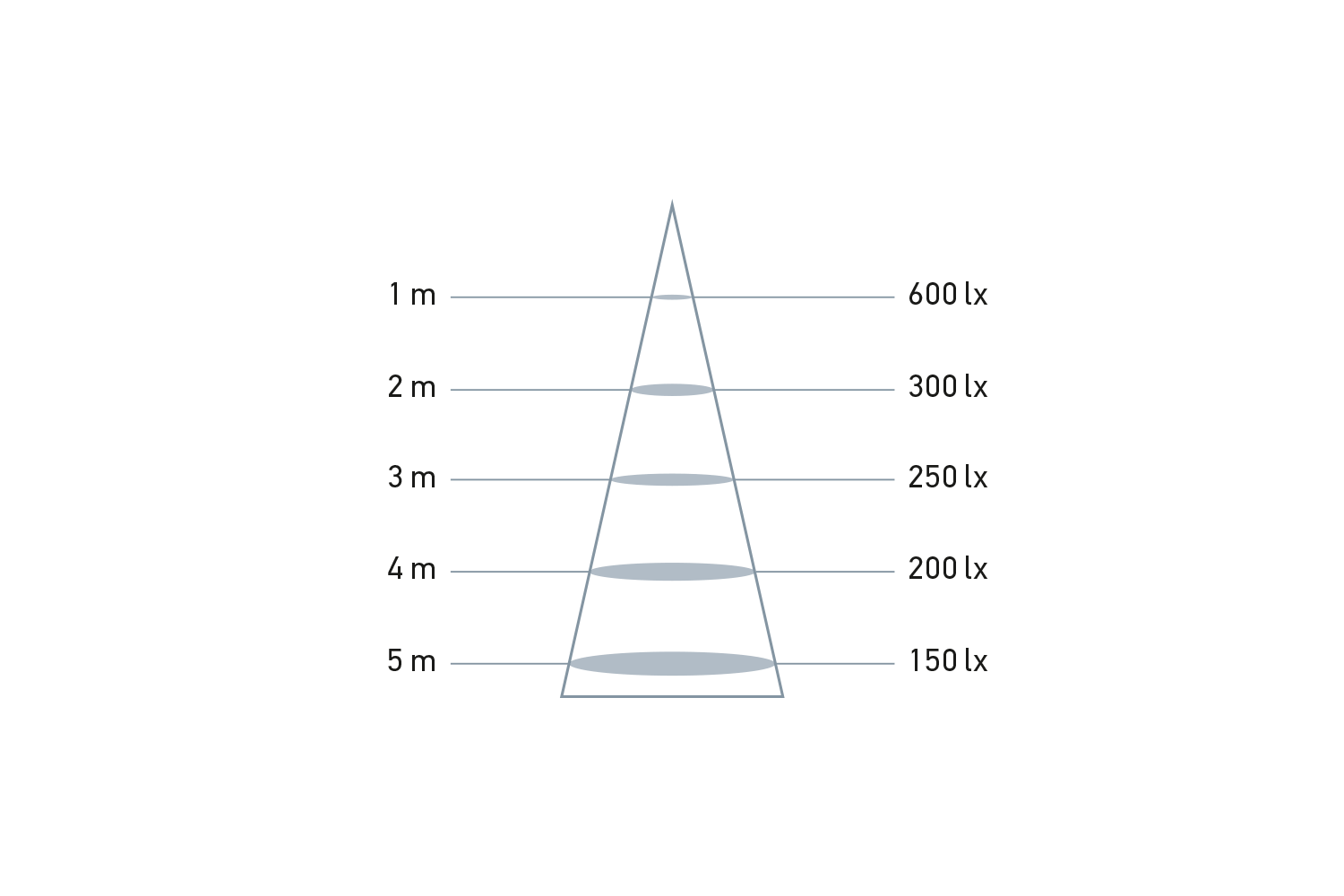

Light distribution of the 110 V AC version of the FlexaTec
Light distribution of the 230 V AC version of the FlexaTec
Video of the LED light strip FlexaTec
Technical Data
| 110 | 230 | |
|---|---|---|
| Operating voltage range | Single-voltage (100 – 120 V) | Single-voltage (220 – 240 V) |
| Rated voltage | 110 V AC | 230 V AC |
| Power consumption | 11 W per meter | 15 W per meter |
| Light output | 1,200 lm per meter | 1,500 lm per meter |
| Light source | LED | |
| Colour temperature | 5,000 K | |
| Material | PVC (flammability class V0) | |
| Weight | 2,440 g (10 m cable with open end) 19,300 g (100 m cable with open end) |
2,490 g (10 m cable with open end) |
| Temperature range | -20 °C to +40 °C | |
| Protection class | IP 6K7 | |
| Mounting | Quick mounting using specially designed clips | |
| Connection | 10 m or 100 m cable with open end | |
Program Overview
| Variant | Certified for region | Connection | Part number |
|---|---|---|---|
| 110 | India (IN) | 10 m cable with open end | 1GJ 995 180-211 |
| 100 m cable with open end | 1GJ 995 180-701 | ||
| 230 | Europe (EU), Australia (AU), South Africa (SA) | 10 m cable with open end | 1GJ 995 181-201 |
| 100 m cable with open end | 1GJ 995 181-601 |
Spare parts
Spare parts set (includes fastening clips, end cap, and connecting cable)
| Variant | Certified for region | Part number |
|---|---|---|
| 110 | India (IN) | 9XD 990 181-021 |
| 230 | Europe (EU), Australia (AU), South Africa (SA) | 9XD 990 181-011 |
