LED auxiliary high beam headlamp Rallye 3003
The new lightstyle: The HELLA LED auxiliary high beam headlamp Rallye 3003 LED is a real highlight that impresses with its ultra-modern design and maximum functionality.
The striking cooling fin makes the Rallye 3003 stand out visually. 230 cm² of cooling surface provide highly effective thermal management and prevent overheating. The distinctive position light defines the characteristic night design through the innovative EdgeLight technology and a hexagonal contour. When switched on, the Rallye 3003 impresses with outstanding road illumination thanks to the efficient and powerful LED technology and the high-performance reflector.
Thanks to its robust thermoplastic housing, impact-resistant polycarbonate lens, and high protection class, the auxiliary high beam headlamp can hold up against even tough operating conditions and withstand shocks and vibrations, as well as dust and short-term submersion.
The Rallye 3003 is available with both ECE Ref. 25 and Ref. 50. The optional headlamp insert can be used not only as a replacement part, but also for an easy upgrade from halogen to LED.
The new lightstyle: The HELLA LED auxiliary high beam headlamp Rallye 3003 LED is a real highlight that impresses with its ultra-modern design and maximum functionality.
The striking cooling fin makes the Rallye 3003 stand out visually. 230 cm² of cooling surface provide highly effective thermal management and prevent overheating. The distinctive position light defines the characteristic night design through the innovative EdgeLight technology and a hexagonal contour. When switched on, the Rallye 3003 impresses with outstanding road illumination thanks to the efficient and powerful LED technology and the high-performance reflector.
Thanks to its robust thermoplastic housing, impact-resistant polycarbonate lens, and high protection class, the auxiliary high beam headlamp can hold up against even tough operating conditions and withstand shocks and vibrations, as well as dust and short-term submersion.
The Rallye 3003 is available with both ECE Ref. 25 and Ref. 50. The optional headlamp insert can be used not only as a replacement part, but also for an easy upgrade from halogen to LED.

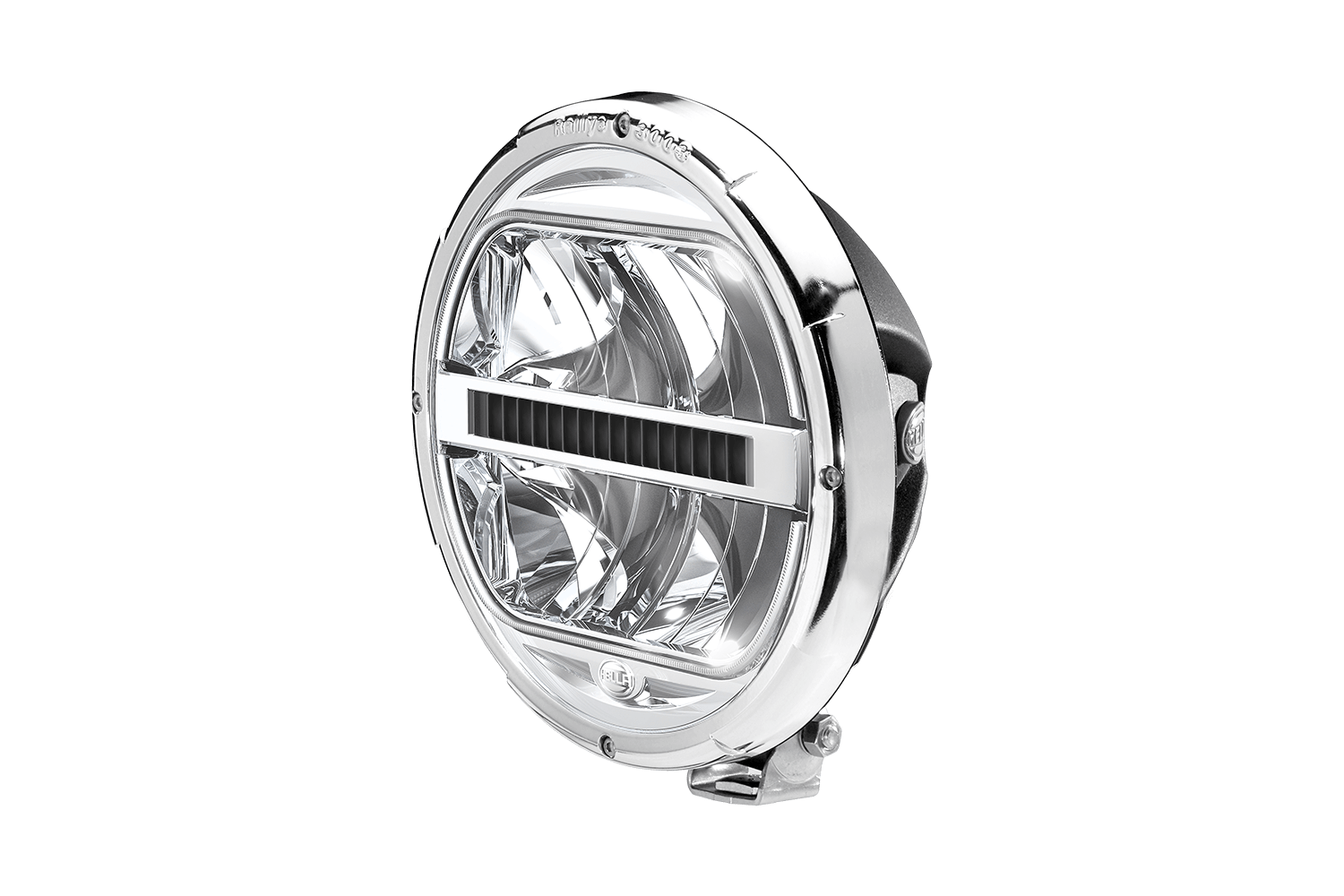

Rallye 3003 LED auxiliary high beam headlamp

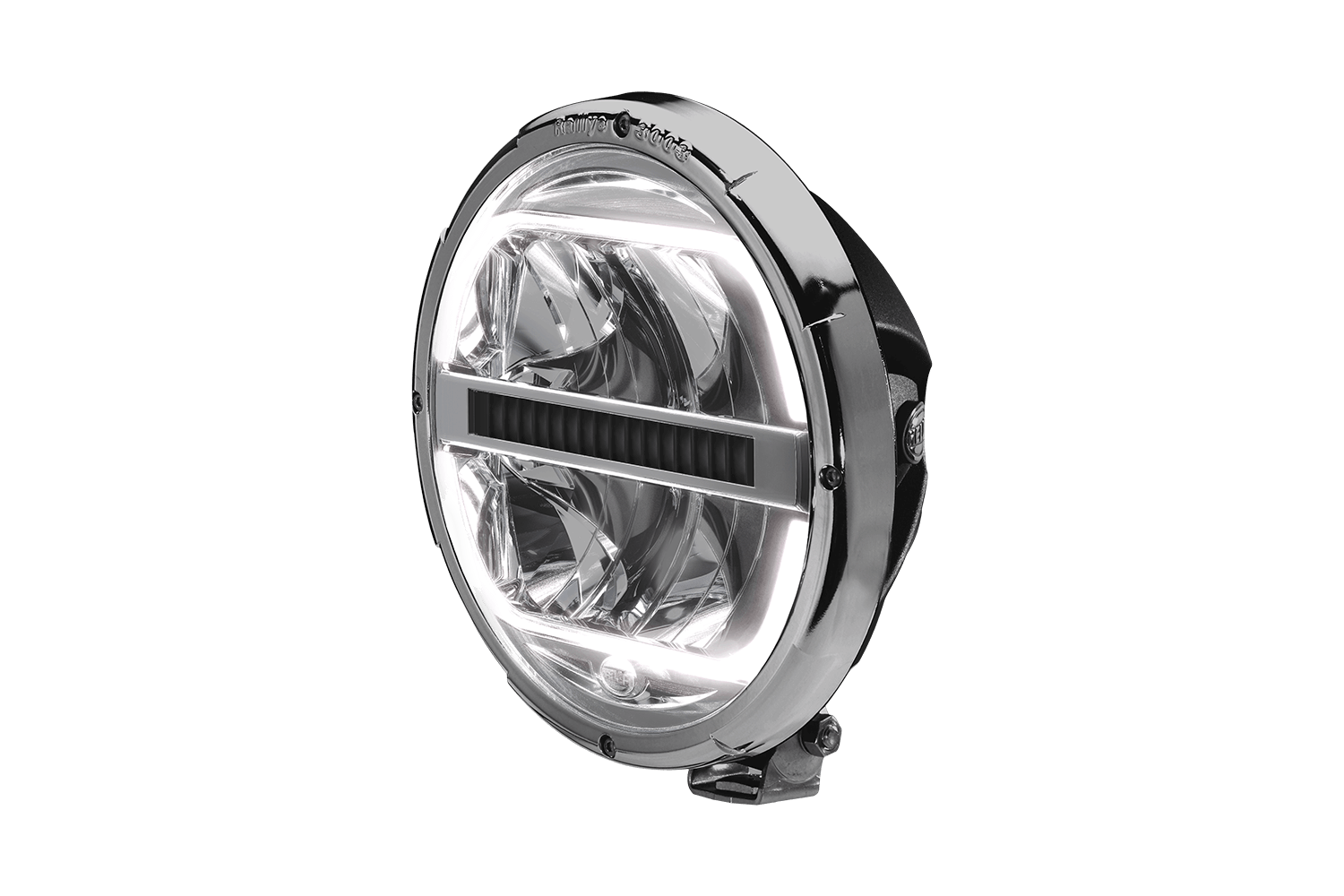

Rallye 3003 LED auxiliary high beam headlamp (position light in operation)
Rallye 3003 LED auxiliary high beam headlamp
Dimensional sketch of the Rallye 3003

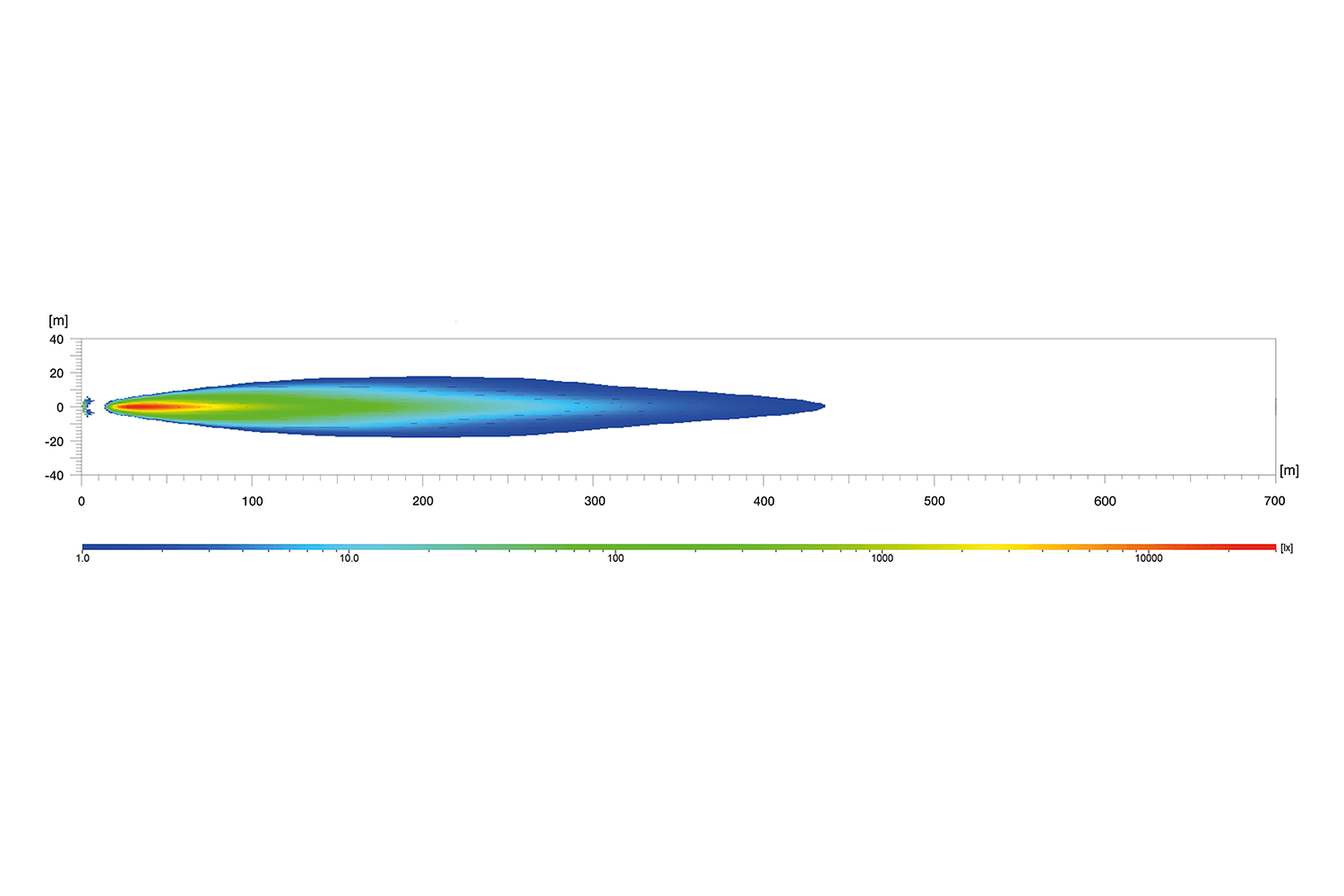

Isolux diagram of the Rallye 3003 with reference number 25 (2 headlamps in operation)
Isolux diagram of the Rallye 3003 with reference number 50 (2 headlamps in operation)
Technical Data
| Operating voltage | Multi-voltage (9-32 V) |
| Rated voltage | 12 / 24 V |
| Power consumption | Position light: 2.4 W (12 V), 5 W (24 V) High beam: 14.5 W (12 V), 14.5 W (24 V) |
| Light function | High beam, position light |
| Light source | LED |
| Material | Housing: Thermoplastic Bracket: Galvanized steel sheet |
| Weight | 1,600 g |
| Protection class | IP X9K, IP 6K7 |
| Type approval | High beam: ECE-R112 Position light: ECE-R7 |
| EMC protection | ECE-R10 EMC |
| Mounting | Upright mounting |
| Connection | Connecting cable |
| Recommended angle of inclination | -45° to +90° |
Program Overview
| Reference number | Part number |
|---|---|
| 25 | 1F8 016 797-001 |
| 50 | 1F8 016 797-011 |
