Module 70 LED handheld search lamp

Practical, handy, strong: The HELLA Module 70 LED handheld search lamp Generation 3 and Generation 4 complete the popular HELLA Module 70 series. The compact mobile versions can be used flexibly thanks to their practical handle and simple cigarette lighter connection. In addition to continuous light operation, a Morse function is also possible via a separate button switch.



Despite their small dimensions, the handheld search lamps impress with light outputs of 800 lumens (Generation 3) or 2,500 lumens (Generation 4). The high-performance LEDs and the special reflector provide spot illumination up to 160 m in range (Generation 3) or close-range or long-range homogeneous illumination (Generation 4). The energy-efficient and long-lasting LED technology produces a daylight-like light colour that is easy on the eyes. Power consumption is only 13 watts (Generation 3) or 30 watts (Generation 4).



The robust construction means the lamps are absolutely resistant to shocks and impacts, as well as dustproof and waterproof. The integrated electronics of the multi-voltage-capable, ECE-approved handheld search lamps prevent voltage fluctuations and protect against polarity reversal.

Product Advantages

  • Practical handle for flexible use
  • Completely corrosion resistant
  • Switch for continuous operation and button switch for short-term operation

Technical Data

  Generation 3 Generation 4
Operating voltage Multi-voltage (9-32 V)
Rated voltage 12 V/ 24 V
Power consumption 13 W 30 W
Light output 800 lm 2,500 lm
Light source LED
Colour temperature 6,500 K
Material Housing: die-cast aluminium with CoroSafe coating
Weight 875 g 867 g
Temperature range -40 °C to +50 °C
Protection class IP 6K9K, IP 6K7
EMC protection ECE-R10
Mounting Handle
Connection Spiral cable with cigarette lighter connector

Program Overview

VariantIlluminationPart number

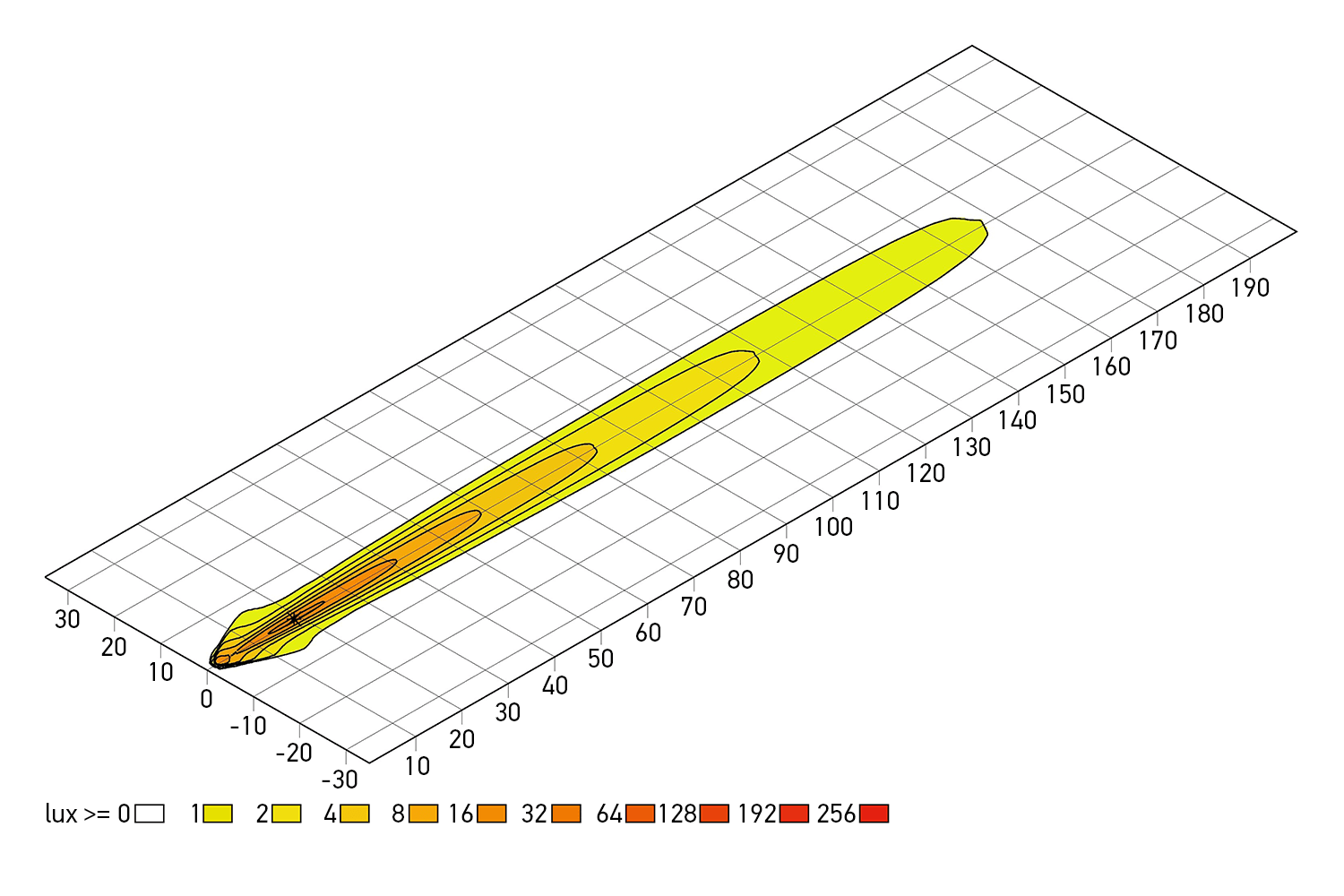

Generation 3Spot illumination1H0 996 376-491

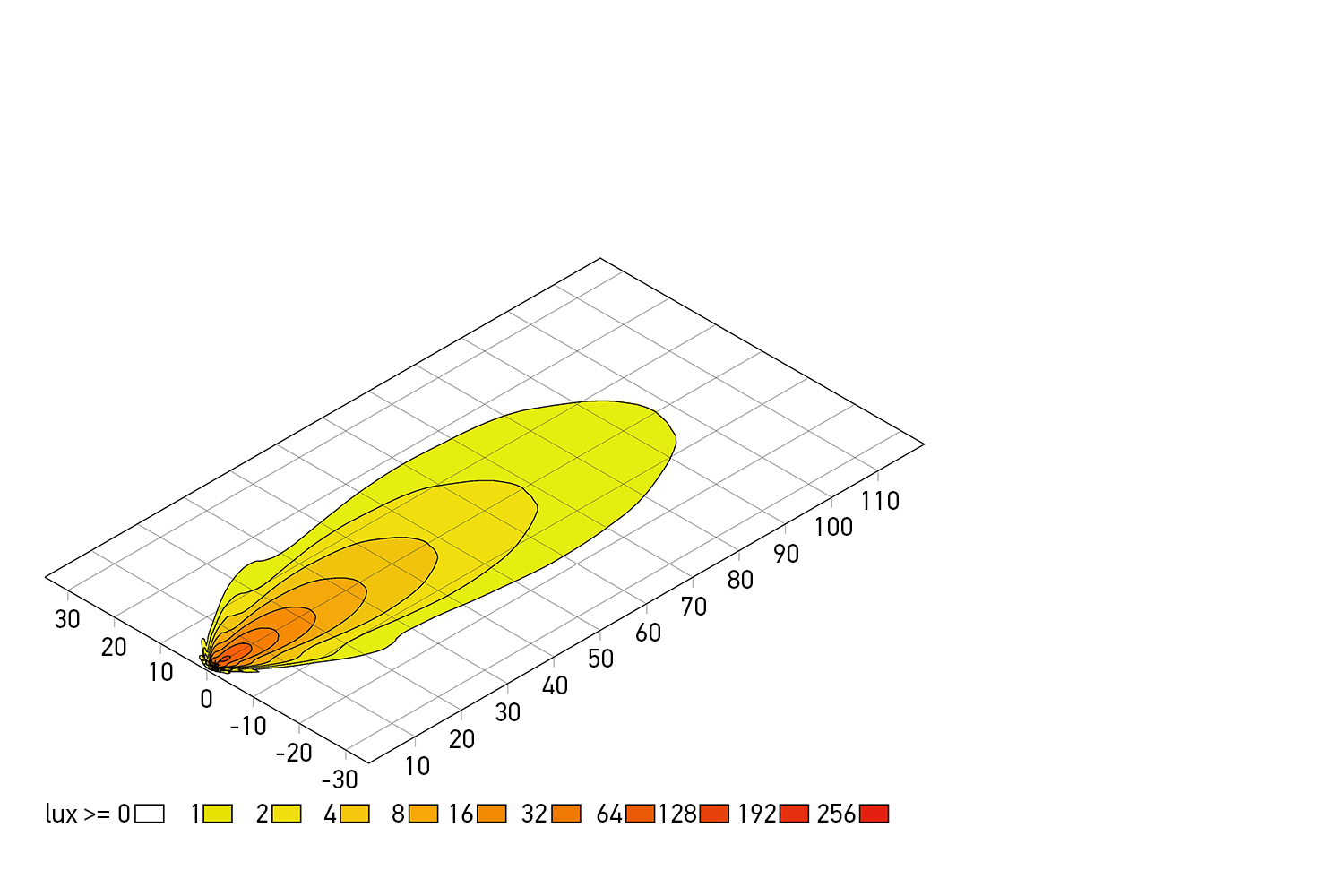

Generation 4Long-range illumination1H0 996 476-501

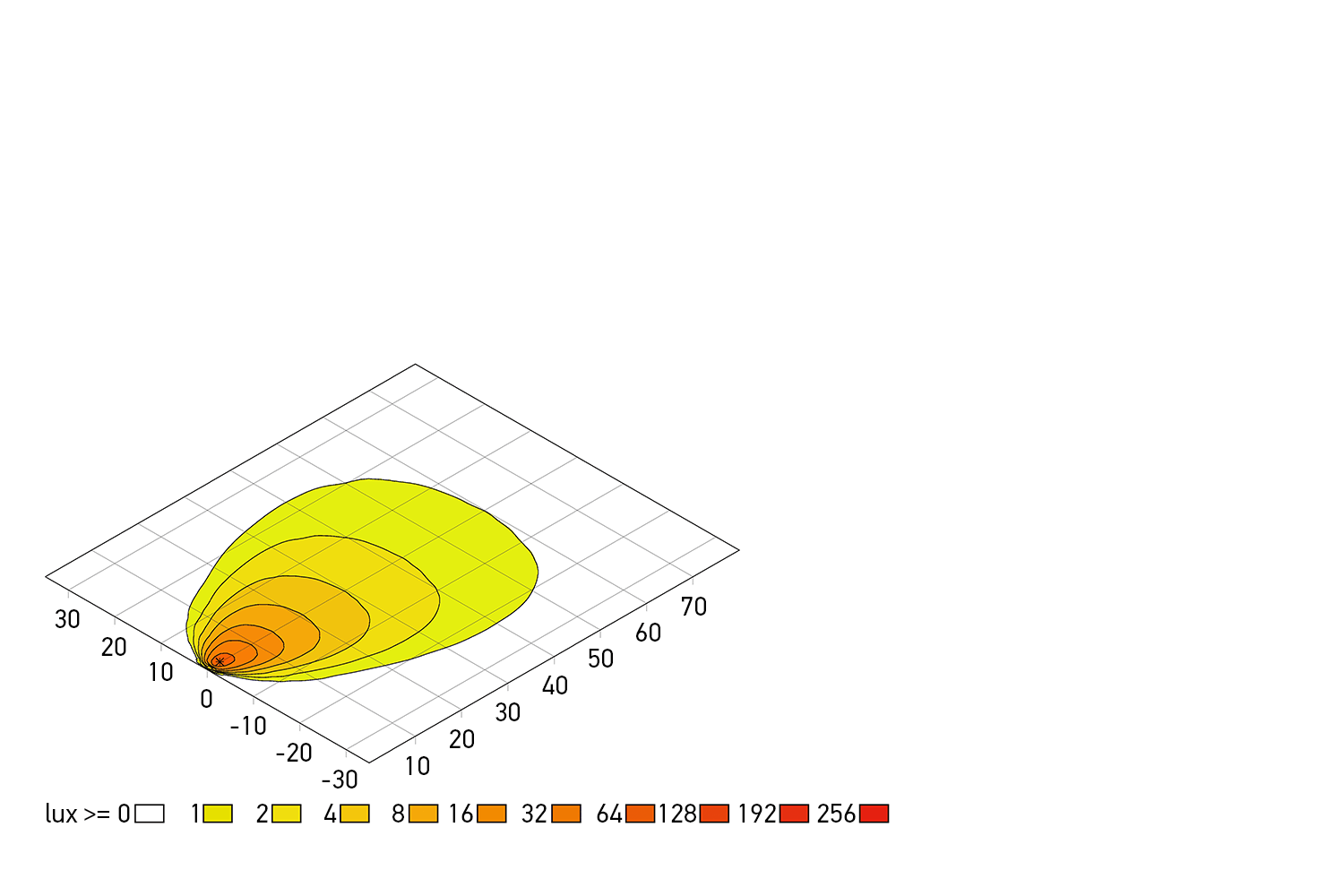

Close-range illumination1H0 996 476-511
