TE24 – trumpet horn | Red two-tone
TE24 – trumpet horn | Red two-tone
Uncompromising acoustics meet striking design: TE24 impresses with its powerful sound, high signalling effect and reliable performance – ideal for sophisticated, sporty vehicles.
- Sporty design
- Full harmonious tone and wide sound radiation
- Reliable horns in original equipment quality from a leading global supplier
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet

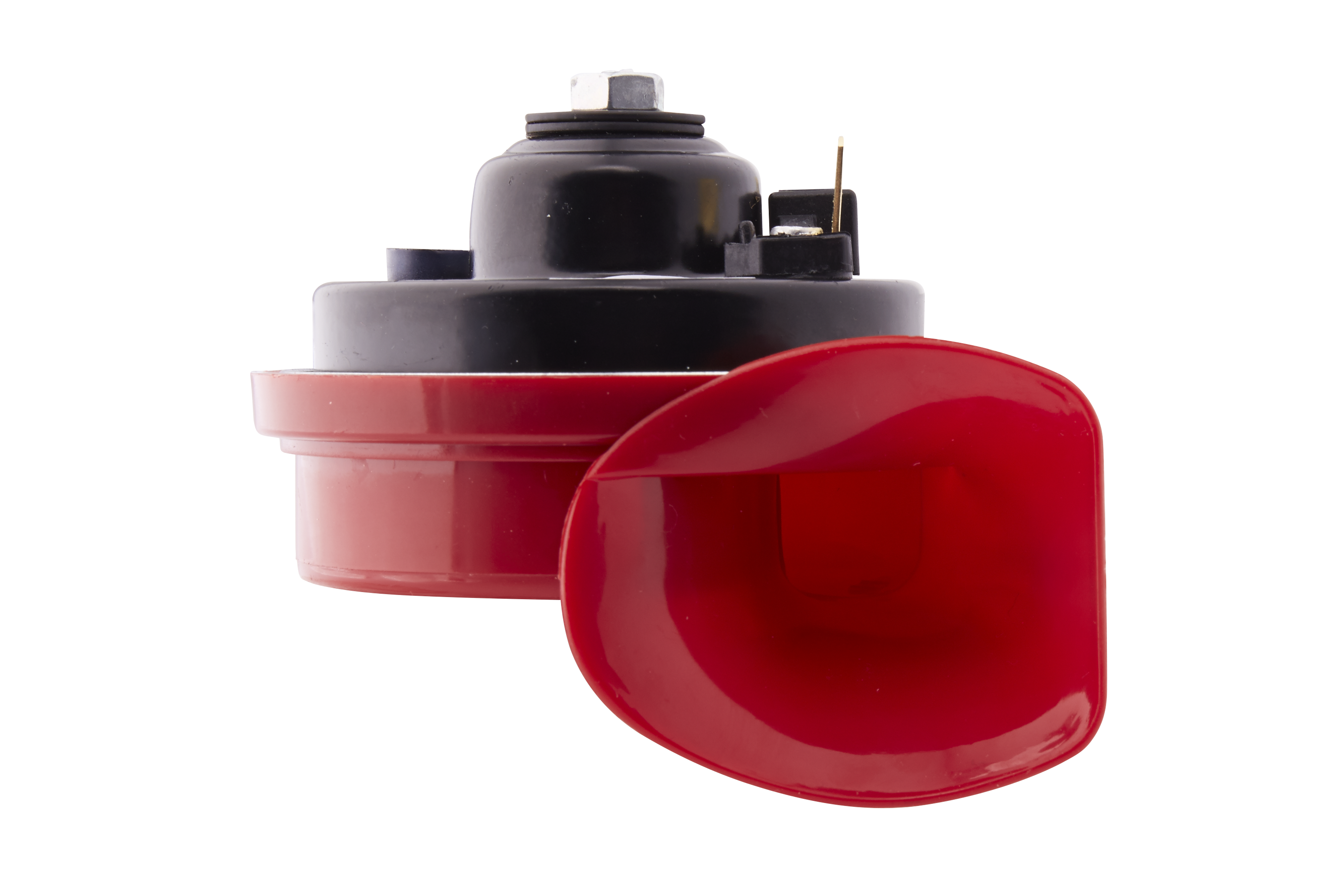

TE24 Set red, incl. Relay
- 3FH 007 424-801
- Voltage 12 V
- Power consumption 72 W
- Sound Level 110 dB(A)
- Frequency range from 400 Hz
- Frequency range to 500 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP65
- fulfils ECE standard R28
- Registration Type ECE approved

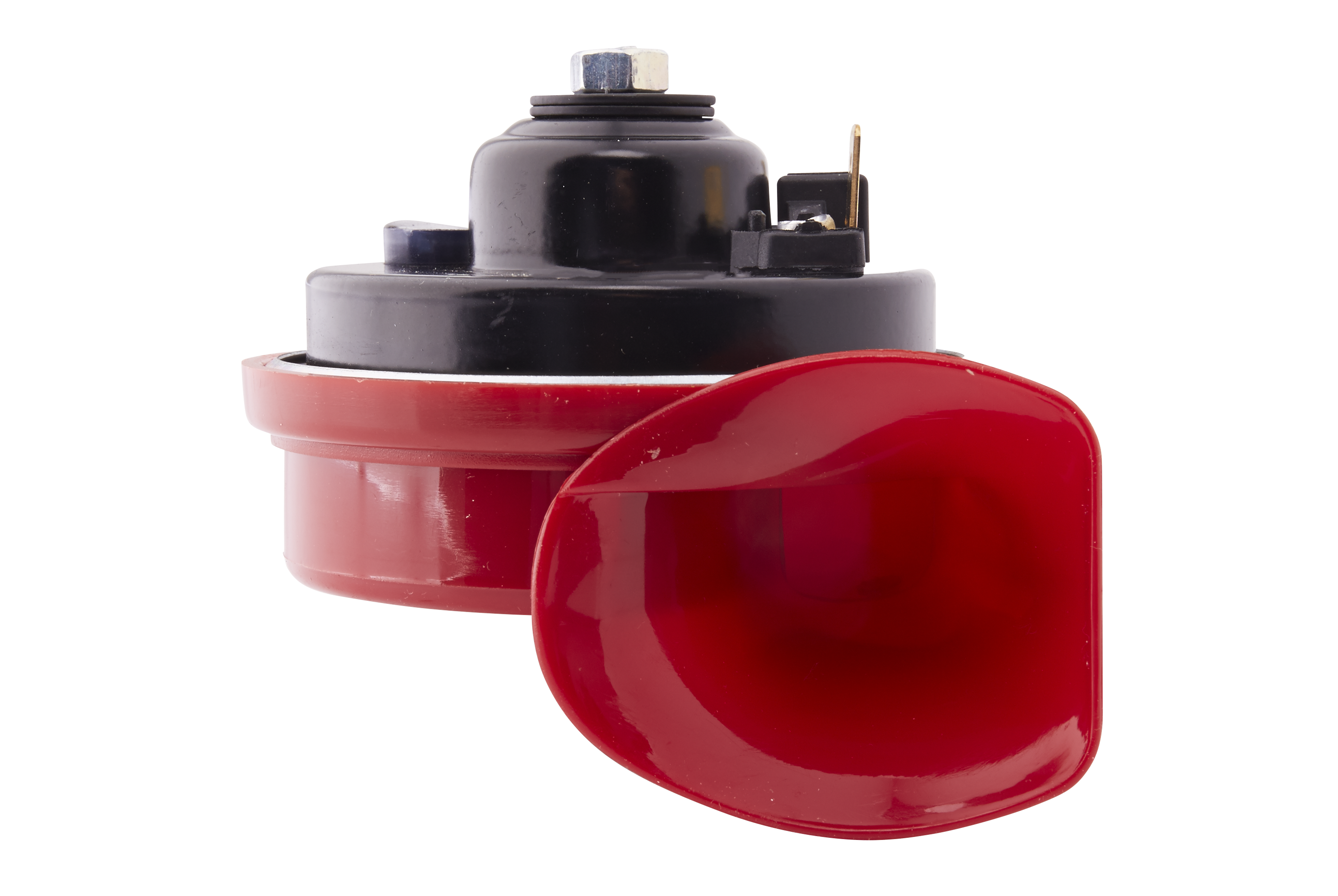

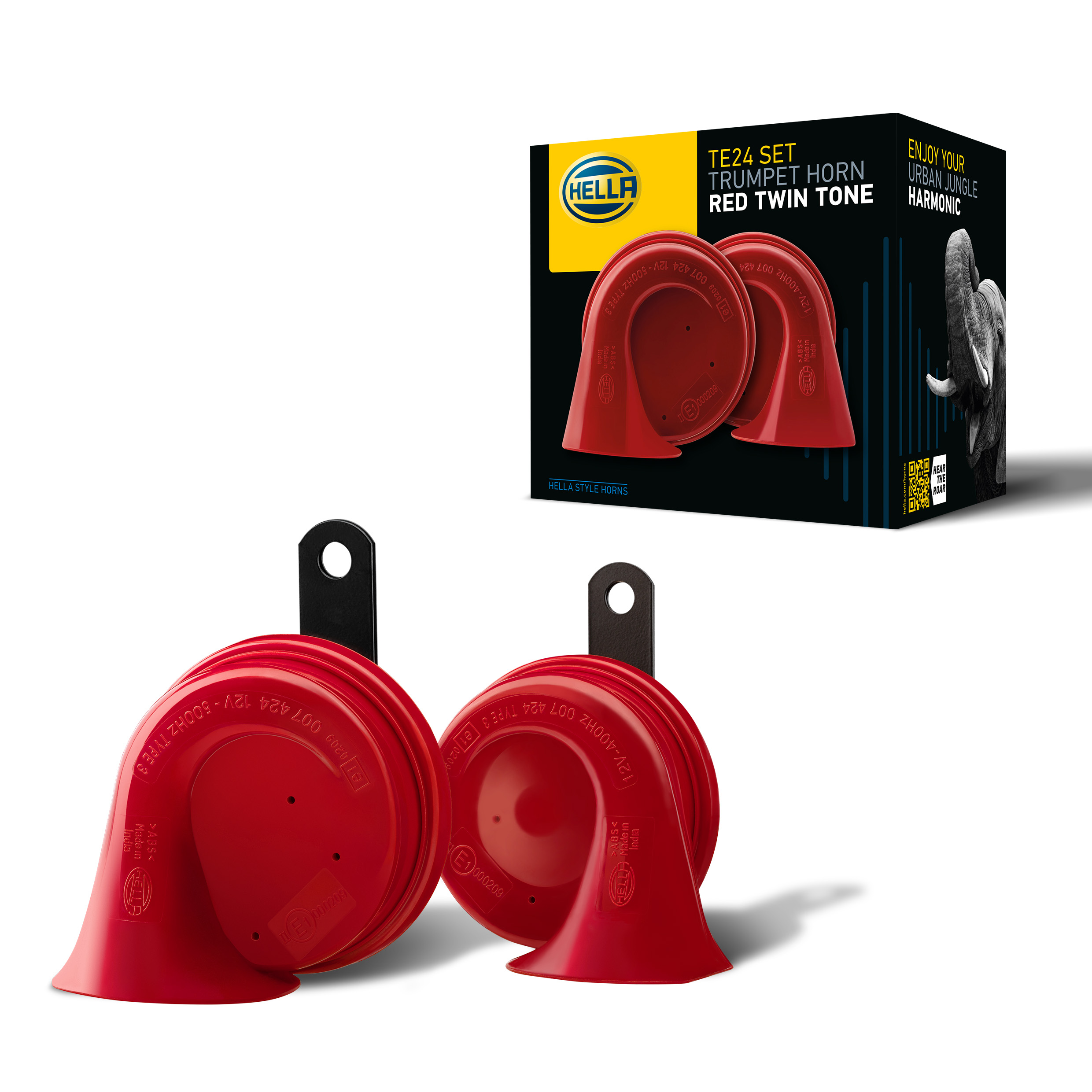

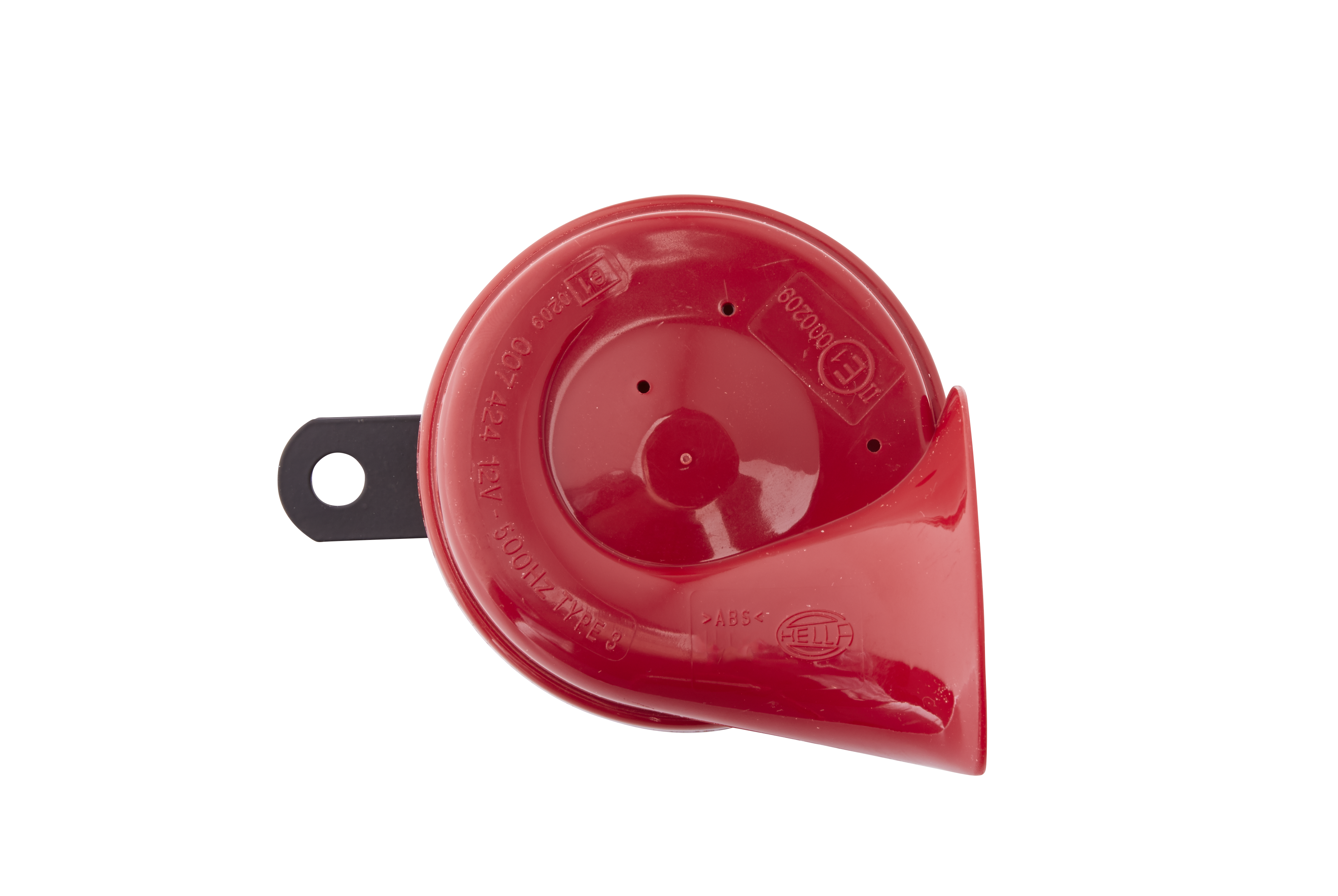

TE 24 Set red
- 3FH 007 424-811
- Voltage 12 V
- Power consumption 72 W
- Sound Level 110 dB(A)
- Frequency range from 400 Hz
- Frequency range to 500 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP65
- fulfils ECE standard R28
- Registration Type ECE approved

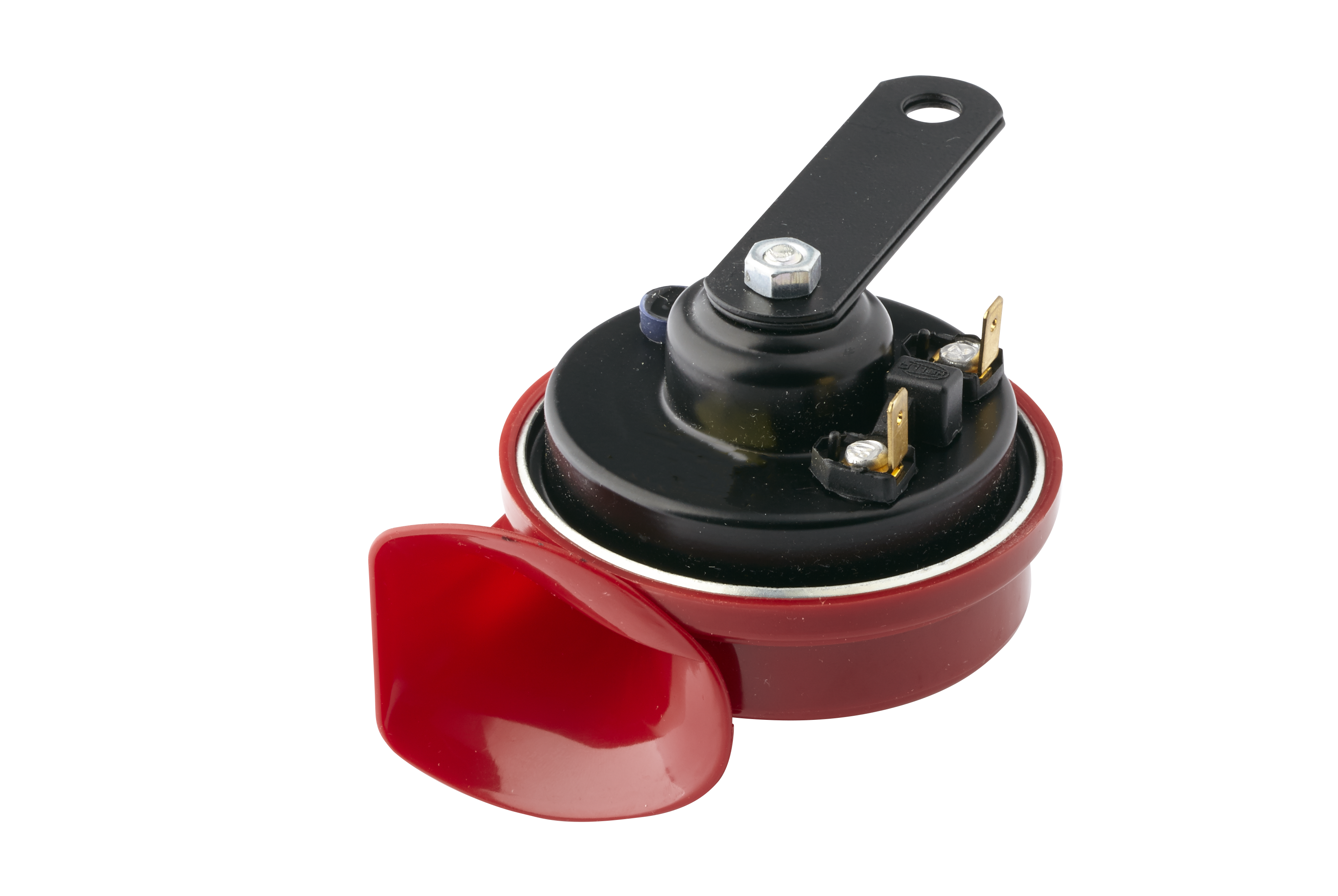

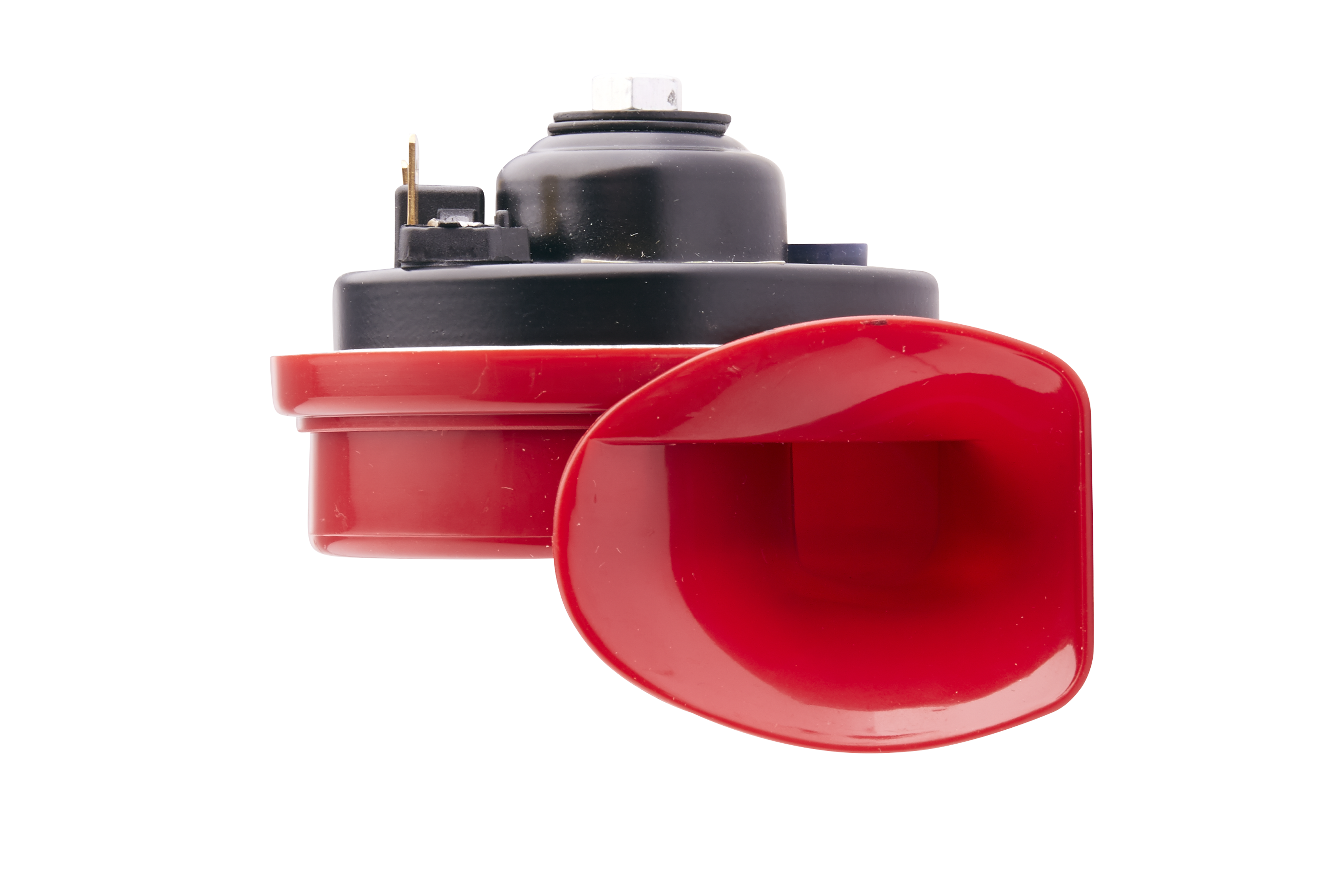

TE24 red, Single 400 Hz
- 3FG 007 424-001
- Voltage 12 V
- Power consumption 72 W
- Sound Level 110 dB(A)
- Frequency Range 400 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP65
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone

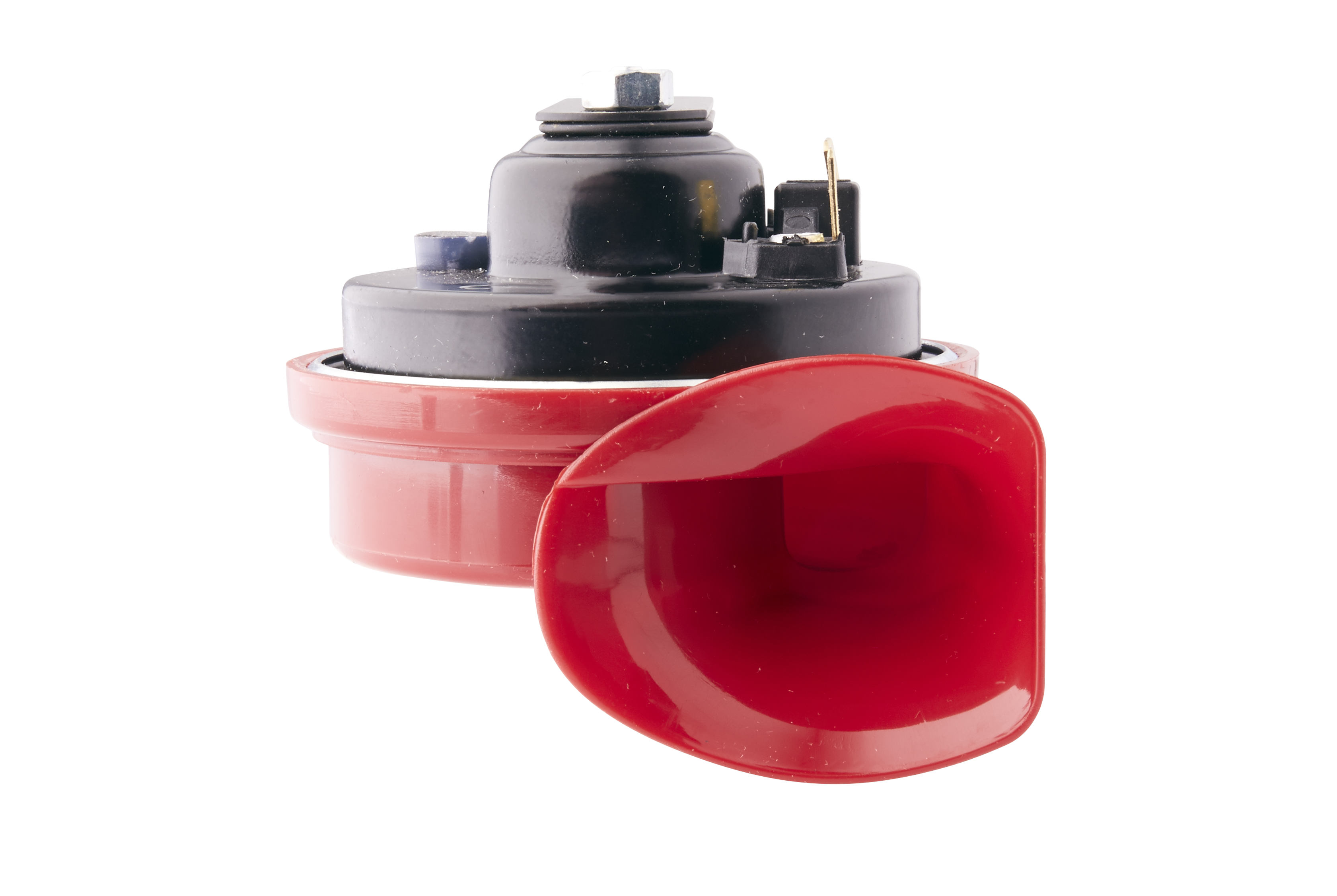

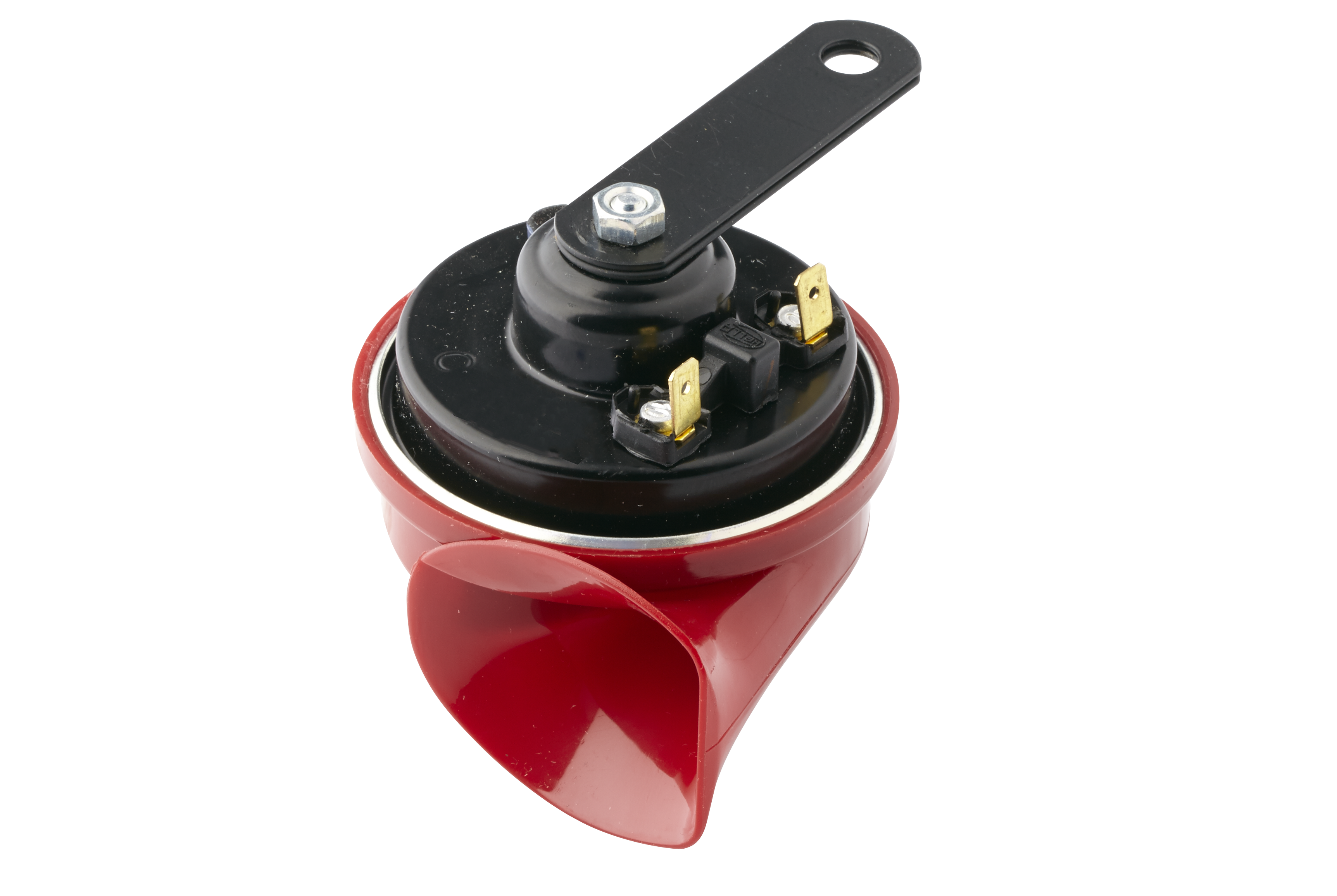

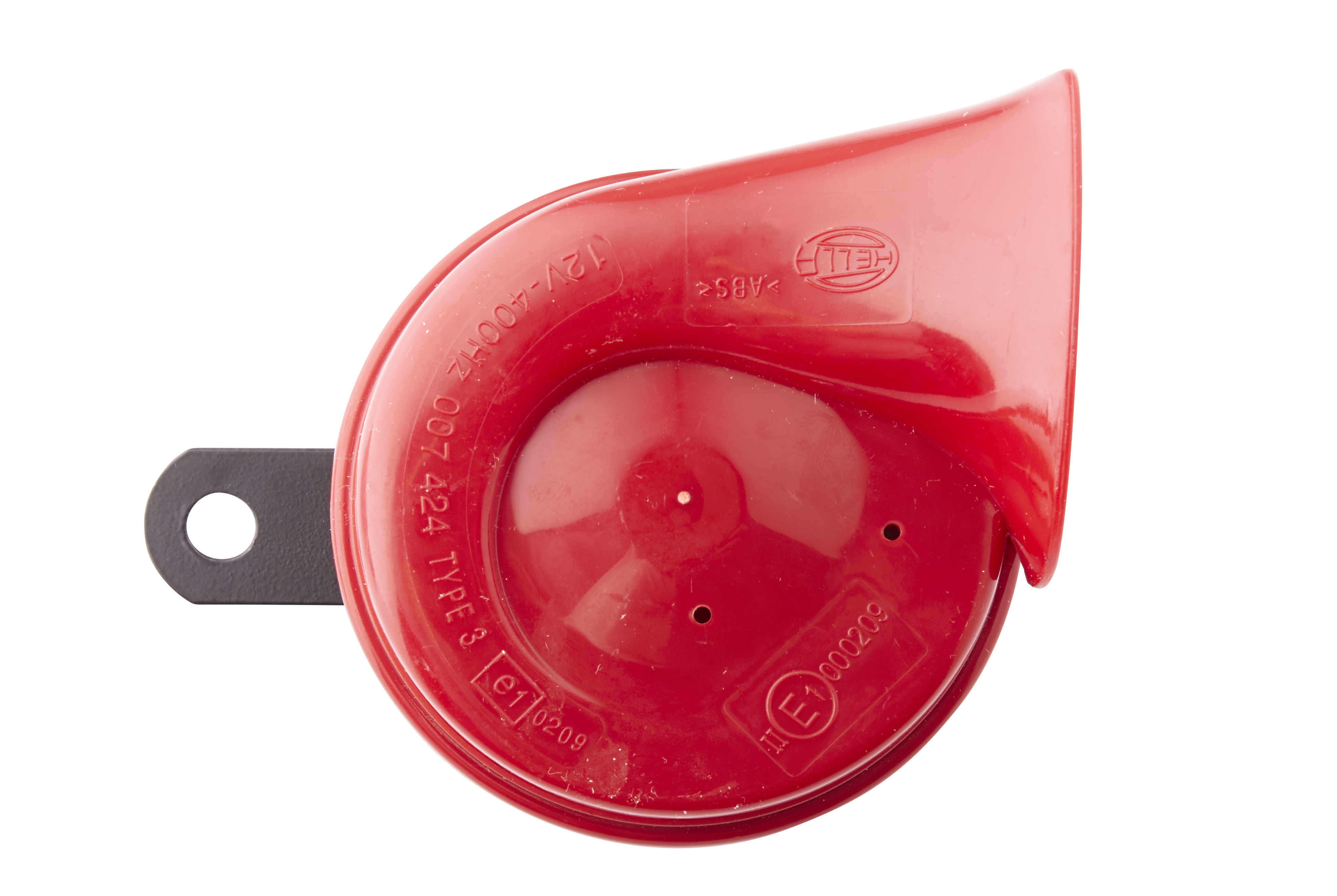

TE24 red, Single 500 Hz
- 3FG 007 424-011
- Voltage 12 V
- Power consumption 72 W
- Sound Level 110 dB(A)
- Frequency Range 500 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP65
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal High Tone
|
TE24 Set red, incl. Relay
|
TE 24 Set red
|
TE24 red, Single 400 Hz
|
TE24 red, Single 500 Hz
|
|
|---|---|---|---|---|
| 3FH 007 424-801 | 3FH 007 424-811 | 3FG 007 424-001 | 3FG 007 424-011 | |
| Voltage | 12 V | 12 V | 12 V | 12 V |
| Power consumption | 72 W | 72 W | 72 W | 72 W |
| Sound Level | 110 dB(A) | 110 dB(A) | 110 dB(A) | 110 dB(A) |
| Frequency range from | 400 Hz | 400 Hz | ||
| Frequency Range | 400 Hz | 500 Hz | ||
| Frequency range to | 500 Hz | 500 Hz | ||
| Charging Rate | 6 A | 6 A | 6 A | 6 A |
| Prot.type (IP Code) | IP65 | IP65 | IP65 | IP65 |
| fulfils ECE standard | R28 | R28 | R28 | R28 |
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved |
| Signal | Low Tone , High Tone | Low Tone , High Tone | High Tone | High Tone |
| Housing Colour | red/black | red/black | red/black | red/black |
| Quantity | 2 | 2 | 1 | 1 |
| Operating Mode | Electric | Electric | Electric | Electric |
| Overall Height | 89 mm | 89 mm | 89 mm | 89 mm |
| Width | 109 mm | 109 mm | 109 mm | 109 mm |
| Depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Supplementary Article/Supplementary Info | with accessories | without accessories | ||
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C |
| Temperature range to | +80 °C | +80 °C | +80 °C | +80 °C |
| Mounting Type | Flat Plug-in Connector | Flat Plug-in Connector | Flat Plug-in Connector | Flat Plug-in Connector |
| Supplementary Article/Supplementary Info 2 | with E quality seal | with E quality seal | with E quality seal | |
| Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
Downloads
2248-Product Info Sheet Horns Europe-TE24-EN
