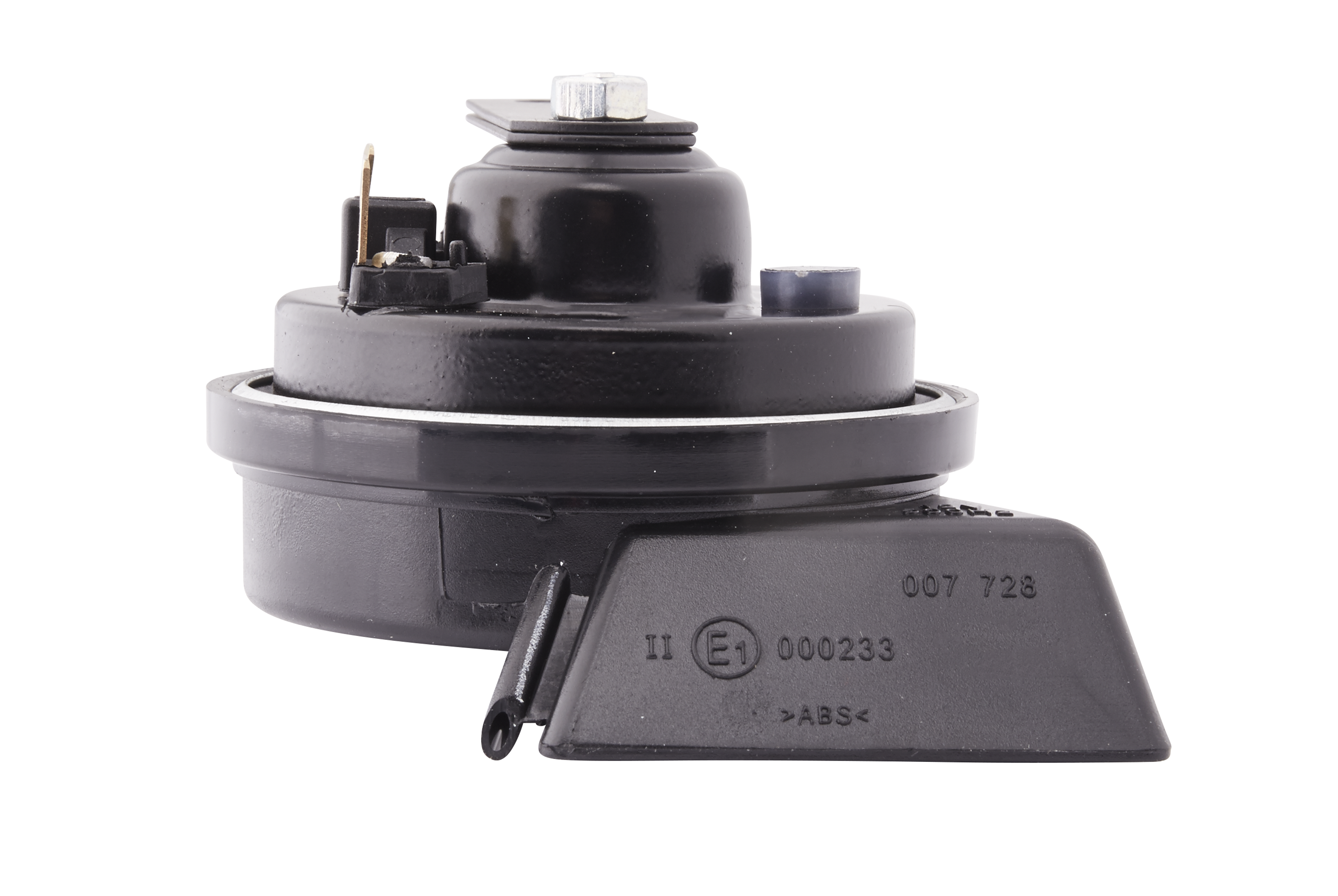

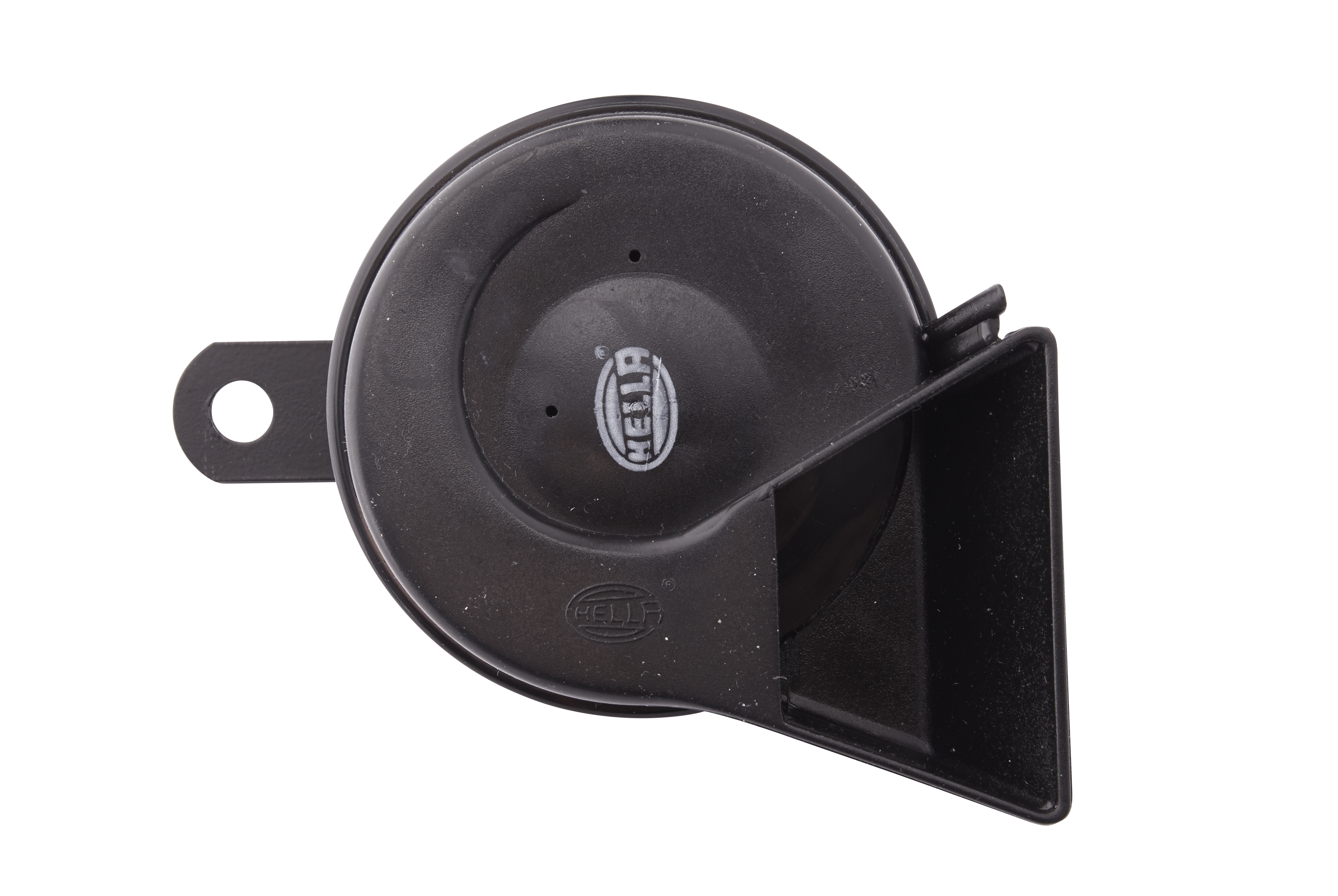

TE22 – trumpet horn | Black two-tone
TE22 – trumpet horn | Black two-tone
Powerful sound in a compact space: TE22 impresses with two-tone technology for a harmonious, penetrating warning signal – ideal for maximum safety and contemporary vehicle requirements.
- Black housing and space-saving design
- Loud sound signal for more safety in traffic
- Optimum tonal quality achieved when a high and low tone horn set is installed
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet
TE22 Set
- 3FH 007 728-831
- Voltage 12 V
- Power consumption 72 W
- Sound Level 110 dB(A)
- Frequency range from 400 Hz
- Frequency range to 500 Hz
- Charging Rate 6 A
- Prot.type (IP Code) IP65
- fulfils ECE standard R28
- Registration Type ECE approved
|
TE22 Set
|
|
|---|---|
| 3FH 007 728-831 | |
| Voltage | 12 V |
| Power consumption | 72 W |
| Sound Level | 110 dB(A) |
| Frequency range from | 400 Hz |
| Frequency range to | 500 Hz |
| Charging Rate | 6 A |
| Prot.type (IP Code) | IP65 |
| fulfils ECE standard | R28 |
| Registration Type | ECE approved |
| Housing Colour | black |
| Signal | High Tone , Low Tone |
| Quantity | 2 |
| Operating Mode | Electric |
| Width | 82 mm |
| Height | 93 mm |
| Depth | 64 mm |
| Temperature range from | -40 °C |
| Temperature range to | +80 °C |
| Mounting Type | Flat Plug-in Connector |
| Supplementary Article/Supplementary Info 2 | with E quality seal |
| Search the web | |
|
|
Downloads
2248-Product Info Sheet Horns Europe-TE22-EN
