Modular LED Hybrid Trailer Light Solutions
Truck
Modular LED Hybrid Trailer Light Solutions
Maximum flexibility for commercial vehicles: This modular rear lamp adapts exactly to your requirements thanks to its modular design. Replaceable components, cutting-edge hybrid technology and integrated electronics make it an efficient, sustainable solution in the trailer sector.
- 24 V modular multi-function rear lamp
- Full LED version, long lifetime and low electrical energy consumption
Systematic hybrid solution – flexible, low-maintenance and future-proof
Whether LED or bulb-based – this multi-functional trailer light combines both technologies in one modular system. The equipment can be adapted at any time thanks to replaceable cover lenses and control components. The integrated "Flash SMLR" function and direction indicator failure control guarantee maximum safety and compatibility in accordance with ECE-R48.
Technical Sheet

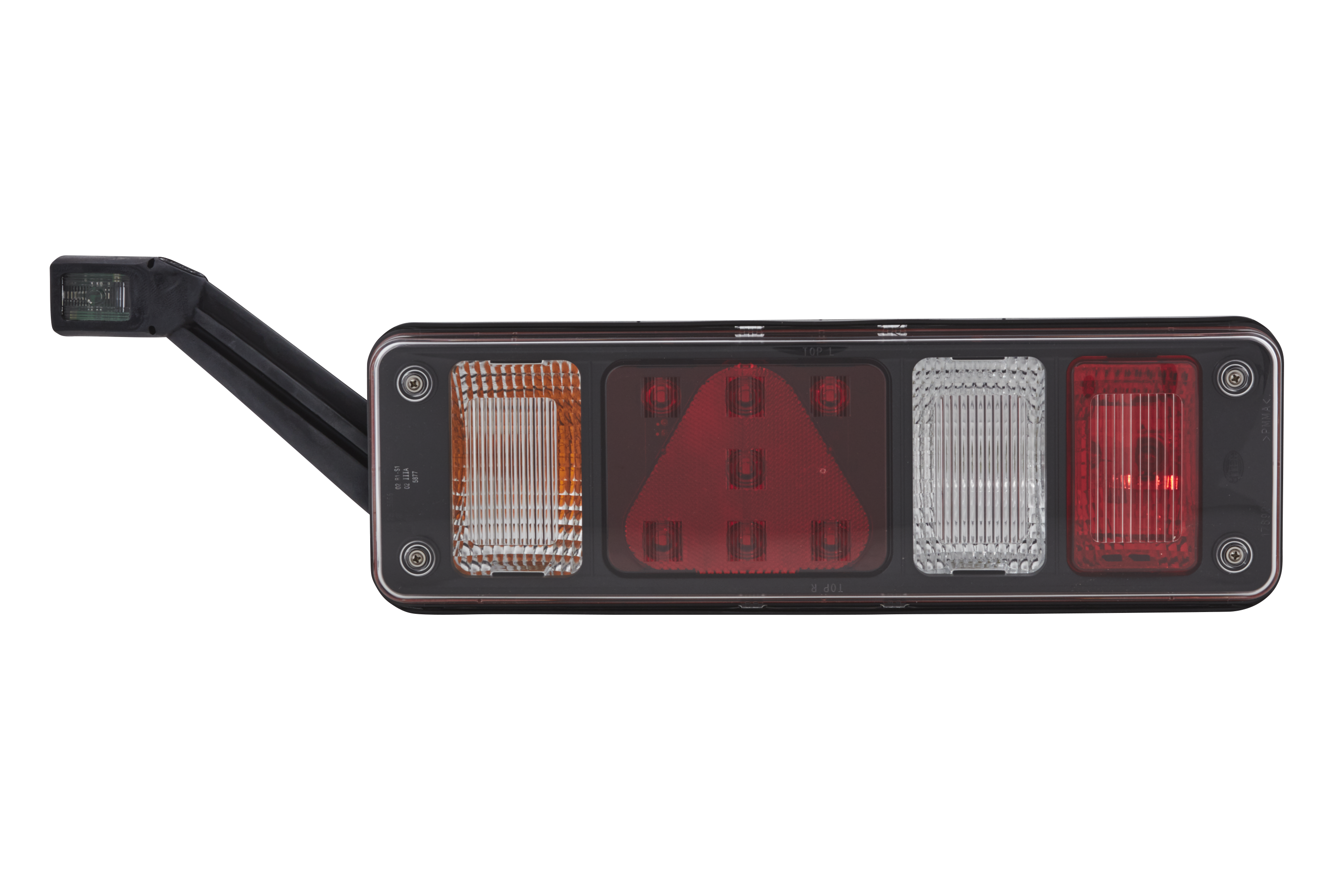

Modular Trailer Hybrid left
- 2VP 340 961-111
- Voltage 24 V
- Registration Type ECE approved , ADR/GGVS approved
- Light Function with reflector (triangular) , with reflector , with stop light (LED) , with indicator , with marker lamp (LED) , with rear fog light , with taillight (LED) , with reverse light
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Prot.type (IP Code) IP5K4K , IP6K9K
- Fitting Position Left
- Light Design with hybrid technology
- Lamp Type PY21W , LED , P21W
Height
94 mm
Width
138 mm
Length
450 mm
Number of light functions
6
Plug-type ID
EasyConn 1 x 7 , EasyConn 4 x 2
Plug Type
Male
Number of LEDs
7
LED colour
white , yellow , red
Housing Type
Synthetic Material Housing
Housing Colour
black
Lens Colour
red , Crystal clear
Tightening Torque
1,5 Nm, 6 Nm
paired article number
2VP 340 961-121
Quantity
1

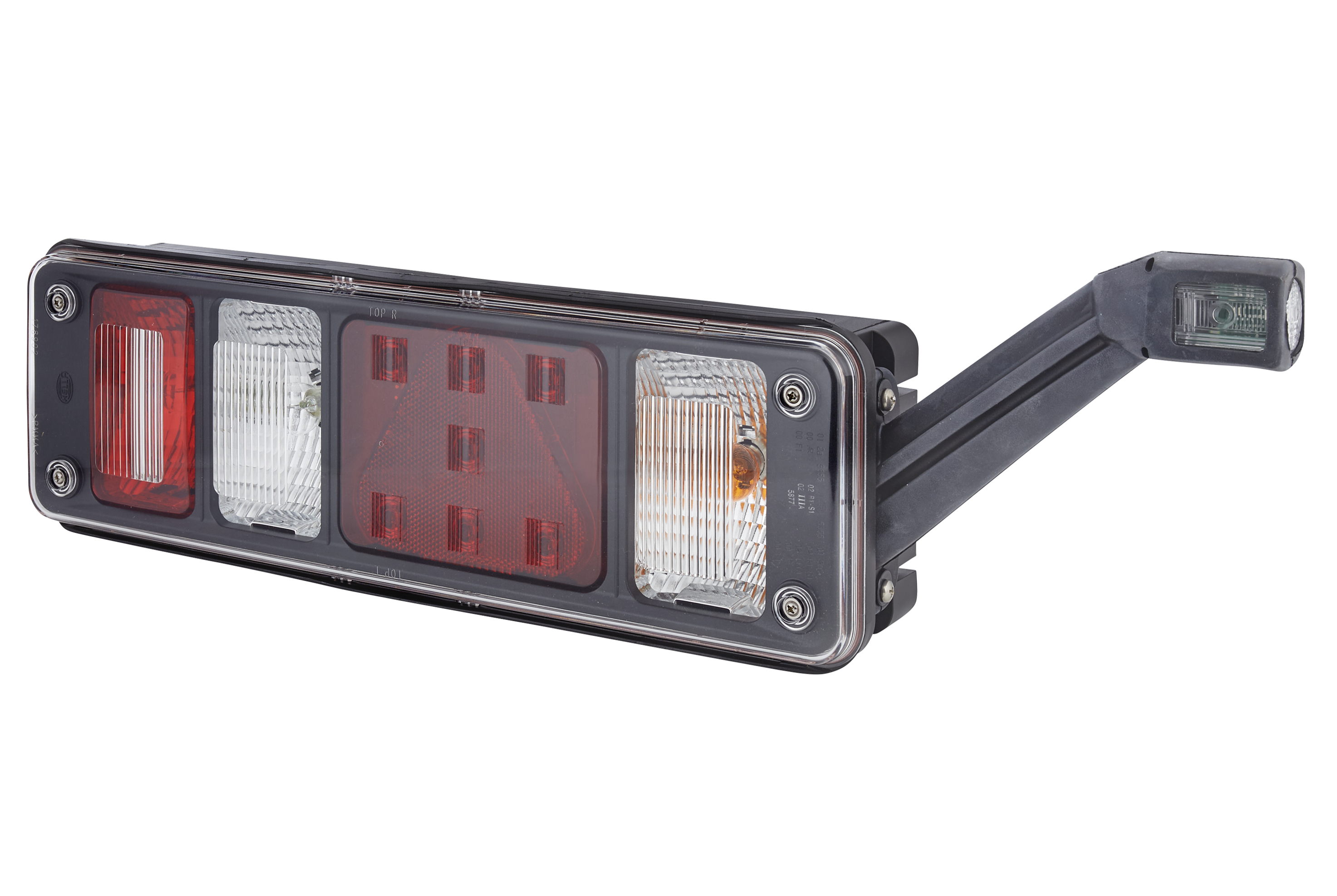

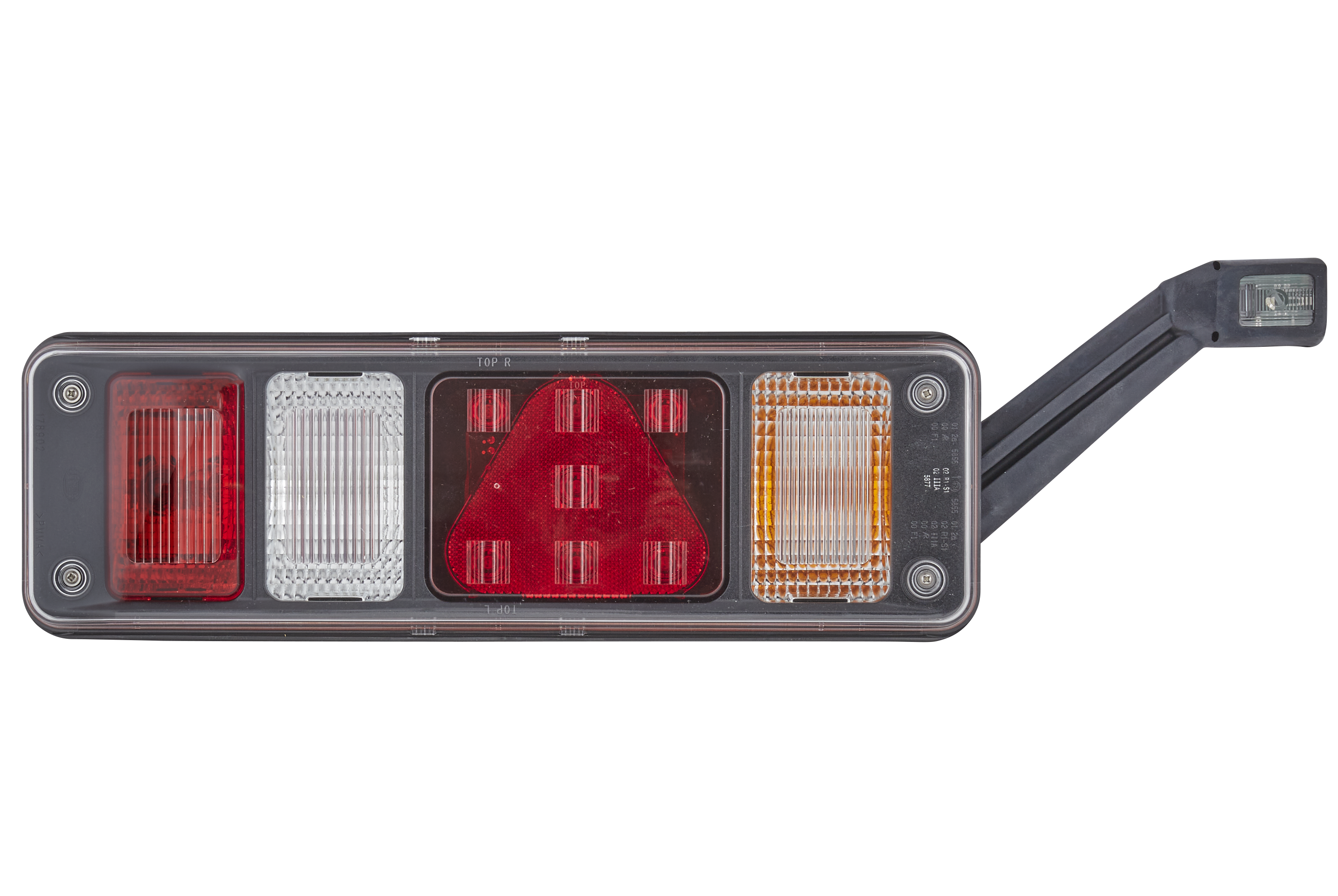

Modular Trailer Hybrid right
- 2VP 340 961-121
- Voltage 24 V
- Registration Type ECE approved , ADR/GGVS approved
- Light Function with rear fog light , with reflector , with marker lamp (LED) , with stop light (LED) , with indicator , with reverse light , with side marker light (LED) , with taillight (LED)
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Prot.type (IP Code) IP5K4K , IP6K9K
- Fitting Position Right
- Light Design with hybrid technology
- Lamp Type LED , P21W , PY21W
Height
94 mm
Width
138 mm
Length
450 mm
Number of light functions
6
Plug-type ID
EasyConn 1 x 7 , EasyConn 4 x 2
Plug Type
Male
Number of LEDs
7
LED colour
white , yellow , red
Housing Type
Synthetic Material Housing
Housing Colour
black
Lens Colour
red , Crystal clear
Tightening Torque
1,5 Nm, 6 Nm
paired article number
2VP 340 961-111
Quantity
1
|
Modular Trailer Hybrid left
|
Modular Trailer Hybrid right
|
|
|---|---|---|
| 2VP 340 961-111 | 2VP 340 961-121 | |
| Voltage | 24 V | 24 V |
| Registration Type | ECE approved , ADR/GGVS approved | ECE approved , ADR/GGVS approved |
| Light Function | with reflector (triangular) , with reflector , with stop light (LED) , with indicator , with marker lamp (LED) , with rear fog light , with taillight (LED) , with reverse light | with rear fog light , with reflector , with marker lamp (LED) , with stop light (LED) , with indicator , with reverse light , with side marker light (LED) , with taillight (LED) |
| Mounting Type | Bolted | Bolted |
| Fastening Type | for horizontal fastening | for horizontal fastening |
| Prot.type (IP Code) | IP5K4K , IP6K9K | IP5K4K , IP6K9K |
| Fitting Position | Left | Right |
| Light Design | with hybrid technology | with hybrid technology |
| Lamp Type | PY21W , LED , P21W | LED , P21W , PY21W |
| Height | 94 mm | 94 mm |
| Width | 138 mm | 138 mm |
| Length | 450 mm | 450 mm |
| Number of light functions | 6 | 6 |
| Plug-type ID | EasyConn 1 x 7 , EasyConn 4 x 2 | EasyConn 1 x 7 , EasyConn 4 x 2 |
| Plug Type | Male | Male |
| Number of LEDs | 7 | 7 |
| LED colour | white , yellow , red | white , yellow , red |
| Housing Type | Synthetic Material Housing | Synthetic Material Housing |
| Housing Colour | black | black |
| Lens Colour | red , Crystal clear | red , Crystal clear |
| Tightening Torque | 1,5 Nm, 6 Nm | 1,5 Nm, 6 Nm |
| paired article number | 2VP 340 961-121 | 2VP 340 961-111 |
| Quantity | 1 | 1 |
