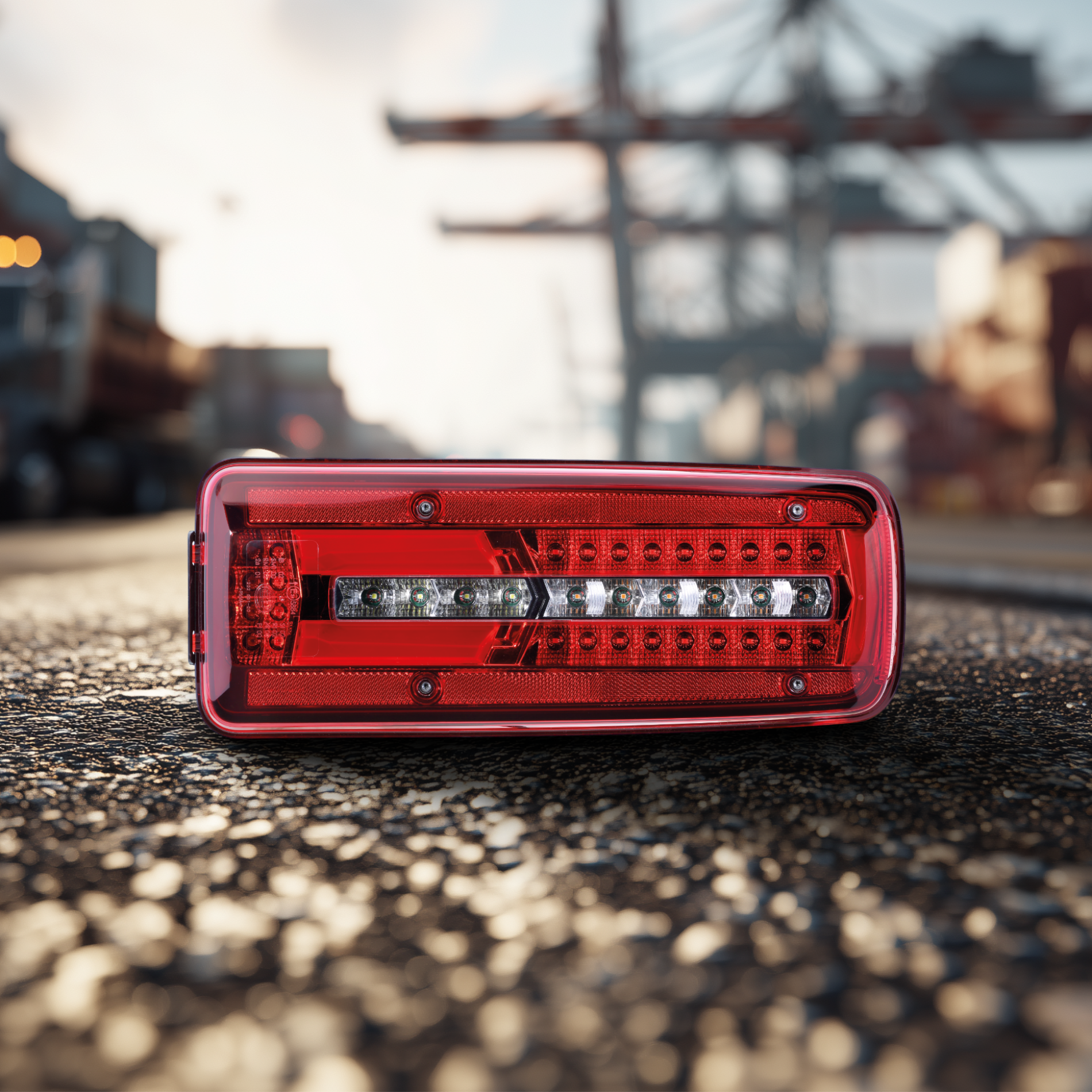

Full-LED truck rear lamp
Truck
Full-LED truck rear lamp
The HELLA full-LED truck rear lamp links cutting-edge LED technology to high ruggedness for heavy-duty applications. The lamp impresses with replaceable components, a modular range of variants, reduced maintenance costs and a clear-cut contribution to CO₂ savings.
- All functions in LED for heavy-duty requirements
- Replaceable, non-patterned lens
- Innovative direction indicator light thanks to dynamic direction indicator

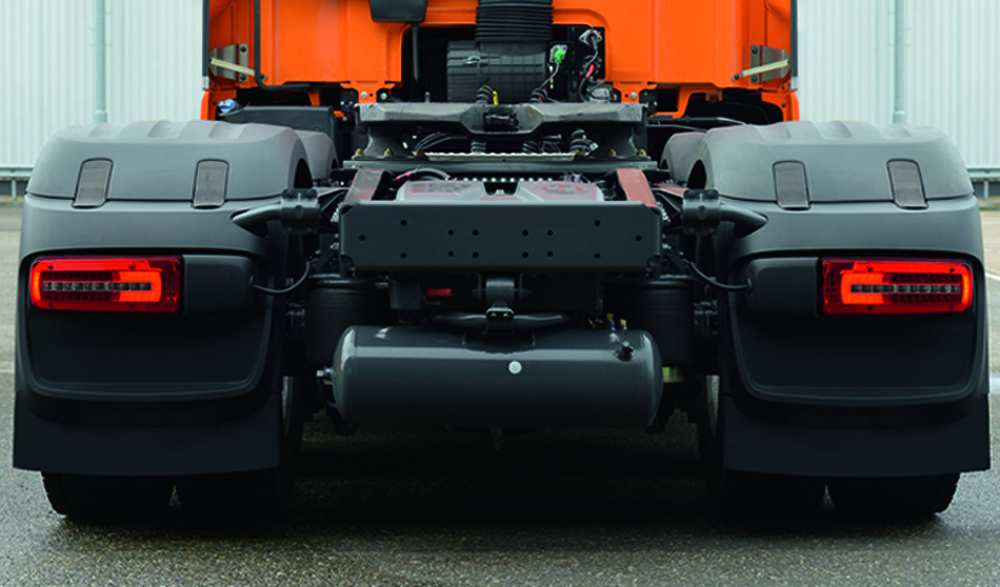

Rugged LED technology for individual requirements in the commercial vehicle sector
The HELLA LED truck rear lamp is modular and designed for an ample range of heavy-duty applications. Thanks to the lens being identical on the left and right, it cuts warehousing costs, while the innovative look with glowing body technology offers a contemporary appearance.
Technical Sheet

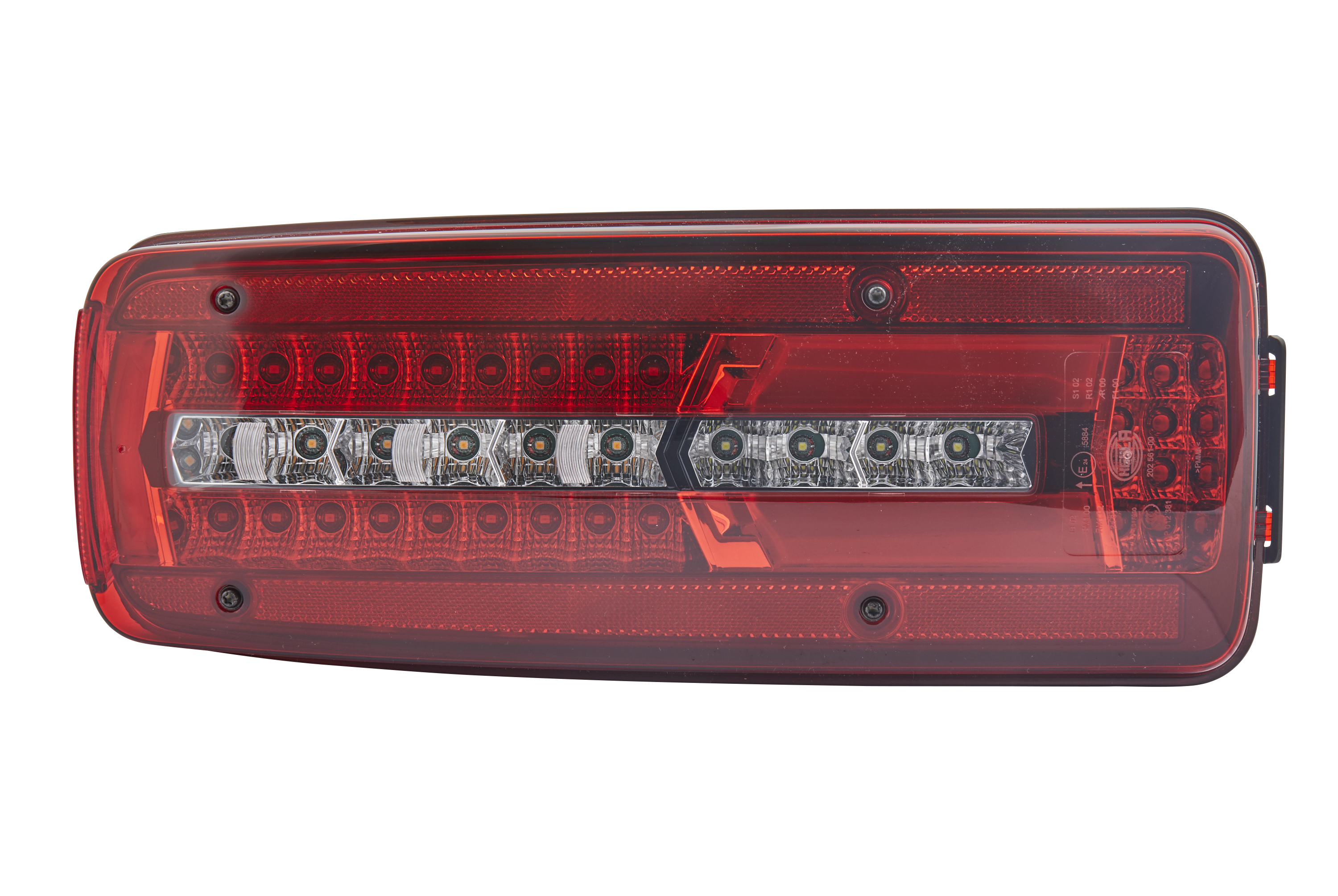

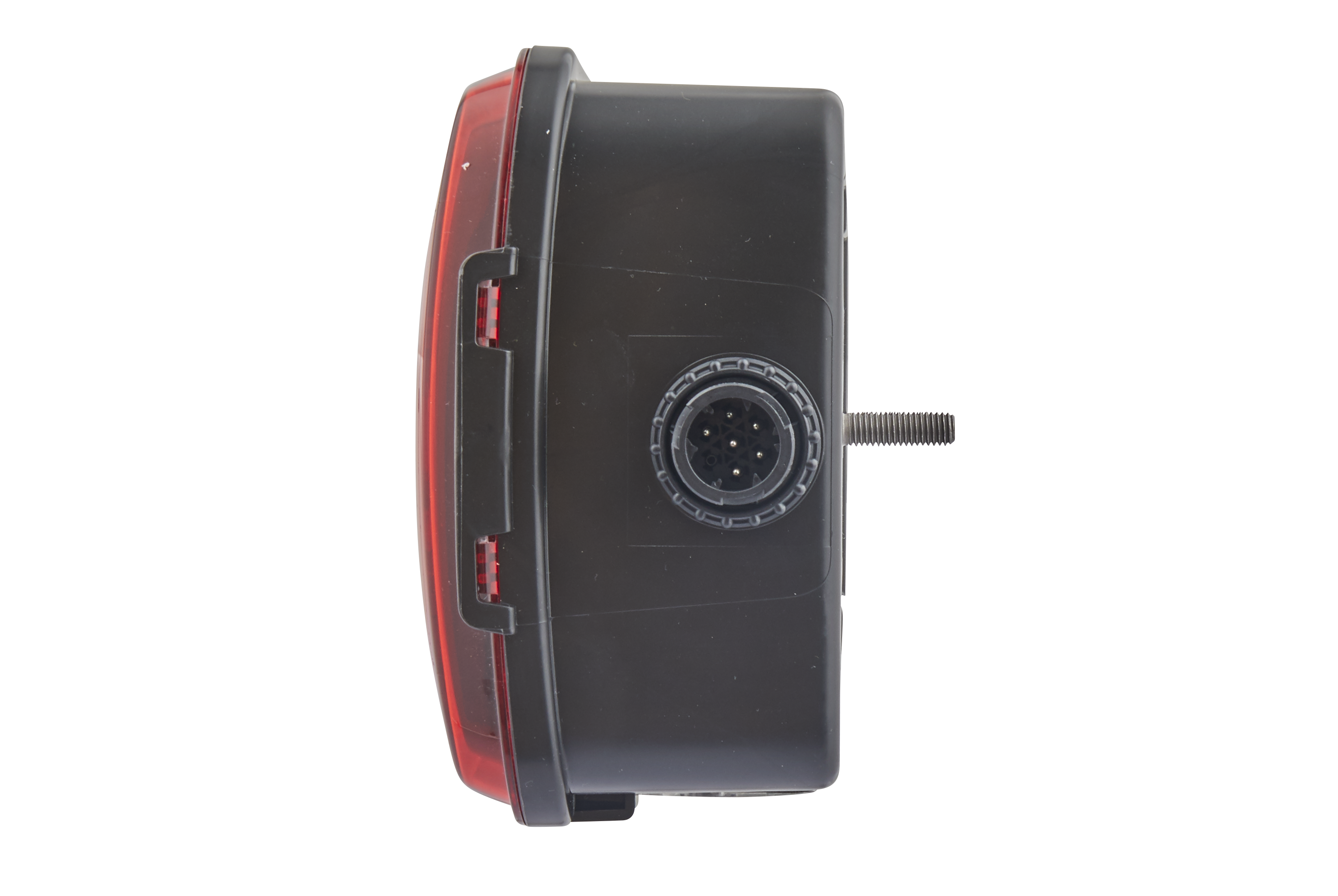

MAN Truck Full-LED left
- 2VD 012 381-011
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Light Design LED
- Lamp Type LED
- Voltage 24 V
- Fitting Position Left
- Height 92 mm
- Width 159 mm
- Length 404 mm
Light Function
with marker lamp (LED) , with reflector , with indicator (LED) , with reverse light (LED) , with licence plate light (LED) , with taillight (LED) , with rear fog light (LED) , with stop light (LED) , with side marker light (LED)
Number of light functions
9
Plug-type ID
DIN Bajonett
Plug Type
Round Plug
Prot.type (IP Code)
IP5K4K , IPX9K
Registration Type
ECE approved , ADR/GGVS approved
Number of LEDs
53
Cable Length
500 mm
Housing Colour
black
Lens Colour
Crystal clear , red
LED colour
white , yellow , red
paired article number
2VP 012 381-021
Quantity
1

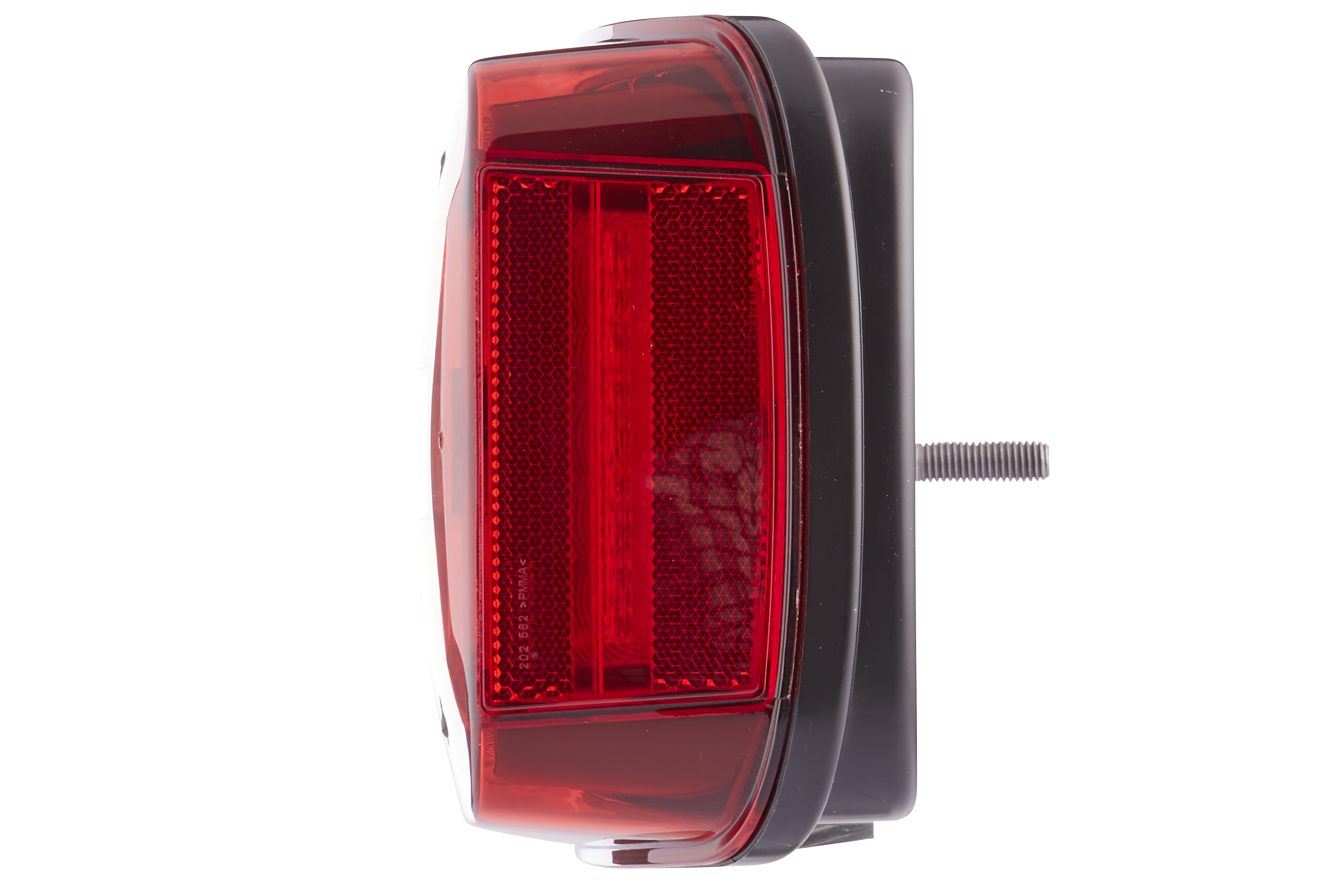

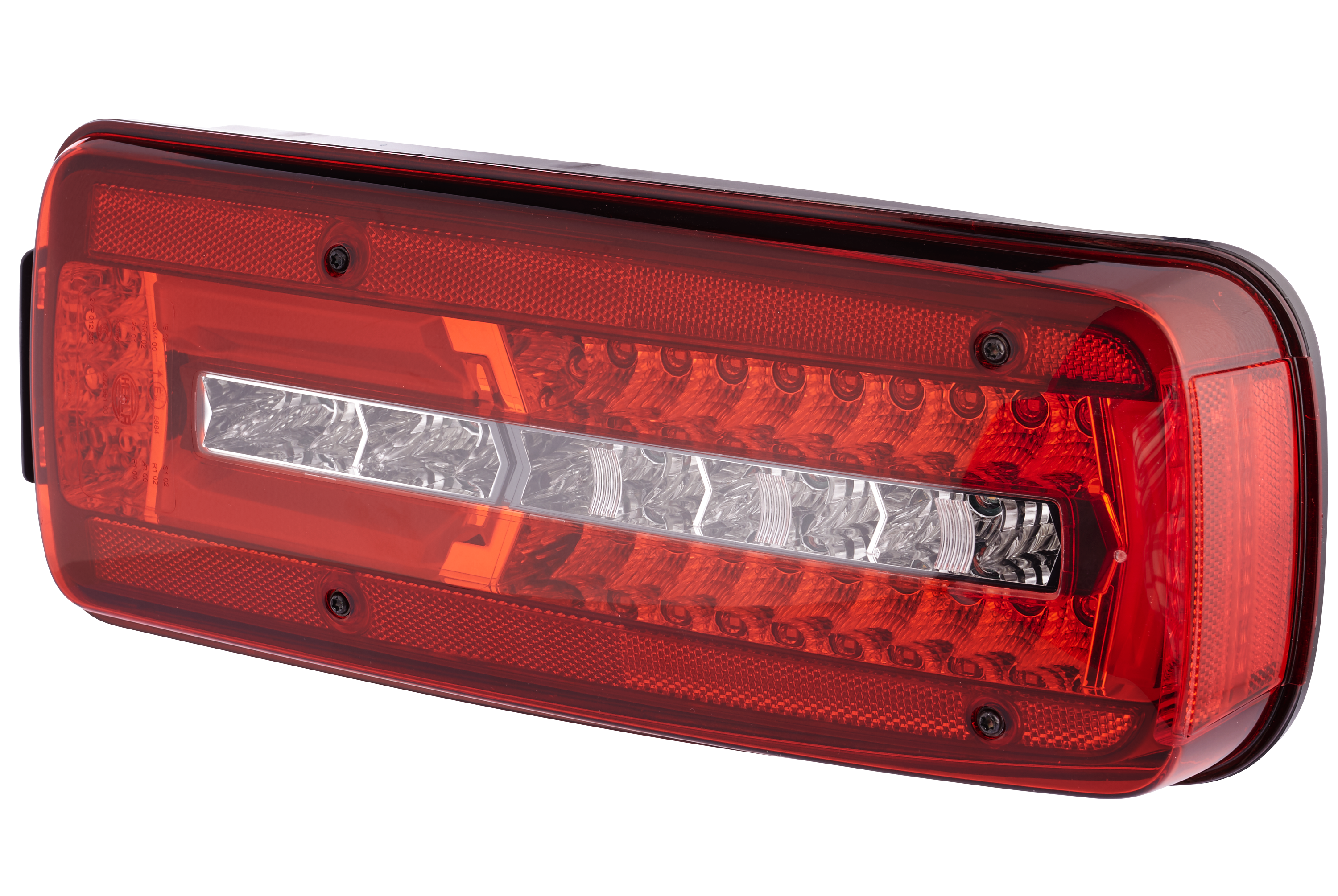

MAN Truck Full-LED right
- 2VP 012 381-021
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Light Design LED
- Lamp Type LED
- Voltage 24 V
- Fitting Position Right
- Height 92 mm
- Width 159 mm
- Length 404 mm
Light Function
with rear fog light (LED) , with reflector , with taillight (LED) , without licence plate light , with marker lamp (LED) , with stop light (LED) , with reverse light (LED) , with indicator (LED) , with side marker light (LED)
Number of light functions
8
Plug-type ID
DIN Bajonett
Plug Type
Round Plug
Prot.type (IP Code)
IPX9K , iP5K4K
Registration Type
ECE approved , ADR/GGVS approved
Number of LEDs
53
Cable Length
500 mm
Housing Colour
black
Lens Colour
Crystal clear , red
LED colour
yellow (amber) , red , white
paired article number
2VP 012 381-051
Quantity
1

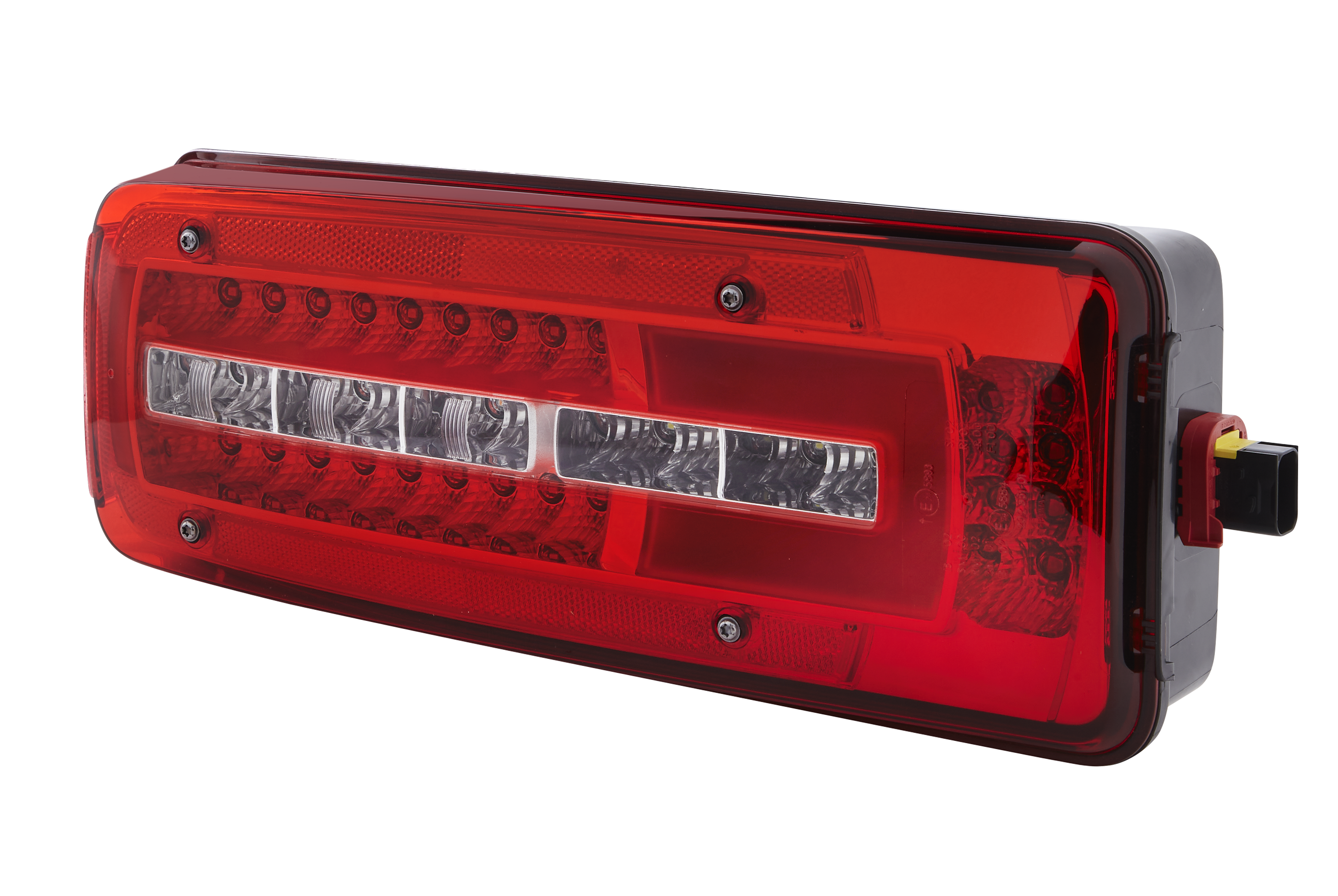

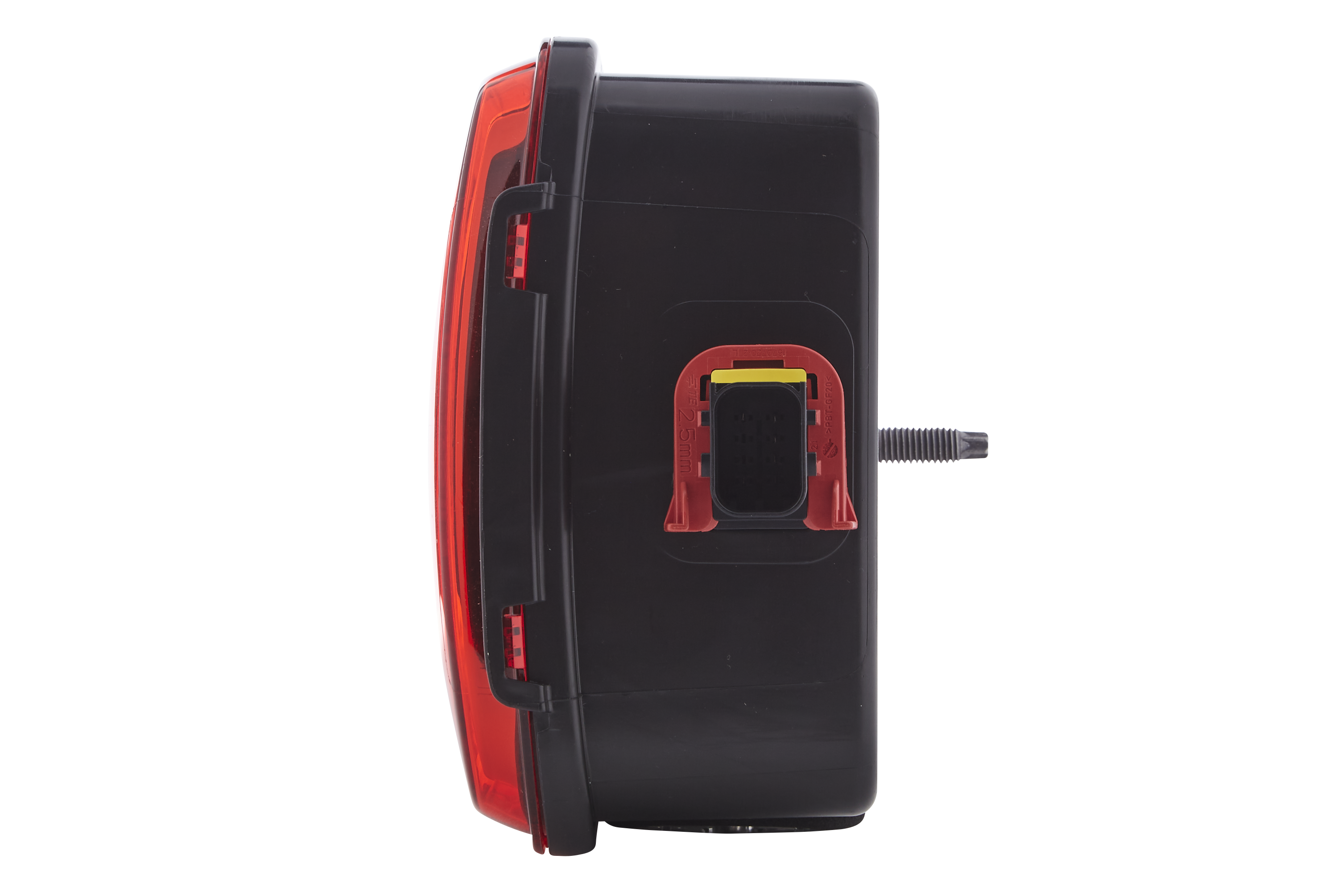

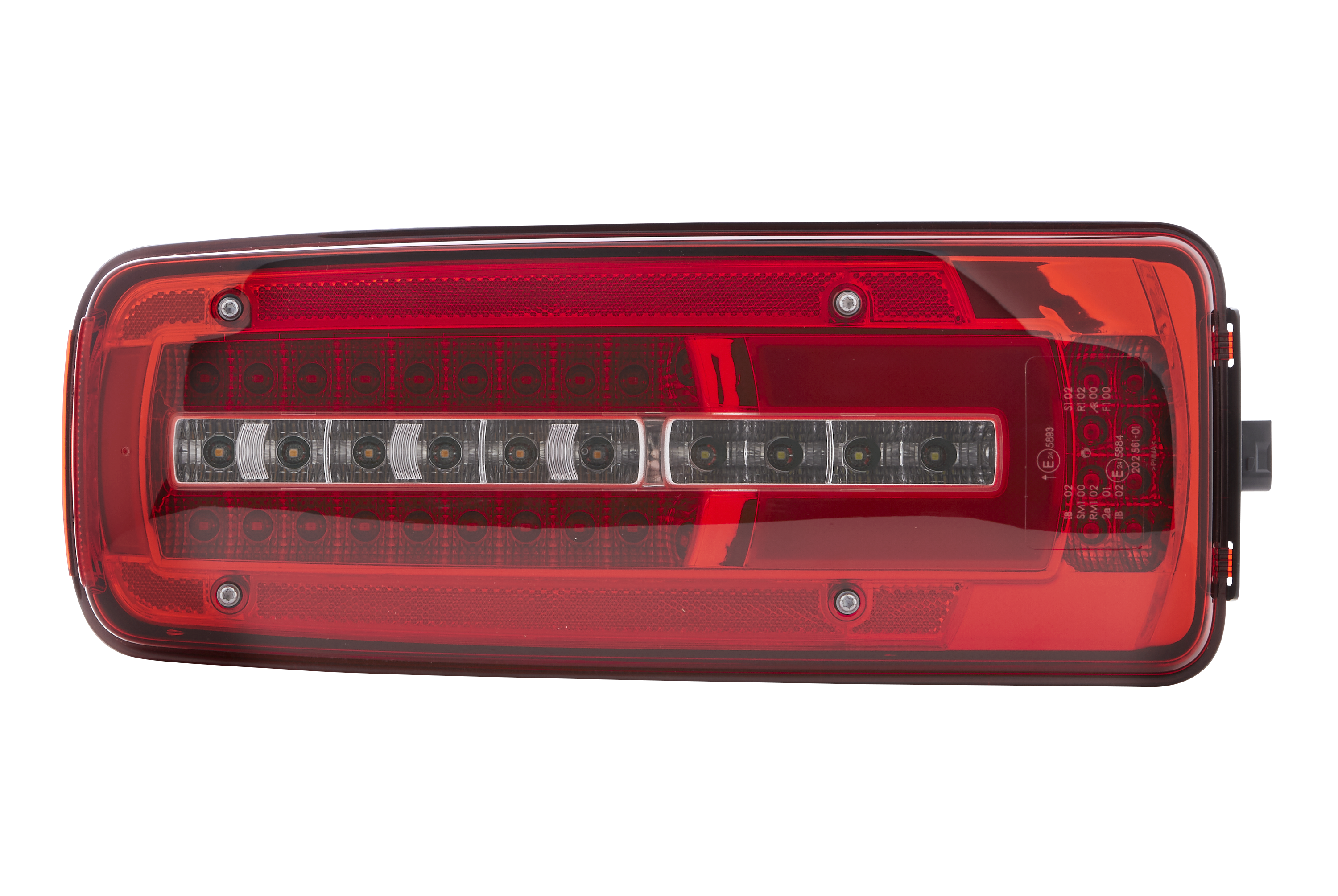

DAF Truck Full-LED left
- 2VD 012 381-211
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Light Design LED
- Lamp Type LED
- Voltage 24 V
- Fitting Position Left
- Height 92 mm
- Width 159 mm
- Length 404 mm
Light Function
with dynamic indicator light , with stop light (LED) , with marker lamp (LED) , with side marker light (LED) , with licence plate light (LED) , with indicator (LED) , with rear fog light (LED) , with reverse light (LED) , with reflector , with taillight (LED)
Number of light functions
10
Plug-type ID
HDSCS
Plug Type
AMP
Prot.type (IP Code)
IPX9K , IP5K4K
Registration Type
ECE approved , ADR/GGVS approved
Number of LEDs
53
Cable Length
500 mm
Housing Colour
black
Lens Colour
Crystal clear , red
LED colour
red , white , yellow (amber)
paired article number
2VP 012 381-221/241
Quantity
1

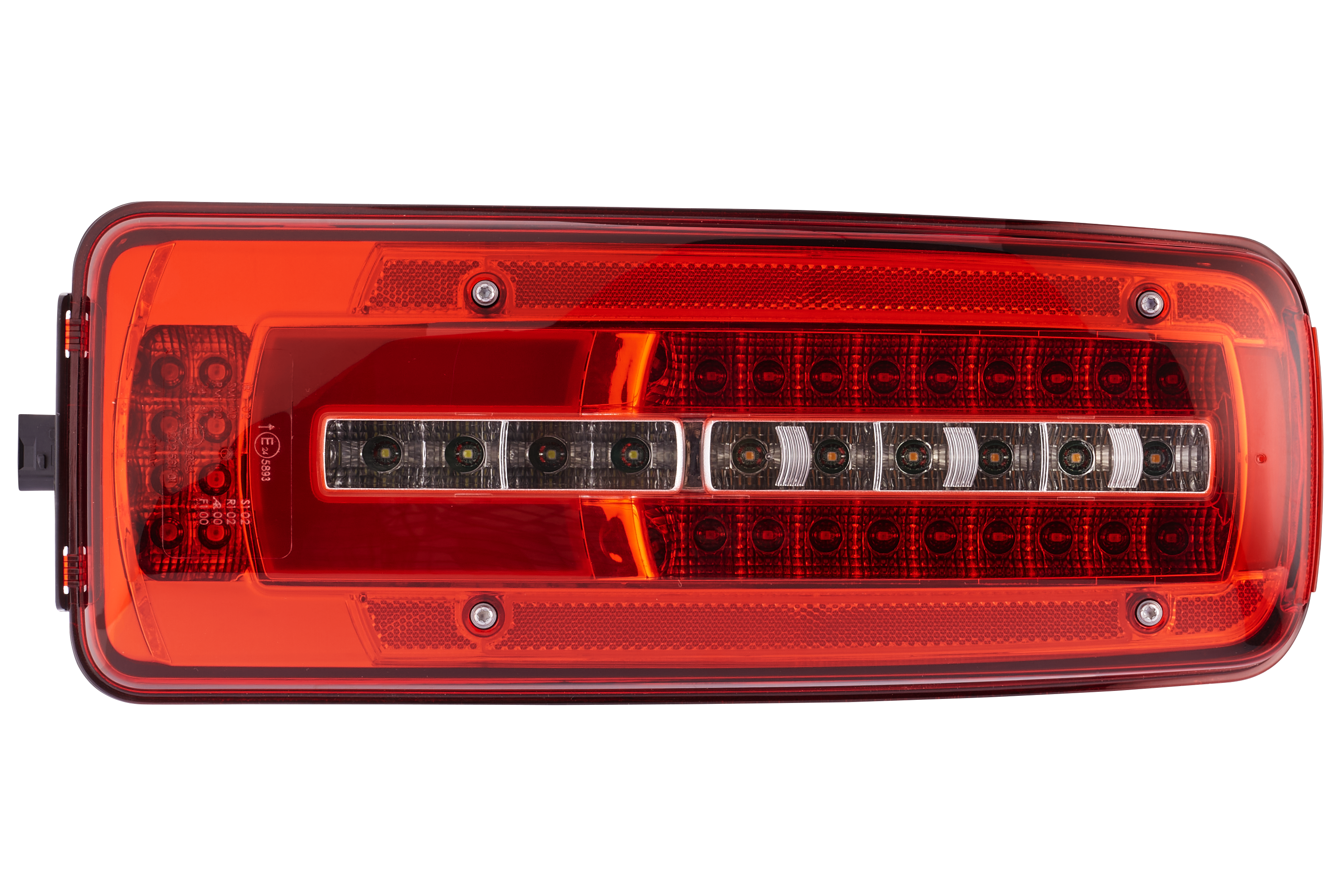

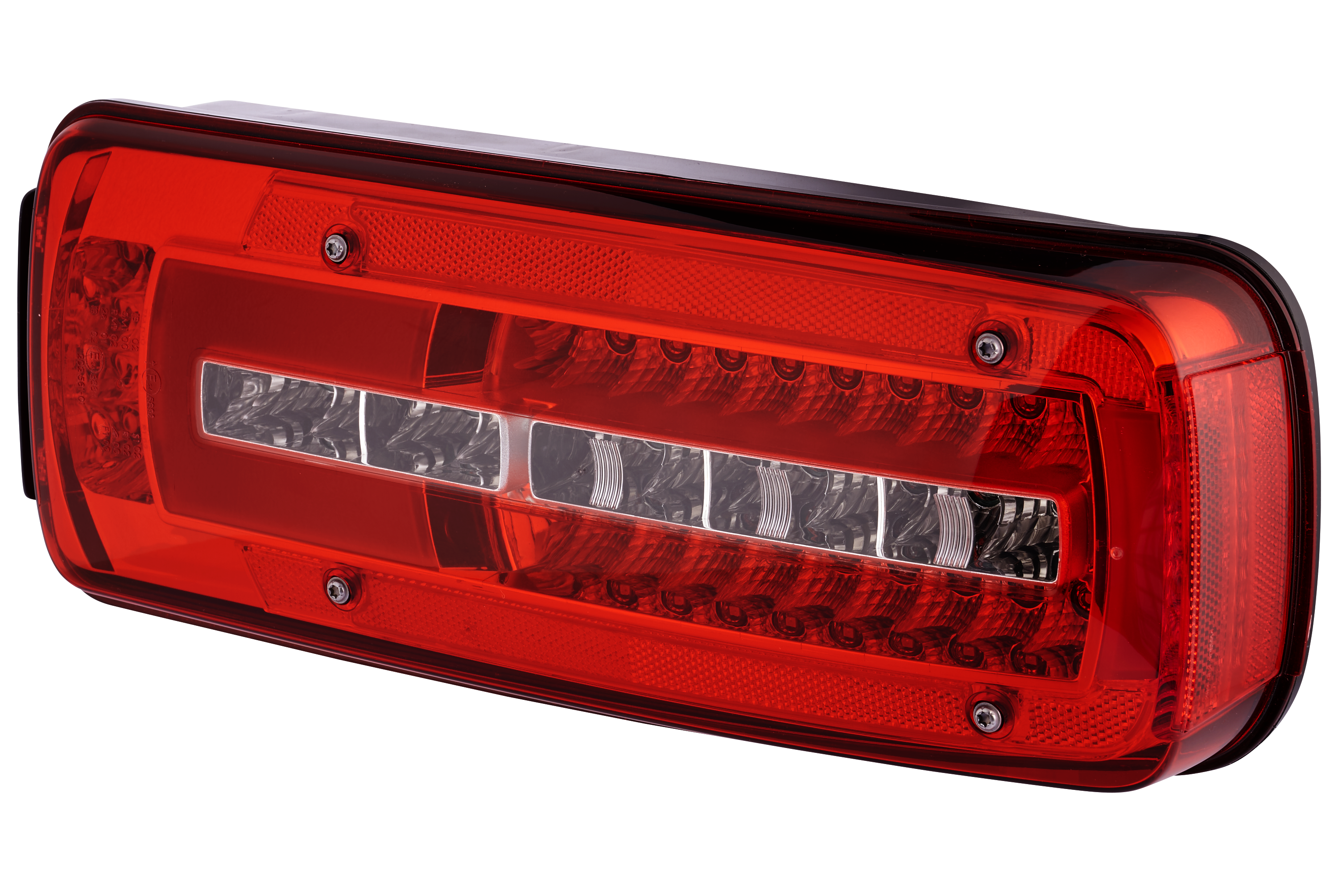

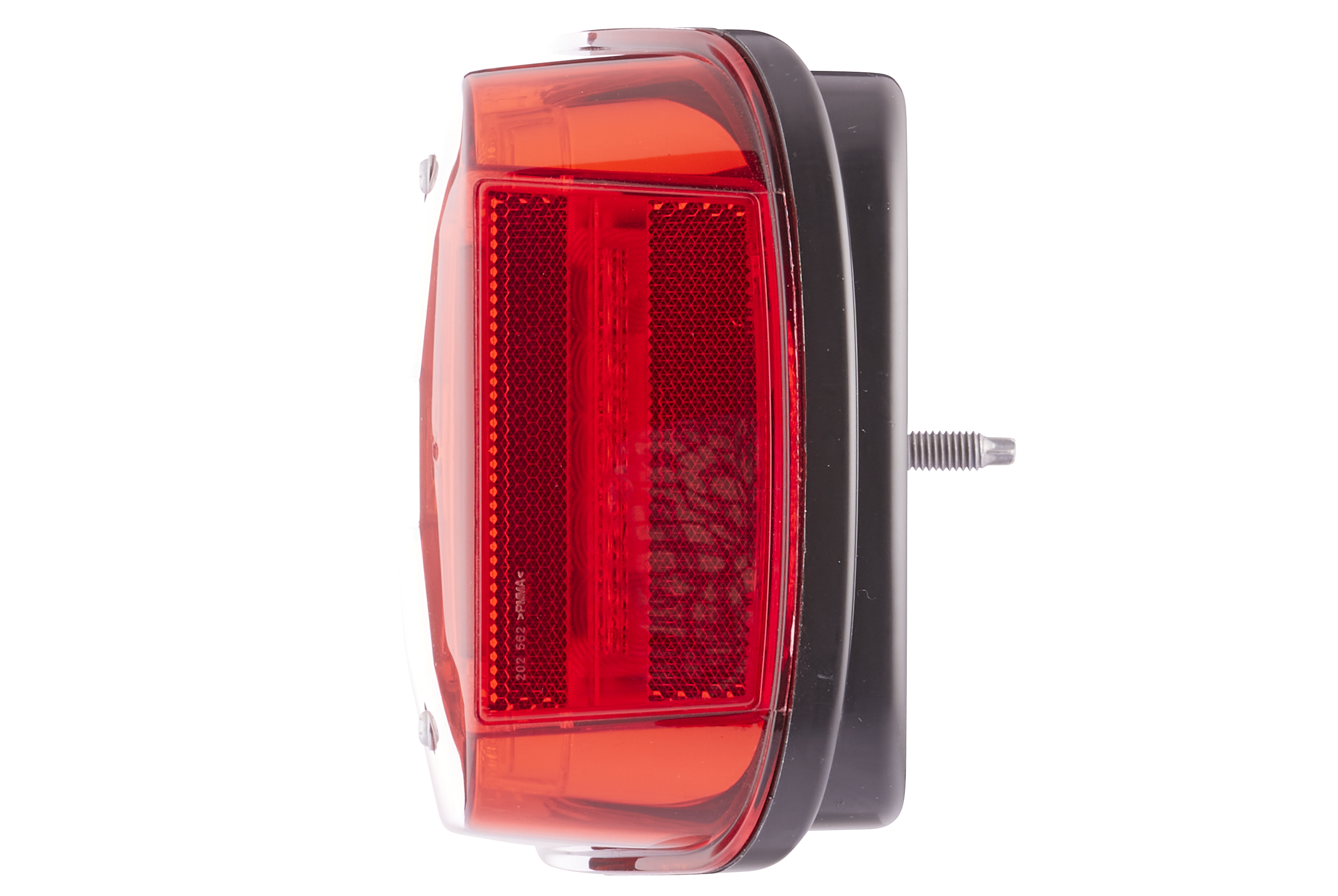

DAF Truck Full-LED right
- 2VP 012 381-221
- Mounting Type Bolted
- Fastening Type for horizontal fastening
- Light Design LED
- Lamp Type LED
- Voltage 24 V
- Fitting Position Right
- Height 92 mm
- Width 159 mm
- Length 404 mm
Light Function
with stop light (LED) , with indicator (LED) , with dynamic indicator light , with rear fog light (LED) , with reflector , with taillight (LED) , with marker lamp (LED) , without licence plate light , with side marker light (LED) , with reverse light (LED)
Number of light functions
9
Plug-type ID
HDSCS
Plug Type
AMP
Prot.type (IP Code)
IP5K4K , IPX9K
Registration Type
ECE approved , ADR/GGVS approved
Number of LEDs
53
Cable Length
500 mm
Housing Colour
black
Lens Colour
Crystal clear , red
LED colour
white , red , yellow (amber)
paired article number
2VD 012 381-211
Quantity
1
|
MAN Truck Full-LED left
|
MAN Truck Full-LED right
|
DAF Truck Full-LED left
|
DAF Truck Full-LED right
|
|
|---|---|---|---|---|
| 2VD 012 381-011 | 2VP 012 381-021 | 2VD 012 381-211 | 2VP 012 381-221 | |
| Mounting Type | Bolted | Bolted | Bolted | Bolted |
| Fastening Type | for horizontal fastening | for horizontal fastening | for horizontal fastening | for horizontal fastening |
| Light Design | LED | LED | LED | LED |
| Lamp Type | LED | LED | LED | LED |
| Voltage | 24 V | 24 V | 24 V | 24 V |
| Fitting Position | Left | Right | Left | Right |
| Height | 92 mm | 92 mm | 92 mm | 92 mm |
| Width | 159 mm | 159 mm | 159 mm | 159 mm |
| Length | 404 mm | 404 mm | 404 mm | 404 mm |
| Light Function | with marker lamp (LED) , with reflector , with indicator (LED) , with reverse light (LED) , with licence plate light (LED) , with taillight (LED) , with rear fog light (LED) , with stop light (LED) , with side marker light (LED) | with rear fog light (LED) , with reflector , with taillight (LED) , without licence plate light , with marker lamp (LED) , with stop light (LED) , with reverse light (LED) , with indicator (LED) , with side marker light (LED) | with dynamic indicator light , with stop light (LED) , with marker lamp (LED) , with side marker light (LED) , with licence plate light (LED) , with indicator (LED) , with rear fog light (LED) , with reverse light (LED) , with reflector , with taillight (LED) | with stop light (LED) , with indicator (LED) , with dynamic indicator light , with rear fog light (LED) , with reflector , with taillight (LED) , with marker lamp (LED) , without licence plate light , with side marker light (LED) , with reverse light (LED) |
| Number of light functions | 9 | 8 | 10 | 9 |
| Plug-type ID | DIN Bajonett | DIN Bajonett | HDSCS | HDSCS |
| Plug Type | Round Plug | Round Plug | AMP | AMP |
| Prot.type (IP Code) | IP5K4K , IPX9K | IPX9K , iP5K4K | IPX9K , IP5K4K | IP5K4K , IPX9K |
| Registration Type | ECE approved , ADR/GGVS approved | ECE approved , ADR/GGVS approved | ECE approved , ADR/GGVS approved | ECE approved , ADR/GGVS approved |
| Number of LEDs | 53 | 53 | 53 | 53 |
| Cable Length | 500 mm | 500 mm | 500 mm | 500 mm |
| Housing Colour | black | black | black | black |
| Lens Colour | Crystal clear , red | Crystal clear , red | Crystal clear , red | Crystal clear , red |
| LED colour | white , yellow , red | yellow (amber) , red , white | red , white , yellow (amber) | white , red , yellow (amber) |
| paired article number | 2VP 012 381-021 | 2VP 012 381-051 | 2VP 012 381-221/241 | 2VD 012 381-211 |
| Quantity | 1 | 1 | 1 | 1 |
| Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
This could also be of interest to you
Truck

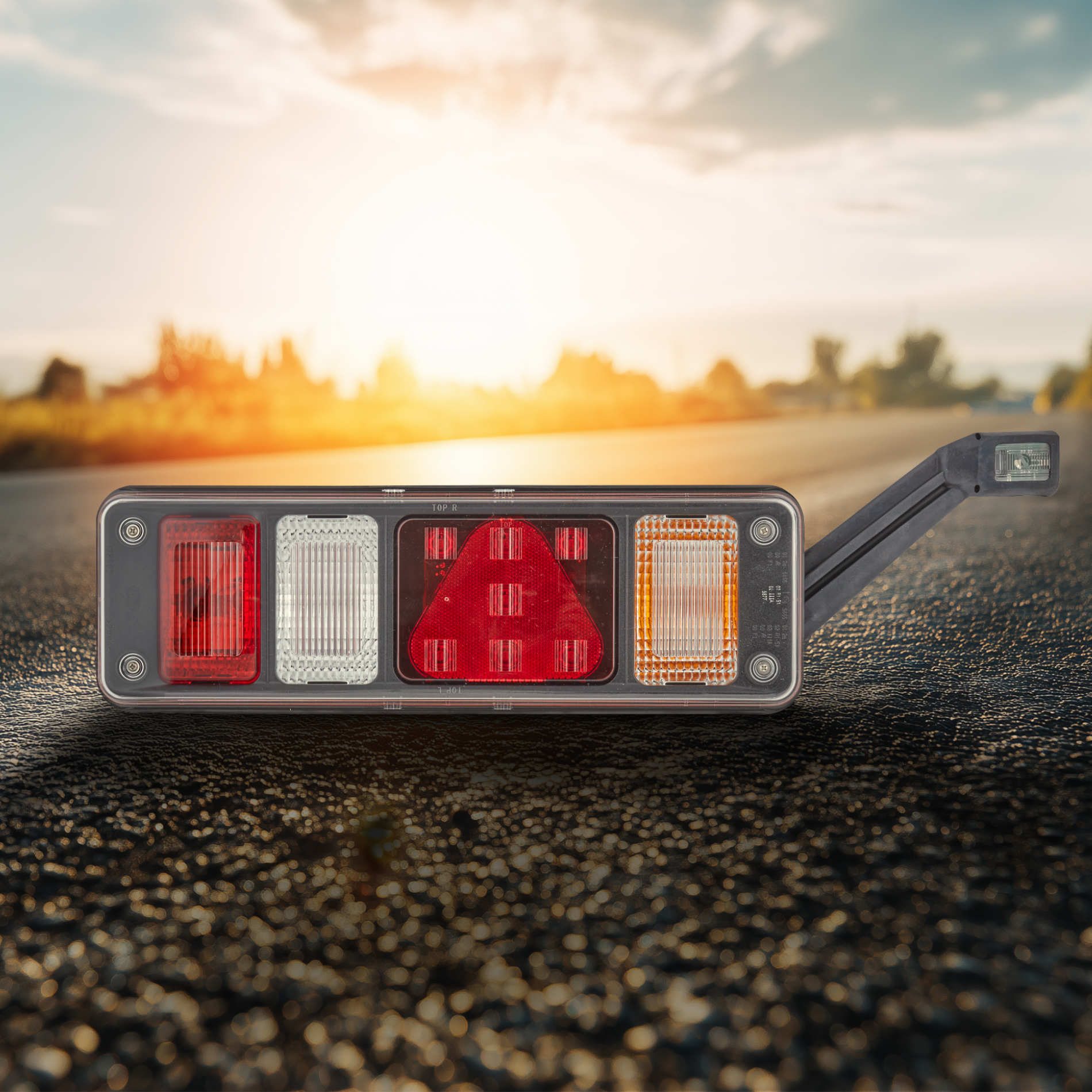

Modular LED hybrid trailer lamp
Modular LED trailer lamp offering high levels of flexibility, replaceable components and flash SMLR function.
Truck

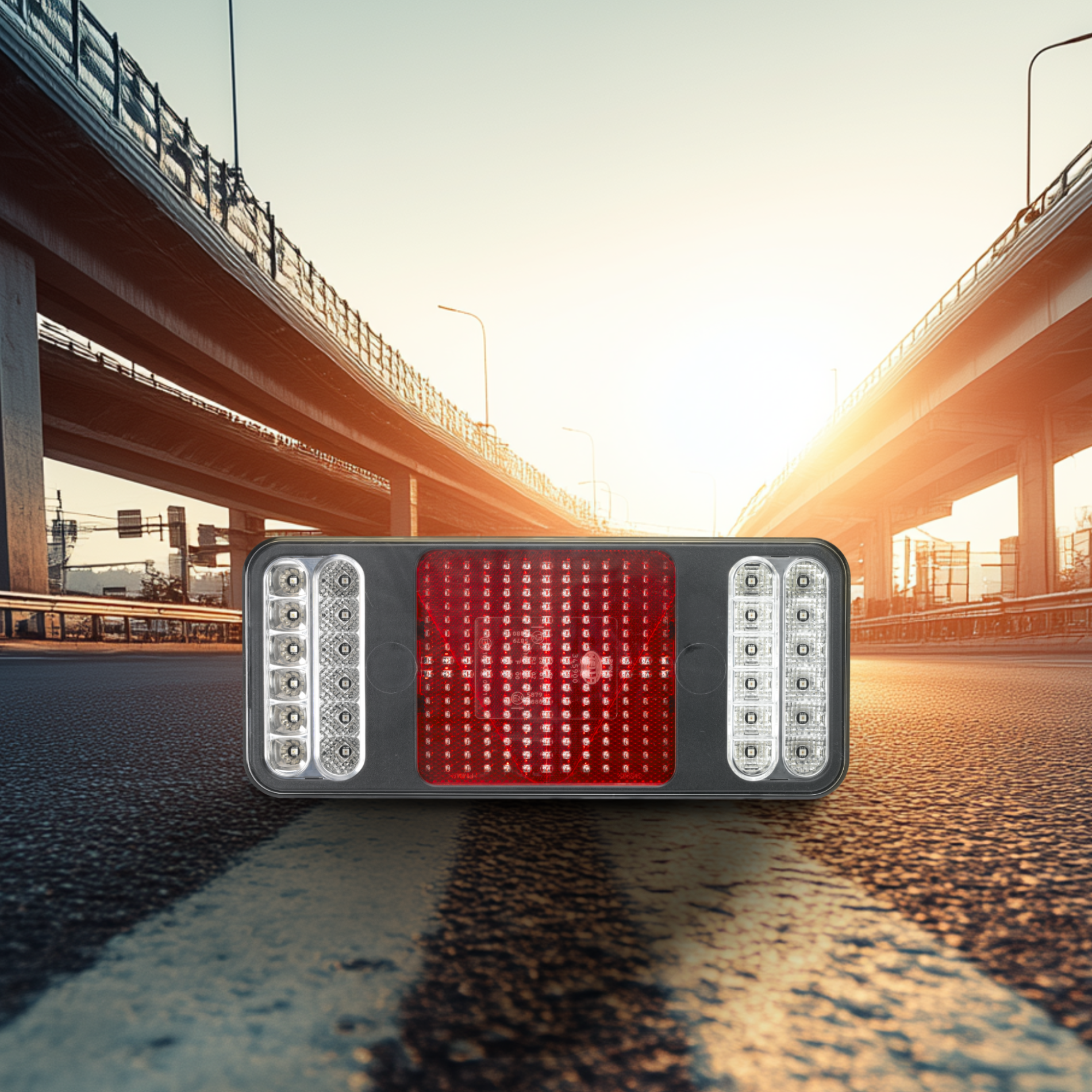

"COLUNA" full LED rear lamp
