Jumbo LED High-Power Lighting
Jumbo LED combines a powerful, homogeneous high beam with striking design and state-of-the-art LED technology. Outline-enhancing EdgeLight technology and the instant light function guarantee more style, safety and comfort on every journey.
- Auxiliary high-beam headlamp with state-of-the-art optics and impressive LED light pattern for individual style
- EdgeLight technology intensifies the characteristic outline of the striking LED position light.
- Immediate response for attention-grabbing headlight flashing
Powerful light meets stylish design
Jumbo LED not only offers maximum illuminating power, but also sets visual highlights with its contemporary shape and outline-enhancing EdgeLight technology. Daylight-like LED light ensures fatigue-free driving – and glare-free signalling boosts safety.
Technical Sheet

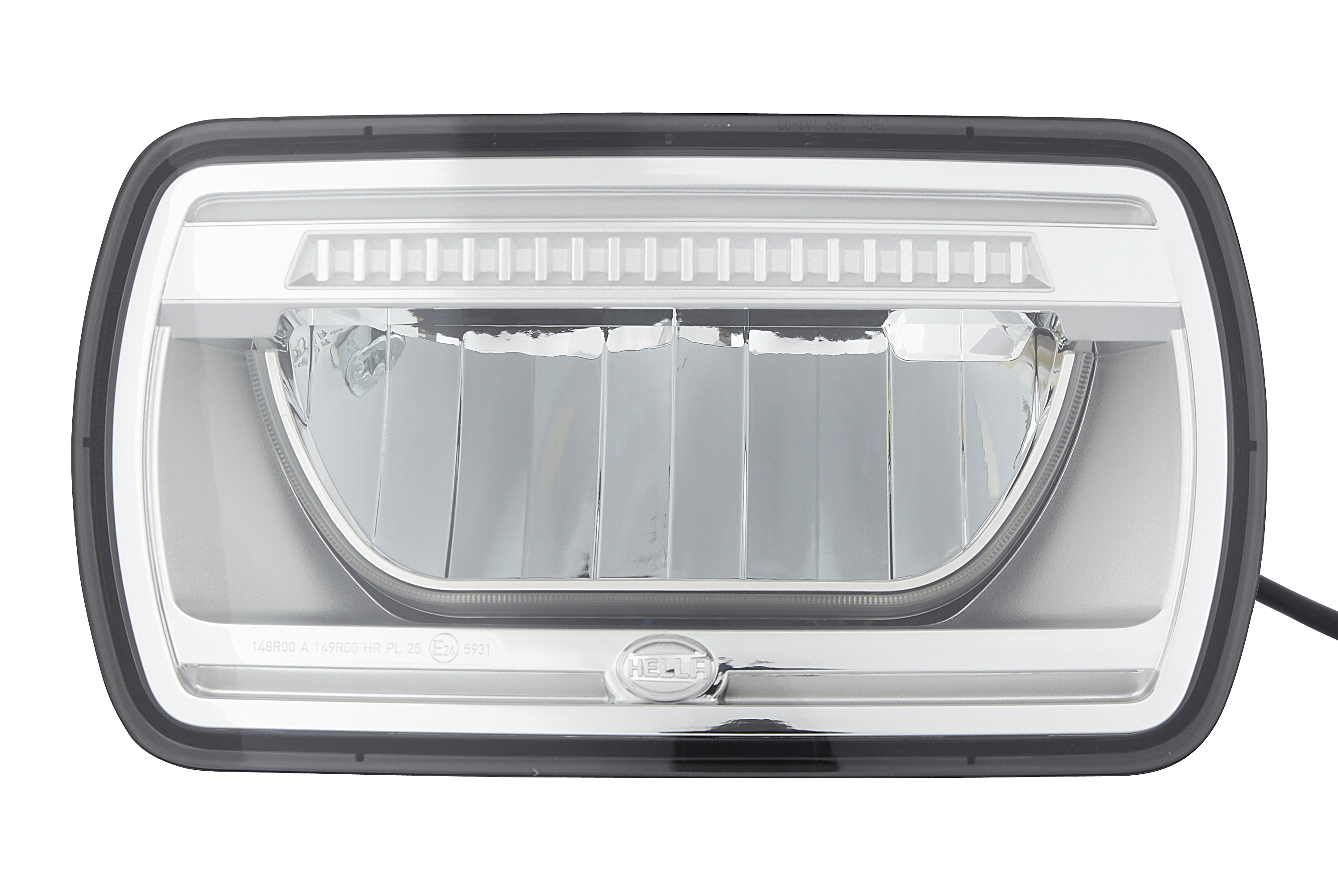

Jumbo LED White Position Light Upright
- 1FE 016 773-001
- Housing material Thermoplast
- Voltage 12 V, 24 V
- Reference number 25
- Light Function with high beam (LED) , with position light (LED)
- Light Distribution Long-range illumination
- fulfils ECE standard R10 , R148 , R149
- Luminous Flux 541 lm
- Mounting Type Bolted
- Fastening Type Vertical
Lamp Type
LED
Overall Height
141 mm
Width
238 mm
Depth
113 mm
Light colour
white
Number of light functions
2
Cable Length
800 mm
Lens Colour
Crystal clear
Shape
rectangular
Voltage from
9 V
Voltage to
32 V
Diffusing Lens Material
Plastic
Plug Type
open cable ends
Height
132 mm
Fitting Depth
23 mm
Housing Colour
black
Length
5 Inch
Prot.type (IP Code)
IP6K7 , IPX9K
Colour Temperature
6000 K
Weight
680 g
Diffusing Lens Type
Clear diffusing lens
Power consumption
1,3 W, 2,7 W
Registration Type
ECE approved
Quantity
1
Jumbo LED White+Amber Position Light Pendant
- 1FE 016 773-031
- Housing material Thermoplast
- Voltage 12 V, 24 V
- Light Function with high beam (LED) , with position light (LED)
- Light Distribution Off-Road Illumination
- fulfils ECE standard R10
- Luminous Flux 541 lm
- Mounting Type Bolted
- Fastening Type Suspended
- Lamp Type LED
Overall Height
141 mm
Width
238 mm
Depth
113 mm
Light colour
white , yellow (amber)
Number of light functions
3
Cable Length
800 mm
Lens Colour
Crystal clear
Shape
rectangular
Voltage from
9 V
Voltage to
32 V
Housing Type
Synthetic Material Housing
Diffusing Lens Material
Plastic
Plug Type
open cable ends
Fitting Position
Right
Height
132 mm
Fitting Depth
23 mm
Housing Colour
black
Length
5 Inch
Prot.type (IP Code)
IP6K7 , IPX9K
Colour Temperature
6000 K
Weight
680 g
Diffusing Lens Type
Clear diffusing lens
Power consumption
1,3 W, 2,7 W
Number of LEDs
5
SVHC
7439-92-1; Lead , 1317-36-8; Lead monoxide (lead oxide)
Quantity
1
|
Jumbo LED White Position Light Upright
|
Jumbo LED White+Amber Position Light Pendant
|
|
|---|---|---|
| 1FE 016 773-001 | 1FE 016 773-031 | |
| Housing material | Thermoplast | Thermoplast |
| Voltage | 12 V, 24 V | 12 V, 24 V |
| Reference number | 25 | |
| Light Function | with high beam (LED) , with position light (LED) | with high beam (LED) , with position light (LED) |
| Light Distribution | Long-range illumination | Off-Road Illumination |
| fulfils ECE standard | R10 , R148 , R149 | R10 |
| Luminous Flux | 541 lm | 541 lm |
| Mounting Type | Bolted | Bolted |
| Fastening Type | Vertical | Suspended |
| Lamp Type | LED | LED |
| Overall Height | 141 mm | 141 mm |
| Width | 238 mm | 238 mm |
| Depth | 113 mm | 113 mm |
| Light colour | white | white , yellow (amber) |
| Number of light functions | 2 | 3 |
| Cable Length | 800 mm | 800 mm |
| Lens Colour | Crystal clear | Crystal clear |
| Shape | rectangular | rectangular |
| Voltage from | 9 V | 9 V |
| Voltage to | 32 V | 32 V |
| Housing Type | Synthetic Material Housing | |
| Diffusing Lens Material | Plastic | Plastic |
| Plug Type | open cable ends | open cable ends |
| Fitting Position | Right | |
| Height | 132 mm | 132 mm |
| Fitting Depth | 23 mm | 23 mm |
| Housing Colour | black | black |
| Length | 5 Inch | 5 Inch |
| Prot.type (IP Code) | IP6K7 , IPX9K | IP6K7 , IPX9K |
| Colour Temperature | 6000 K | 6000 K |
| Weight | 680 g | 680 g |
| Diffusing Lens Type | Clear diffusing lens | Clear diffusing lens |
| Power consumption | 1,3 W, 2,7 W | 1,3 W, 2,7 W |
| Number of LEDs | 5 | |
| Registration Type | ECE approved | |
| SVHC | 7439-92-1; Lead , 1317-36-8; Lead monoxide (lead oxide) | |
| Quantity | 1 | 1 |
