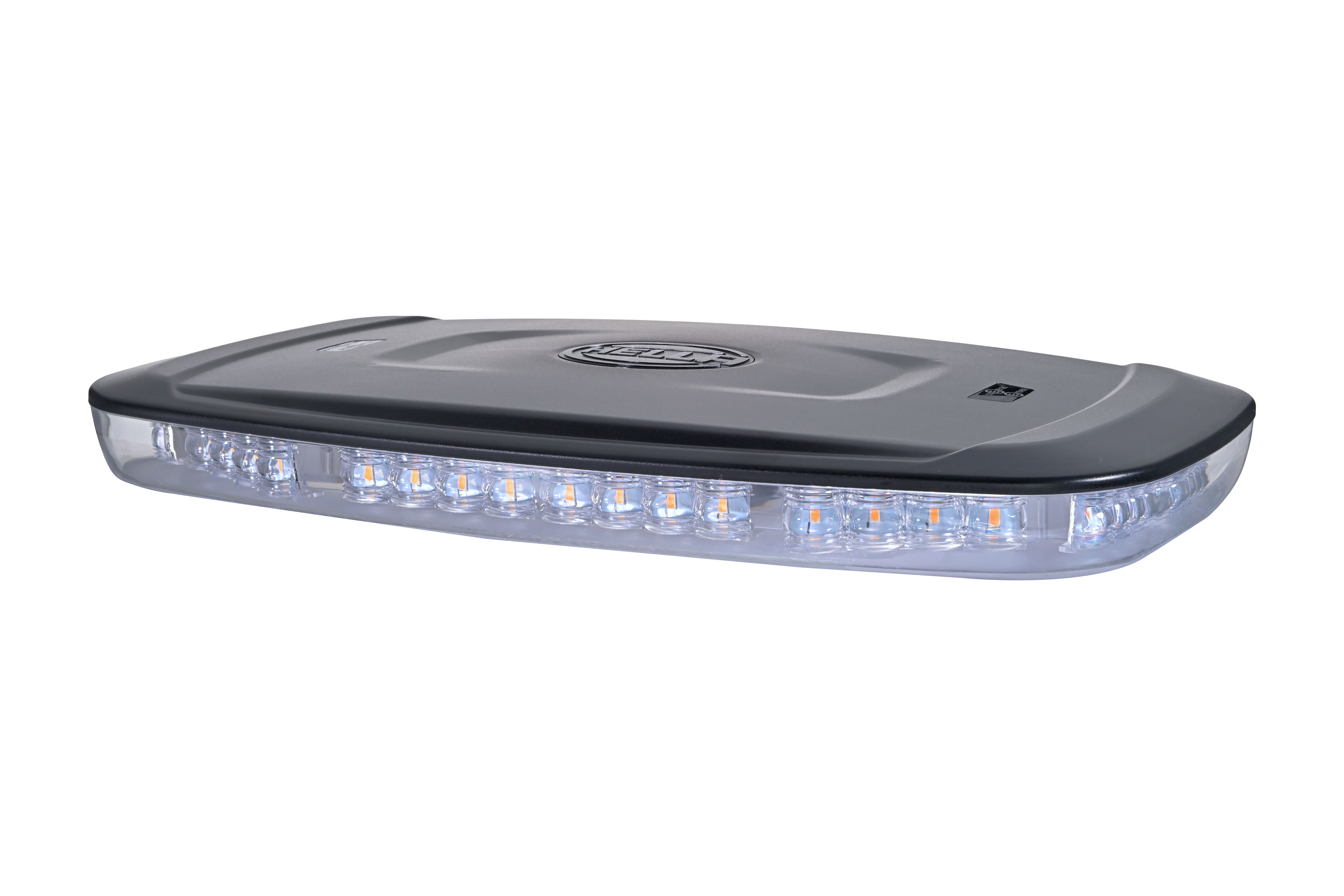

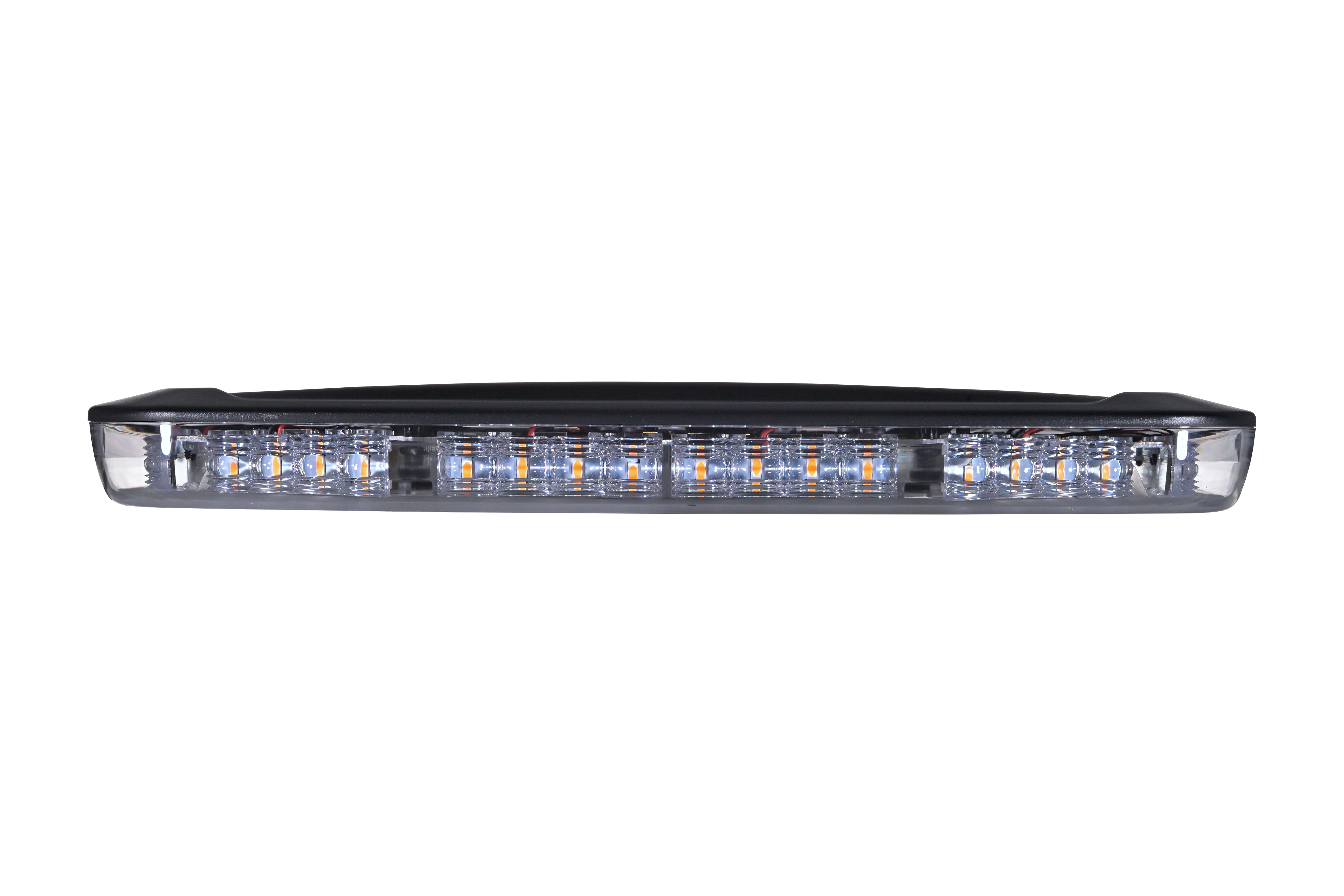

Mini light bar
Mini light bar
Powerful, compact and flexible in use: Mini light bar offers an eye-catching 360° LED warning signal with flashing or rotating light, impresses with its rugged design, durable technology and versatile installation options for a wide range of applications.
- User-defined flashing patterns (flashing and rotating)
- Polarity reversal protection
- Optimally protected against strong vibrations
Compact, 360° warning effect
Mini light bar uses an amber LED light to provide an intensive warning signal that is visible from all sides. Whether flashing or rotating – it attracts maximum attention at minimum design height. Thanks to its rugged finish, multi-voltage capability and flexible installation, it is ideal for an ample range of applications in commercial environments.
Technical Sheet
Mini Lightbar
- 2RL 014 565-001
- Fitting Position frontal sided
- Mounting Type Screw Connection
- Lamp Type LED
- Light Design LED
- Length 400 mm
- Width 218 mm
- Height 45 mm
- Depth 400 mm
- Overall Height 49 mm
|
Mini Lightbar
|
|
|---|---|
| 2RL 014 565-001 | |
| Fitting Position | frontal sided |
| Mounting Type | Screw Connection |
| Lamp Type | LED |
| Light Design | LED |
| Length | 400 mm |
| Width | 218 mm |
| Height | 45 mm |
| Depth | 400 mm |
| Overall Height | 49 mm |
| Registration Type | ADR/GGVS approved , ECE approved |
| fulfils ECE standard | R10 , R65 , TA1 |
| Quantity | 1 |
| Lens Colour | Crystal clear |
| LED colour | yellow (amber) |
| Voltage | 12 V, 24 V |
| fulfils SAE standard | J845 Class 1 |
| Housing material | PC (Polycarbonate) |
| Fastening Type | Horizontal fastening |
| Reverse polarity protection | Yes |
| Temperature range from | -40 °C |
| Temperature range to | +65 °C |
| fulfils EMC/CISPR standard | Class 3 |
| Prot.type (IP Code) | IPX9K , IPX4K , IP6X |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) |
| Light Function | with rotating warning signal , with flashing warning signal |
| Cable Length | 3000 mm, 500 mm |
| SVHC | 7439-92-1; Lead |
| Light colour | yellow (amber) |
| Housing Colour | black |
| Power consumption | 70 W |
| Diffusing Lens Material | PC (Polycarbonate) |
| Weight | 1300 g |
