K-LED Nano
Compact, powerful, uncompromising: The K-LED Nano range impresses with powerful light output in a very small space. Extremely rugged thanks to its vibration-resistant design and complete sealing – ideal for use in extreme conditions.
- Very compact design with high light intensity in 3 sizes (K-LED Nano 50, 80 and 120)
- Rotating and flashing versions suitable for fixed installation or installation on a pipe socket
- Vibration and impact-resistant
- High degree of tightness thanks to complete sealing
- Also available as an airport version (ICAO)
The new K-LED Nano range
Compact and powerful. K-LED Nano 50, 80 and 120
Experience the new HELLA K-LED Nano range in action in the video – in 3 sizes and 4 colours, flashing or rotating. For maximum safety, visibility and flexibility in any application. Whether as a fixed attachment or on a pipe socket: These beacons can tackle any challenge.
Discover now!
Technical Sheet
K-LED Nano 50 amber, rotating, fixed mounting
- 2RL 099 147-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with rotating warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
72 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
146 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
229 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 50 amber, flashing, fixed mounting
- 2XD 066 147-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
72 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
146 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
229 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 50 amber, flashing, pipe socket
- 2XD 066 147-011
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Pipe-neck
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
124 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
109 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
438 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 50 amber, rotating, pipe socket
- 2RL 099 147-011
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with rotating warning signal
- Mounting Type Pipe-neck
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
124 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
109 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
438 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 80 amber,flashing, fixed mounting
- 2XD 066 979-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
111 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
143 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
397 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 80 amber, rotating, pipe socket
- 2RL 099 979-011
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Pipe-neck
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
111 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
143 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
611 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 80 amber, flashing, pipe socket
- 2XD 066 979-011
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Pipe-neck
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
111 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
143 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
611 g
Plug Type
Blade Terminal Sleeve
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)

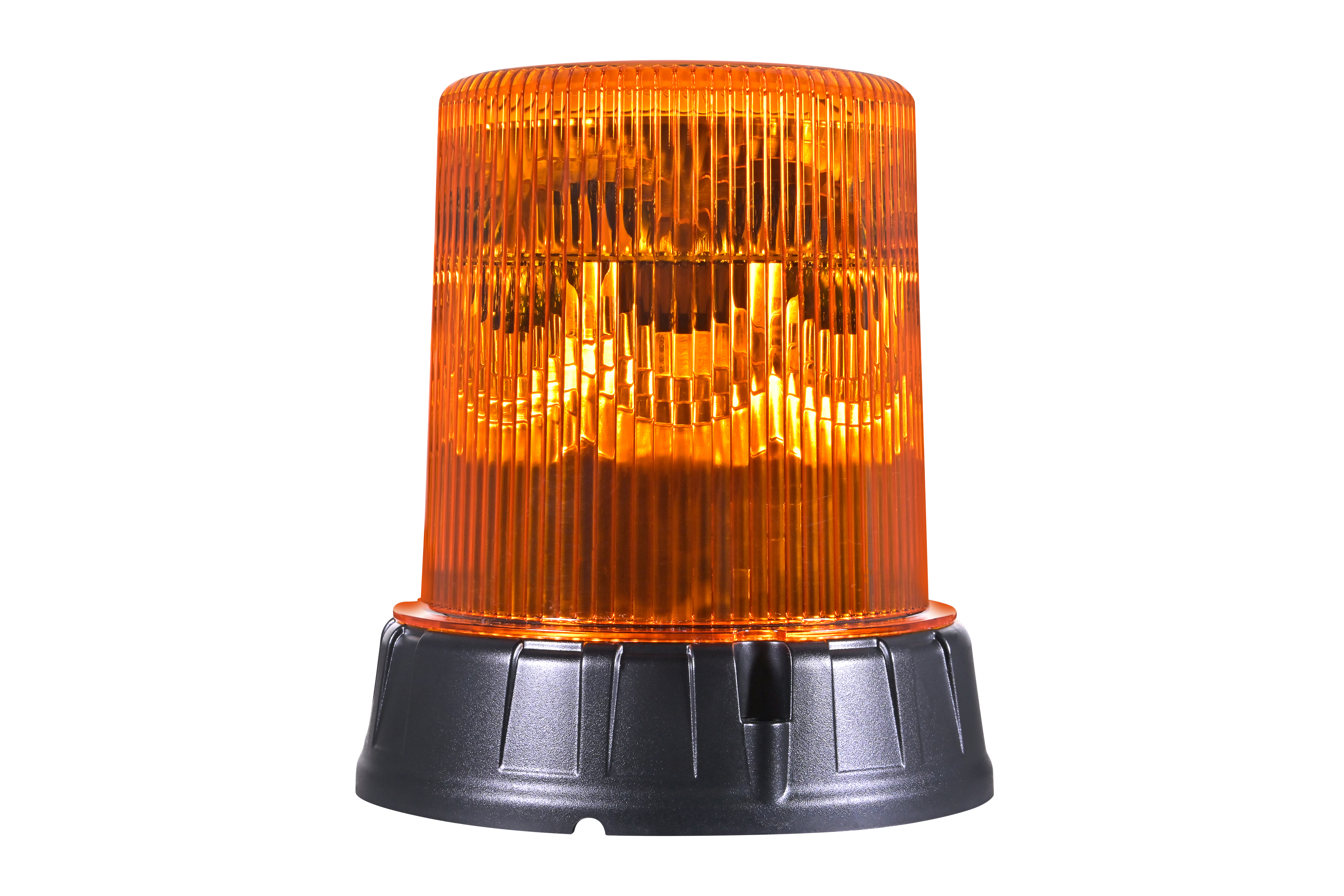

K-LED Nano 120, amber, rotating, fixed mounting
- 2RL 099 484-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
165 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
147 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
471 g
Plug Type
AMP
Number of LEDs
16
Power consumption
4 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano 120, amber, flashing, fixed mounting
- 2XD 066 484-001
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type SAE approved , ECE approved , ADR/GGVS approved
- Light Function with flashing warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9
- fulfils ECE standard R10 , R65 , TA1
- Light Design LED
Lamp Type
LED
Height
165 mm
Housing Colour
black
Lens Colour
yellow (amber)
Temperature range from
-40 °C
Temperature range to
+60 °C
Light colour
yellow (amber)
Outer Diameter
147 mm
Quantity
1
Housing material
PC (Polycarbonate)
Weight
486 g
Plug Type
AMP
Number of LEDs
16
Power consumption
19 W
fulfils test standard
RCM
Diffusing Lens Material
PC (Polycarbonate)
K-LED Nano Airport
- 2XD 066 146-041
- fulfils SAE standard J845 Class 1
- fulfils EMC/CISPR standard Class 5
- Voltage 12 V, 24 V
- Registration Type ICAO-tested
- Light Function with flashing warning signal
- Mounting Type Bolted
- Prot.type (IP Code) IP6K7 , IP6K9K
- fulfils ECE standard R10
- Light Design LED
Lamp Type
LED
Height
68 mm
Flash rate per minute
126
Housing Colour
black
Lens Colour
yellow (amber)
Outer Diameter 1
146 mm
Light colour
yellow (amber)
Housing material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Weight
256 g
Timing Chain Size
150
Plug Type
Blade Terminal
Number of LEDs
16
Operating temperature from
-40 °C
Operating temperature to
+60 °C
Power consumption
19 W
Diffusing Lens Material
PC (Polycarbonate)
|
K-LED Nano 50 amber, rotating, fixed mounting
|
K-LED Nano 50 amber, flashing, fixed mounting
|
K-LED Nano 50 amber, flashing, pipe socket
|
K-LED Nano 50 amber, rotating, pipe socket
|
K-LED Nano 80 amber,flashing, fixed mounting
|
K-LED Nano 80 amber, rotating, pipe socket
|
K-LED Nano 80 amber, flashing, pipe socket |
K-LED Nano 120, amber, rotating, fixed mounting
|
K-LED Nano 120, amber, flashing, fixed mounting
|
K-LED Nano Airport
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2RL 099 147-001 | 2XD 066 147-001 | 2XD 066 147-011 | 2RL 099 147-011 | 2XD 066 979-001 | 2RL 099 979-011 | 2XD 066 979-011 | 2RL 099 484-001 | 2XD 066 484-001 | 2XD 066 146-041 | |
| fulfils SAE standard | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 | J845 Class 1 |
| fulfils EMC/CISPR standard | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 | Class 5 |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Registration Type | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | SAE approved , ECE approved , ADR/GGVS approved | ICAO-tested |
| Light Function | with rotating warning signal | with flashing warning signal | with flashing warning signal | with rotating warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal | with flashing warning signal |
| Mounting Type | Bolted | Bolted | Pipe-neck | Pipe-neck | Bolted | Pipe-neck | Pipe-neck | Bolted | Bolted | Bolted |
| Prot.type (IP Code) | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9 | IP6K7 , IP6K9K |
| fulfils ECE standard | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 , R65 , TA1 | R10 |
| Light Design | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Type | LED | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Height | 72 mm | 72 mm | 124 mm | 124 mm | 111 mm | 111 mm | 111 mm | 165 mm | 165 mm | 68 mm |
| Flash rate per minute | 126 | |||||||||
| Housing Colour | black | black | black | black | black | black | black | black | black | black |
| Lens Colour | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) |
| Outer Diameter 1 | 146 mm | |||||||||
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | |
| Temperature range to | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | +60 °C | |
| Light colour | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) | yellow (amber) |
| Outer Diameter | 146 mm | 146 mm | 109 mm | 109 mm | 143 mm | 143 mm | 143 mm | 147 mm | 147 mm | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Housing material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) |
| Weight | 229 g | 229 g | 438 g | 438 g | 397 g | 611 g | 611 g | 471 g | 486 g | 256 g |
| Timing Chain Size | 150 | |||||||||
| Plug Type | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | Blade Terminal Sleeve | AMP | AMP | Blade Terminal |
| Number of LEDs | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Operating temperature from | -40 °C | |||||||||
| Operating temperature to | +60 °C | |||||||||
| Power consumption | 4 W | 19 W | 19 W | 4 W | 19 W | 4 W | 4 W | 4 W | 19 W | 19 W |
| fulfils test standard | RCM | RCM | RCM | RCM | RCM | RCM | RCM | RCM | RCM | |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
|
|
|
|
|
|
Downloads
Image flyer K-LED Nano 50, 80 and 120
0.61 MB |
Downloads
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperOur complete range in the HELLA online catalogue!
Can't find what you're looking for? Here's an online overview of all our universal products.
View online catalogueThis could also be of interest to you
Keen to see more? Our stories for you
Show all stories
Cookie consent
You accept the necessary cookies by using the website and its functions and by continuing to navigate on it. You can manage the cookie categories and accept additional categories under Cookie consent options . By clicking on the "Accept all" button, all categories of cookies are accepted. You can revoke your consent at any time with effect for the future. Further information can be found in our Privacy policy and our Cookie policy .
