Dynaray Slim
DynaRay combines striking design with innovative LED technology: With high-boost mode and flexible position light, it ensures maximum visibility, safety and style at all times – both on the road and in demanding off-road applications.
- Anodised aluminium surface for improved corrosion resistance
- Optionally with heated cover lens
- Pulsating welcome and goodbye light
- Optionally with warning flash function
- Also available in a double row format for even better light distribution
Available soon.
Find in Shops
Sound test
Ambient noise
On
Off
High-boost mode for ultimate lighting performance
In high-boost mode, DynaRay unfolds its full lighting power – perfect for demanding operating conditions. The combination of powerful LED spotlight and variably adjustable position light ensures impressive visibility at night and in rough terrain.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperTechnical Sheet
DYNARAY Slim, Spot, 9,6"
- 1FF 359 100-001
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 1000 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 17,5
- Rated Power 33,5 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
1170 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
2400 lm
Height
63 mm
Housing Colour
black
Length
245 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
19
Theoretical luminous flux
2400 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
86 mm
Number of light functions
2
Light colour
white , yellow (amber)
Luminous in boost mode
1600 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
270 m
max. light cone range at 1 lux (high boost function)
325 m

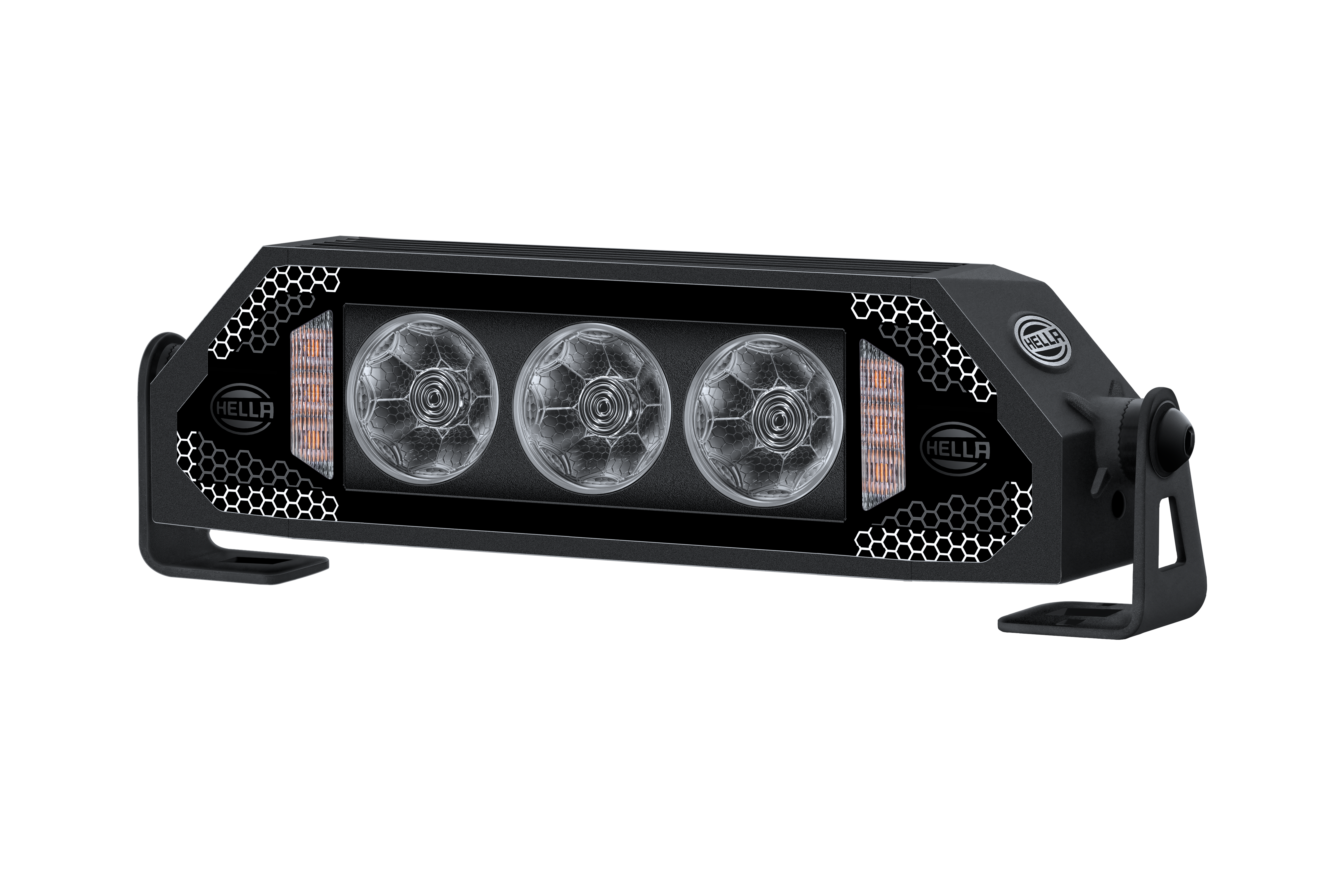

DYNARAY Slim, 9,6", Spot, Flasher
- 1FF 359 100-011
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 1000 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 17,5
- Rated Power 51,5 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
1170 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
2400 lm
Height
63 mm
fulfils EMC/CISPR standard
CISPR 25 Class 5
Housing Colour
black
Length
245 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
25
Theoretical luminous flux
2400 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
86 mm
Number of light functions
3
Light colour
white , yellow (amber)
Luminous in boost mode
1600 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
270 m
max. light cone range at 1 lux (high boost function)
325 m

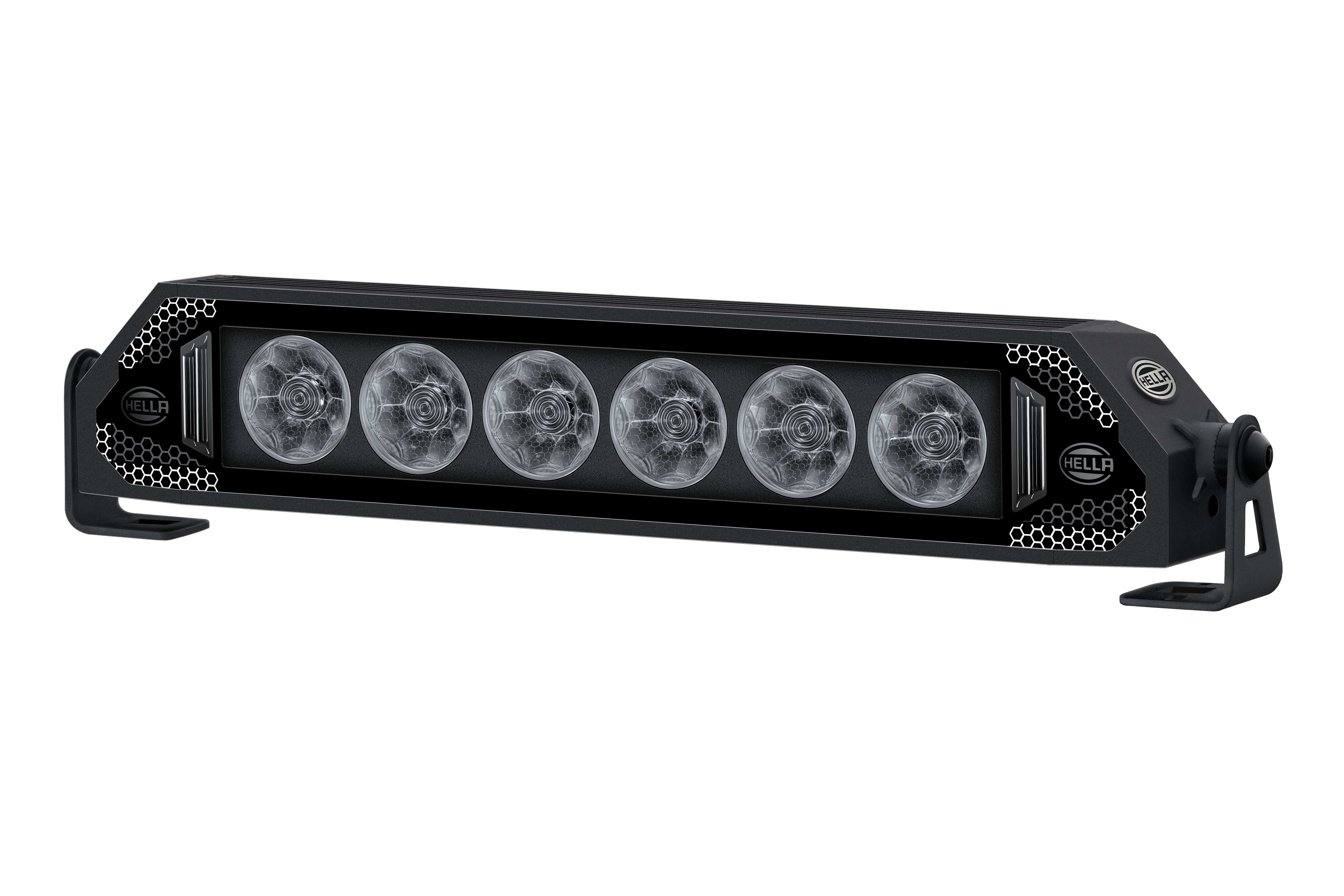

DYNARAY Slim, 14", Spot
- 1FJ 359 100-101
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 2400 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 37,5
- Rated Power 65,6 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
1590 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
4800 lm
Height
63 mm
fulfils EMC/CISPR standard
CISPR 25 Class 5
Housing Colour
black
Length
366 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
34
Theoretical luminous flux
4800 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
86 mm
Number of light functions
2
Light colour
white , yellow (amber)
Luminous in boost mode
3500 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
383 m
max. light cone range at 1 lux (high boost function)
453 m

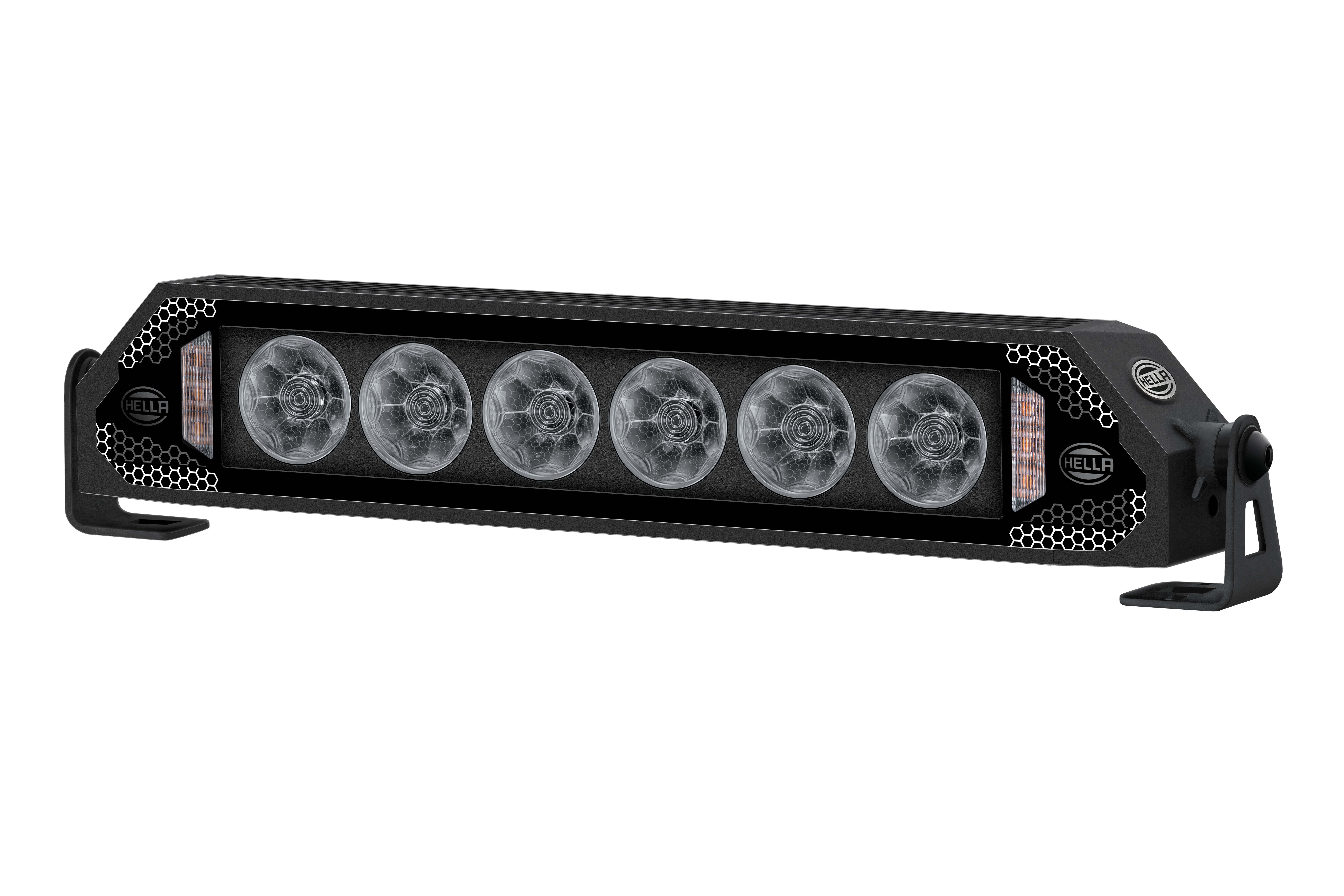

DYNARAY Slim, 14", Spot, Flasher
- 1FJ 359 100-111
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 2400 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 37,5
- Rated Power 83,6 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
1590 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
3500 lm
Height
63 mm
fulfils EMC/CISPR standard
CISPR 25 Class 5
Housing Colour
black
Length
366 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
40
Theoretical luminous flux
4800 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
81 mm
Number of light functions
3
Light colour
white , yellow (amber)
Luminous in boost mode
3500 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
383 m
max. light cone range at 1 lux (high boost function)
453 m

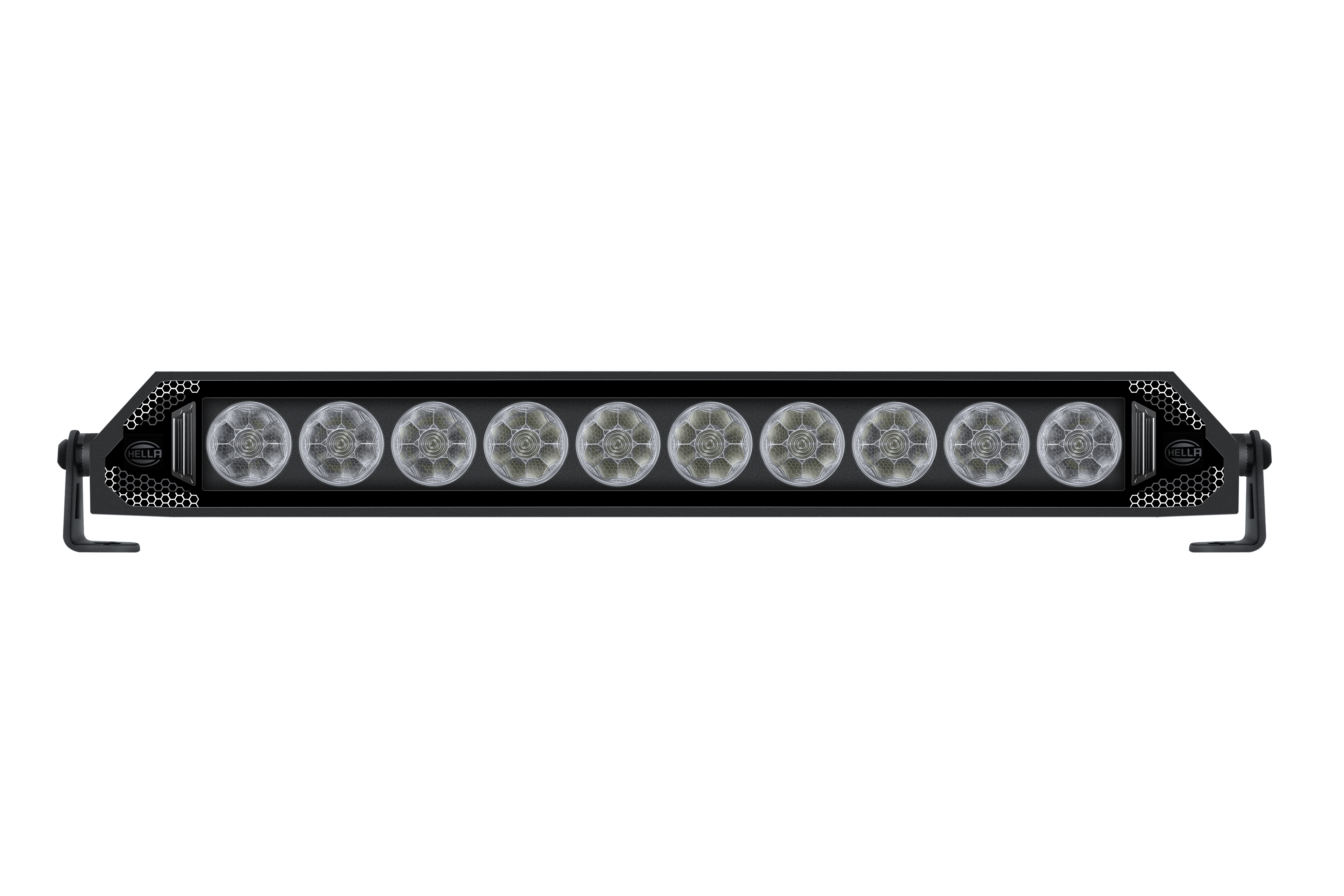

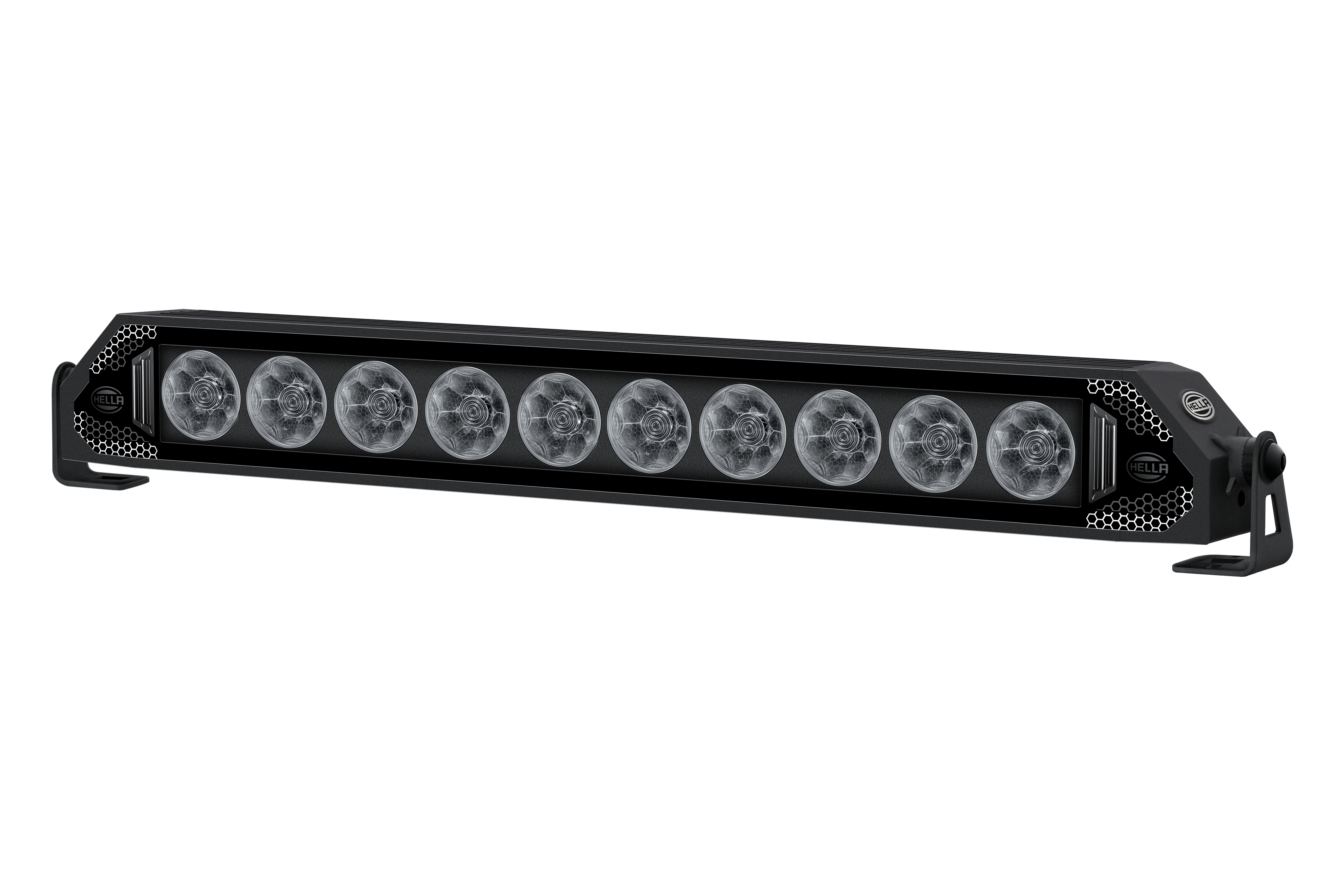

DYNARAY Slim, 21", Spot
- 1FJ 359 100-201
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 3100 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 108,8 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
2160 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
8000 lm
Height
63 mm
Housing Colour
black
Length
527 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
54
Theoretical luminous flux
8000 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
84 mm
Number of light functions
2
Light colour
white , yellow (amber)
Luminous in boost mode
5880 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m
max. light cone range at 1 lux (high boost function)
586 m

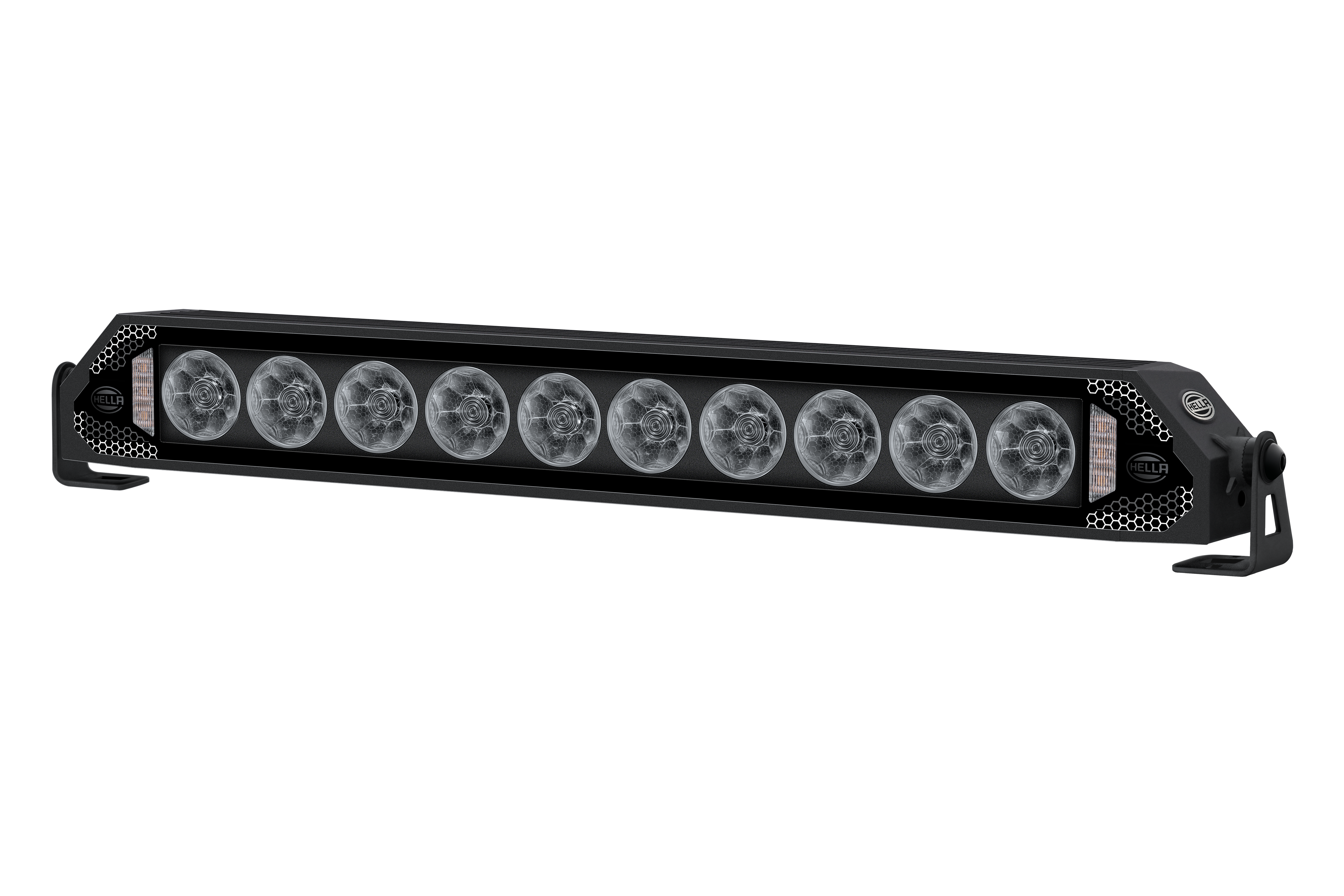

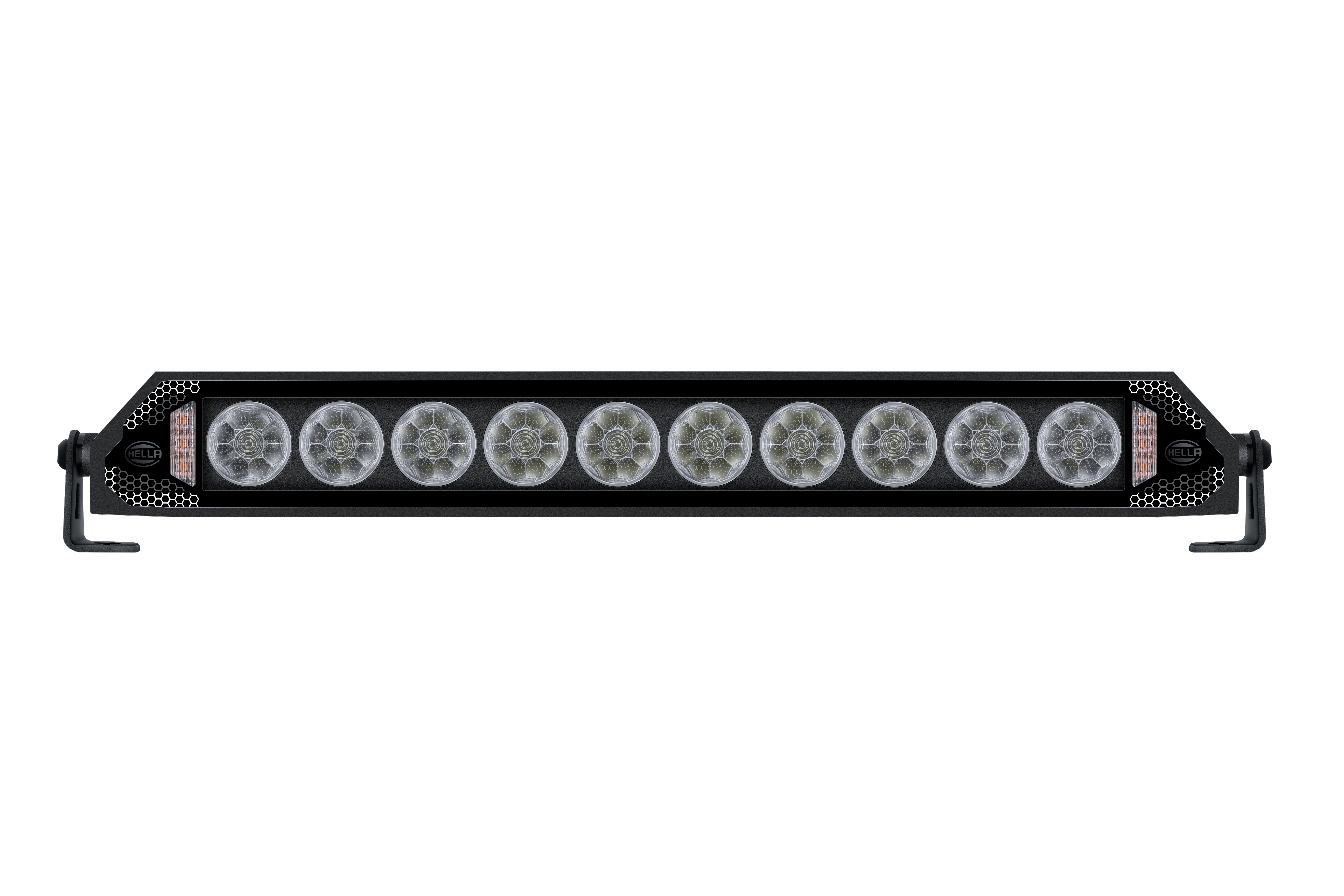

DYNARAY Slim, 21", Spot Flasher
- 1FJ 359 100-211
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 3100 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 126,8 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
2160 g
Prot.type (IP Code)
IP69K , IP67
Theoretical luminous flux in Boost mode
8000 lm
Height
63 mm
fulfils EMC/CISPR standard
CISPR 25 Class 5
Housing Colour
black
Length
527 mm
Temperature range to
+65 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
60
Theoretical luminous flux
8000 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
84 mm
Number of light functions
3
Light colour
white , yellow (amber)
Luminous in boost mode
5880 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m
max. light cone range at 1 lux (high boost function)
586 m

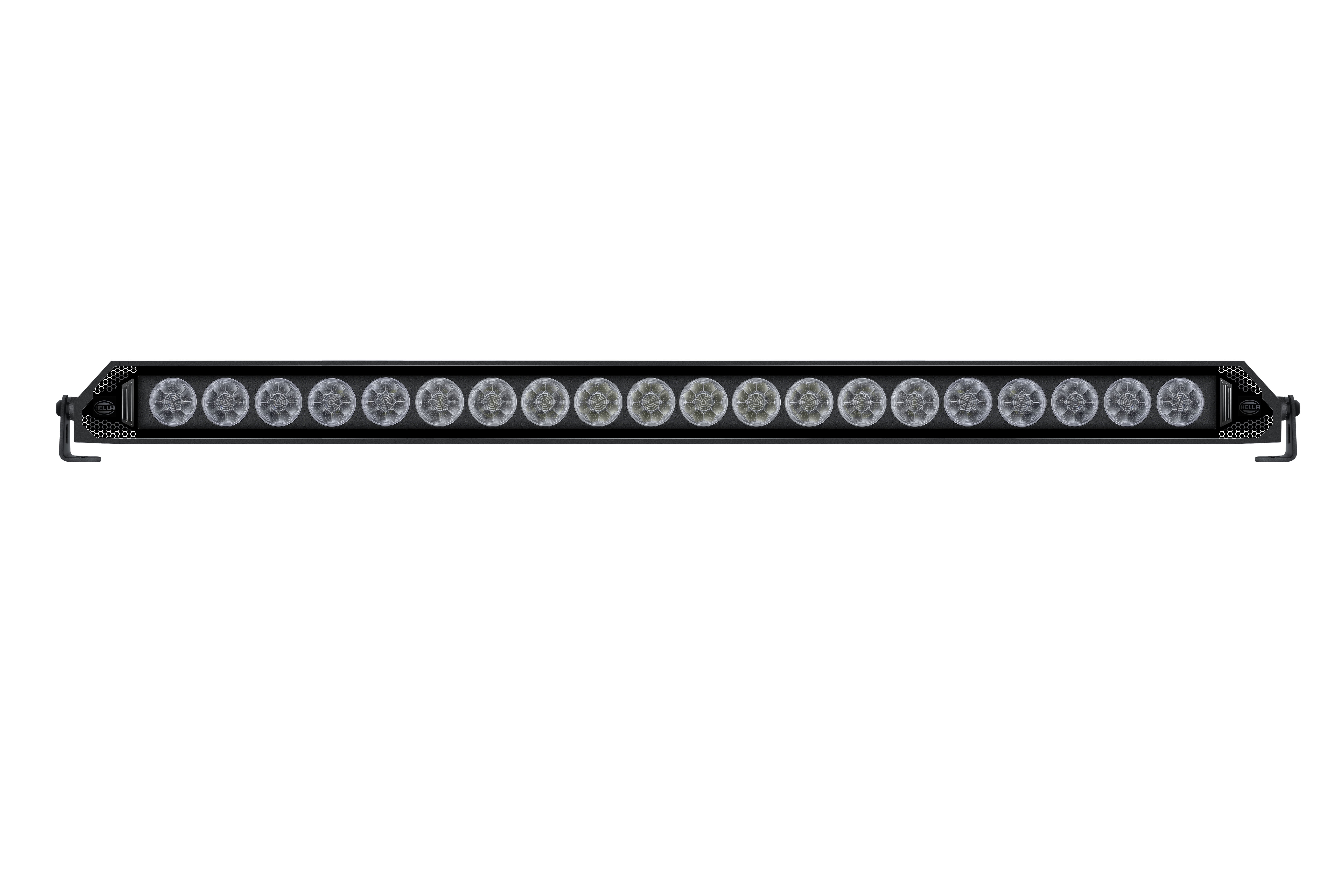

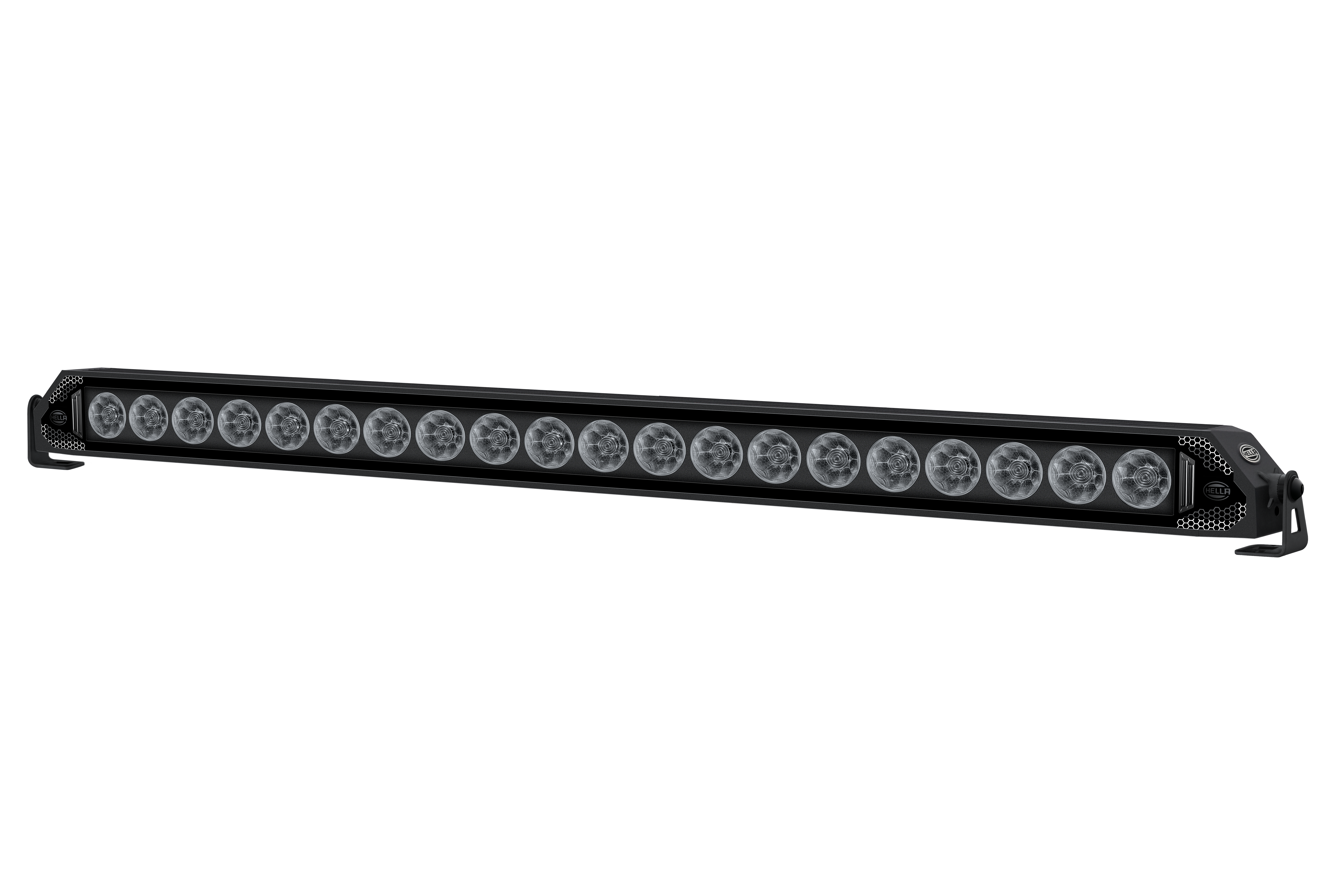

DYNARAY Slim, 37", Spot
- 1FJ 359 100-301
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 3158 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 216,8 W
- Surface Anodized
- Cable Length 1500 mm
Lens Colour
Crystal clear
Weight
3590 g
Prot.type (IP Code)
IP69K , IP67
Height
63 mm
Housing Colour
black
Length
930 mm
Temperature range to
+85 °C
Plug Type
DEUTSCH plug
Temperature range from
-40 °C
Colour Temperature
6800 K
Light Design
single line LED
Number of LEDs
104
Theoretical luminous flux
16000 lm
Frame Colour
black
Mounting Type
Bolted
Fastening Type
Screw connection
Lamp Type
LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Depth
61,5 mm
Overall Height
86 mm
Number of light functions
2
Light colour
white , yellow (amber)
Luminous in boost mode
5880 lm
Lens Type
clear lens
Lens Material
PC (Polycarbonate)
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m

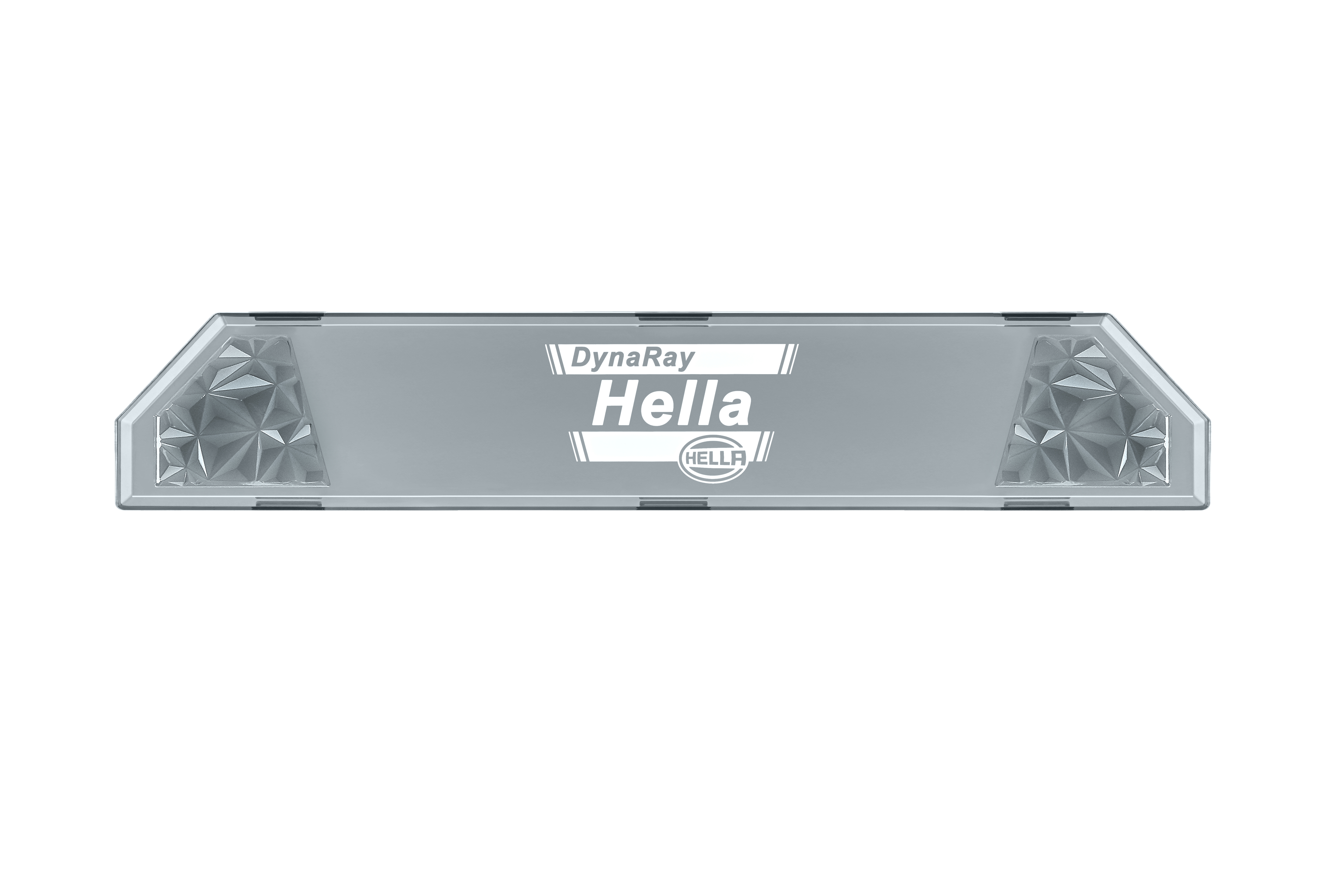

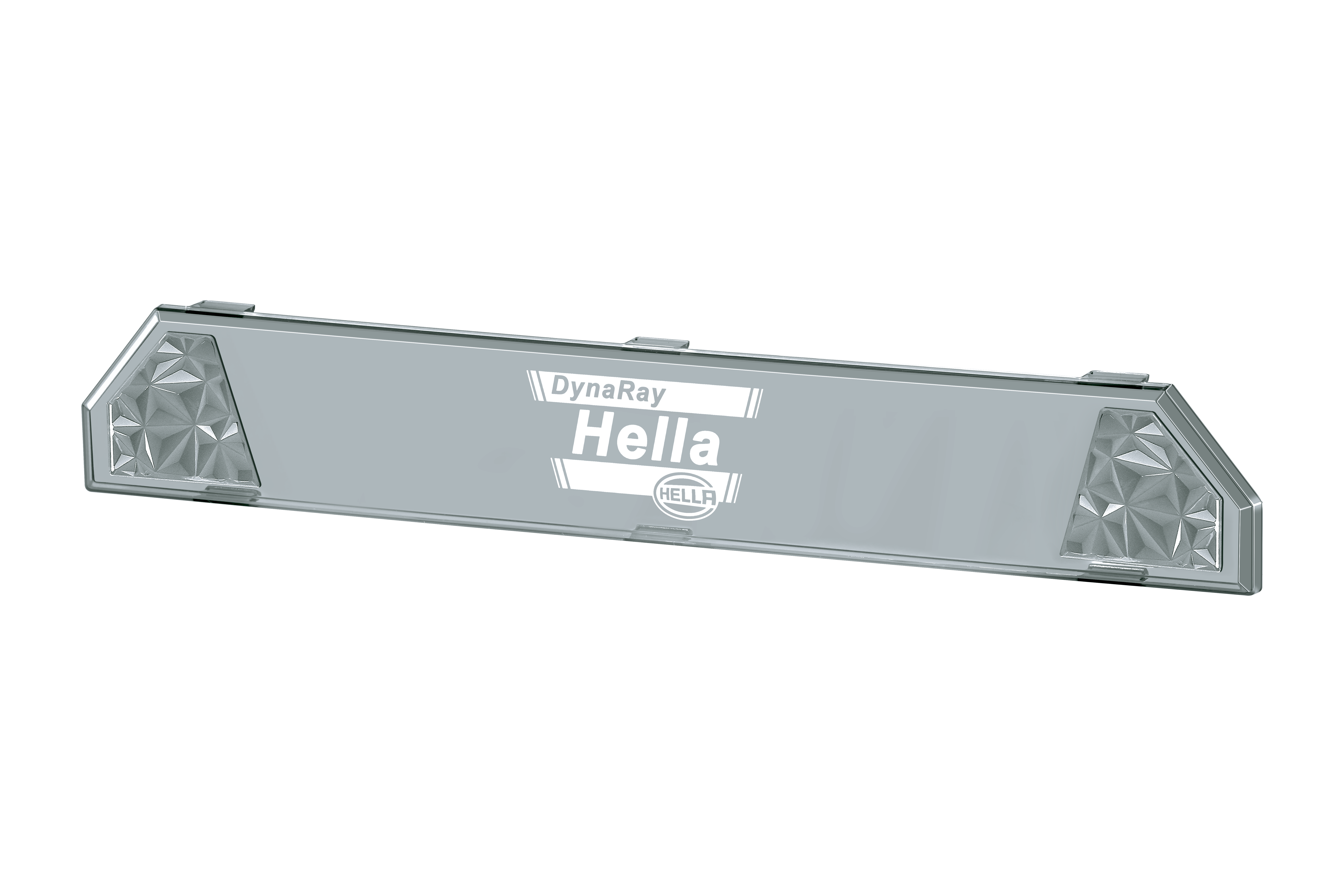

DYNARAY Slim, 14"
- 8XS 359 100-921
- Light Function with high beam (LED) , High-boost
- Height 68 mm
- Length 341,9 mm
- Material PC (Polycarbonate)
- Colour dark
- Width 22,5 mm

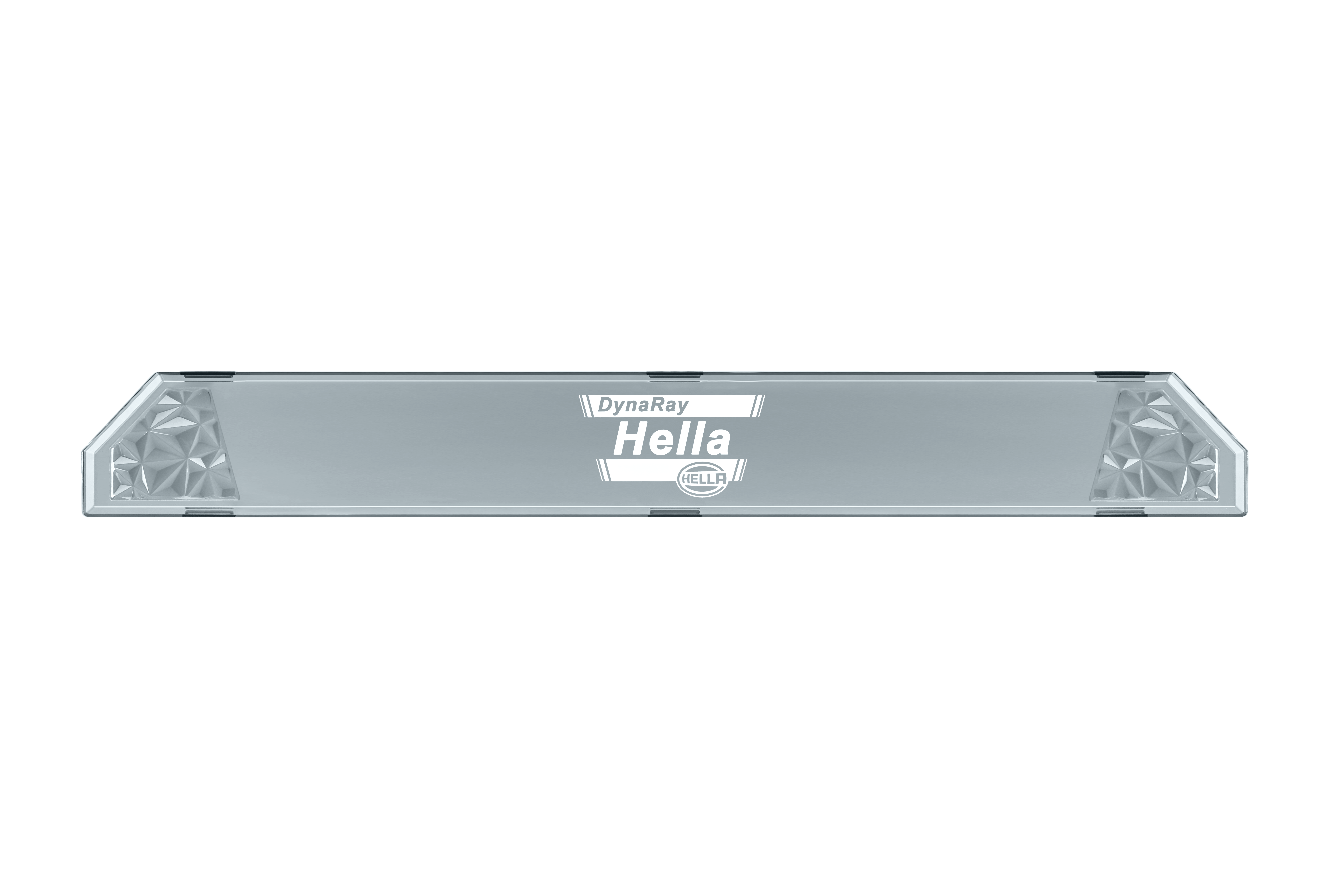

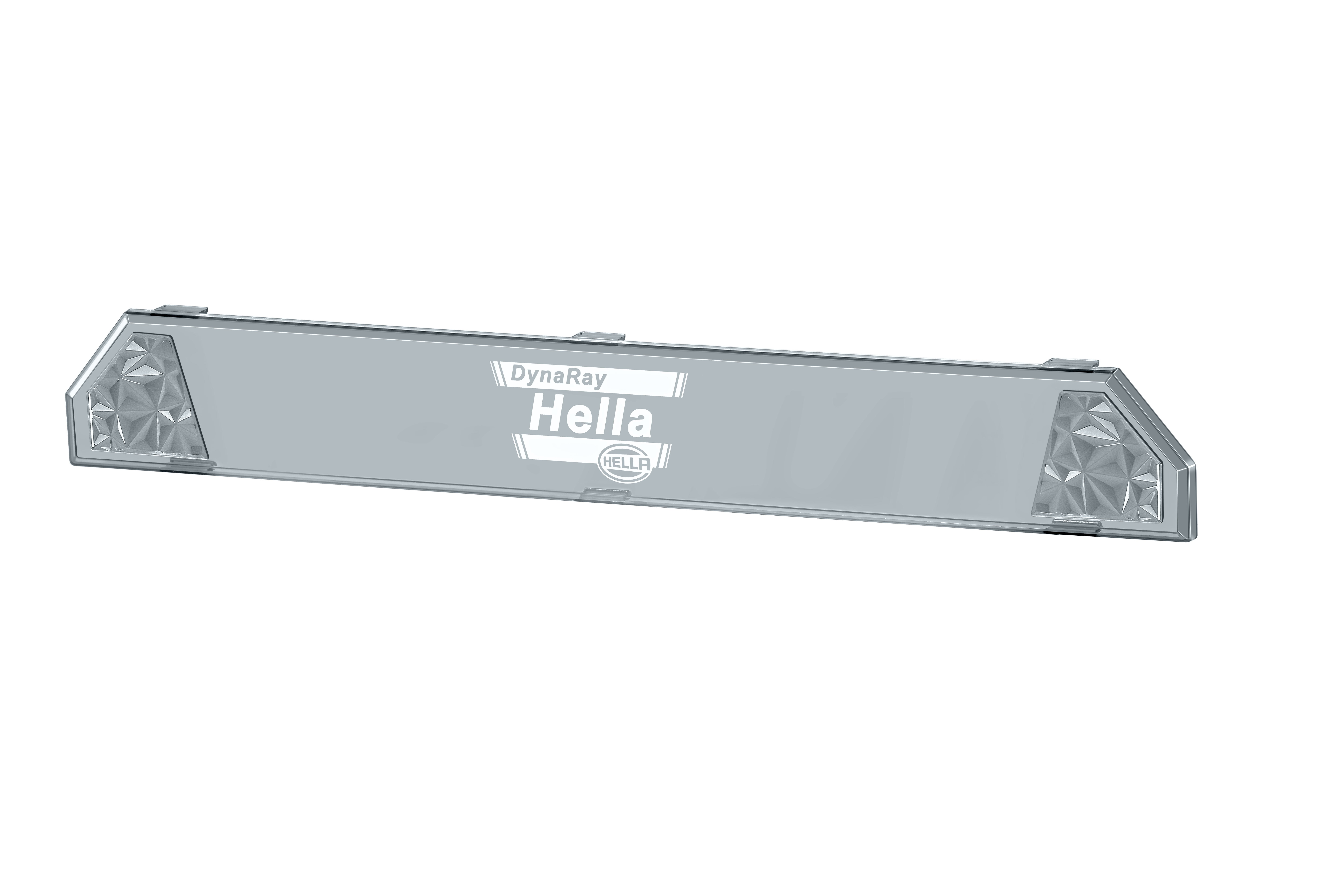

DYNARAY Slim, 21"
- 8XS 359 100-941
- Light Function with high beam (LED) , High-boost
- Height 68 mm
- Length 503 mm
- Material PC (Polycarbonate)
- Colour dark
- Width 22,5 mm

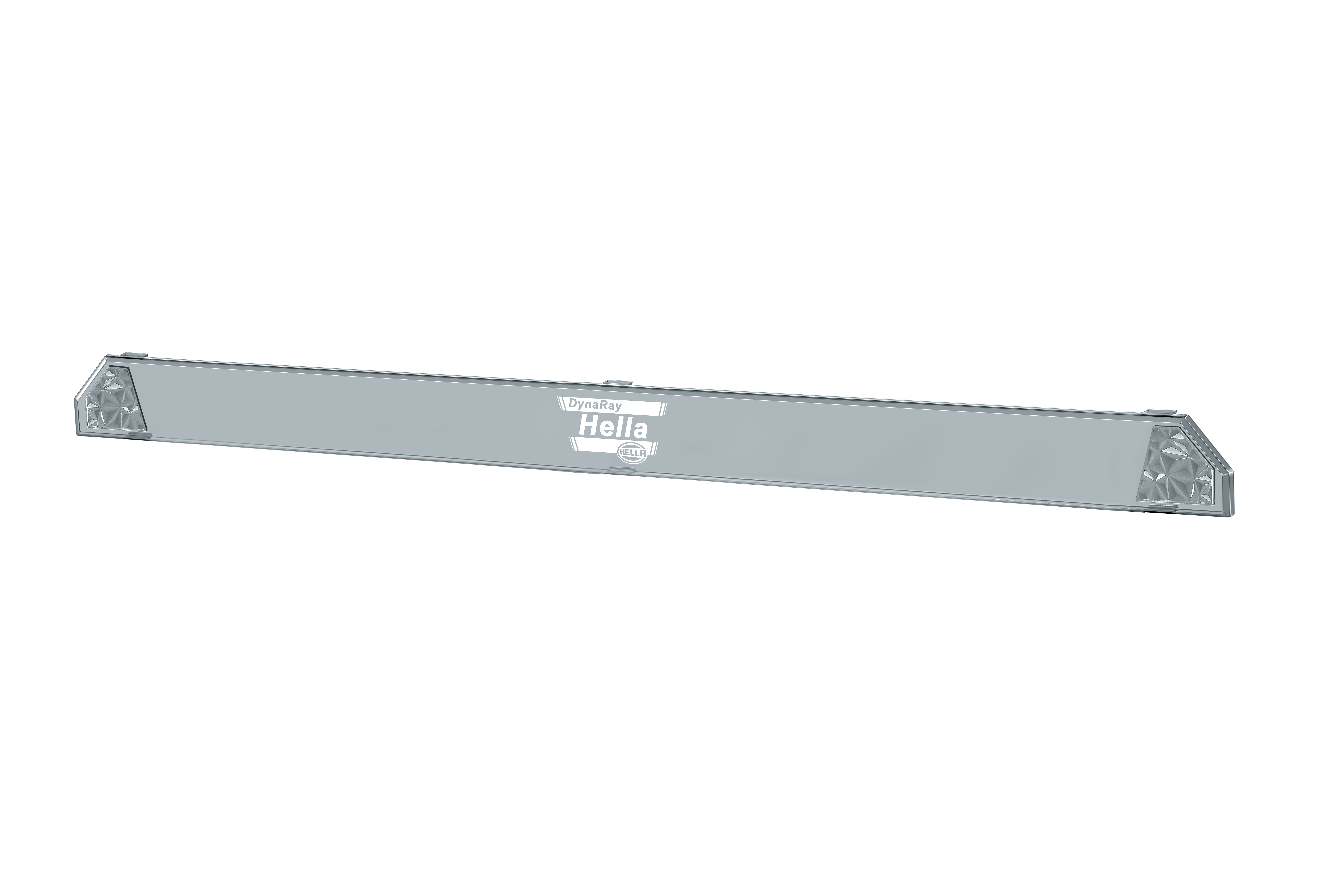

DYNARAY Slim, 37"
- 8XS 359 100-961
- Light Function with high beam (LED) , High-boost
- Height 68 mm
- Length 908 mm
- Material PC (Polycarbonate)
- Colour dark
- Width 22,5 mm
|
DYNARAY Slim, Spot, 9,6"
|
DYNARAY Slim, 9,6", Spot, Flasher
|
DYNARAY Slim, 14", Spot
|
DYNARAY Slim, 14", Spot, Flasher
|
DYNARAY Slim, 21", Spot
|
DYNARAY Slim, 21", Spot Flasher
|
DYNARAY Slim, 37", Spot
|
DYNARAY Slim, 14"
|
DYNARAY Slim, 21"
|
DYNARAY Slim, 37"
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 1FF 359 100-001 | 1FF 359 100-011 | 1FJ 359 100-101 | 1FJ 359 100-111 | 1FJ 359 100-201 | 1FJ 359 100-211 | 1FJ 359 100-301 | 8XS 359 100-921 | 8XS 359 100-941 | 8XS 359 100-961 | |
| Light Function | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , High-boost | with high beam (LED) , High-boost | with high beam (LED) , High-boost |
| Luminous Flux | 1000 lm | 1000 lm | 2400 lm | 2400 lm | 3100 lm | 3100 lm | 3158 lm | |||
| fulfils ECE standard | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 | |||
| Housing material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | |||
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | |||
| Reference number | 17,5 | 17,5 | 37,5 | 37,5 | 45 | 45 | 45 | |||
| Rated Power | 33,5 W | 51,5 W | 65,6 W | 83,6 W | 108,8 W | 126,8 W | 216,8 W | |||
| Surface | Anodized | Anodized | Anodized | Anodized | Anodized | Anodized | Anodized | |||
| Cable Length | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | |||
| Lens Colour | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear | |||
| Weight | 1170 g | 1170 g | 1590 g | 1590 g | 2160 g | 2160 g | 3590 g | |||
| Prot.type (IP Code) | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | |||
| Theoretical luminous flux in Boost mode | 2400 lm | 2400 lm | 4800 lm | 3500 lm | 8000 lm | 8000 lm | ||||
| Height | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 68 mm | 68 mm | 68 mm |
| fulfils EMC/CISPR standard | CISPR 25 Class 5 | CISPR 25 Class 5 | CISPR 25 Class 5 | CISPR 25 Class 5 | ||||||
| Housing Colour | black | black | black | black | black | black | black | |||
| Length | 245 mm | 245 mm | 366 mm | 366 mm | 527 mm | 527 mm | 930 mm | 341,9 mm | 503 mm | 908 mm |
| Temperature range to | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +85 °C | |||
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | |||
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | |||
| Colour Temperature | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K | |||
| Light Design | single line LED | single line LED | single line LED | single line LED | single line LED | single line LED | single line LED | |||
| Number of LEDs | 19 | 25 | 34 | 40 | 54 | 60 | 104 | |||
| Theoretical luminous flux | 2400 lm | 2400 lm | 4800 lm | 4800 lm | 8000 lm | 8000 lm | 16000 lm | |||
| Frame Colour | black | black | black | black | black | black | black | |||
| Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | |||||||
| Mounting Type | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted | |||
| Colour | dark | dark | dark | |||||||
| Fastening Type | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection | |||
| Lamp Type | LED | LED | LED | LED | LED | LED | LED | |||
| Width | 22,5 mm | 22,5 mm | 22,5 mm | |||||||
| Voltage from | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | |||
| Voltage to | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | |||
| Fitting Position | Front | Front | Front | Front | Front | Front | Front | |||
| Depth | 61,5 mm | 61,5 mm | 61,5 mm | 61,5 mm | 61,5 mm | 61,5 mm | 61,5 mm | |||
| Overall Height | 86 mm | 86 mm | 86 mm | 81 mm | 84 mm | 84 mm | 86 mm | |||
| Number of light functions | 2 | 3 | 2 | 3 | 2 | 3 | 2 | |||
| Light colour | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | |||
| Luminous in boost mode | 1600 lm | 1600 lm | 3500 lm | 3500 lm | 5880 lm | 5880 lm | 5880 lm | |||
| Lens Type | clear lens | clear lens | clear lens | clear lens | clear lens | clear lens | clear lens | |||
| Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | |||
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | |||
| max. light cone range at 1 lux (main light function) | 270 m | 270 m | 383 m | 383 m | 430 m | 430 m | 430 m | |||
| max. light cone range at 1 lux (high boost function) | 325 m | 325 m | 453 m | 453 m | 586 m | 586 m | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Find in Shops
Please note:
Please refer to the relevant country-specific legal requirements and guidelines for motor vehicles in the installation instructions.
The YELLOW position light does not have ECE approval: Use may be restricted to off-road areas outside the public highway in accordance with local regulations.
Before activating the hazard warning lights, please check whether, under local legislation, you are among those permitted to use hazard warning lights in the direction in which they are facing.
DynaRay Slim – all functions live
DYNARAY 14'' SLIM (FLASH) 1FJ 359 100-111
Discover more HELLA products
Keen to see more? Our stories for you
Show all stories
Cookie consent
You accept the necessary cookies by using the website and its functions and by continuing to navigate on it. You can manage the cookie categories and accept additional categories under Cookie consent options . By clicking on the "Accept all" button, all categories of cookies are accepted. You can revoke your consent at any time with effect for the future. Further information can be found in our Privacy policy and our Cookie policy .
