Dynaray Double Row
DynaRay combines striking design with innovative LED technology: With high-boost mode and flexible position light, it ensures maximum visibility, safety and style at all times – both on the road and in demanding off-road applications.
- Anodised aluminium surface for improved corrosion resistance
- Optionally with heated cover lens
- Pulsating welcome light
- Optionally with warning flash function
- Also available as a single row component
Available soon.
Sound test
Ambient noise
On
Off
Style and pure lighting power
Passion meets technology
DynaRay is not just a headlamp, but a statement. Its striking design combines all light functions with contemporary lines and perfectly complements your vehicle – including sophisticated welcome and goodbye lights.
In high-boost mode they deliver full power: maximum brightness for night-time driving and the toughest terrain. Combined with a powerful LED spotlight and variably adjustable position light (white in accordance with ECE-R148 or amber for off-road), they ensure impressive visibility and safety.
Available in lengths from 10'' to 37.5'' – the perfect light bar for any mission.
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperDynaRay 15" – test all functions
DYNARAY 15'' DOUBLE ROW 1FJ 359 100-121
Technical Sheet

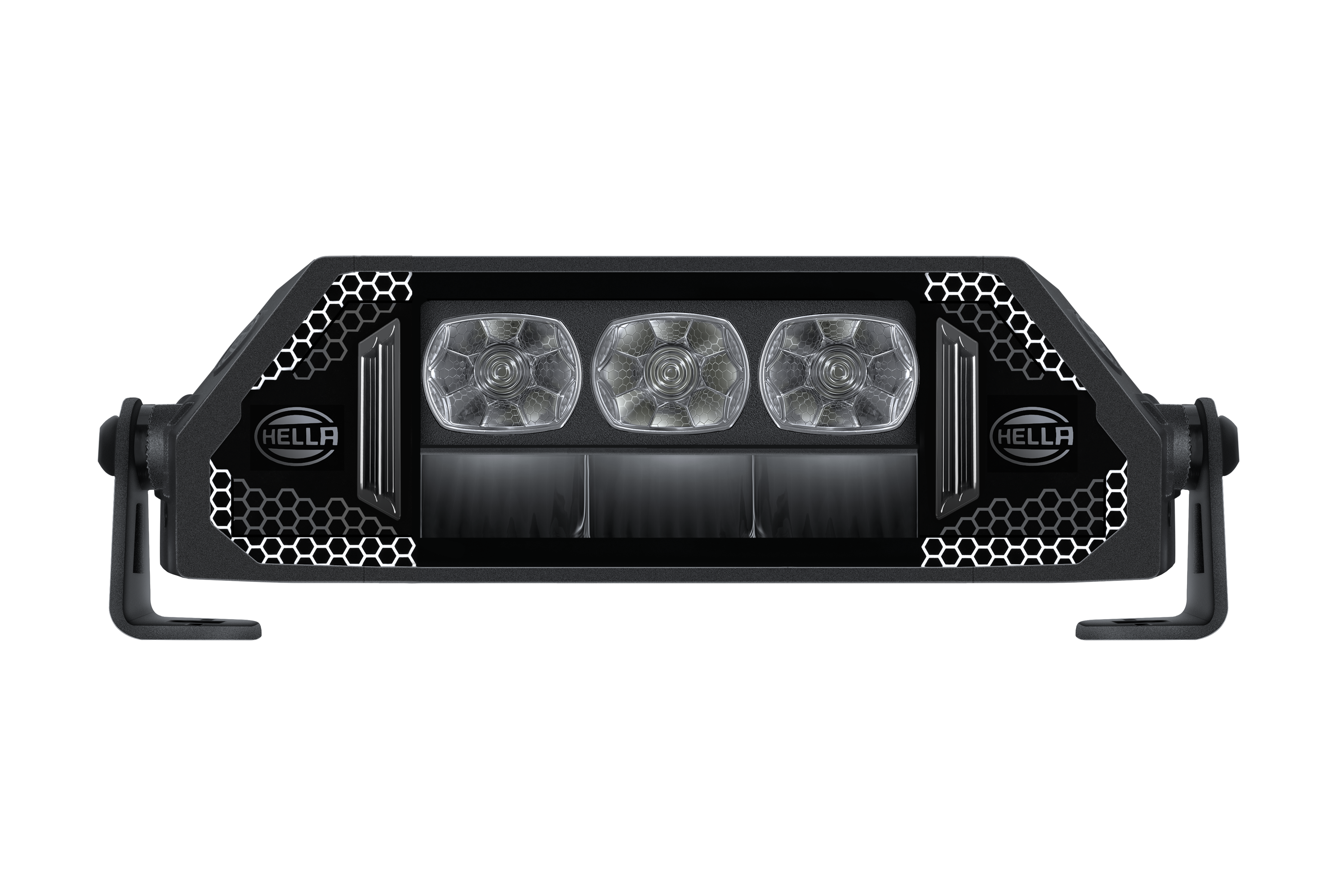

DYNARAY Double Row, 10", Spot
- 1FF 359 100-031
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 1100 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 30
- Rated Power 45,6 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
265 mm
Depth
75 mm
Overall Height
95 mm
Number of LEDs
24
Number of light functions
2
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
3300 lm
Luminous in boost mode
2100 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
352 m
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
3300 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
463 m
Weight
1474 g

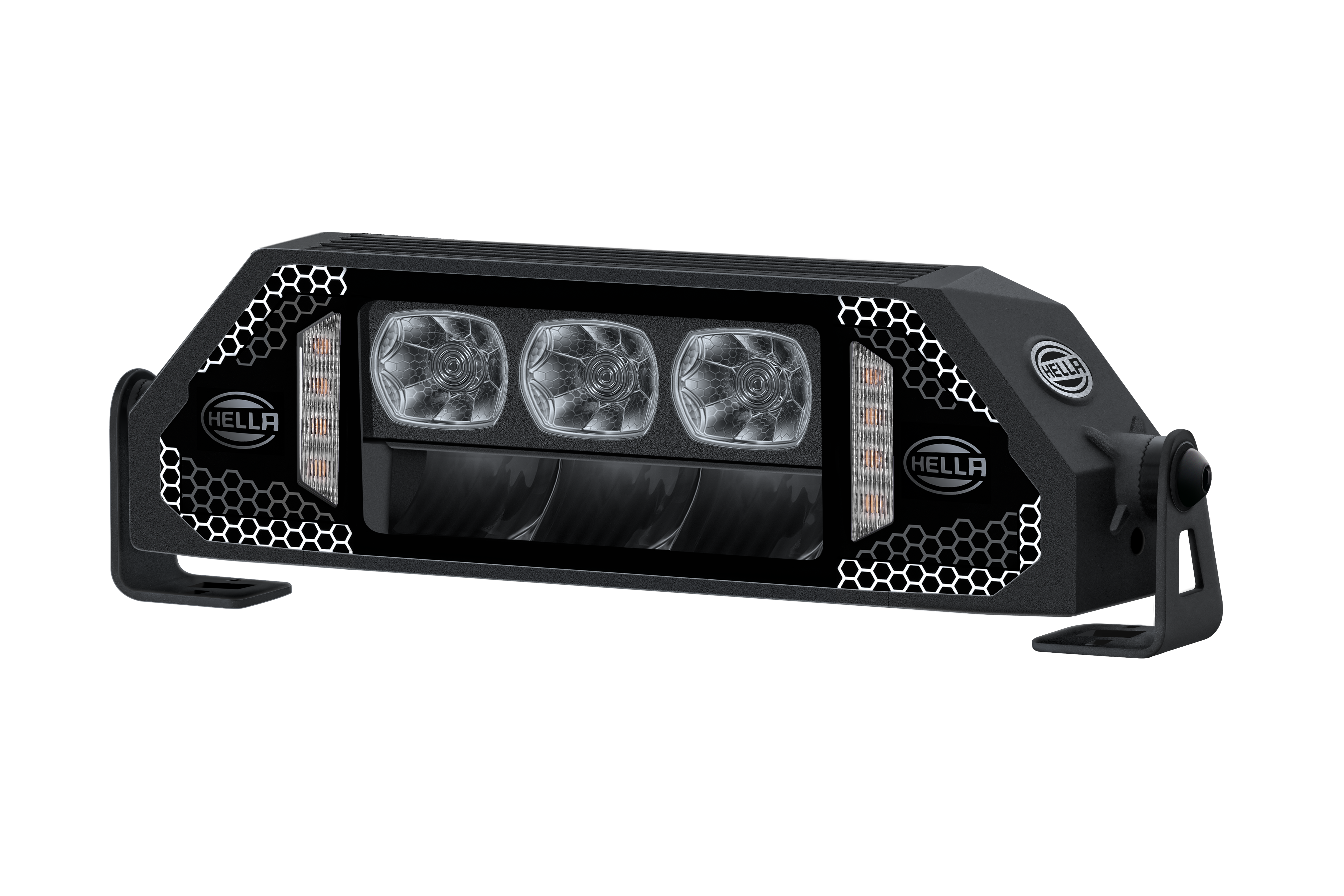

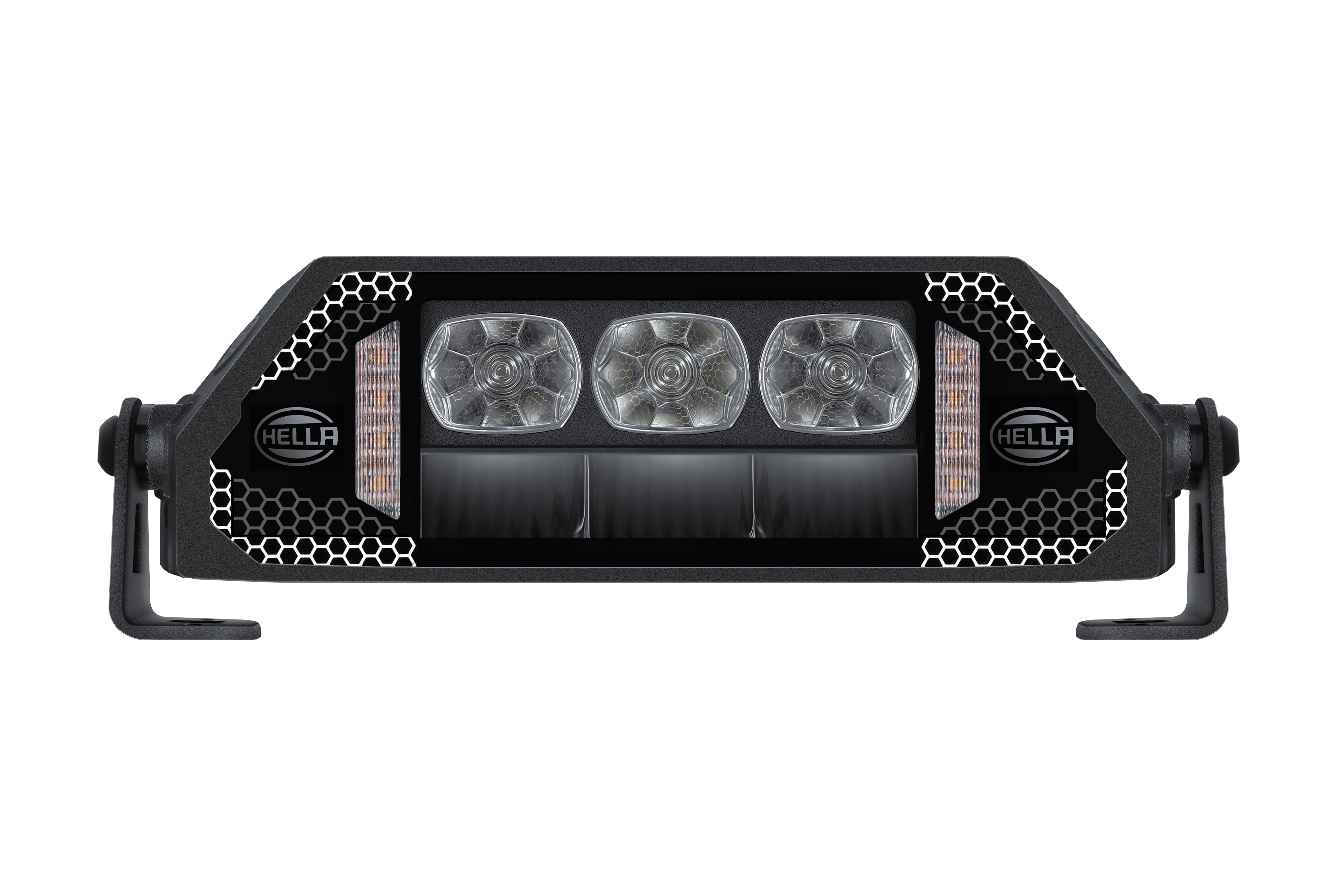

DYNARAY Double Row, 10", Spot, Flasher
- 1FF 359 100-041
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 1100 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 30
- Rated Power 69,6 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
265 mm
Depth
75 mm
Overall Height
95 mm
Number of LEDs
32
Number of light functions
3
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
3300 lm
Luminous in boost mode
2100 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
352 m
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
3300 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
463 m
Weight
1474 g

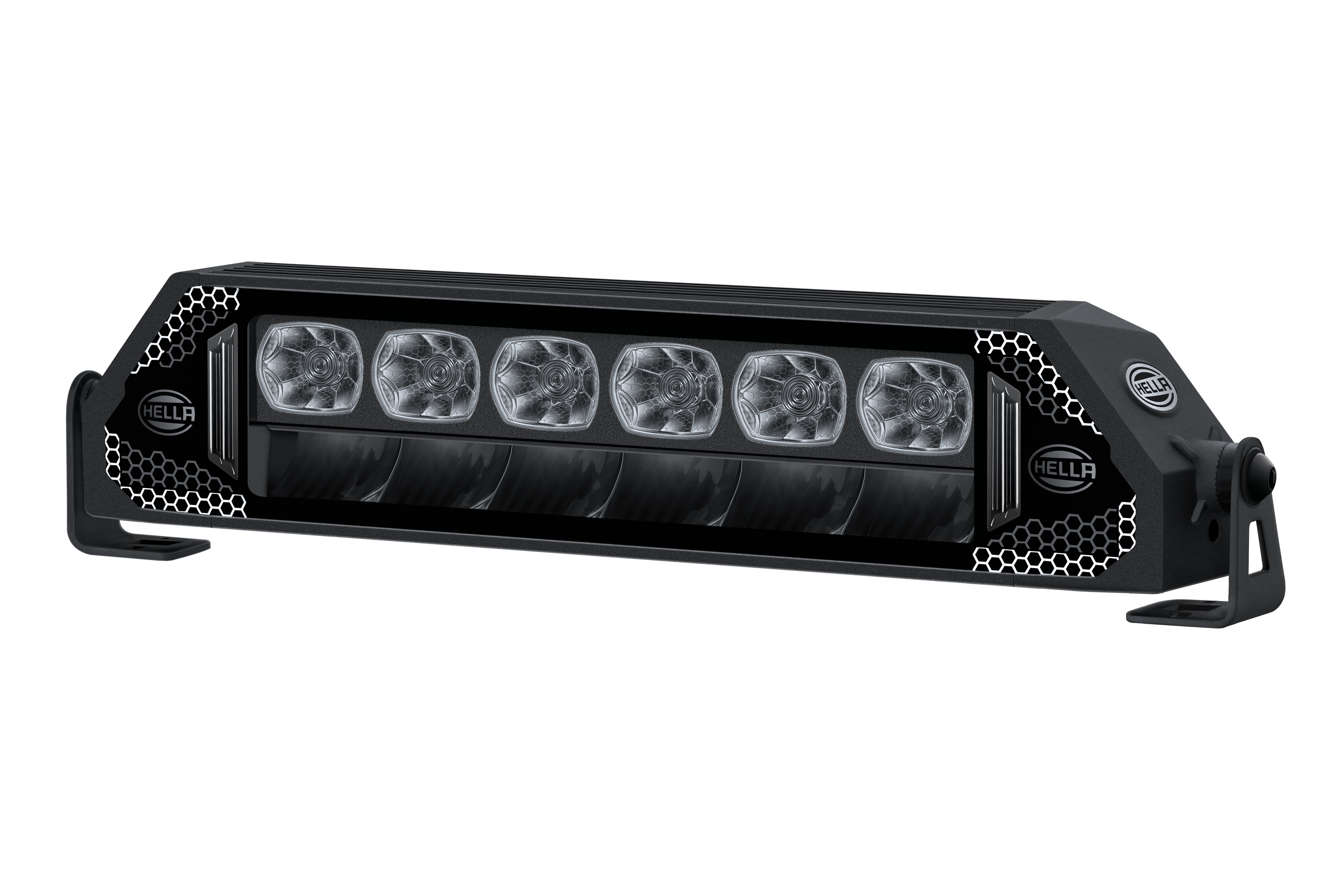

DYNARAY Double Row, 15", Spot
- 1FJ 359 100-121
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 2110 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 95 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
386 mm
Depth
75 mm
Overall Height
90 mm
Number of LEDs
42
Number of light functions
2
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
6600 lm
Luminous in boost mode
3850 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
6600 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
582 m
Weight
2045 g

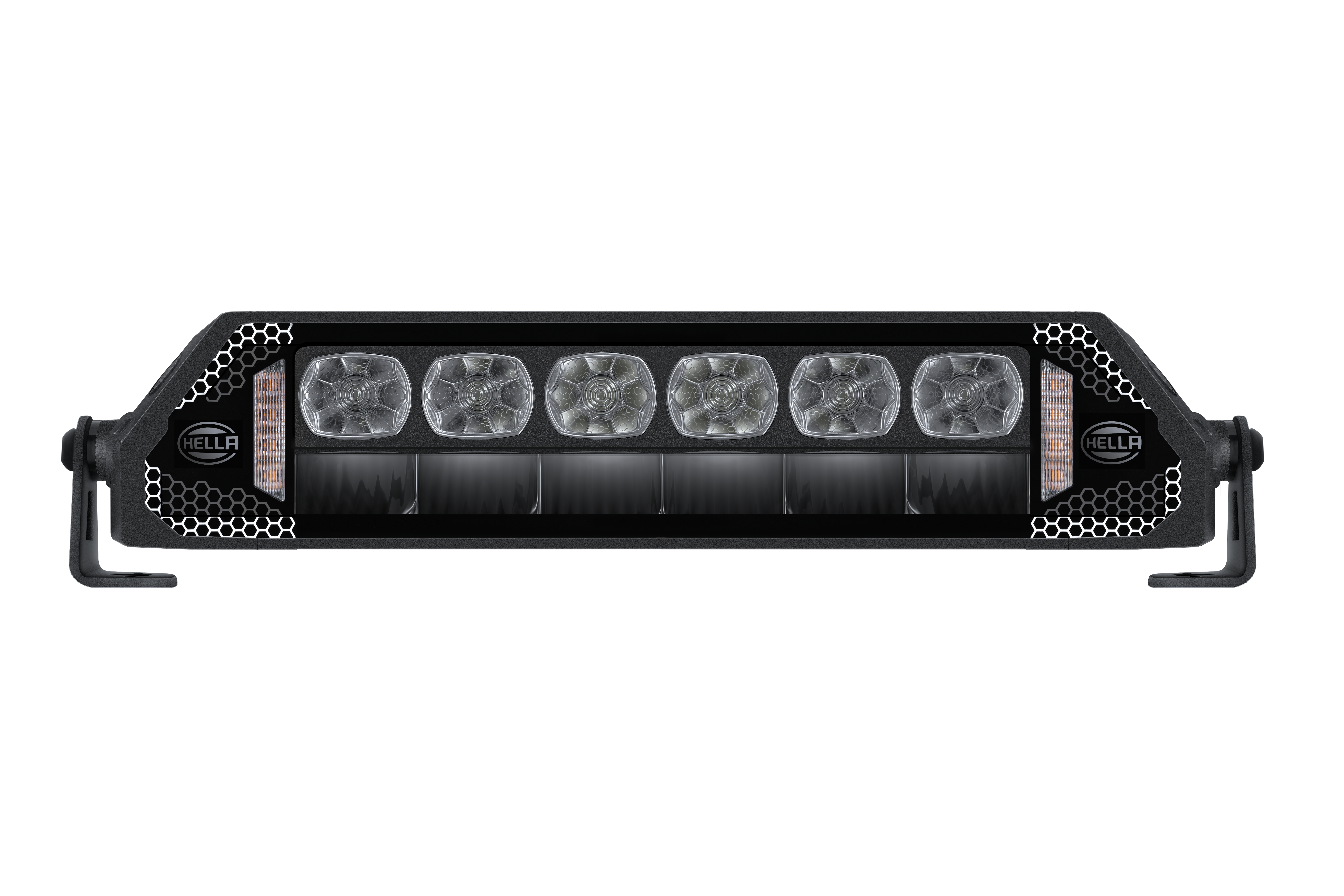

DYNARAY Double Row, 15", Spot, Flasher
- 1FJ 359 100-131
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 2110 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 114 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
386 mm
Depth
75 mm
Overall Height
90 mm
Number of LEDs
50
Number of light functions
3
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
6600 lm
Luminous in boost mode
3850 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
6600 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
582 m
Weight
2045 g

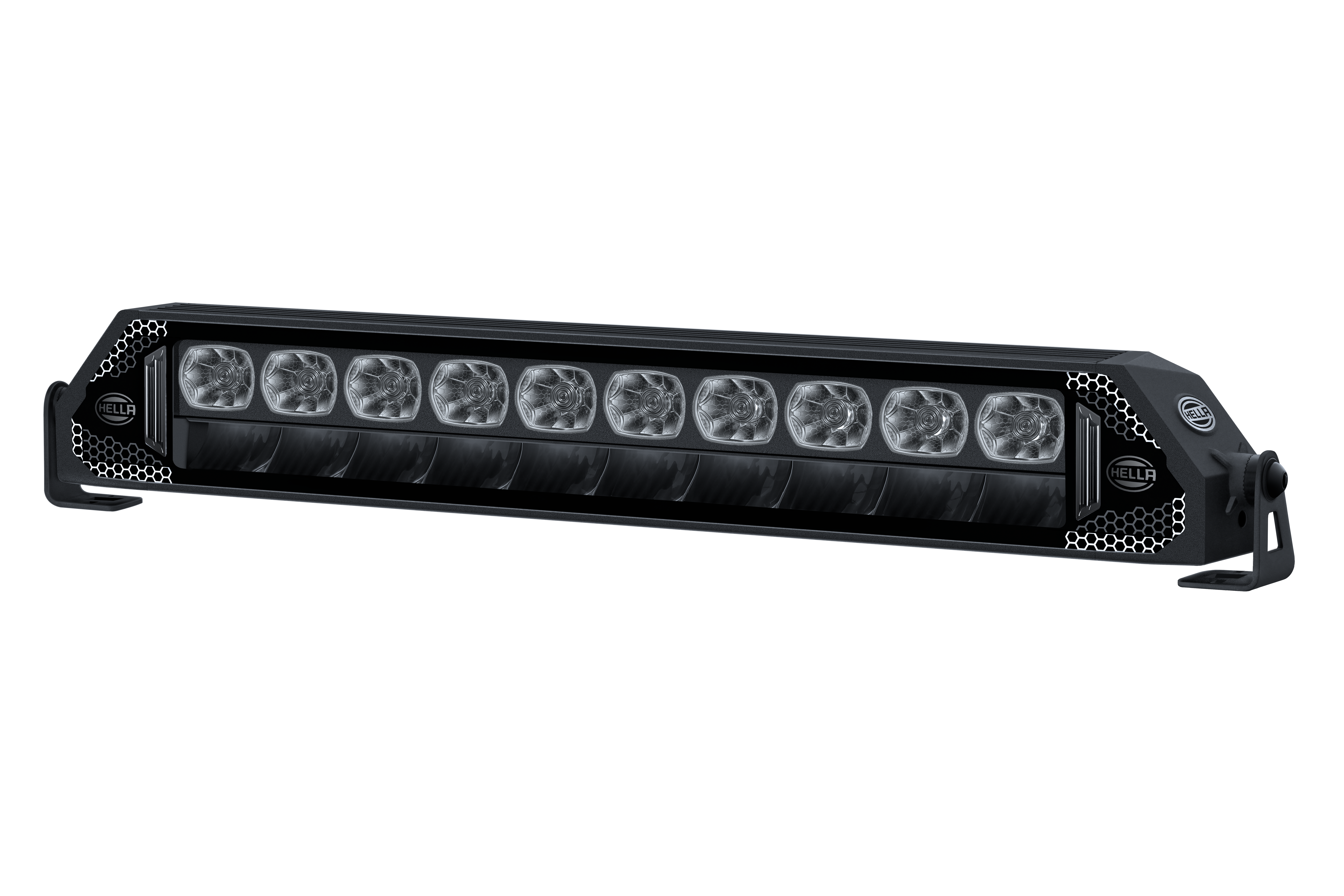

DYNARAY Double Row, 21,5", Spot
- 1FJ 359 100-221
- Light Function with high beam (LED) , with position light (LED) , High-boost
- Luminous Flux 2000 lm
- fulfils ECE standard R10 , R148 , R149
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 149,3 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
547 mm
Depth
75 mm
Overall Height
95 mm
Number of LEDs
66
Number of light functions
2
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
11000 lm
Luminous in boost mode
5700 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
442 m
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
11000 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
746 m
Weight
2810 g

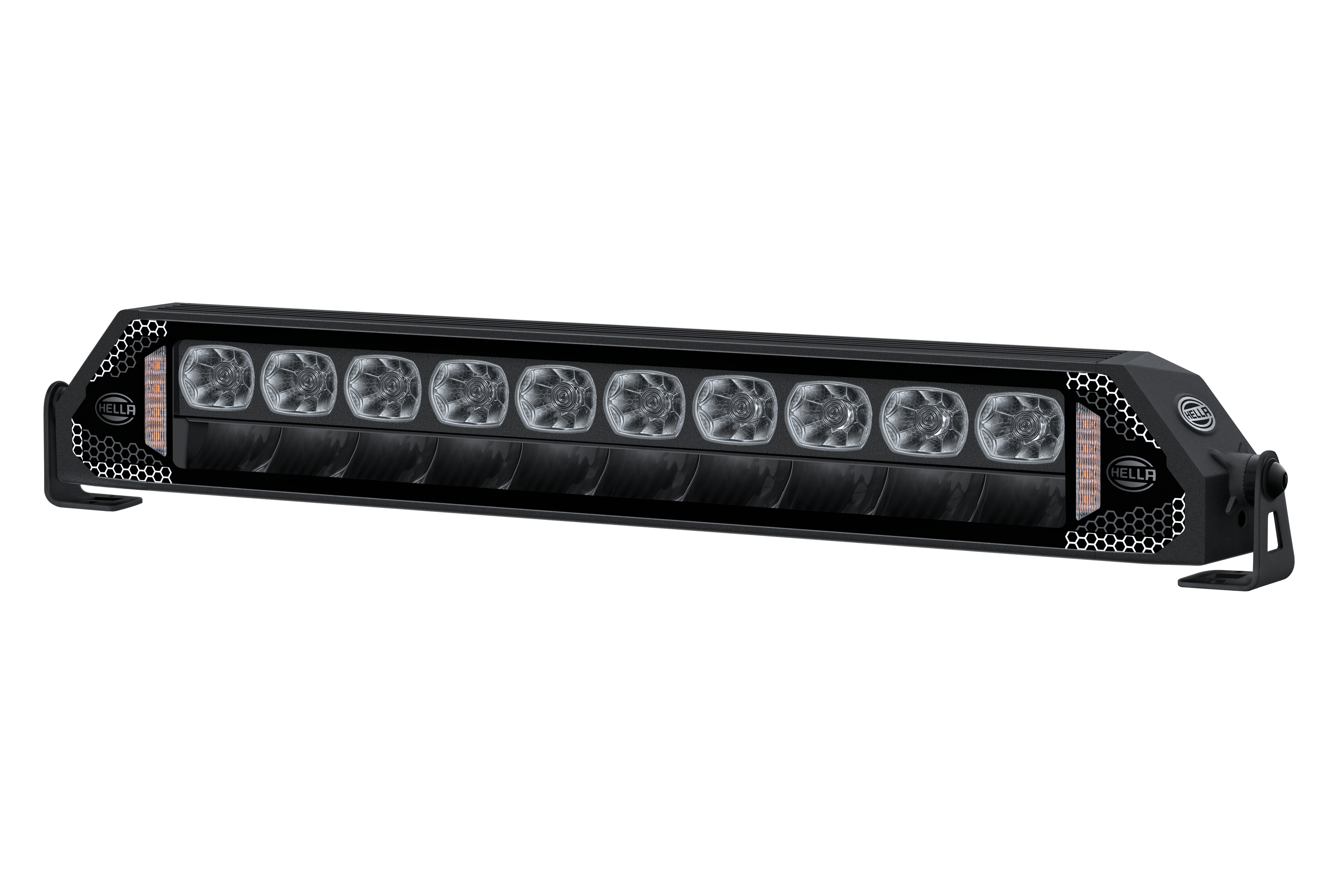

DYNARAY Double Row, 21,5", Spot, Flasher
- 1FJ 359 100-231
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 2000 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 173,3 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
547 mm
Depth
75 mm
Overall Height
95 mm
Number of LEDs
74
Number of light functions
3
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
11000 lm
Luminous in boost mode
5700 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
442 m
fulfils EMC/CISPR standard
CISPR 25 Class 5
Temperature range from
-40 °C
Temperature range to
+65 °C
Theoretical luminous flux in Boost mode
11000 lm
Surface
Anodized
max. light cone range at 1 lux (high boost function)
746 m
Weight
2810 g

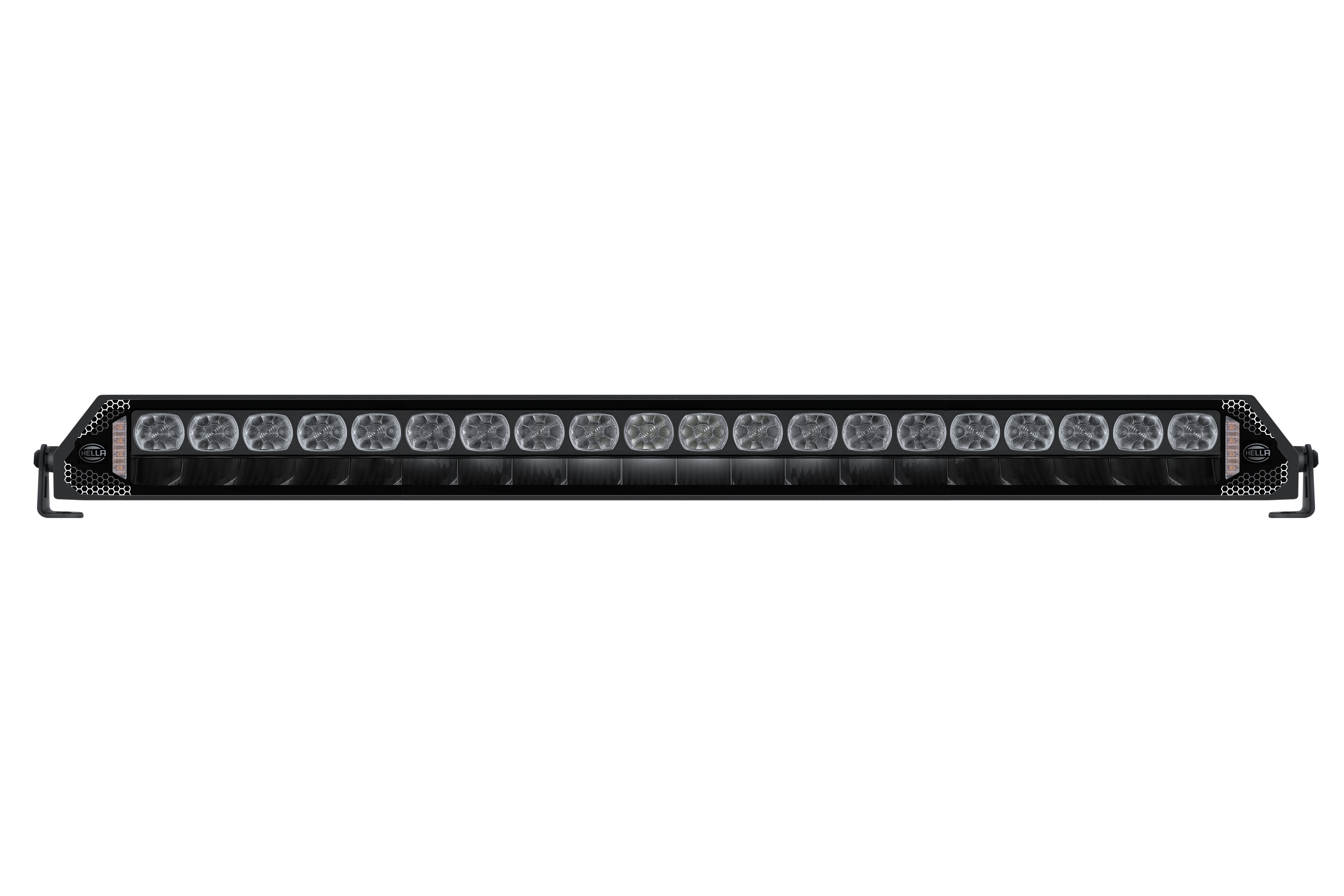

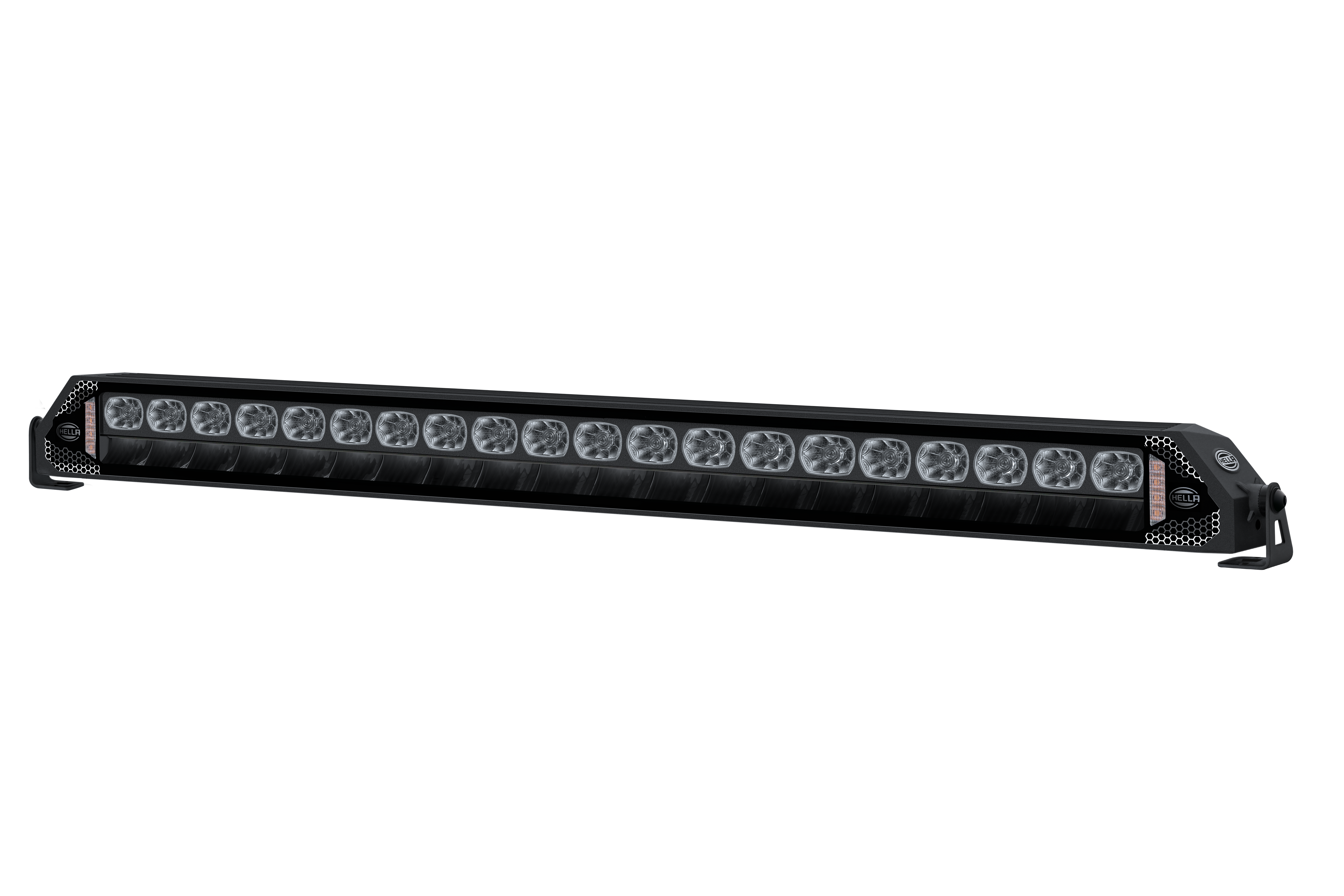

DYNARAY Double Row, 37", Spot, Flasher
- 1FJ 359 100-311
- Light Function with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost
- Luminous Flux 2136 lm
- fulfils ECE standard R10 , R148 , R149 , R65
- Housing material Aluminium
- Voltage 12 V, 24 V
- Reference number 45
- Rated Power 321,1 W
- Mounting Type Bolted
- Fastening Type Screw connection
Lamp Type
LED
Light Design
double line LED
Voltage from
10 V
Voltage to
30 V
Fitting Position
Front
Height
78 mm
Length
950 mm
Depth
75 mm
Overall Height
95 mm
Number of LEDs
134
Number of light functions
3
Light colour
white , yellow (amber)
Cable Length
1500 mm
Colour Temperature
6800 K
Theoretical luminous flux
22000 lm
Luminous in boost mode
11872 lm
Plug Type
DEUTSCH plug
Frame Colour
black
Housing Colour
black
Lens Colour
Crystal clear
Diffusing Lens Type
Clear diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Prot.type (IP Code)
IP69K , IP67
Registration Type
ECE approved
max. light cone range at 1 lux (main light function)
430 m
fulfils EMC/CISPR standard
CISPR 25 Class 3
Temperature range from
-40 °C
Temperature range to
+85 °C
Surface
Anodized
|
DYNARAY Double Row, 10", Spot
|
DYNARAY Double Row, 10", Spot, Flasher
|
DYNARAY Double Row, 15", Spot
|
DYNARAY Double Row, 15", Spot, Flasher
|
DYNARAY Double Row, 21,5", Spot
|
DYNARAY Double Row, 21,5", Spot, Flasher
|
DYNARAY Double Row, 37", Spot, Flasher
|
|
|---|---|---|---|---|---|---|---|
| 1FF 359 100-031 | 1FF 359 100-041 | 1FJ 359 100-121 | 1FJ 359 100-131 | 1FJ 359 100-221 | 1FJ 359 100-231 | 1FJ 359 100-311 | |
| Light Function | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost | with high beam (LED) , with position light (LED) , with flashing warning signal , High-boost |
| Luminous Flux | 1100 lm | 1100 lm | 2110 lm | 2110 lm | 2000 lm | 2000 lm | 2136 lm |
| fulfils ECE standard | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 | R10 , R148 , R149 , R65 | R10 , R148 , R149 , R65 |
| Housing material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Reference number | 30 | 30 | 45 | 45 | 45 | 45 | 45 |
| Rated Power | 45,6 W | 69,6 W | 95 W | 114 W | 149,3 W | 173,3 W | 321,1 W |
| Mounting Type | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted | Bolted |
| Fastening Type | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection | Screw connection |
| Lamp Type | LED | LED | LED | LED | LED | LED | LED |
| Light Design | double line LED | double line LED | double line LED | double line LED | double line LED | double line LED | double line LED |
| Voltage from | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V |
| Voltage to | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Fitting Position | Front | Front | Front | Front | Front | Front | Front |
| Height | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Length | 265 mm | 265 mm | 386 mm | 386 mm | 547 mm | 547 mm | 950 mm |
| Depth | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Overall Height | 95 mm | 95 mm | 90 mm | 90 mm | 95 mm | 95 mm | 95 mm |
| Number of LEDs | 24 | 32 | 42 | 50 | 66 | 74 | 134 |
| Number of light functions | 2 | 3 | 2 | 3 | 2 | 3 | 3 |
| Light colour | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) | white , yellow (amber) |
| Cable Length | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| Colour Temperature | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K | 6800 K |
| Theoretical luminous flux | 3300 lm | 3300 lm | 6600 lm | 6600 lm | 11000 lm | 11000 lm | 22000 lm |
| Luminous in boost mode | 2100 lm | 2100 lm | 3850 lm | 3850 lm | 5700 lm | 5700 lm | 11872 lm |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| Frame Colour | black | black | black | black | black | black | black |
| Housing Colour | black | black | black | black | black | black | black |
| Lens Colour | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear | Crystal clear |
| Diffusing Lens Type | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Prot.type (IP Code) | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 | IP69K , IP67 |
| Registration Type | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved | ECE approved |
| max. light cone range at 1 lux (main light function) | 352 m | 352 m | 430 m | 430 m | 442 m | 442 m | 430 m |
| fulfils EMC/CISPR standard | CISPR 25 Class 5 | CISPR 25 Class 5 | CISPR 25 Class 5 | CISPR 25 Class 5 | CISPR 25 Class 3 | ||
| Temperature range from | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Temperature range to | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +65 °C | +85 °C |
| Theoretical luminous flux in Boost mode | 3300 lm | 3300 lm | 6600 lm | 6600 lm | 11000 lm | 11000 lm | |
| Surface | Anodized | Anodized | Anodized | Anodized | Anodized | Anodized | Anodized |
| max. light cone range at 1 lux (high boost function) | 463 m | 463 m | 582 m | 582 m | 746 m | 746 m | |
| Weight | 1474 g | 1474 g | 2045 g | 2045 g | 2810 g | 2810 g | |
| Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | Search the web | |
|
|
|
|
|
|
|
|
Discover more HELLA products
Keen to see more? Our stories for you
Show all stories
Cookie consent
You accept the necessary cookies by using the website and its functions and by continuing to navigate on it. You can manage the cookie categories and accept additional categories under Cookie consent options . By clicking on the "Accept all" button, all categories of cookies are accepted. You can revoke your consent at any time with effect for the future. Further information can be found in our Privacy policy and our Cookie policy .
