Ultra Beam S-series
An ultra-efficient update: the trailblazing HELLA Ultra Beam S-series redefines efficiency standards. With a power consumption of only 39 watts, the work lamps produce an impressive light output of 4,400 lumens. As a result, the Ultra Beam S-series surpasses its predecessor in lumen-watt performance, saves fuel, lowers costs and it also reduces CO2 emissions.
The S-series is manufactured in Austria on an automated production line and guarantees a consistent level of top quality. With eight high-performance LEDs, a colour temperature of 6,500 Kelvin and a special reflector, it provides uniform, daylight-like illumination of the work area.
The Ultra Beam S-series is equipped with innovative electronics, which provide overvoltage protection, a thermal sensor and a soft start that minimises the load on the vehicle's electrical system when several headlamps are switched on. The die-cast aluminium housing with its large-scale cooling fins ensures efficient heat dissipation and thus guarantees a long service life. Robust, dustproof and waterproof, the LED work lamps can withstand harsh conditions.
An ultra-efficient update: the trailblazing HELLA Ultra Beam S-series redefines efficiency standards. With a power consumption of only 39 watts, the work lamps produce an impressive light output of 4,400 lumens. As a result, the Ultra Beam S-series surpasses its predecessor in lumen-watt performance, saves fuel, lowers costs and it also reduces CO2 emissions.
The S-series is manufactured in Austria on an automated production line and guarantees a consistent level of top quality. With eight high-performance LEDs, a colour temperature of 6,500 Kelvin and a special reflector, it provides uniform, daylight-like illumination of the work area.
The Ultra Beam S-series is equipped with innovative electronics, which provide overvoltage protection, a thermal sensor and a soft start that minimises the load on the vehicle's electrical system when several headlamps are switched on. The die-cast aluminium housing with its large-scale cooling fins ensures efficient heat dissipation and thus guarantees a long service life. Robust, dustproof and waterproof, the LED work lamps can withstand harsh conditions.

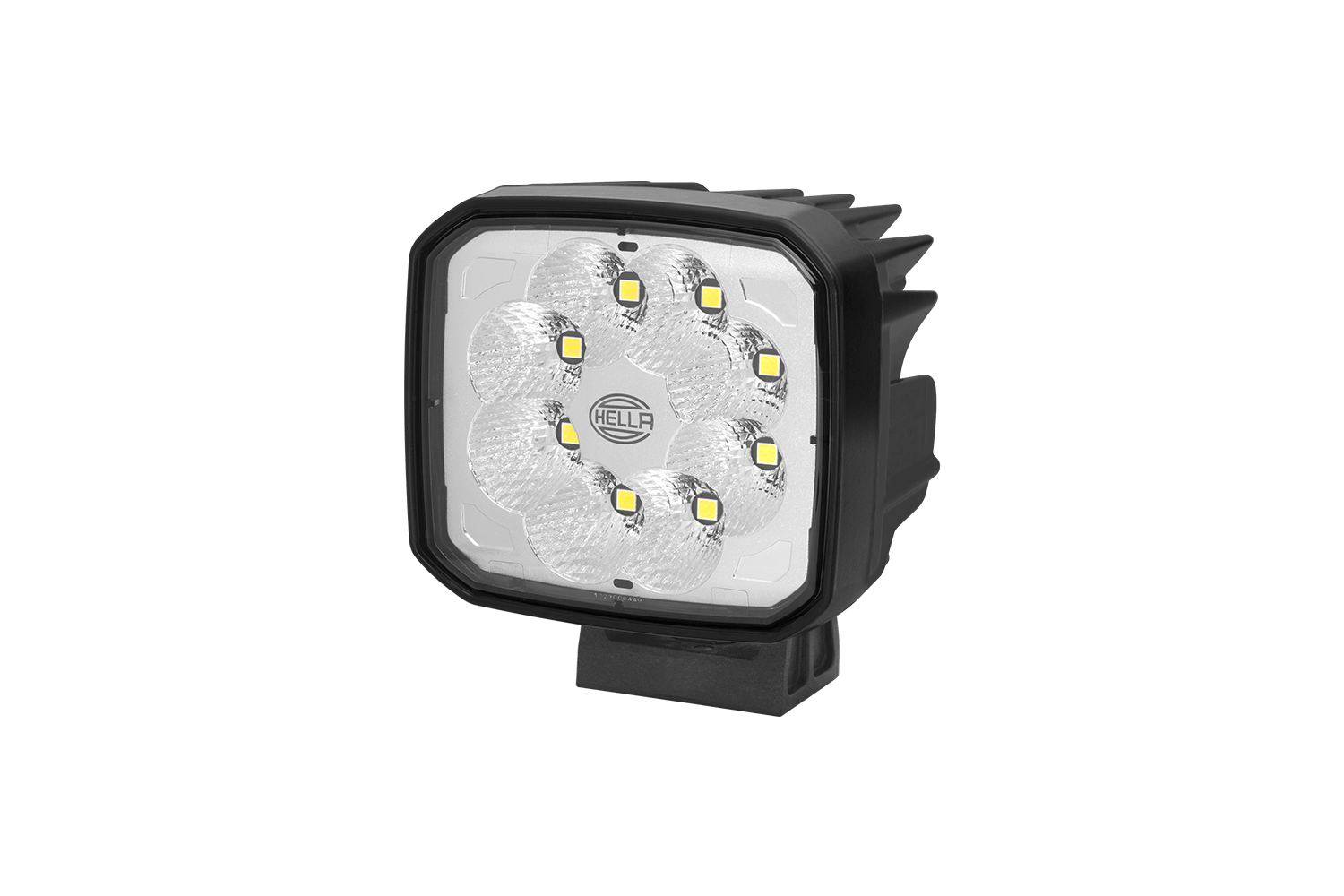

The Ultra Beam S-series work lamp with long-range illumination.

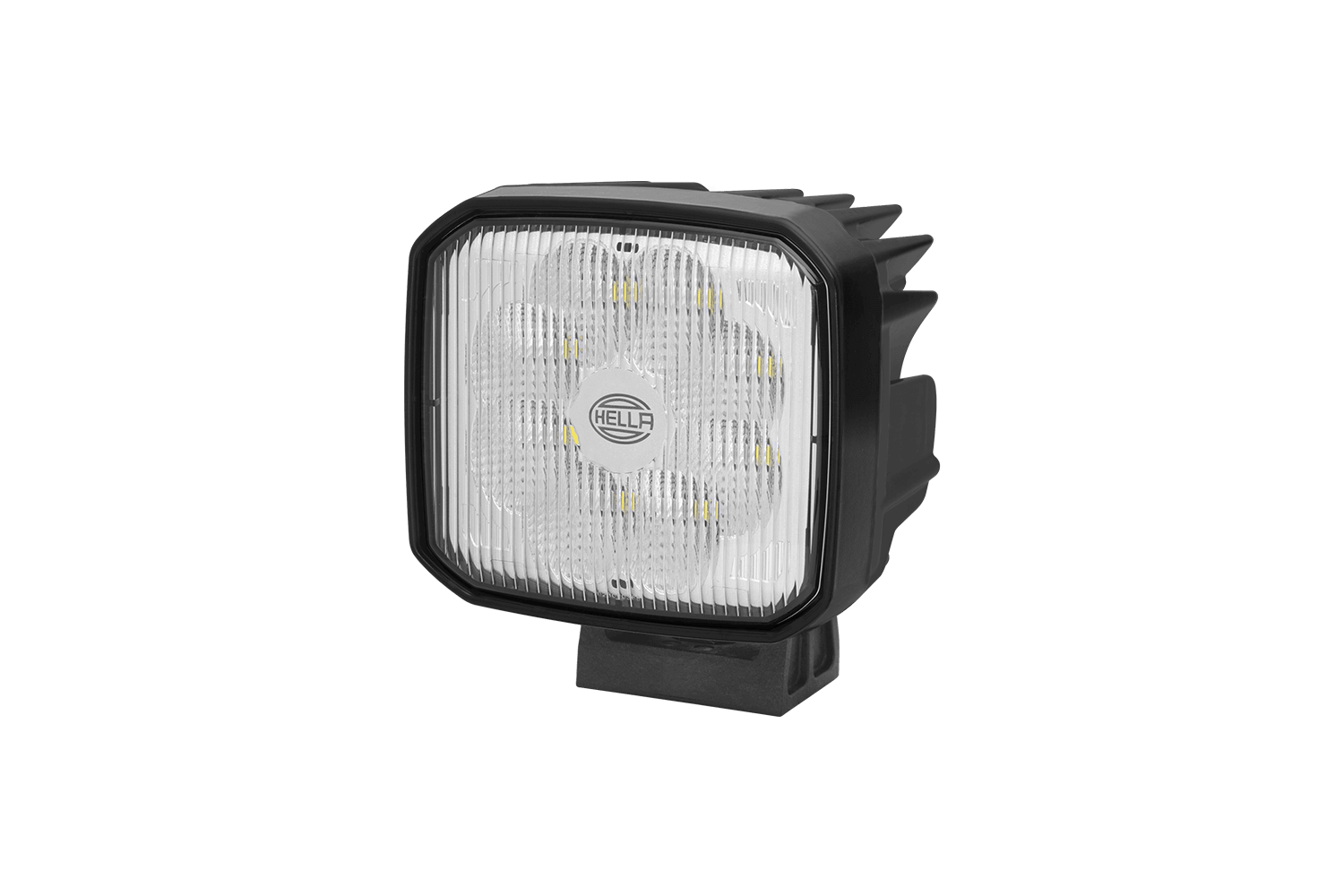

The Ultra Beam S-series work lamp with close-range illumination.

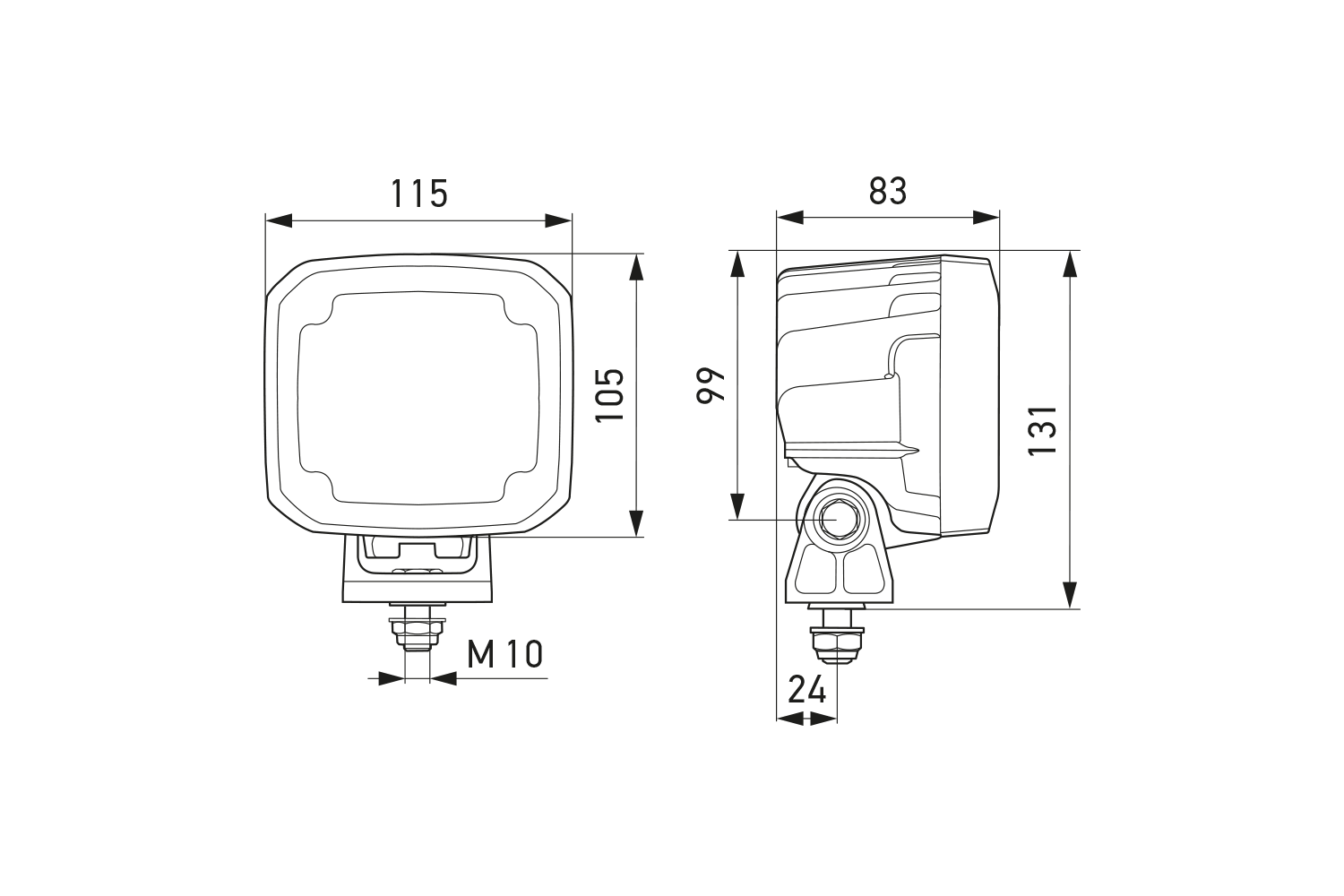

Dimensional sketch of the Ultra Beam S-series.
The long-range illumination of the Ultra Beam S-series
The wide close-range illumination of the Ultra Beam S-series
The Ultra Beam S-series work lamp with long-range illumination.
Technical Data
| Operating voltage | Multi-voltage (9 – 32 V) |
| Rated voltage | 12 V and 24 V |
| Current consumption | 12 V: Ø 2.95 A (13.2 V) 24 V: Ø 1.39 A (28 V) |
| Power consumption | 12 V: Ø 39 W (13.2 V) 24 V: Ø 37.5 W (28 V) |
| Light output | 4,400 lm |
| Light source | LED |
| Colour temperature | 6,500 K |
| Material | Housing: Die-cast aluminium cover lens: plastic |
| Weight | 895 g |
| Temperature range | -40 °C to +85 °C (overheating protection) |
| Protection class | IP 6K9K, IP 6K8 |
| Type approval | ECE R10 |
| EMC protection | 12 V: CISPR 25 Class 5 24 V: CISPR 25 Class 5 |
| Salt spray resistance | 720 h as per DIN EN ISO 9227 |
| Mounting | Upright and pendant |
| Connection | DEUTSCH DT connector, 2-pin |
| Manufactured in | Austria |
Program Overview
| Illumination | Part number |
|---|---|
| Close-range illumination | 1GA 995 706-001 |
| Long-range illumination | 1GA 995 706-011 |
