BM10 – reverse warning alarm | Vast voltage range
BM10 – reverse warning alarm | Vast voltage range
Reliable warning solution for safe manoeuvring in noisy environments: The reverse warning alarm impresses with its vast voltage compatibility, rugged design and simple installation – ideal for construction machinery, commercial vehicles or industrial applications.
- Vast operating voltage range from 12 V to 48 V
- Electronics insulated with epoxy resin to protect against dust and vibrations
- Featuring integrated bracket for universal installation
- Screw contact (suitable for forked and ring cable lug)
Essential companions
Horns are pivotal for road safety – not just mandatory, but a crucial factor when it counts. Every second counts in critical situations – that's why our powerful horns with their clear, penetrating sound make sure that you can reliably draw attention to yourself. Rely on maximum operational reliability and quality when it really matters.
Technical Sheet

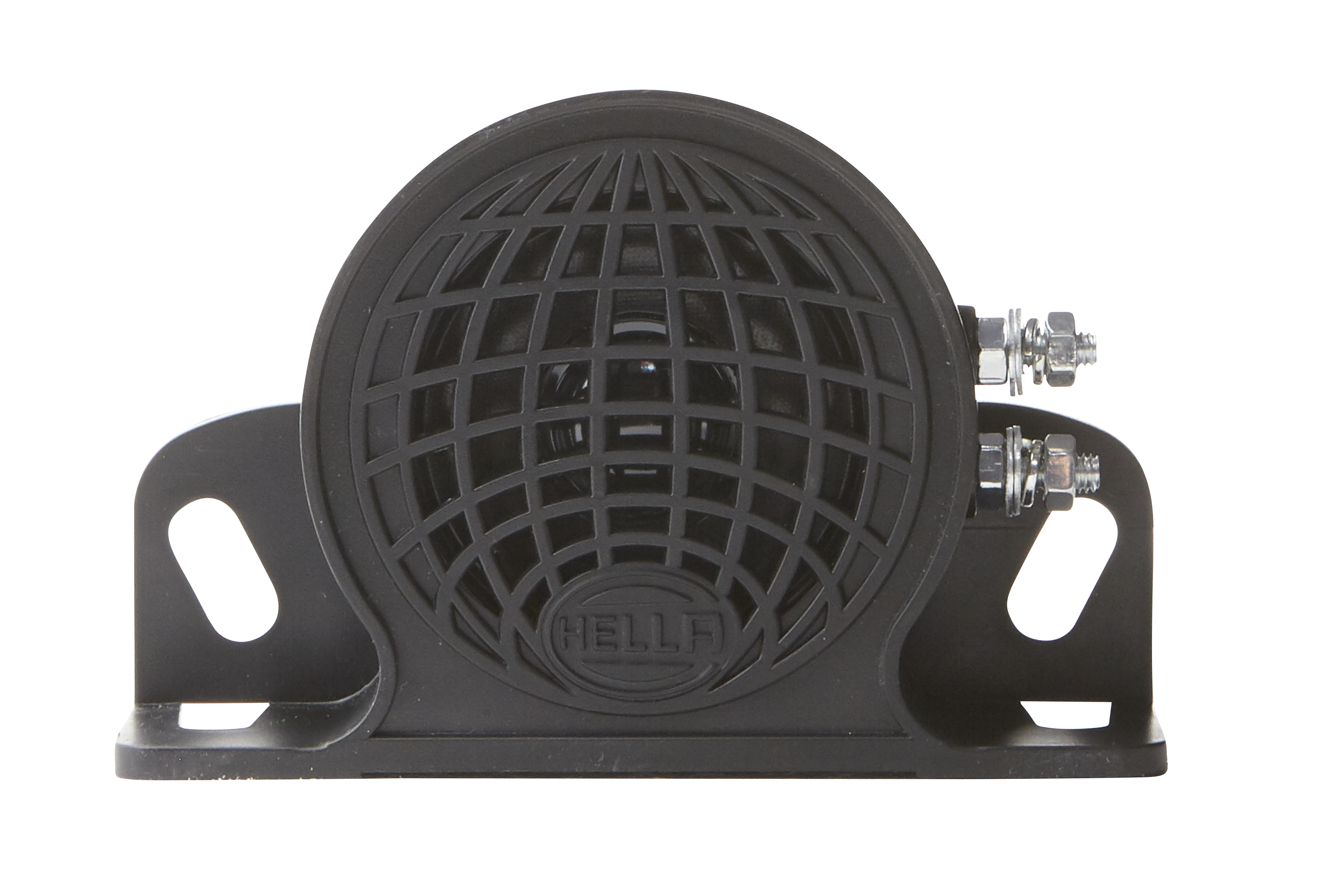

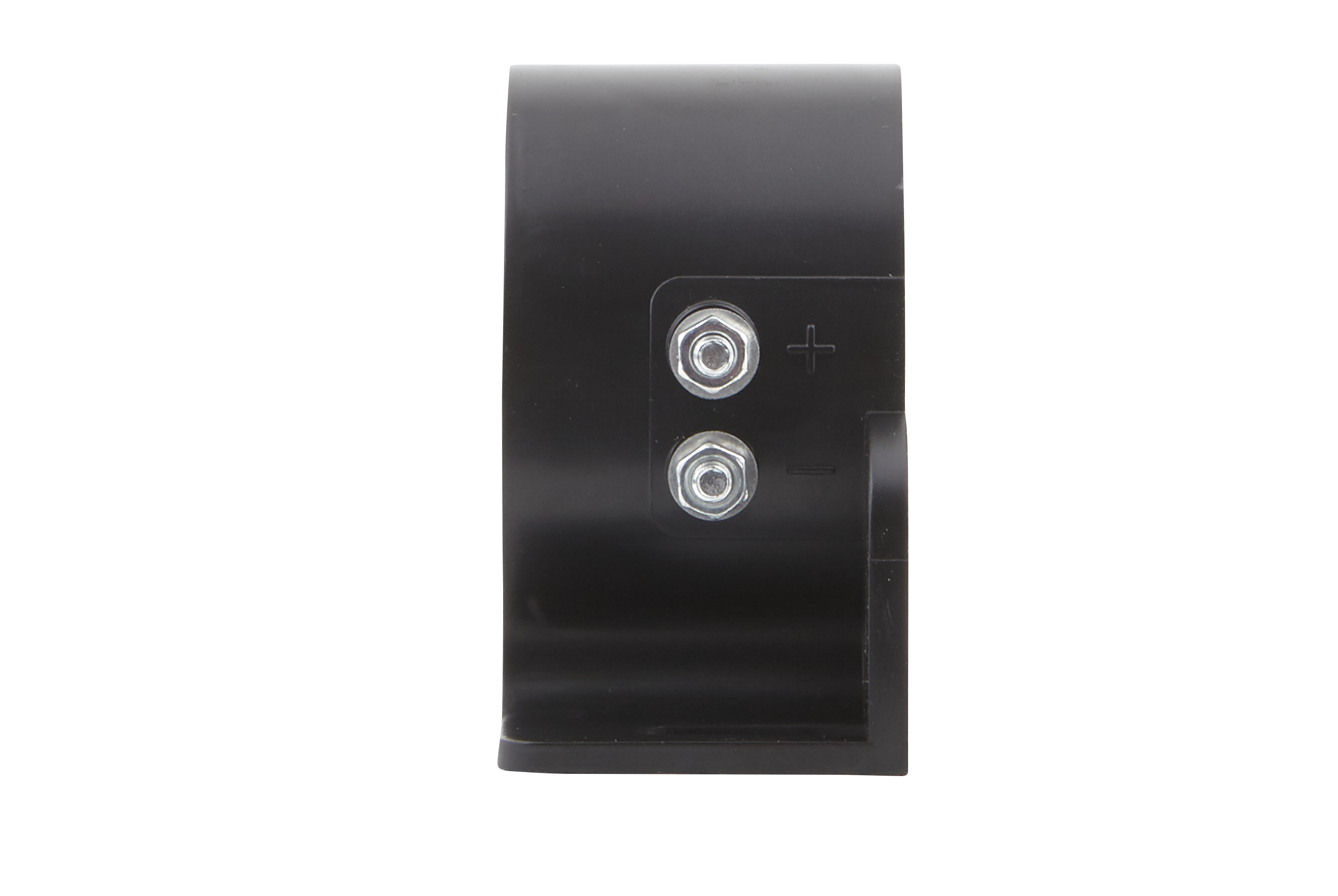

BM10 Back-up Alarm
- 3SL 009 148-141
- Voltage from 12 V
- Voltage to 48 V
- Power consumption 12 W
- Sound Level 110 dB(A)
- Charging Rate 0,6 A
- Prot.type (IP Code) IP67
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal Loud Tone
BM10 Back-up Alarm, wiring harness
- 3SL 009 148-151
- Voltage from 12 V
- Voltage to 48 V
- Power consumption 12 W
- Sound Level 110 dB(A)
- Charging Rate 0,6 A
- Prot.type (IP Code) IP67
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal Loud Tone

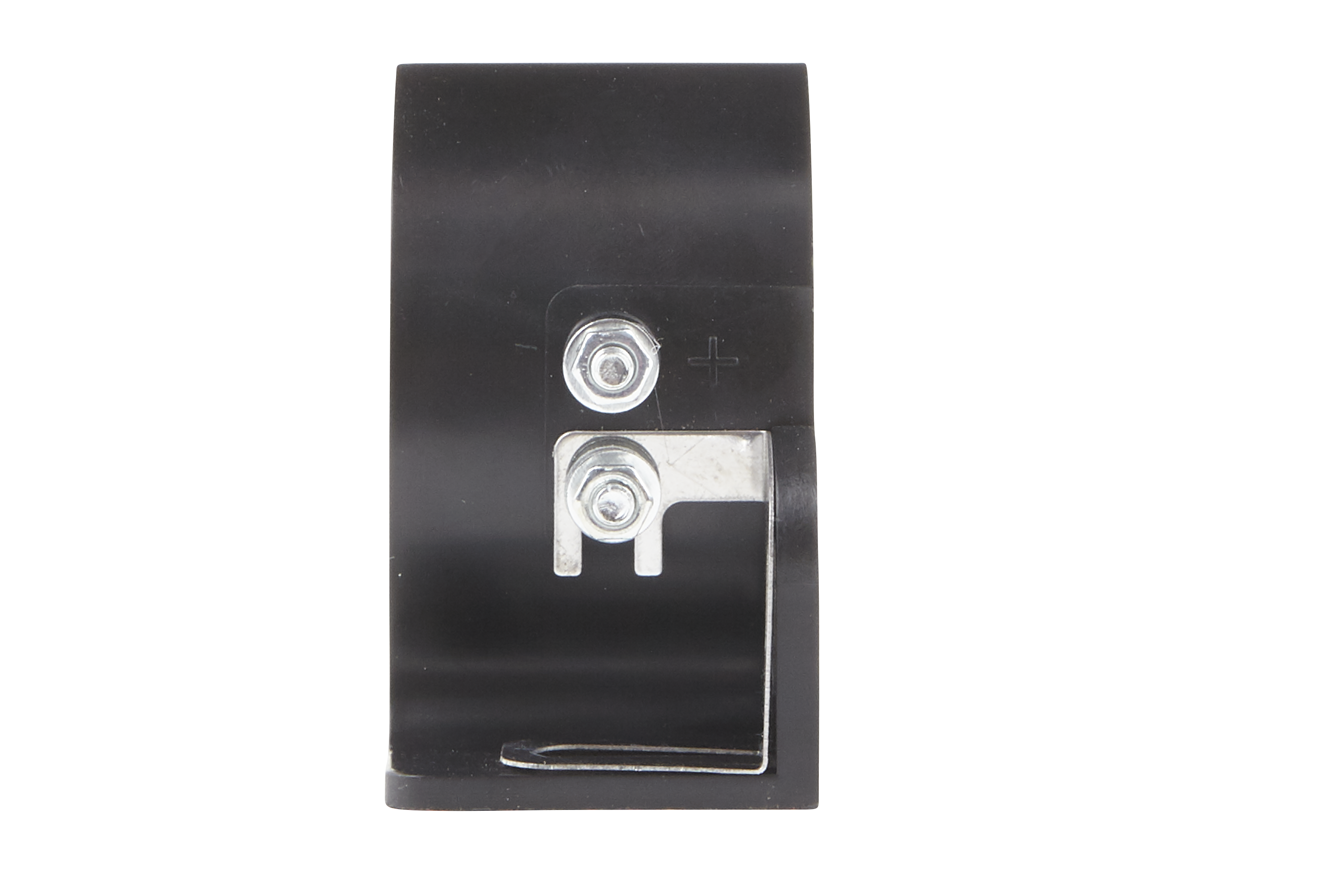

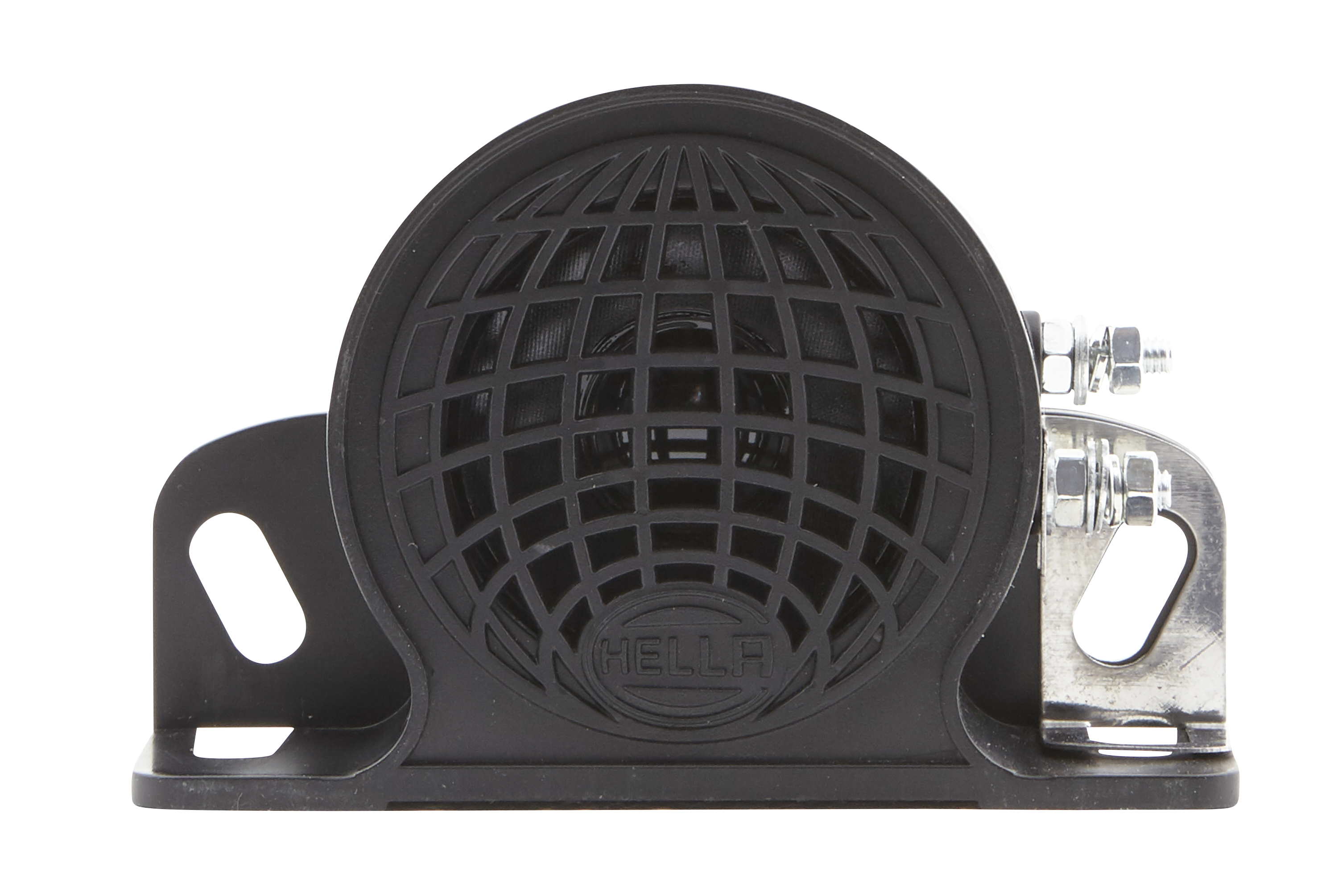

BM10 Back-up Alarm, ground plate
- 3SL 009 148-161
- Voltage from 12 V
- Voltage to 48 V
- Power consumption 12 W
- Sound Level 110 dB(A)
- Charging Rate 0,6 A
- Prot.type (IP Code) IP67
- fulfils ECE standard R28
- Registration Type ECE approved
- Signal Loud Tone
|
BM10 Back-up Alarm
|
BM10 Back-up Alarm, wiring harness
|
BM10 Back-up Alarm, ground plate
|
|
|---|---|---|---|
| 3SL 009 148-141 | 3SL 009 148-151 | 3SL 009 148-161 | |
| Voltage from | 12 V | 12 V | 12 V |
| Voltage to | 48 V | 48 V | 48 V |
| Power consumption | 12 W | 12 W | 12 W |
| Sound Level | 110 dB(A) | 110 dB(A) | 110 dB(A) |
| Charging Rate | 0,6 A | 0,6 A | 0,6 A |
| Prot.type (IP Code) | IP67 | IP67 | IP67 |
| fulfils ECE standard | R28 | R28 | R28 |
| Registration Type | ECE approved | ECE approved | ECE approved |
| Signal | Loud Tone | Loud Tone | Loud Tone |
| Housing Colour | black | black | black |
| Quantity | 1 | 1 | 1 |
| Cable Length | 200 mm | ||
| Width | 40 mm | 40 mm | 40 mm |
| Height | 67 mm | 67 mm | 67 mm |
| Length | 103 mm | 103 mm | 103 mm |
| Mounting Type | Bolted | Bolted | Bolted |
| Plug Type | Screw Contact | open cable ends | Screw Contact |
| Search the web | Search the web | Search the web | |
|
|
|
|
Downloads
2248-Product Info Sheet Horns Europe-BM10-EN
