DEUTSCH DT plug connectors
The concept combines high-quality materials with a connecting system characterised by reliability and easy handling. Thanks to these qualities, the range is particularly suited to applications where maximum output is required with a minimum number of disruptions despite tough environmental conditions.
The concept combines high-quality materials with a connecting system characterised by reliability and easy handling. Thanks to these qualities, the range is particularly suited to applications where maximum output is required with a minimum number of disruptions despite tough environmental conditions.

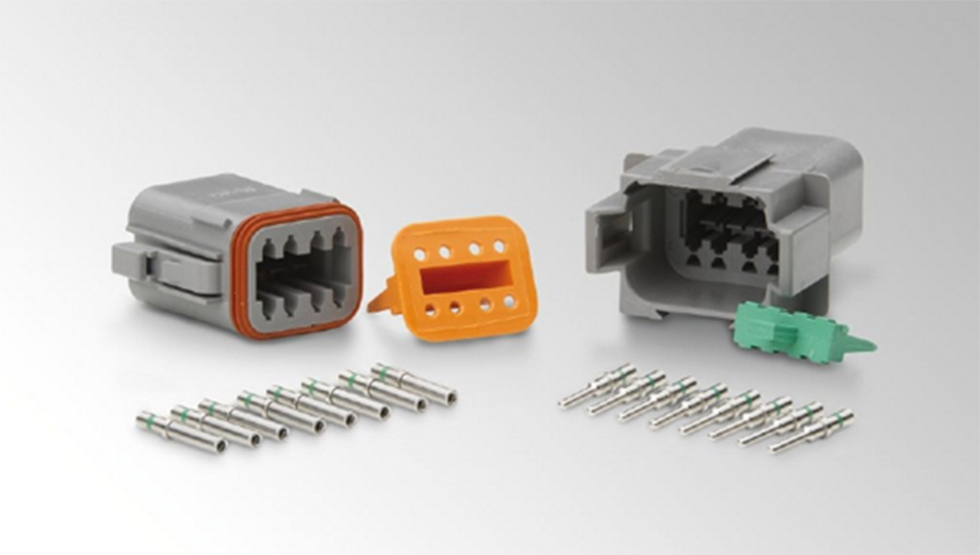

DEUTSCH DT plug connections program overview
DEUTSCH DT plug connections program overview
Technical Data
| Contacts | Nickel alloy |
| Cable cross-section | of 0.5 – 2 mm2 (14 – 20 AWG) |
| Variants | 2-pin |
| Resistance | Highly resistant to impact and vibrations, hardly flammable, protected against corrosion, resistant to most substances used in industry and engine compartments |
| Temperature range | -55 °C to +125 °C |
| Connection system | Integrated click-in mechanism with secondary locking |
Program Overview
| Part number | PU in pieces | Content in pieces | Description |
|---|---|---|---|
| 8JA 201 021-022 | 10 | 10 | DT housing, 2-pin |
| 8JA 201 022-022 | 10 | 10 | DT connector, 2-pin |
| 9NB 201 023-022 | 10 | 10 | DT "wedgelock" for housing, 2-pin |
| 9NB 201 024-022 | 10 | 10 | DT "wedgelock" for connector, 2-pin |
| 8JA 201 021-032 | 10 | 10 | DT housing, 3-pin |
| 8JA 201 022-032 | 10 | 10 | DT connector, 3-pin |
| 9NB 201 023-032 | 10 | 10 | DT "wedgelock" for housing, 3-pin |
| 9NB 201 024-032 | 10 | 10 | DT "wedgelock" for connector, 3-pin |
| 8JA 201 021-042 | 10 | 10 | DT housing, 4-pin |
| 8JA 201 022-042 | 10 | 10 | DT connector, 4-pin |
| 9NB 201 023-042 | 10 | 10 | DT "wedgelock" for housing, 4-pin |
| 9NB 201 024-042 | 10 | 10 | DT "wedgelock" for connector, 4-pin |
| 8JA 201 021-062 | 10 | 10 | DT housing, 6-pin |
| 8JA 201 022-062 | 10 | 10 | DT connector, 6-pin |
| 9NB 201 023-062 | 10 | 10 | DT "wedgelock" for housing, 6-pin |
| 9NB 201 024-062 | 10 | 10 | DT "wedgelock" for connector, 6-pin |
| 8JA 201 021-082 | 10 | 10 | DT housing, 8-pin, coding "A" |
| 8JA 201 022-082 | 10 | 10 | DT connector, 8-pin, coding "A" |
| 9NB 201 023-082 | 10 | 10 | DT "wedgelock" for housing, 8-pin |
| 9NB 201 024-082 | 10 | 10 | DT "wedgelock" for connector, 8-pin |
| 8JA 201 021-122 | 10 | 10 | DT housing, 12-pin, coding "A" |
| 8JA 201 022-122 | 10 | 10 | DT connector, 12-pin, coding "A" |
| 9NB 201 023-122 | 10 | 10 | DT "wedgelock" for housing, 12-pin |
| 9NB 201 024-122 | 10 | 10 | DT "wedgelock" for connector, 12-pin |
| 8KW 201 025-012 | 50 | 50 | Contact sleeve 2 mm2 |
| 8KW 201 025-022 | 50 | 50 | Contact pin 2 mm2 |
| 8KW 201 025-112 | 50 | 50 | Contact sleeve 0.5 – 1.5 mm2 |
| 8KW 201 025-122 | 50 | 50 | Contact pin 0.5 – 1.5 mm2 |
| 9NB 201 026-012 | 50 | 50 | Dummy plug |
